NSN 5940-00-860-8508 MS2721234, MS27212-3-4, 00-860-8508
Product Details | TERMINAL BOARD
5940-00-860-8508 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: MS2721234, MS27212-3-4, 5940-00-860-8508, 00-860-8508, 5940008608508, 008608508
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 APR 1972 | 00-860-8508 | 00404 ( TERMINAL BOARD ) |

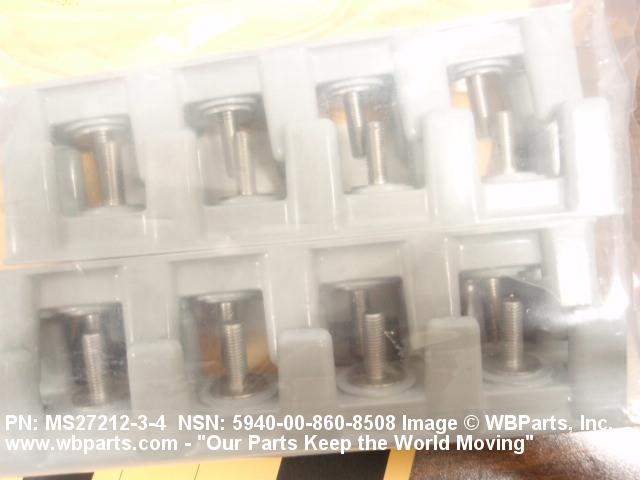

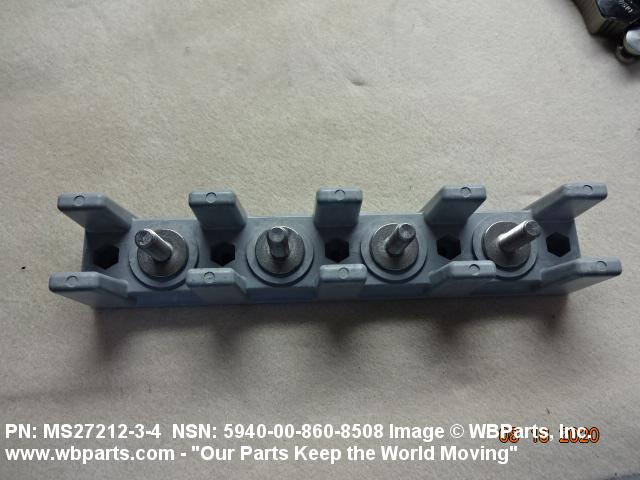

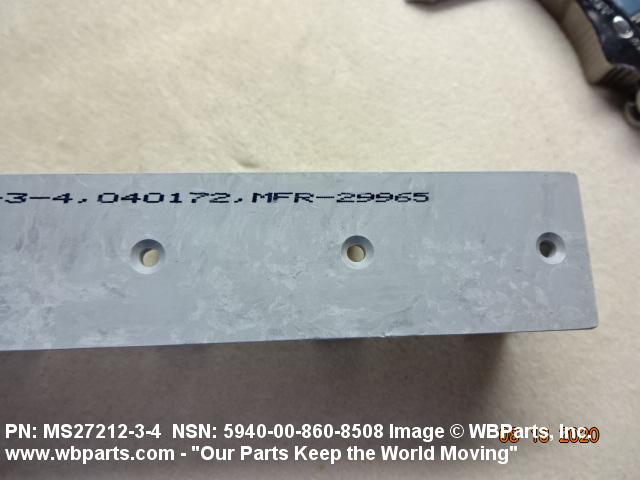

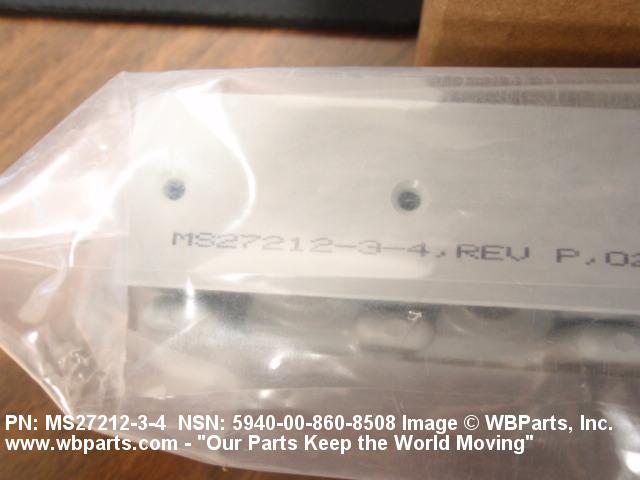

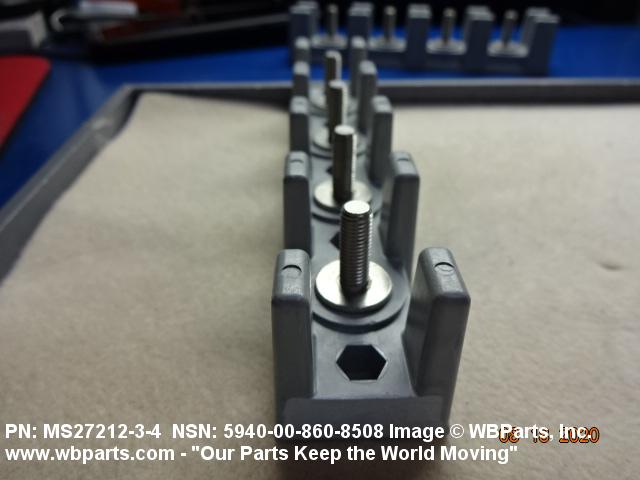

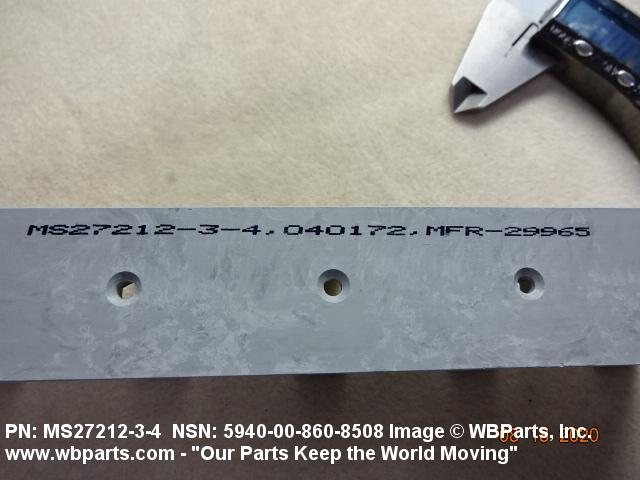

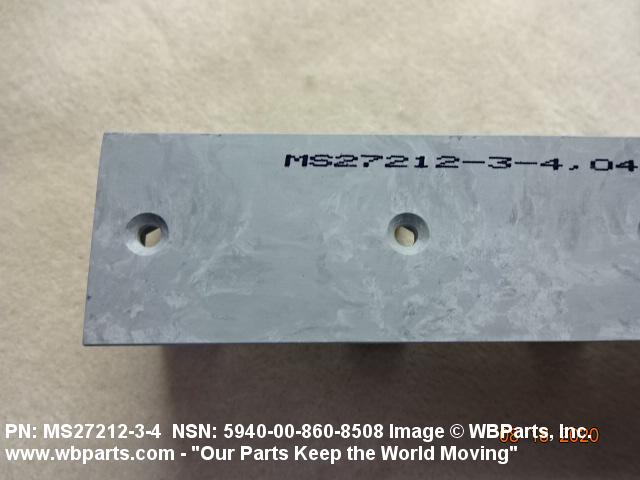

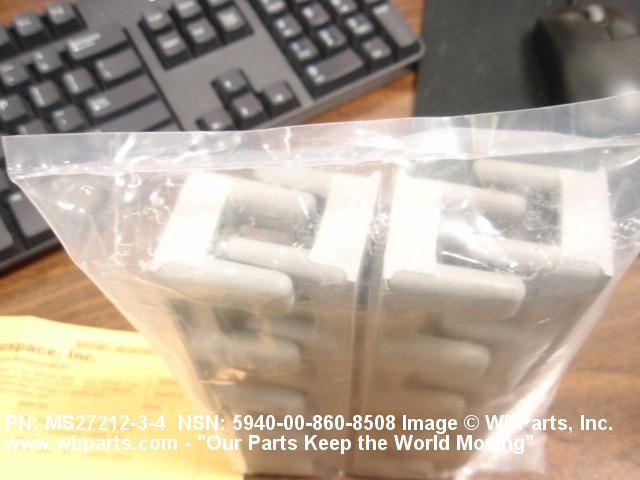

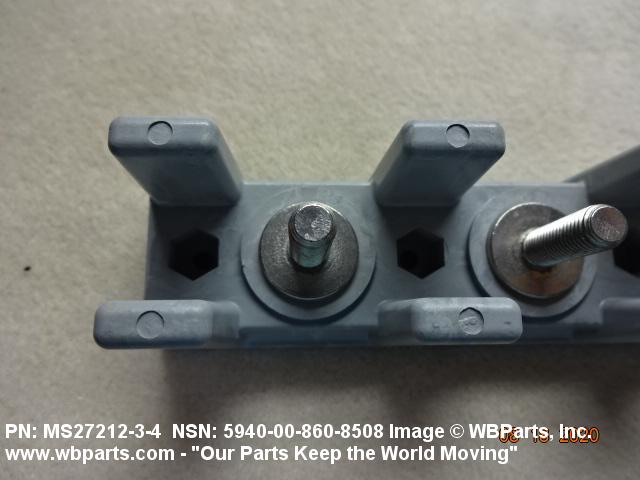

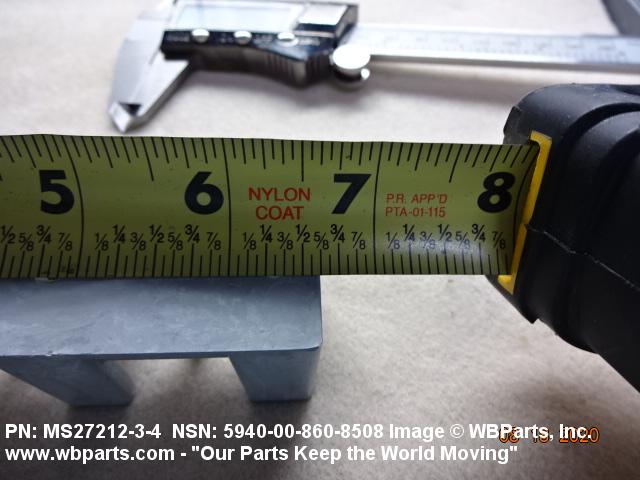

Drawings & Photos | NSN 5940-00-860-8508
Demand History | NSN 5940-00-860-8508
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2721234 | 2025-02-42 | 10 | United States |
| MS2721234 | 2017-01-19 | 10 | US |
| 5940-00-860-8508 | 2014-07-195 | 120 | US |
| MS2721234 | 2012-10-292 | 5 | US |
| MS2721234 | 2011-08-229 | 2 | US |
| MS2721234 | 2011-03-73 | 20 | United Kingdom |
| MS2721234 | 2010-09-258 | 4 | United States |
| MS2721234 | 2010-09-250 | 4 | United States |
| MS2721234 | 2010-08-223 | 4 | United States |
Cross Reference | NSN 5940-00-860-8508
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27212-3-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-860-8508
Technical Data | NSN 5940-00-860-8508
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC DIALLYL PHTHALATE AND GLASS FIBER BOARD STEEL CORROSION RESISTING TERMINALS |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-19833 MIL SPEC ALL MATERIAL RESPONSES BOARD |
| BODY STYLE | A14 BARRIER STANDOFF |
| BOARD OVERALL LENGTH | 7.062 INCHES |

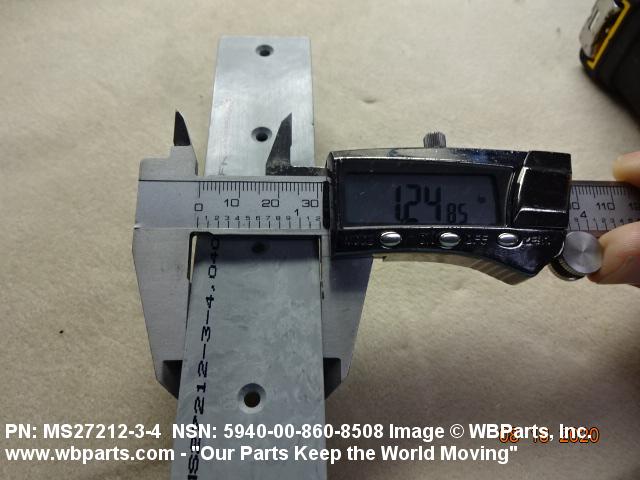

| BOARD OVERALL WIDTH | 1.250 INCHES |

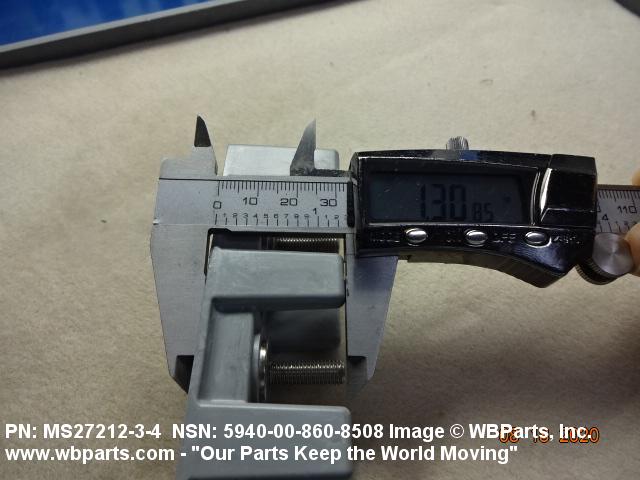

| BOARD OVERALL HEIGHT | 1.321 INCHES |
| BOARD HEIGHT EXCLUDING TERMINALS | 1.297 INCHES |

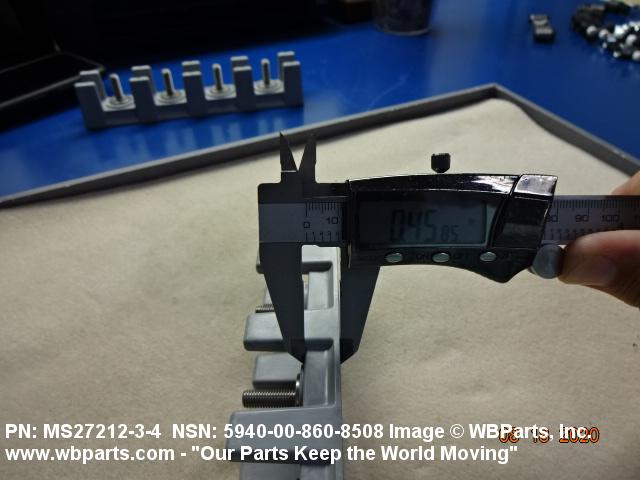

| BASE THICKNESS | 0.455 INCHES |
| TERMINAL PATTERN ARRANGEMENT | SINGLE ROW |
| TERMINAL ROW QUANTITY | 1 |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 1.500 INCHES |
| TERMINAL DESIGN | NONFEEDTHRU |
| NONFEEDTHRU TERMINAL TYPE | 598 SINGLE |
| NONFEEDTHRU TERMINAL QUANTITY | 4 SINGLE |
| BOARD CONSTRUCTION | SOLID CONSTRUCTION |
| MOUNTING FACILITY TYPE AND QUANTITY | 5 UNTHREADED HOLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.500 INCHES |
| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 0.625 INCHES |
| DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY | 0.312 INCHES |
| MOUNTING HOLE DIAMETER | 0.141 INCHES |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27212-3-4 |
Restrictions/Controls & Freight Information | NSN 5940-00-860-8508
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 000000 | NO NMFC FREIGHT DESCRIPTION |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-860-8508
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | DN | TM:RQ-4A |
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | F78 | Northrop Grumman Ryan Aero San Diego, CA 92127-ND |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
