Product Details | TERMINAL BOARD
5940-00-893-7280 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: M816419, M81641-9, TS138, TS-138, ESX6771166, ESX67711-66, ESX67761166, ESX677611-66, 1538C, 3325104013, 332-51-04-013, 817, 5940-00-893-7280, 00-893-7280, 5940008937280, 008937280
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-893-7280 | 00404 ( TERMINAL BOARD ) |

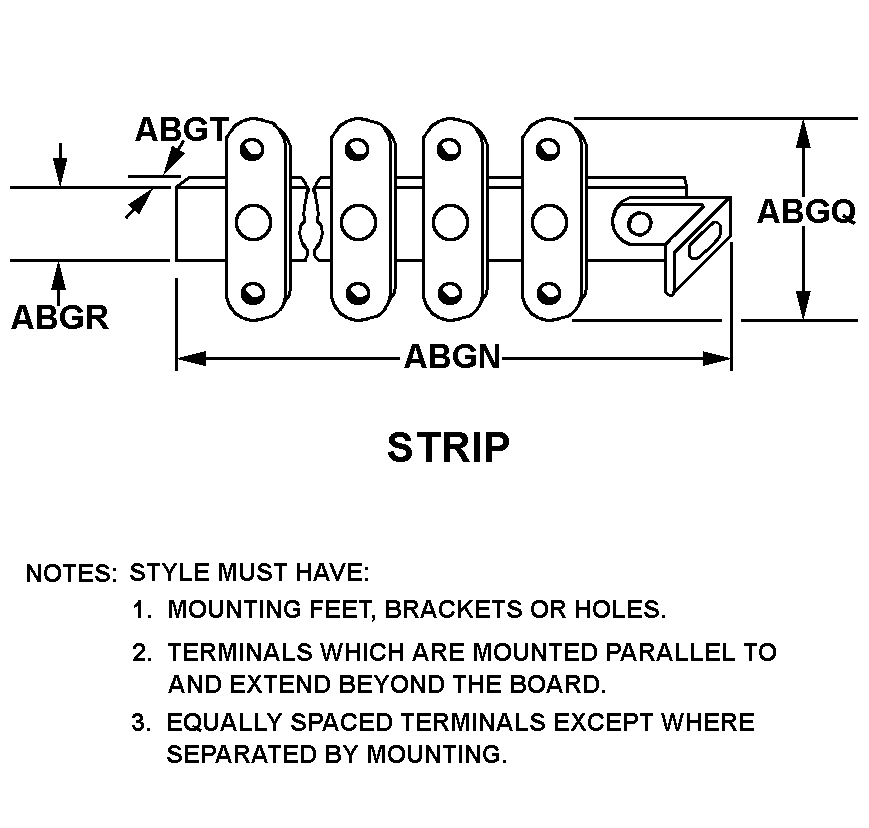

Drawings & Photos | NSN 5940-00-893-7280
Cross Reference | NSN 5940-00-893-7280
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1538C | 71785 | CINCH CONNECTORS, INC. |
| 332-51-04-013 | 71785 | CINCH CONNECTORS, INC. |
| 817 | 83330 | DIALIGHT CORPORATION |
| 817 | 91967 | ABBATRON, LLC DIV ABBATRON LLC |
| ESX67711-66 | 70408 | AT AND T CORP |
| ESX677611-66 | 06KW9 | LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP |
| ESX677611-66 | 3B4M0 | LUCENT TECHNOLOGIES INC CORPORATE HEADQUARTERS |
| ESX677611-66 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| ESX677611-66 | 71785 | CINCH CONNECTORS, INC. |
| M81641-9 | 29181 | WARNER AIRCRAFT ENGINEERING DBA AIRCRAFT ENGINEERING CORPORATI |
| M81641-9 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| TS-138 | 92219 | TATTNALL COUNTY OF DBA TATTNALL COUNTY SHERIFFS OFFICE |
