NSN 5940-00-926-8120 MS27212/6/10, MS27212610, MS27212611

Product Details | TERMINAL BOARD

5940-00-926-8120 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.

Part Alternates: MS27212/6/10, MS27212610, MS27212611, MS27212-6-11, MS27212612, MS27212-6-12, MS27212614, MS27212-6-14, MS27212616, MS27212-6-16, MS2721262, MS27212-6-2, MS2721264, MS27212-6-4, MS2721267, MS27212-6-7, MS2721268, MS27212-6-8, MS2721269, MS27212-6-9, NAS19116, NAS191-16, 302A12008, 3670808640, 367-0808-640, 5940-00-926-8120, 00-926-8120, 5940009268120, 009268120

Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	16 SEP 1966	00-926-8120	00404 ( TERMINAL BOARD )

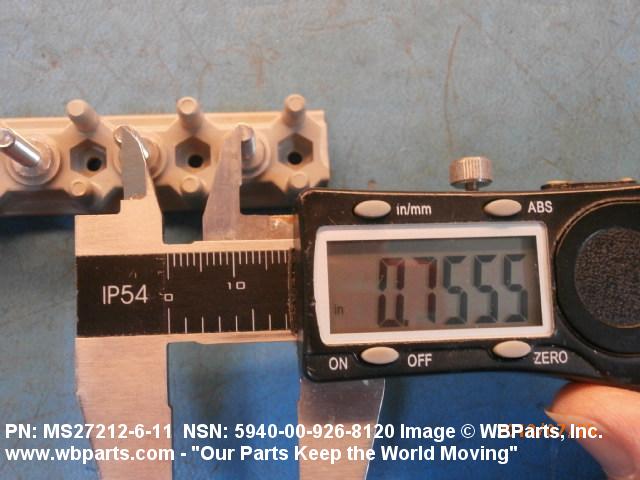

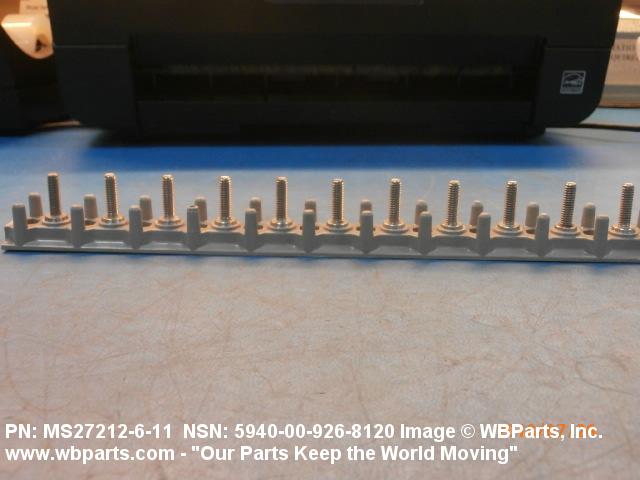

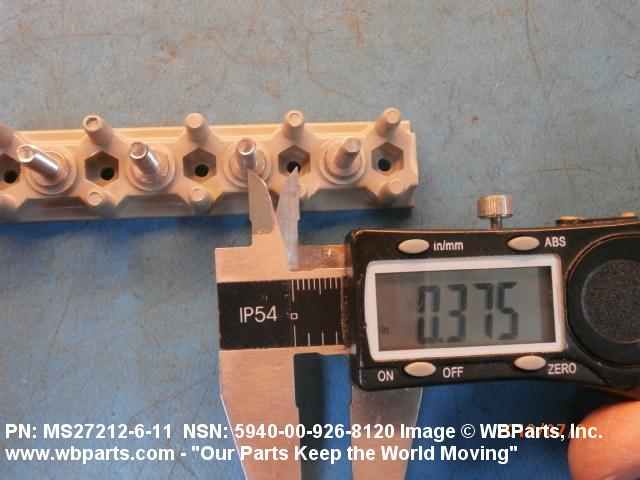

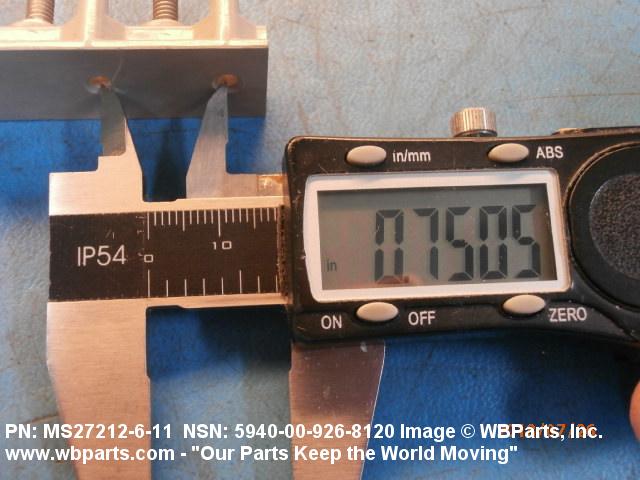

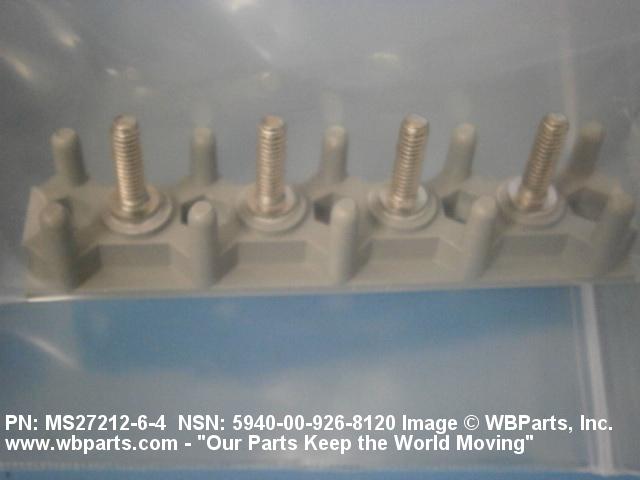

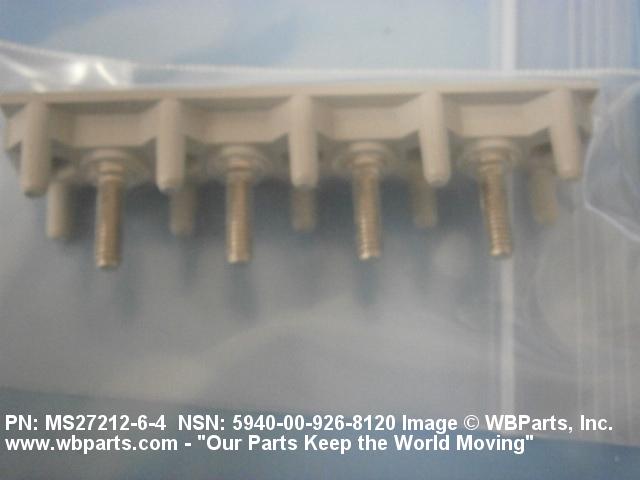

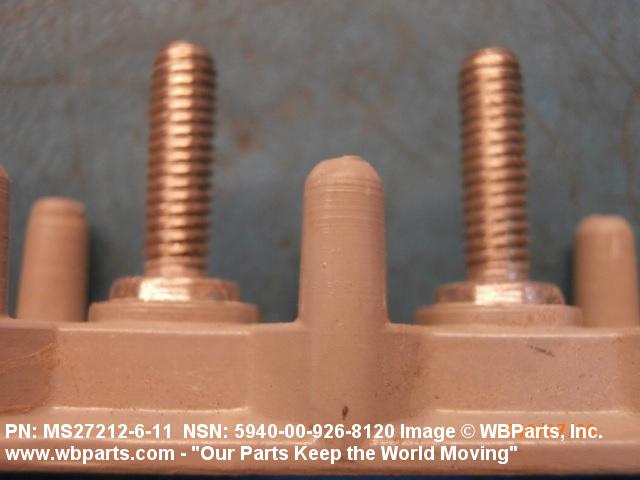

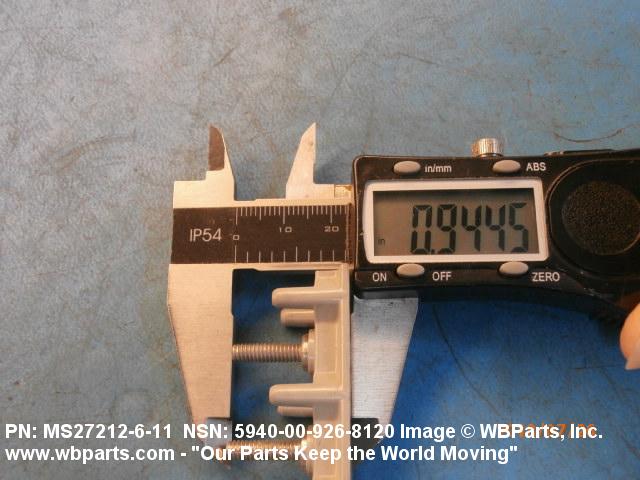

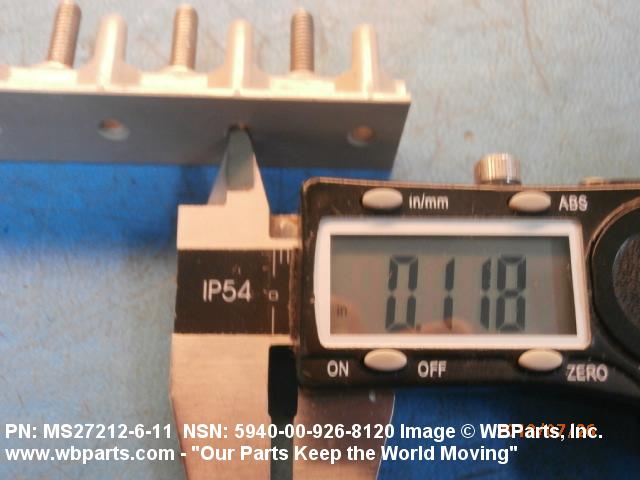

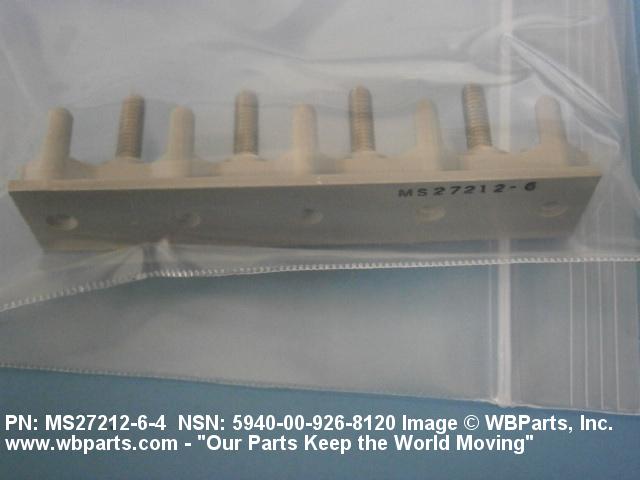

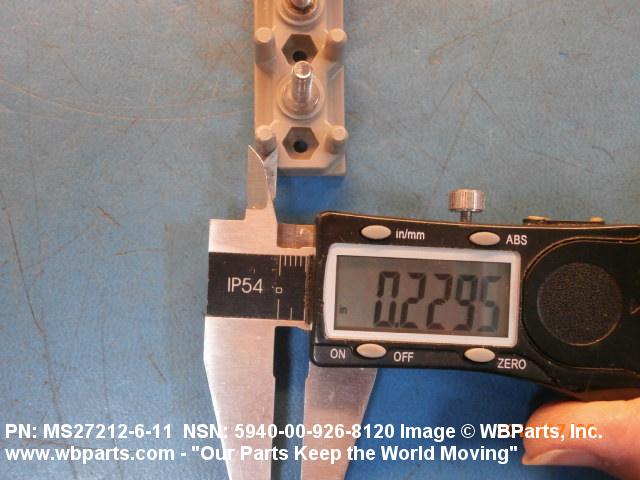

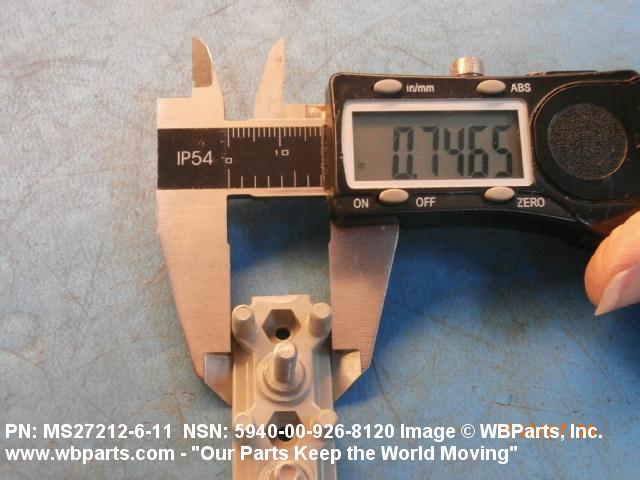

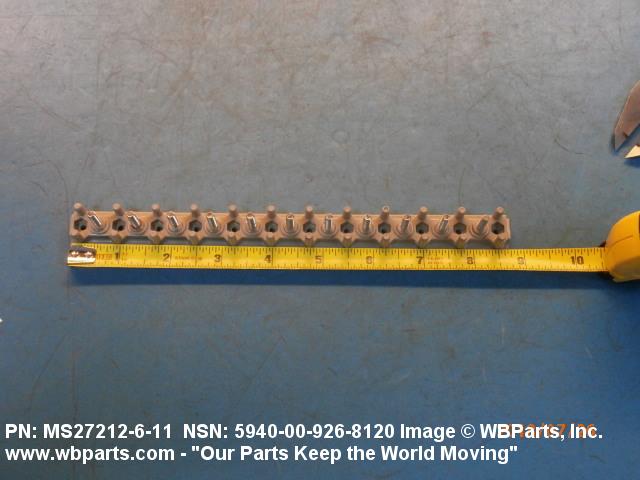

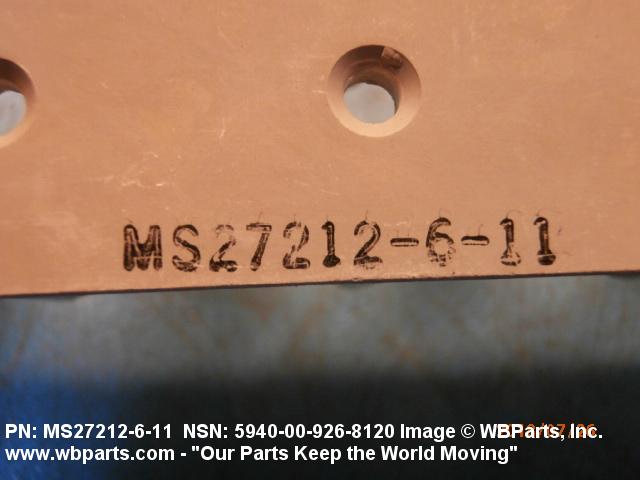

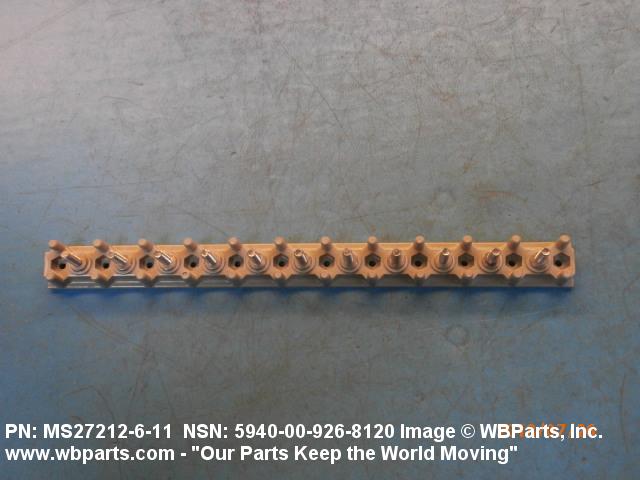

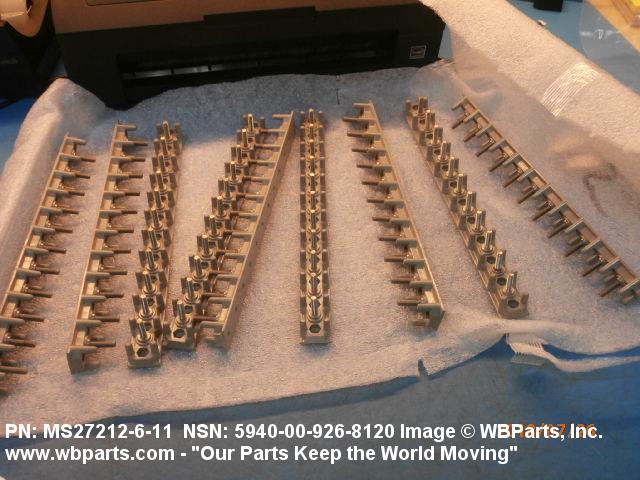

Drawings & Photos | NSN 5940-00-926-8120

Part Number	Request Date	QTY	Origin
MS27212612	2025-04-115	6	US
MS27212616	2024-09-267	5	Spain
MS27212614	2024-05-134	17	US
MS2721268	2024-03-67	2	United States
5940-00-926-8120	2023-06-170	105	DIBBS
5940-00-926-8120	2023-03-79	38	DIBBS
5940-00-926-8120	2022-11-324	43	DIBBS
MS27212616	2022-10-280	28	United States
5940-00-926-8120	2022-06-171	110	DIBBS
5940-00-926-8120	2022-04-96	2	United States
5940-00-926-8120	2022-04-96	5	United States
5940-00-926-8120	2022-04-96	5	United States
5940-00-926-8120	2022-01-18	84	DIBBS
MS27212612	2021-12-362	12	United States
MS27212616	2021-12-362	28	United States
5940-00-926-8120	2021-10-280	60	DIBBS
5940-00-926-8120	2021-09-269	33	DIBBS
5940-00-926-8120	2021-09-251	46	DIBBS
5940-00-926-8120	2021-09-244	6	United States
5940-00-926-8120	2021-08-236	46	DIBBS
MS2721269	2021-06-165	1	United States
MS27212611	2021-02-35	5	United States
5940-00-926-8120	2020-10-288	48	DIBBS
MS2721269	2020-09-248	1	United States
MS27212616	2020-08-227	8	United States
5940-00-926-8120	2020-08-217	33	DIBBS
5940-00-926-8120	2020-07-203	193	DIBBS
5940-00-926-8120	2020-05-135	303	DIBBS
5940-00-926-8120	2020-05-127	303	DIBBS
MS2721269	2020-02-42	2	United States
MS27212611	2019-11-315	11	United States
MS27212611	2019-08-238	11	United States
5940-00-926-8120	2019-08-220	105	DIBBS
MS27212611	2019-03-79	2	United States
MS27212611	2019-03-79	5	United States
MS27212611	2018-07-200	9	us
5940-00-926-8120	2017-03-66	589	DIBBS
5940-00-926-8120	2017-02-59	3069	DIBBS
MS27212616	2014-10-293	10	Italy
MS2721264	2014-04-112	6	United States
MS2721268	2014-04-112	6	United States
5940-00-926-8120	2012-01-12	1	US
5940-00-926-8120	2012-01-07	2	United States
MS27212610	2011-08-229	1	US
MS27212616	2011-08-229	2	US
5940-00-926-8120	2010-04-116	63	DIBBS
MS27212610	2006-08-236	50	US

Cross Reference | NSN 5940-00-926-8120

Part Number	Cage Code	Manufacturer
302A12008	31219	COMDATA SYSTEMS INC
367-0808-640	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
MS27212+6+11	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27212-6-11	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27212-6-12	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27212-6-14	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27212-6-16	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27212-6-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27212-6-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27212-6-7	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27212-6-8	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27212-6-9	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27212/6/10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS191-16	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5940-00-926-8120

Compare

Related Products | NSN 5940-00-926-8120

5940-00-926-8121, 5940-00-926-8128, 5940-00-926-8129, 5940-00-926-8141, 5940-00-926-8147

Technical Data | NSN 5940-00-926-8120

Characteristic	Specifications
MATERIAL	PLASTIC BOARD COPPER ALLOY TERMINALS
BODY STYLE	A14 BARRIER STANDOFF
BOARD OVERALL LENGTH	12.454 INCHES
BOARD OVERALL WIDTH	0.750 INCHES
BOARD OVERALL HEIGHT	1.005 INCHES
BOARD HEIGHT EXCLUDING TERMINALS	0.625 INCHES
BASE THICKNESS	0.281 INCHES
TERMINAL PATTERN ARRANGEMENT	SINGLE ROW
TERMINAL ROW QUANTITY	1
CENTER TO CENTER DISTANCE BETWEEN TERMINALS	0.750 INCHES
TERMINAL DESIGN	NONFEEDTHRU
NONFEEDTHRU TERMINAL TYPE	598 SINGLE
NONFEEDTHRU TERMINAL QUANTITY	16 SINGLE
BOARD CONSTRUCTION	HOLLOW CONSTRUCTION WITHOUT INSULATED STRIP
MOUNTING FACILITY TYPE AND QUANTITY	17 UNTHREADED HOLE
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	0.750 INCHES
DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE	0.375 INCHES
DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY	0.210 INCHES
MOUNTING HOLE DIAMETER	0.115 INCHES
SPECIAL FEATURES	16 MAX NON-FEED-THROUGH TERMINALS,CUT TO DESIREDSIZE AT POINT OF INSTALLATION
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS27212-6-16

Restrictions/Controls & Freight Information | NSN 5940-00-926-8120

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061045	BOARDS PRINTED CIRCUIT ELEC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5940-00-926-8120

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
