NSN 5940-00-935-8372 G3600389, G360038-9, YAG12G3
Product Details | LUG TERMINAL
5940-00-935-8372 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: G3600389, G360038-9, YAG12G3, 5940-00-935-8372, 00-935-8372, 5940009358372, 009358372
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 AUG 1968 | 00-935-8372 | 00746 ( TERMINAL, LUG ) |

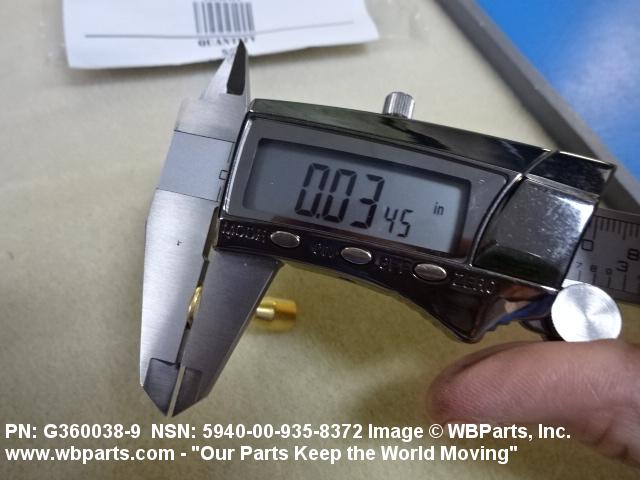

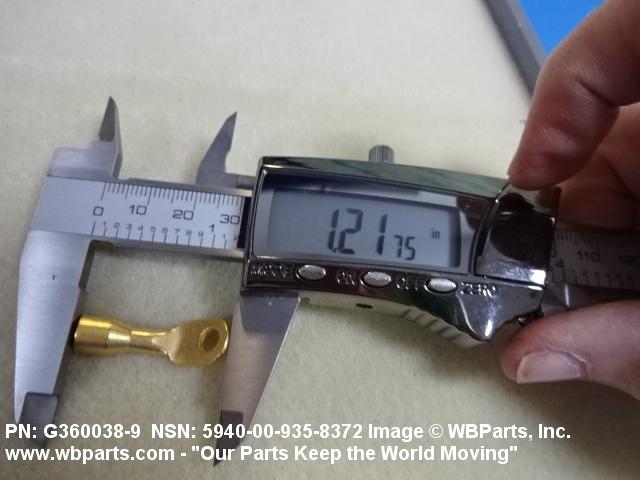

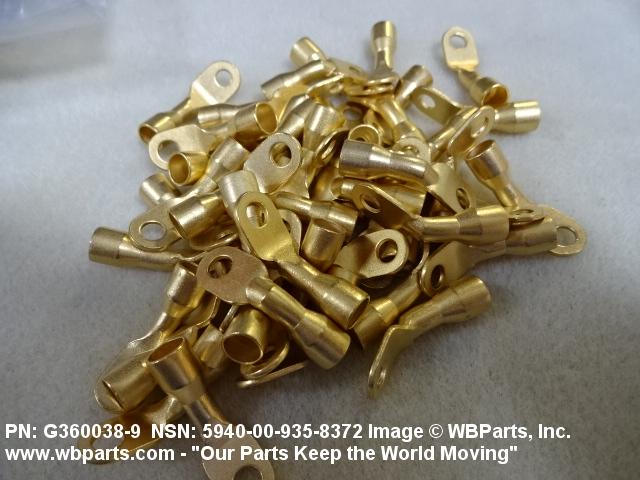

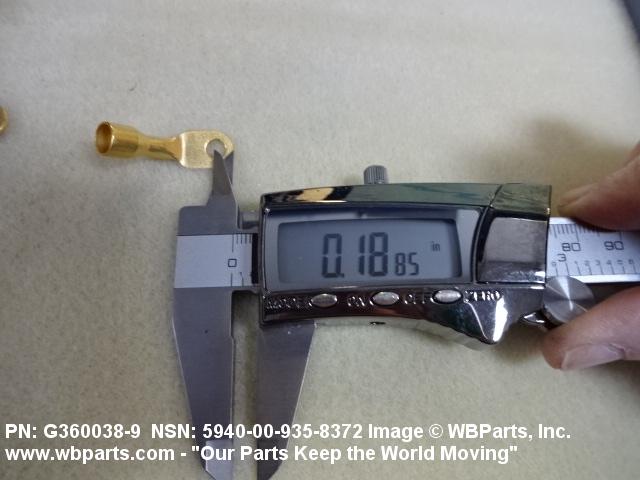

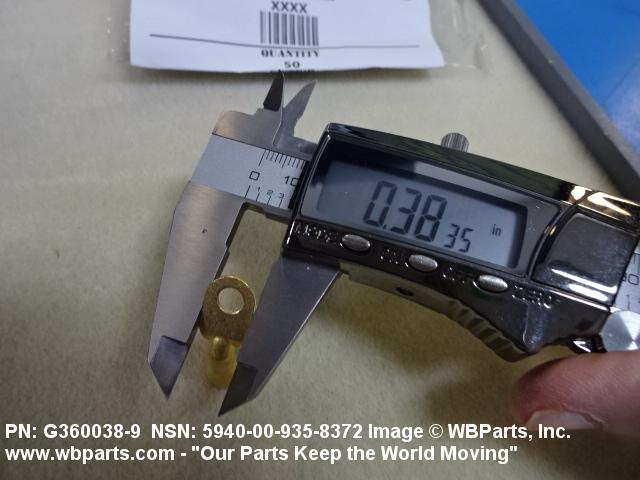

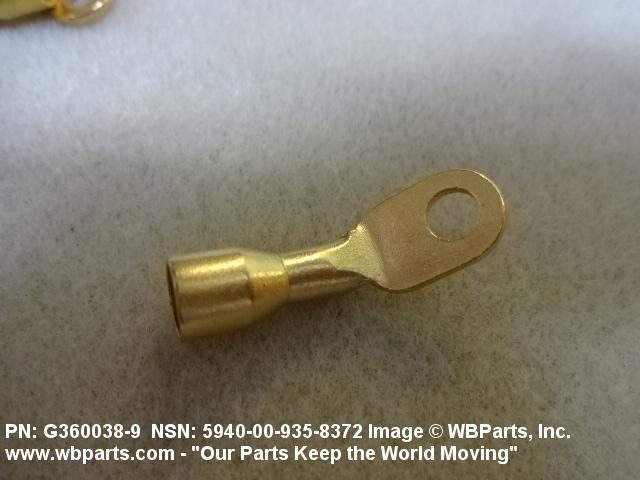

Drawings & Photos | NSN 5940-00-935-8372
Demand History | NSN 5940-00-935-8372
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-935-8372 | 2018-10-297 | 50 | United States |
| 5940-00-935-8372 | 2018-10-297 | 50 | US |
| 5940-00-935-8372 | 2018-04-92 | 50 | United States |
| 5940-00-935-8372 | 2018-03-86 | 150 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-935-8372
Technical Data | NSN 5940-00-935-8372
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A24 CRIMP |
| OVERALL LENGTH | 0.040 INCHES |
| OVERALL WIDTH | 0.330 INCHES |
| MATERIAL THICKNESS | 0.050 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | RECESSED BARREL SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 14 AWG |
| MOUNTING METHOD STYLE | D11 STRAIGHT ONE HOLE |
| MOUNTING HOLE DIAMETER | 0.198 INCHES |
| MOUNTING TONGUE WIDTH | 0.330 INCHES |
| MOUNTING FACILITY THICKNESS | 0.050 INCHES |
| DISTANCE FROM MOUNTING HOLE CENTER TO MOUNTING END | 0.190 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL FIRST LAYER GOLD OVERALL SECOND LAYER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-N-290 FED SPEC 1ST TREATMENT RESPONSE OVERALL FIRST LAYER MIL-G-45204,TYPE I,CLASS 3 MIL SPEC 2ND TREATMENT RESPONSE OVERALL SECOND LAYER |
Restrictions/Controls & Freight Information | NSN 5940-00-935-8372
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-935-8372
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
