NSN 5940-00-937-5237 AA59559, A-A-59559, AA595591

Product Details | ELECTRICAL BINDING POST

5940-00-937-5237 A metallic postlike terminal, insulated or uninsulated, which is mounted on a board, chassis, panel, or other similar supporting surface. It is designed for frequent manual connections and disconnections of at least one electrical conductor, such as a wire, alligator clip, or spade lug. It may have additional tip jack features for the acceptance of banana plugs, phone tips, and the like. It may also have provisions for permanently attaching an electrical conductor(s). For items which require all electrical conductors to be permanently attached (soldered, crimped, and the like), see TERMINAL, STUD. See also JACK, TIP.

Part Alternates: AA59559, A-A-59559, AA595591, A-A-59559-1, GD600015, PB08NA01, WB8CHA1BLACKCAP, 06A81650402, 06A8165040-2 , 23183332200, 2318-33322-00, 3522 023 18480, 352202318480, 4076482, 407-6482 , 49952, 4995-2 , 7909805-00, 5940-00-937-5237, 00-937-5237, 5940009375237, 009375237, 168110001, 790980500

Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	06 JAN 1967	00-937-5237	00883 ( POST, BINDING, ELECTRICAL )

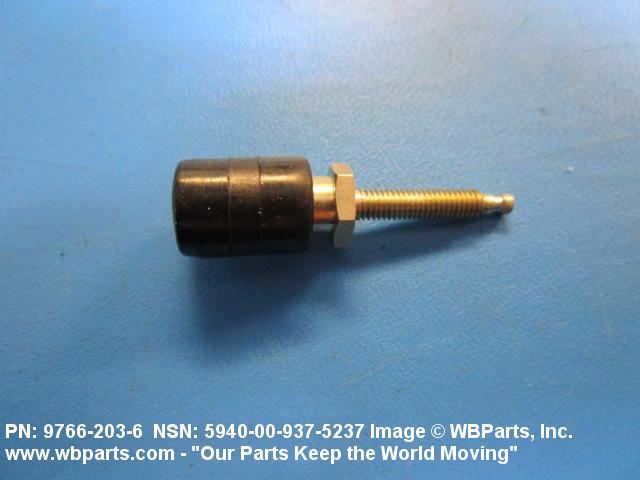

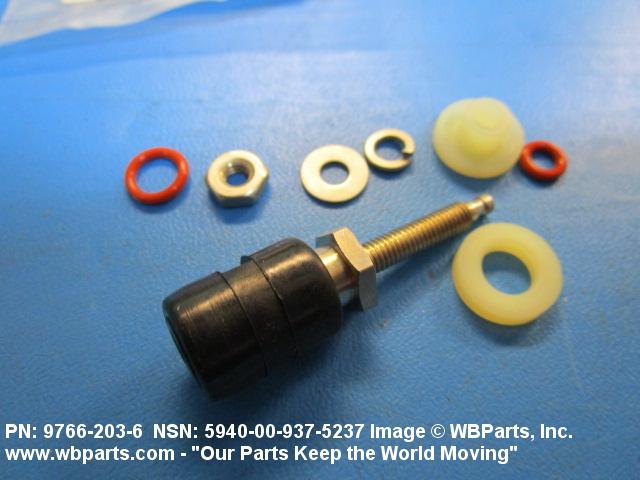

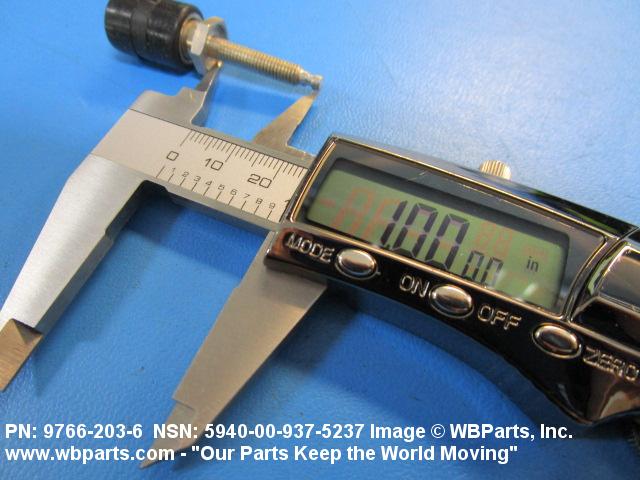

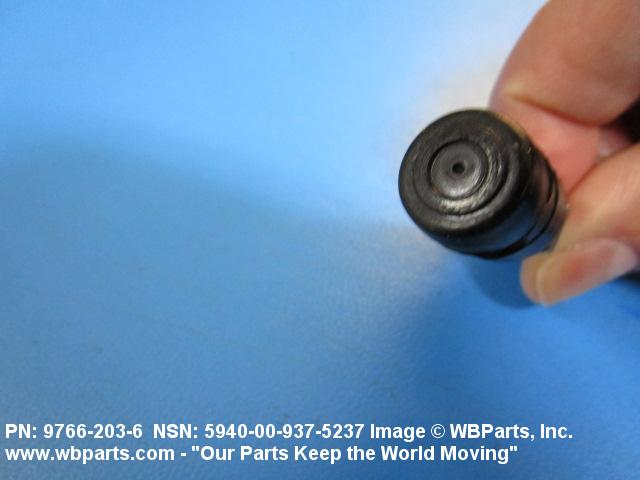

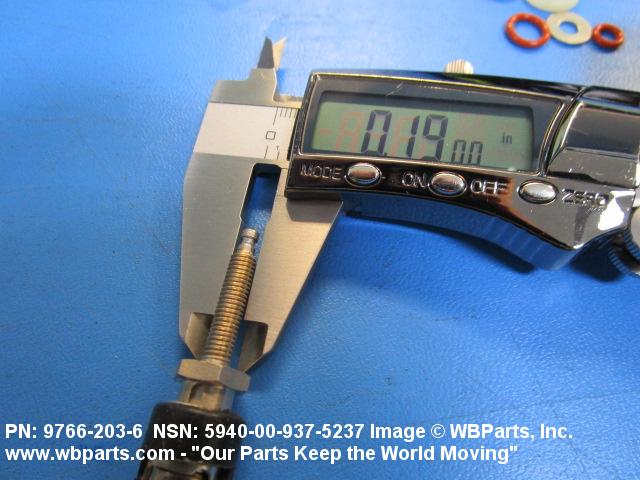

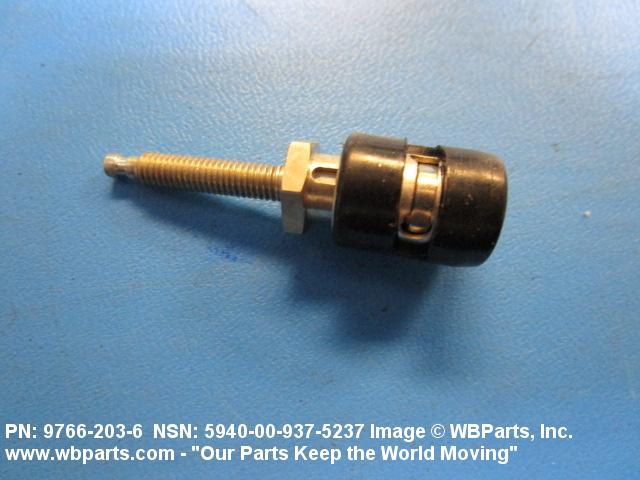

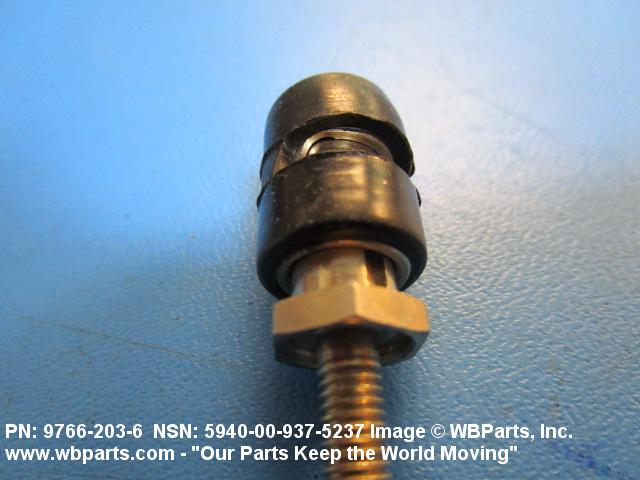

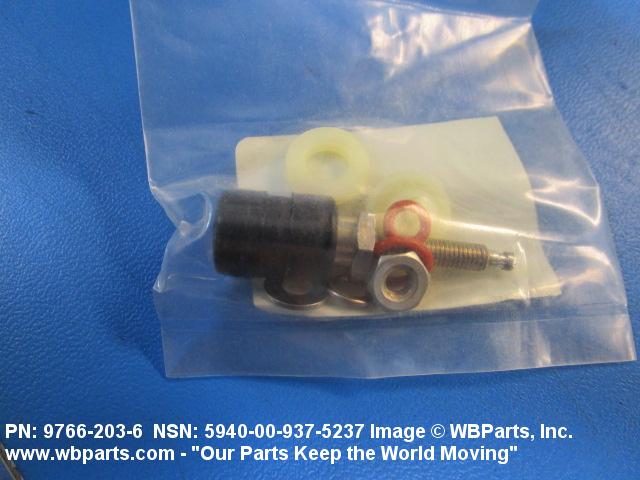

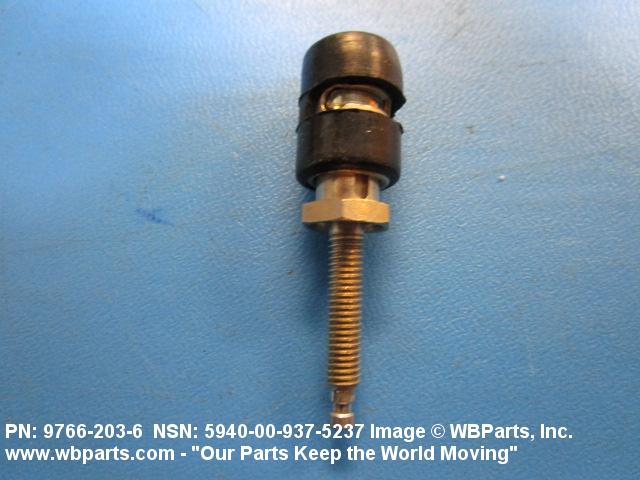

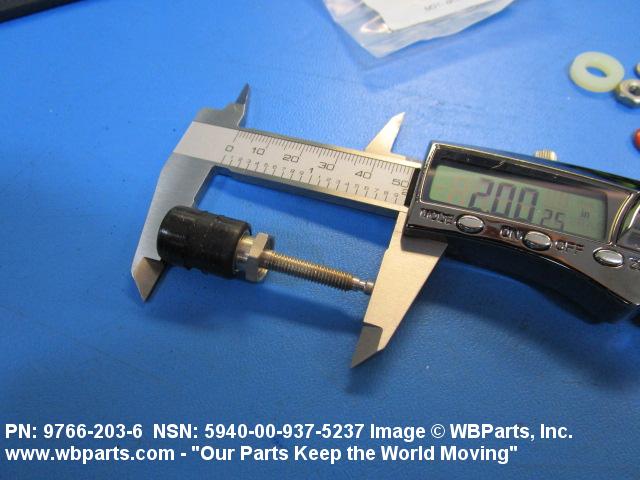

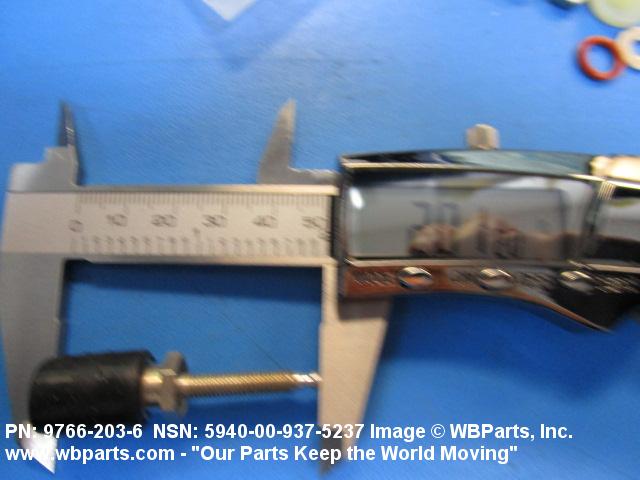

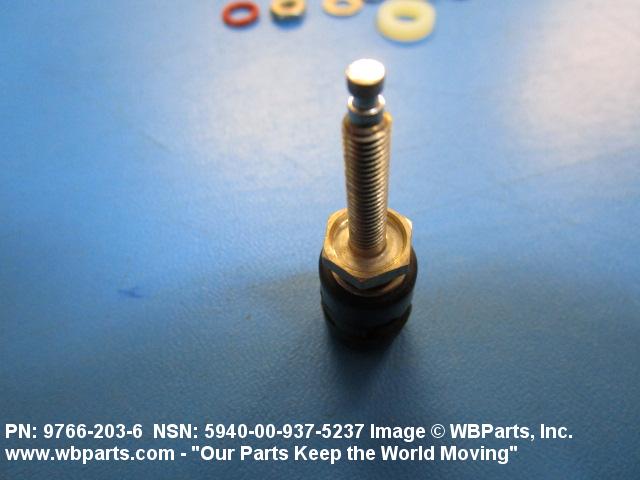

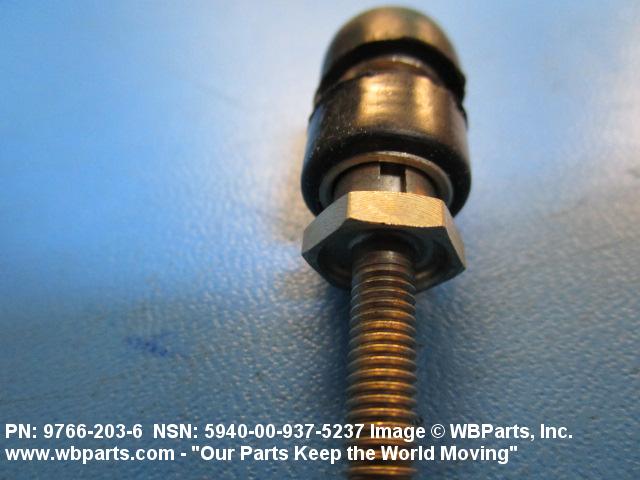

Drawings & Photos | NSN 5940-00-937-5237

Part Number	Request Date	QTY	Origin
5940-00-937-5237	2025-10-292	1948	DIBBS
5940-00-937-5237	2024-12-347	964	DIBBS
5940-00-937-5237	2024-08-228	2195	DIBBS
5940-00-937-5237	2024-07-196	2195	DIBBS
5940-00-937-5237	2024-06-177	2195	DIBBS
5940-00-937-5237	2024-05-140	244	DIBBS
5940-00-937-5237	2022-11-324	784	DIBBS
5940-00-937-5237	2022-08-226	792	DIBBS
5940-00-937-5237	2022-04-114	2128	DIBBS
5940-00-937-5237	2021-08-242	10	Malaysia
5940-00-937-5237	2019-10-301	1448	DIBBS
5940-00-937-5237	2019-10-293	1448	DIBBS
5940-00-937-5237	2018-01-05	1	DIBBS-RFPs
AA595591	2017-10-293	2	United States
PB08NA01	2016-04-110	100	United States
5940-00-937-5237	2012-09-253	5996	DIBBS
5940-00-937-5237	2012-08-227	333	DIBBS
5940-00-937-5237	2012-06-165	9726	DIBBS
5940-00-937-5237	2011-07-196	7463	DIBBS
5940-00-937-5237	2011-05-132	5428	DIBBS
5940-00-937-5237	2011-03-63	7252	DIBBS
5940-00-937-5237	2011-01-12	2129	DIBBS
5940-00-937-5237	2010-04-102	872	DIBBS
5940-00-937-5237	2010-02-54	6660	DIBBS
5940-00-937-5237	2009-04-113	2541	DIBBS
5940-00-937-5237	2009-04-91	1200	US
5940-00-937-5237	2009-01-29	1175	DIBBS
5940-00-937-5237	2009-01-06	32	United States
5940-00-937-5237	2008-11-316	7584	DIBBS
5940-00-937-5237	2008-01-08	8165	DIBBS
5940-00-937-5237	2007-10-278	3455	DIBBS
5940-00-937-5237	2007-07-201	11677	DIBBS
5940-00-937-5237	2007-05-135	9000	DIBBS

Cross Reference | NSN 5940-00-937-5237

Part Number	Cage Code	Manufacturer
06A8165040-2	5B5M3	EDGEWOOD CHEMICAL BIOLOGICAL CENTER DIV DEPT OF ARMY
168110001	D1876	L-3 COMMUNICATIONS ELAC NAUTIK GMBH DBA L-3 ELAC NAUTIK
168110001	D9444	HONEYWELL REGELSYSTEME GMBHGESCHAEFTSBEREICH SONDERTECHNIK
2318-33322-00	S0522	TADIRAN LTD
3522 023 18480	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
4995-2	4U744	FLUKE ELECTRONICS CORPORATION DBA FLUKE
7909805-00	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
A-A-59559	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
A-A-59559-1	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
GD600015	K5435	GENERAL DYNAMICS UNITED KINGDOM LIMITED
PB08NA01	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
WB8CHA1BLACKCAP	72825	EBY HOLDING COMPANY, INC. DBA EBY COMPANY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5940-00-937-5237

Compare

Related Products | NSN 5940-00-937-5237

5940-00-937-5460, 5940-00-937-5763, 5940-00-937-5779, 5940-00-937-5786, 5940-00-937-5789

Technical Data | NSN 5940-00-937-5237

Characteristic	Specifications
BASIC SHAPE STYLE	A1 SINGLE POST, ROUND
OVERALL HEIGHT	2.000 INCHES
OVERALL DIAMETER	0.583 INCHES
MAXIMUM HEIGHT ABOVE MOUNTING SURFACE	1.000 INCHES
CAP OUTSIDE DIAMETER	0.583 INCHES
CONDUCTOR ACCOMMODATION TYPE	SCREW CAP W/JAW SINGLE END
MOUNTING METHOD STYLE	D27 STUD
THREAD LENGTH	1.000 INCHES
MOUNTING THREAD SERIES	UNF
MOUNTING THREAD DIAMETER	0.190 INCHES
ELECTRICAL INSULATION FEATURE	INSULATED CAPS WITH INSULATED STUDS
IDENTIFICATION CODE COLOR	BLACK
MATERIAL	RUBBER SYNTHETIC INSULATION COPPER ALLOY OVERALL EXCEPT INSULATION
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-B-626,1/2 H FED SPEC SINGLE MATERIAL RESPONSE OVERALL EXCEPT INSULATION
SURFACE TREATMENT	NICKEL OVERALL SINGLE LAYER
FEATURES PROVIDED	MOUNTING HARDWARE
MANUFACTURERS CODE	58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-59559

Restrictions/Controls & Freight Information | NSN 5940-00-937-5237

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC SUB2
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	PA	Marine Corps Logistics Base Albany, GA 31704-1128
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5940-00-937-5237

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	T
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
