NSN 5940-00-985-2417 MS1712210, MS17122-10, M55155/30XC10
Product Details | STUD TERMINAL
5940-00-985-2417 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: MS1712210, MS17122-10, M55155/30XC10, M551553010, M55155-30-10, M5515530XC10, A-A-59126/30, AA59126/3010, AA5912630, AA591263010, CP15583345, CP1558-3-345, CTC15583, CTC1558-3, MIL-T-55155/30, MILT5515530, X20343, X2034C, 160-1558-03-03-00, 910C78522, 160-7557-03-05-00, 3008C4, 3008-C-4, 3073C4, 308C4, 308-C-4, 4510C-5.04, 4510C504, 1281B, 1281-B, 1281C4, 1281C-4, 15023, 1502-3, 1558305, 1558-3-05, 15R209305, 15R-209-3-05, 16015580301, 160-1558-03-01, 10209305, 160-1558-03-0345, 16015580305, 160-1558-03-05, 5940-00-985-2417, 10-209-3-05, 00-985-2417, 1607557030500, 1601558030300, 5940009852417, 1601558030345, 009852417
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-985-2417 | 00887 ( TERMINAL, STUD ) |

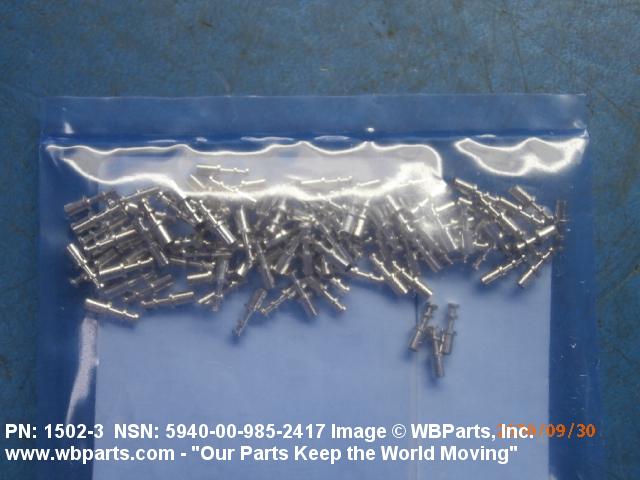

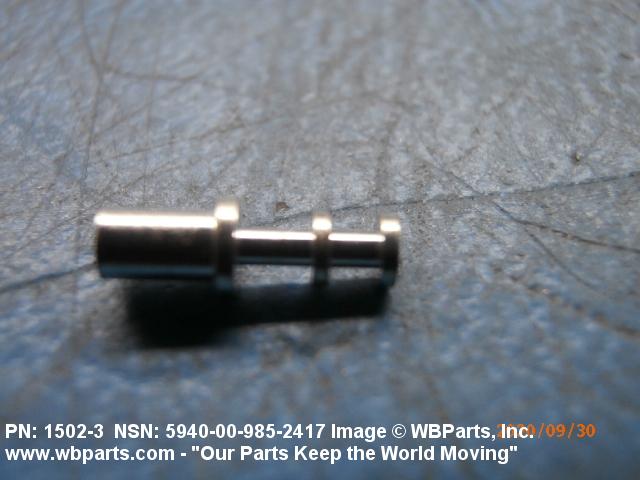

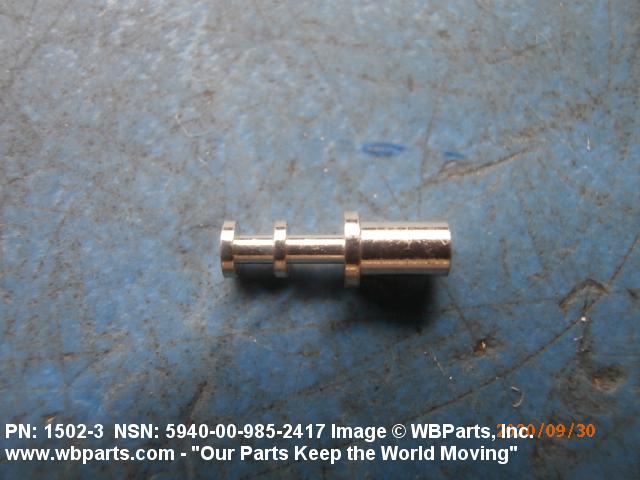

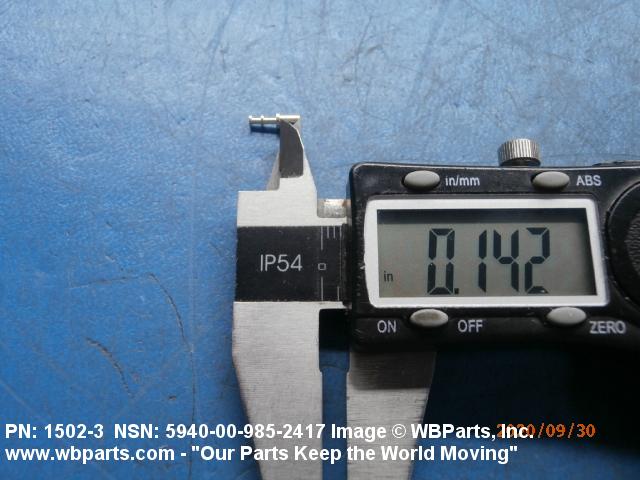

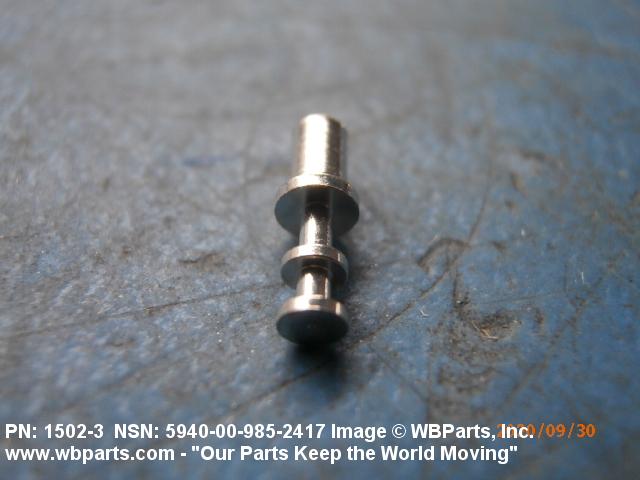

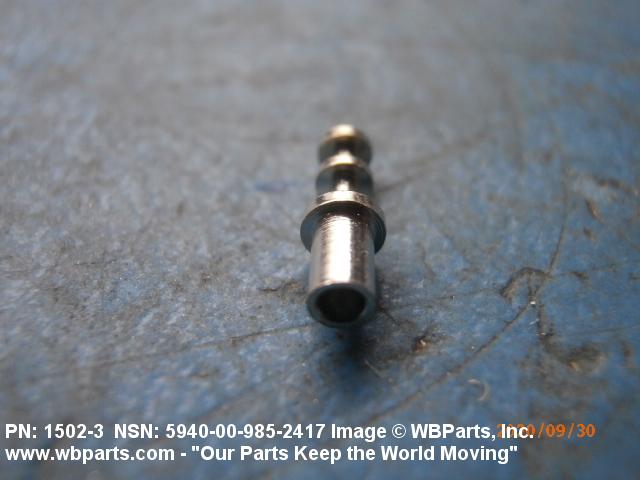

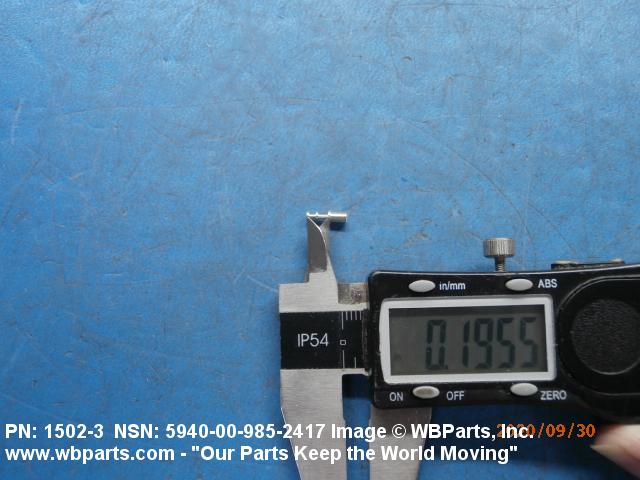

Drawings & Photos | NSN 5940-00-985-2417
Demand History | NSN 5940-00-985-2417
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-985-2417 | 2025-05-148 | 5 | CN |
| 5940-00-985-2417 | 2024-10-281 | 9135 | DIBBS |
| 5940-00-985-2417 | 2024-09-270 | 9135 | DIBBS |
| 5940-00-985-2417 | 2023-09-247 | 11955 | DIBBS |
| 5940-00-985-2417 | 2023-03-61 | 16629 | DIBBS |
| 5940-00-985-2417 | 2023-02-53 | 16629 | DIBBS |
| 15023 | 2020-09-252 | 100 | United States |
| 5940-00-985-2417 | 2011-07-202 | 200 | US |
Cross Reference | NSN 5940-00-985-2417
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-209-3-05 | 18310 | CONCORD ELECTRONICS, INC. |
| 1281-B | 81312 | WINCHESTER ELECTRONICS CORPORATION |
| 1281C-4 | 81312 | WINCHESTER ELECTRONICS CORPORATION |
| 1502-3 | 91833 | KEYSTONE ELECTRONICS CORP. |
| 1558-3-05 | 71450 | CTS CORP |
| 15R-209-3-05 | 18310 | CONCORD ELECTRONICS, INC. |
| 160-1558-03-01 | 71279 | INTERCONNECTION PRODUCTS INC |
| 160-1558-03-03-00 | 71279 | INTERCONNECTION PRODUCTS INC |
| 160-1558-03-0345 | 71279 | INTERCONNECTION PRODUCTS INC |
| 160-1558-03-05 | 71279 | INTERCONNECTION PRODUCTS INC |
| 160-7557-03-05-00 | 71279 | INTERCONNECTION PRODUCTS INC |
| 3008-C-4 | 52525 | LERCO DIV SPACE-LOK INC |
| 3073C4 | 98278 | TYCO ELECTRONICS CORPORATION |
| 308-C-4 | 21355 | LTA/D-CEMCO INC DBA D-CEMCO |
| 4510C-5.04 | 81312 | WINCHESTER ELECTRONICS CORPORATION |
| 51323380 | 72314 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 540011-703 | 57057 | NAVCOM DEFENSE ELECTRONICS, INC. |
| 910C785&22 | 98291 | ITT CANNON RF PRODUCTS |
| A-A-59126/30 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA59126/3010 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| CP1558-3-345 | 71279 | INTERCONNECTION PRODUCTS INC |
| CTC1558-3 | 71279 | INTERCONNECTION PRODUCTS INC |
| M55155-30-10 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M55155/30XC10 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-T-55155/30 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS17122-10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| X20343 | 71279 | INTERCONNECTION PRODUCTS INC |
| X2034C | 71279 | INTERCONNECTION PRODUCTS INC |
| X2034CC | 71279 | INTERCONNECTION PRODUCTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-985-2417
Technical Data | NSN 5940-00-985-2417
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A7A NONTUBULAR, ROUND |
| TERMINAL LENGTH | 0.196 INCHES |

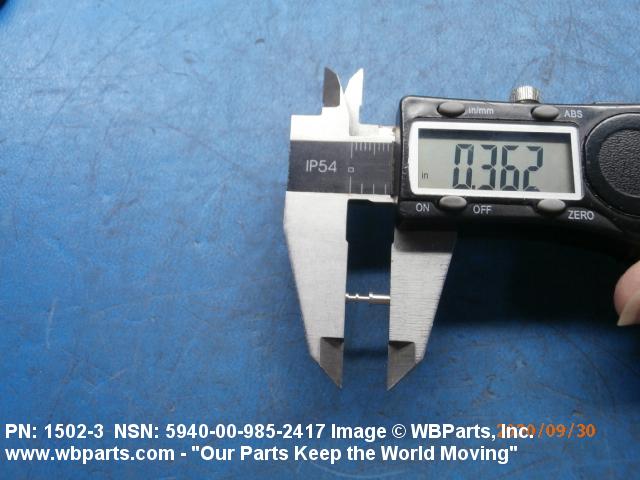

| OVERALL HEIGHT | 0.360 INCHES |

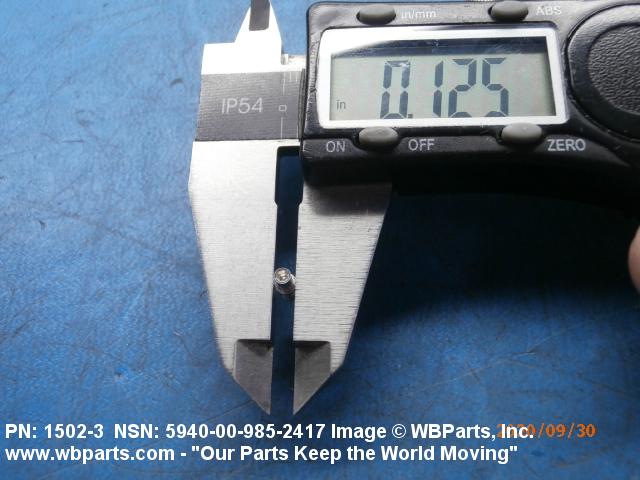

| OVERALL DIAMETER | 0.125 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | DOUBLE TURRET SINGLE END |

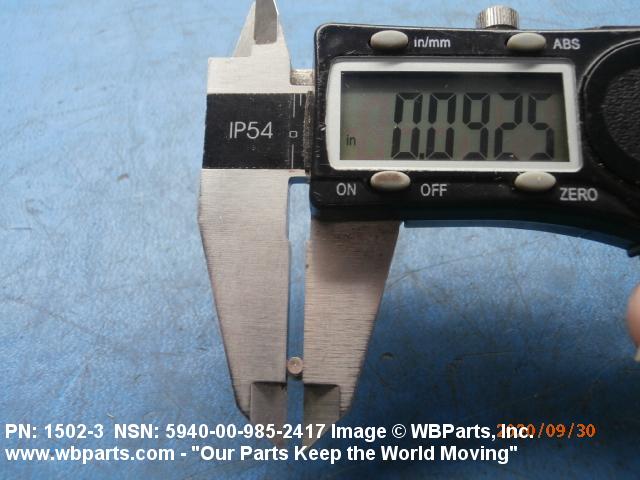

| LARGEST DIAMETER | 0.093 INCHES SINGLE END |

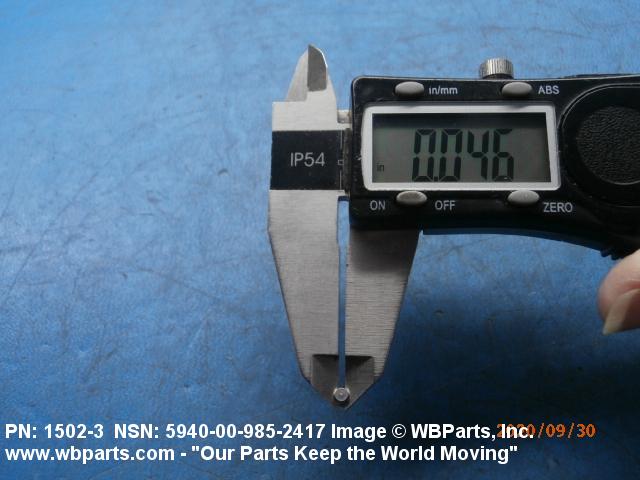

| TURRET MINOR DIAMETER | 0.046 INCHES SINGLE END |
| MOUNTING METHOD STYLE | D33 SWAGE |
| MINOR BUSHING LENGTH | 0.141 INCHES |
| SWAGE DEPTH | 0.062 INCHES |

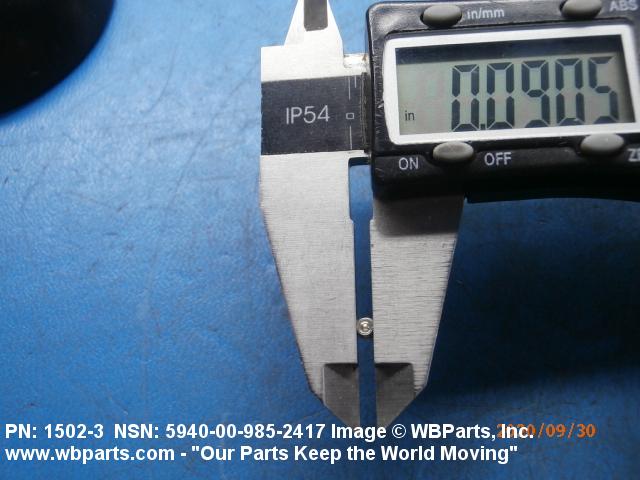

| SWAGE OUTSIDE DIAMETER | 0.090 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | SOLDER OVERALL SINGLE LAYER |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59126/30 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA59126/3010 |
Restrictions/Controls & Freight Information | NSN 5940-00-985-2417
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
