NSN 5940-01-012-0078 1867061, 18670611, 1867061-1
Product Details | STUD TERMINAL

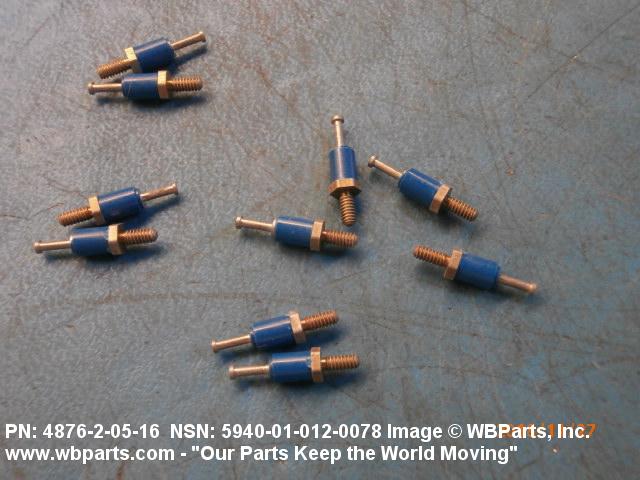

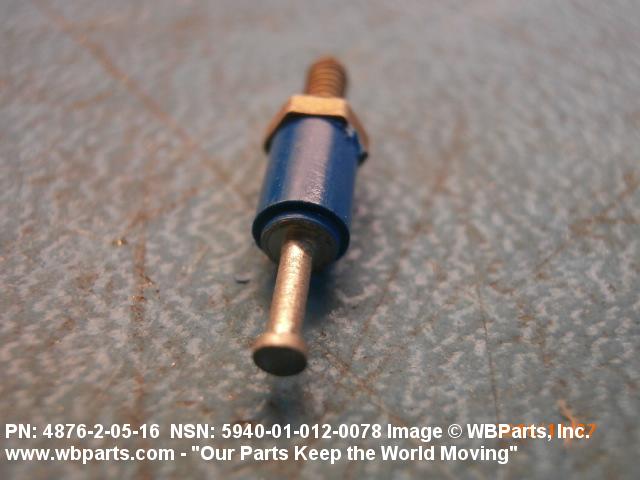

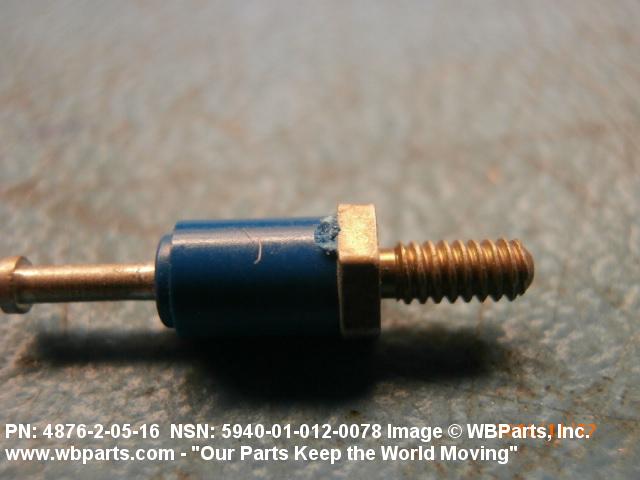

5940-01-012-0078 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: 1867061, 18670611, 1867061-1, 4876-2-05-16, 5940-01-012-0078, 01-012-0078, 5940010120078, 010120078, 487620516
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 NOV 1975 | 01-012-0078 | 00887 ( TERMINAL, STUD ) |

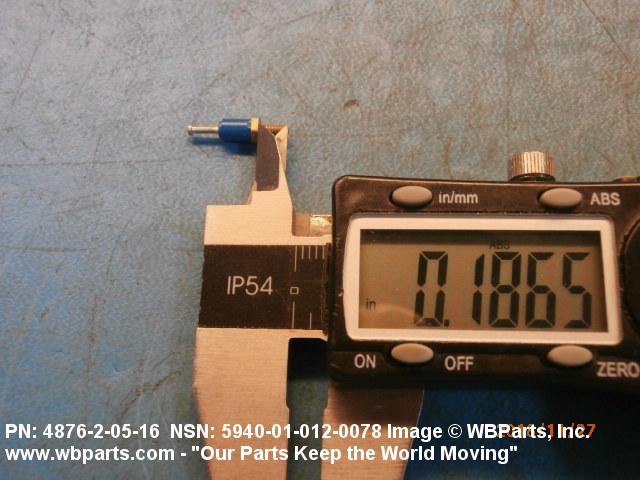

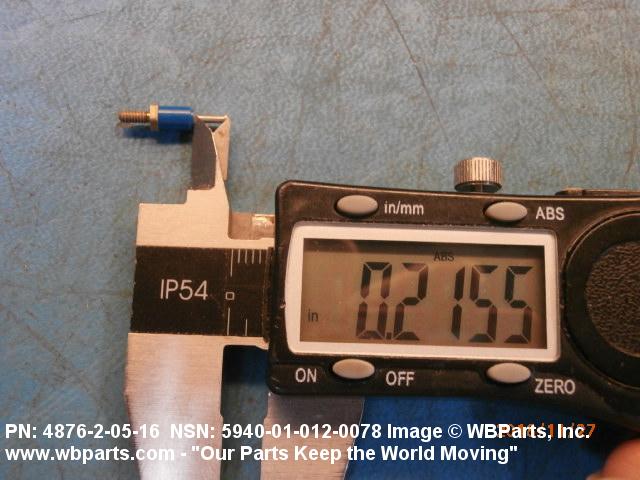

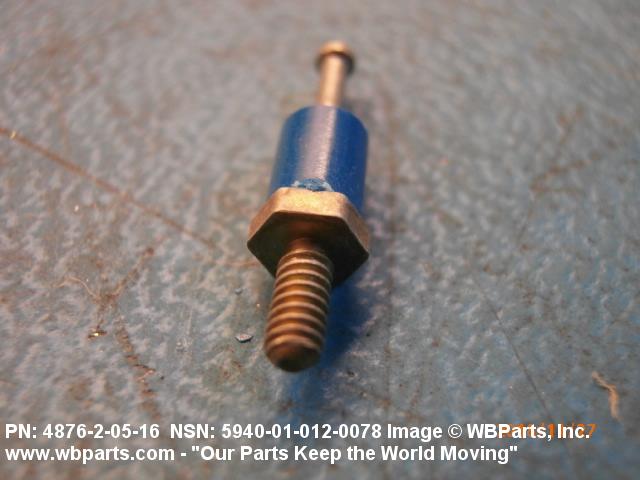

Drawings & Photos | NSN 5940-01-012-0078
Demand History | NSN 5940-01-012-0078
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-012-0078 | 2022-02-54 | 1 | US |
| 5940-01-012-0078 | 2018-11-316 | 10 | United States |
| 5940-01-012-0078 | 2017-08-220 | 100 | DIBBS |
| 5940-01-012-0078 | 2016-12-353 | 462 | DIBBS |
| 5940-01-012-0078 | 2016-12-343 | 251 | DIBBS |
| 5940-01-012-0078 | 2016-10-297 | 211 | DIBBS |
| 5940-01-012-0078 | 2016-10-292 | 51 | DIBBS |
| 5940-01-012-0078 | 2016-10-292 | 80 | DIBBS |
| 5940-01-012-0078 | 2016-10-286 | 80 | DIBBS |
| 5940-01-012-0078 | 2007-09-248 | 72 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-012-0078
Related Products | NSN 5940-01-012-0078
Technical Data | NSN 5940-01-012-0078
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A8A NONTUBULAR, HEX |
| TERMINAL LENGTH | 0.219 INCHES |

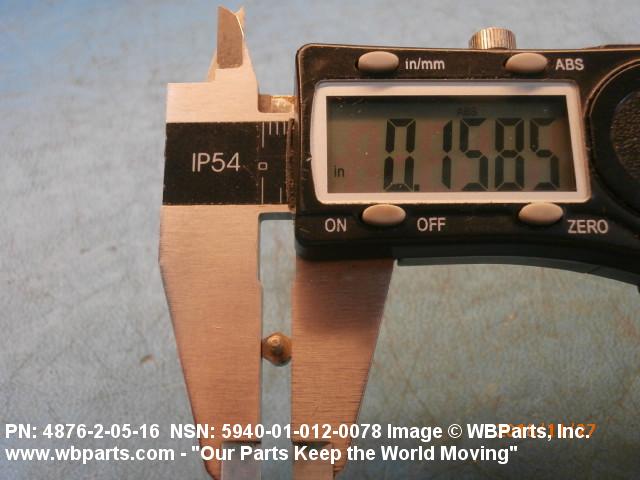

| WIDTH ACROSS FLATS | 0.156 INCHES |

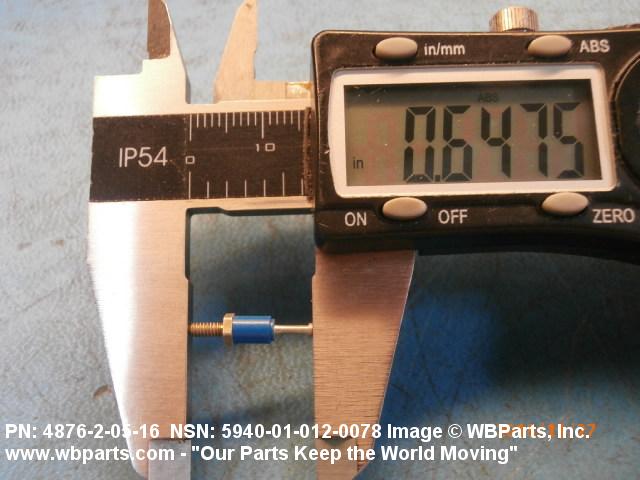

| OVERALL HEIGHT | 0.641 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | SINGLE TURRET SINGLE END |

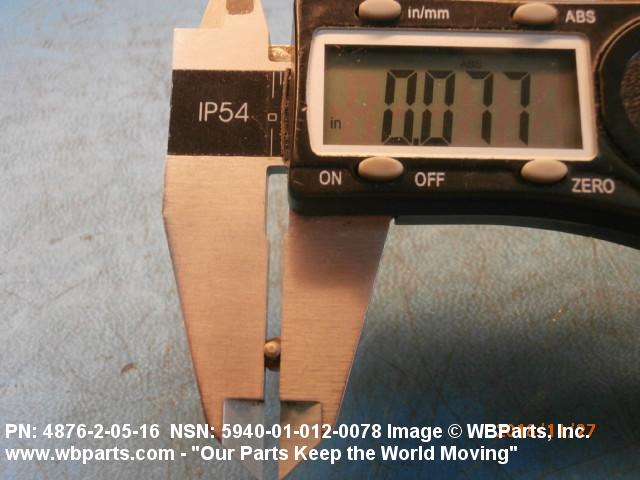

| LARGEST DIAMETER | 0.072 INCHES SINGLE END |

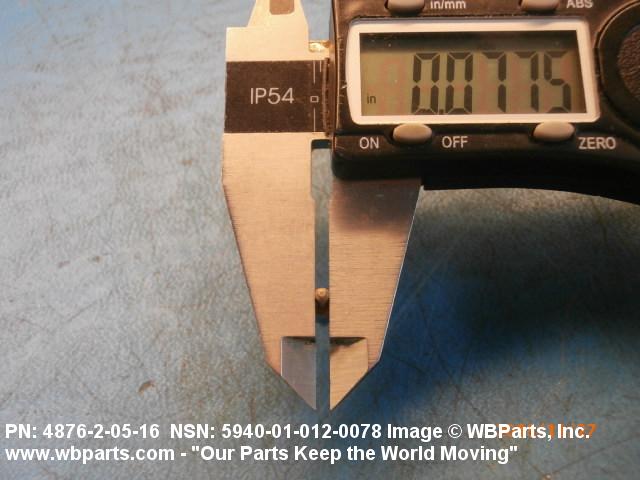

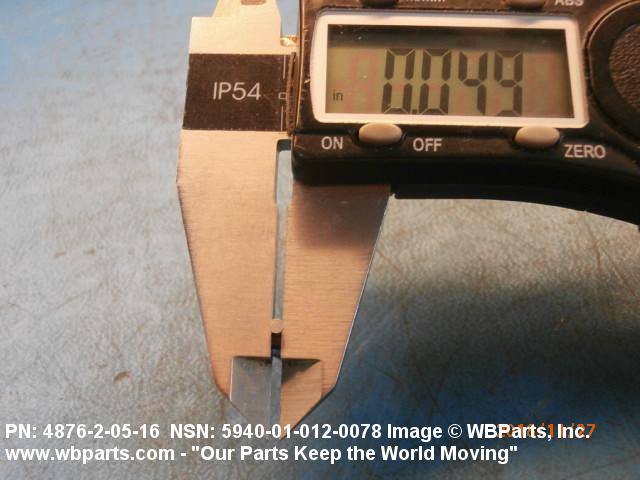

| TURRET MINOR DIAMETER | 0.047 INCHES SINGLE END |
