NSN 5940-01-030-2655 SE12XC04S, MIL-T-55155/12, MILT5515512
Product Details | STUD TERMINAL

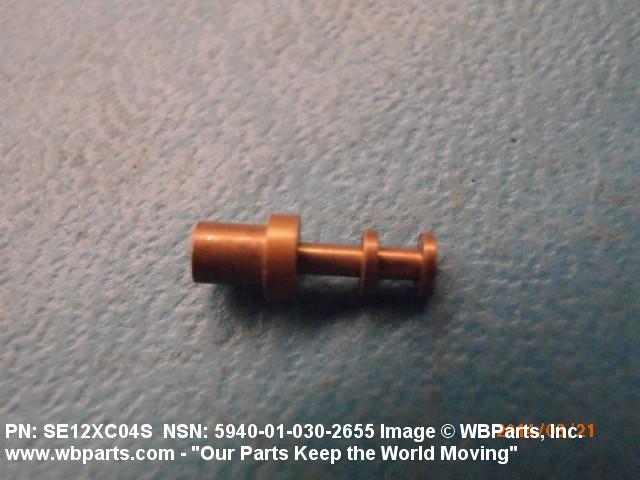

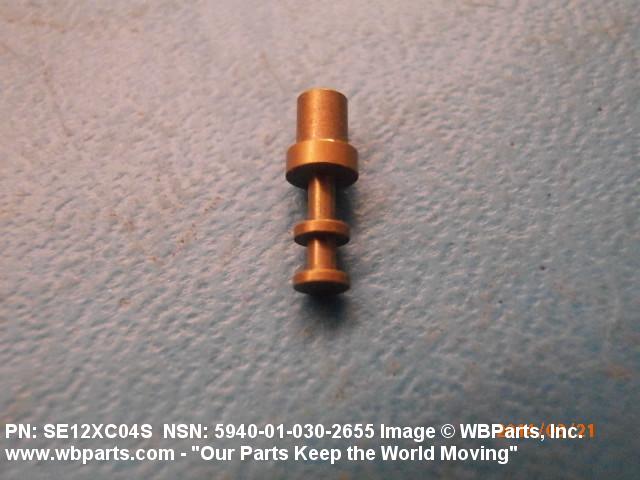

5940-01-030-2655 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: SE12XC04S, MIL-T-55155/12, MILT5515512, 5940-01-030-2655, 01-030-2655, 5940010302655, 010302655
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 OCT 1976 | 01-030-2655 | 00887 ( TERMINAL, STUD ) |
Drawings & Photos | NSN 5940-01-030-2655
Demand History | NSN 5940-01-030-2655
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILT5515512 | 2022-07-202 | 90 | IN |
| SE12XC04S | 2018-02-47 | 300 | United States |
| 5940-01-030-2655 | 2014-03-63 | 200 | United States |
| 5940-01-030-2655 | 2014-03-63 | 300 | United States |
| 5940-01-030-2655 | 2013-03-66 | 300 | United States |
| SE12XC04S | 2012-10-286 | 300 | United States |
| SE12XC04S | 2012-03-80 | 8 | US |
| SE12XC04S | 2012-03-80 | 64 | US |
| SE12XC04S | 2012-03-74 | 8 | US |
| SE12XC04S | 2011-04-108 | 480 | Taiwan |
| 5940-01-030-2655 | 2010-05-126 | 50 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-030-2655
Related Products | NSN 5940-01-030-2655
Technical Data | NSN 5940-01-030-2655
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A5A NONTUBULAR, ROUND |

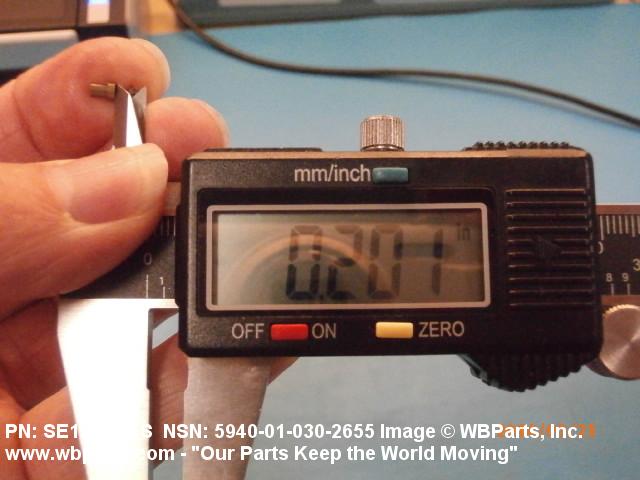

| TERMINAL LENGTH | 0.195 INCHES |

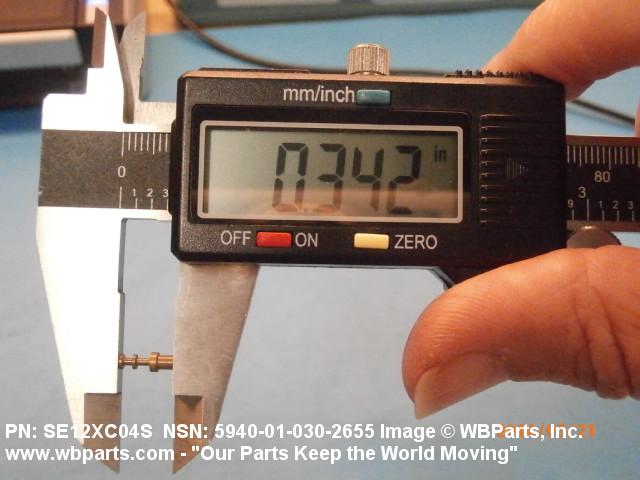

| OVERALL HEIGHT | 0.342 INCHES |
| OVERALL DIAMETER | 0.125 INCHES |
| THRU-HOLE DIAMETER | 0.040 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | DOUBLE TURRET SINGLE END |

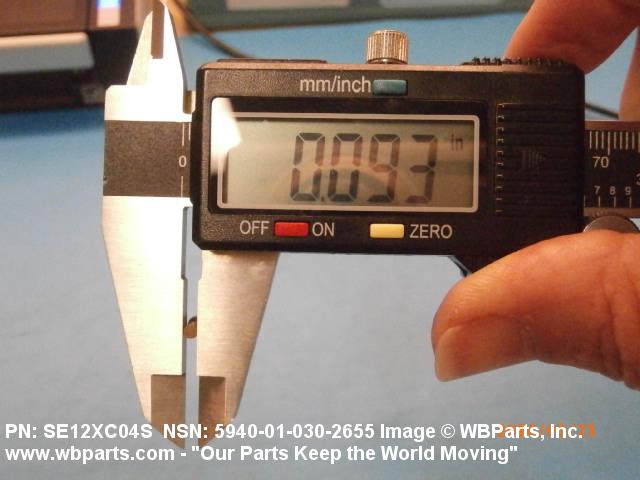

| LARGEST DIAMETER | 0.093 INCHES SINGLE END |

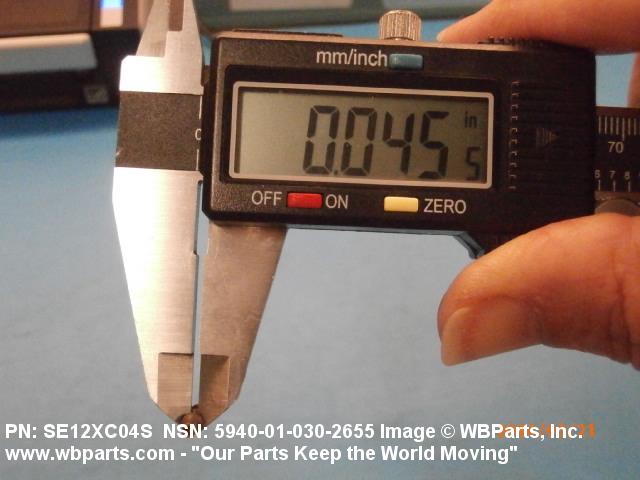

| TURRET MINOR DIAMETER | 0.047 INCHES SINGLE END |
| MOUNTING METHOD STYLE | D33 SWAGE |
| MINOR BUSHING LENGTH | 0.105 INCHES |
| SWAGE DEPTH | 0.062 INCHES |
| SWAGE OUTSIDE DIAMETER | 0.090 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER ALLOY 360 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-626,1/2H FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | TIN OVERALL SINGLE LAYER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-T-10727,TYPE 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL SINGLE LAYER |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-T-55155/12 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | SE12XC04S |
