NSN 5940-01-036-4686 241401, 2-41401, 01-036-4686
Product Details | TERMINAL BOARD
5940-01-036-4686 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: 241401, 2-41401, 5940-01-036-4686, 01-036-4686, 5940010364686, 010364686
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 FEB 1977 | 01-036-4686 | 00404 ( TERMINAL BOARD ) |

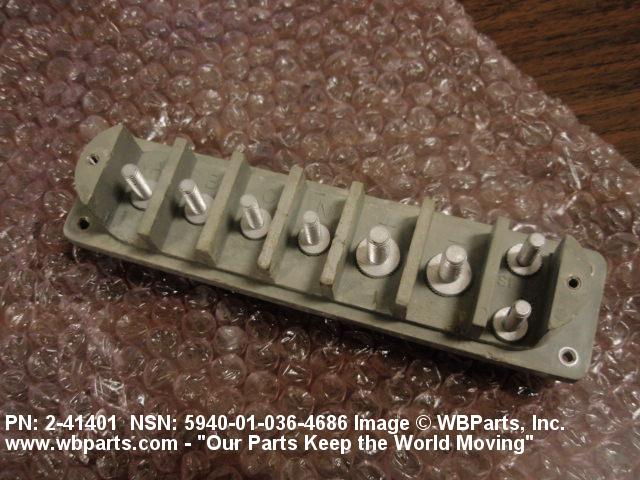

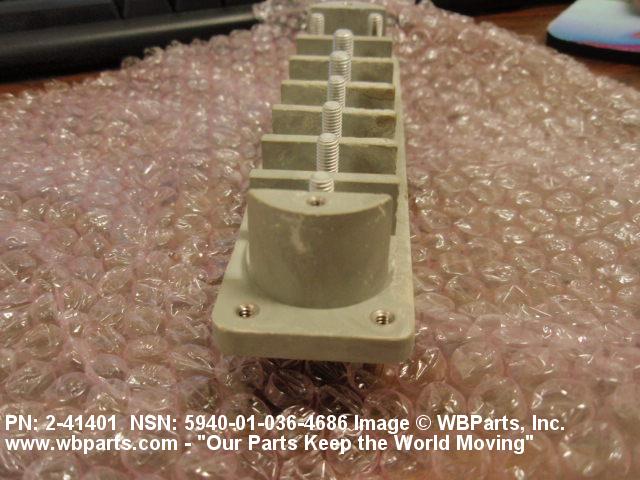

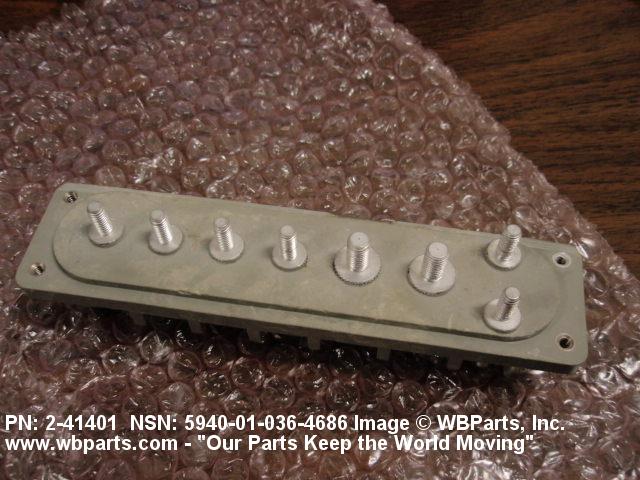

Drawings & Photos | NSN 5940-01-036-4686
Demand History | NSN 5940-01-036-4686
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-036-4686 | 2025-03-75 | 8 | DIBBS |
| 5940-01-036-4686 | 2020-10-294 | 23 | DIBBS |
| 5940-01-036-4686 | 2020-08-218 | 9 | DIBBS |
| 2-41401 | 2019-12-346 | 26 | DIBBS |
| 2-41401 | 2019-03-66 | 17 | DIBBS |
| 5940-01-036-4686 | 2011-01-06 | 4 | United States |
| 5940-01-036-4686 | 2010-12-350 | 4 | United States |
Cross Reference | NSN 5940-01-036-4686
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-41401 | 08748 | ELDEC CORPORATION DBA CRANE AEROSPACE & ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-036-4686
Technical Data | NSN 5940-01-036-4686
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC BOARD |
| BODY STYLE | A1 BARRIER TYPE |
| BOARD OVERALL LENGTH | 6.120 INCHES |
| BOARD OVERALL WIDTH | 1.500 INCHES |
| BOARD OVERALL HEIGHT | 1.680 INCHES |
| BOARD HEIGHT EXCLUDING TERMINALS | 1.080 INCHES |
| BASE THICKNESS | 0.250 INCHES |
| TERMINAL PATTERN ARRANGEMENT | RANDOM |
| TERMINAL DESIGN | FEEDTHRU |
| FEEDTHRU CONNECTION END TYPE | 602 BOTH ENDS SINGLE COMBINATION |
| FEEDTHRU TERMINAL QUANTITY | 8 SINGLE COMBINATION |
| BOARD CONSTRUCTION | SOLID CONSTRUCTION |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 5.660 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.000 INCHES |
| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 0.250 INCHES |
| DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY | 0.230 INCHES |
| MANUFACTURERS CODE | 08748 |
| DESIGN CONTROL REFERENCE | 2-41401 |
