NSN 5940-01-054-8402 6725039002, 672-503-9002, 01-054-8402
Product Details | CONDUCTOR SPLICE
5940-01-054-8402 An item designed to expedite or simplify the connection of two or more electrical conductors without bringing them to a fixed point such as a binding post or terminal. It may have a separate tubular shaped piece of nonmetallic, flexible material designed to be slipped over the crimped first piece to seal the conductor joint through heat sealing.
Part Alternates: 6725039002, 672-503-9002, 5940-01-054-8402, 01-054-8402, 5940010548402, 010548402
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 JAN 1978 | 01-054-8402 | 00137 ( SPLICE, CONDUCTOR ) |

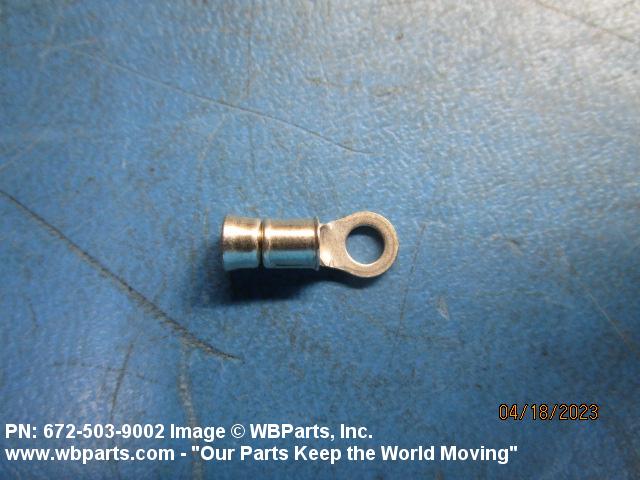

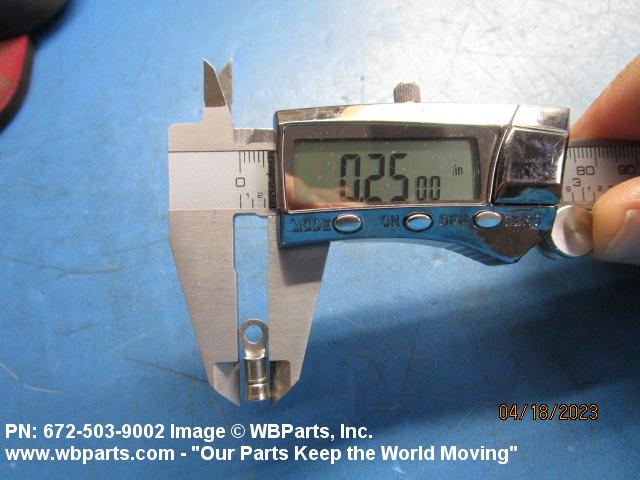

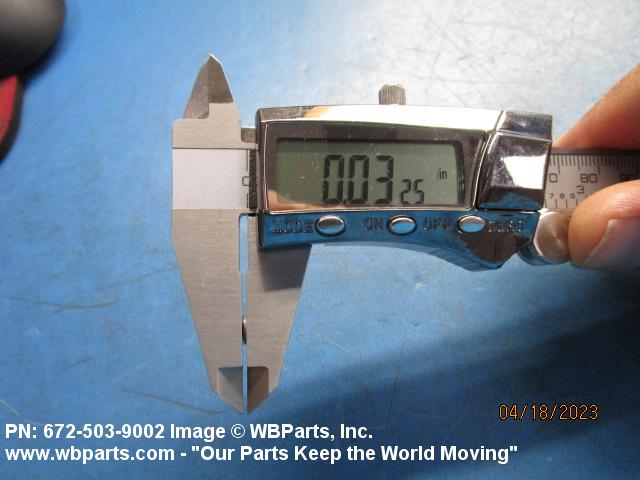

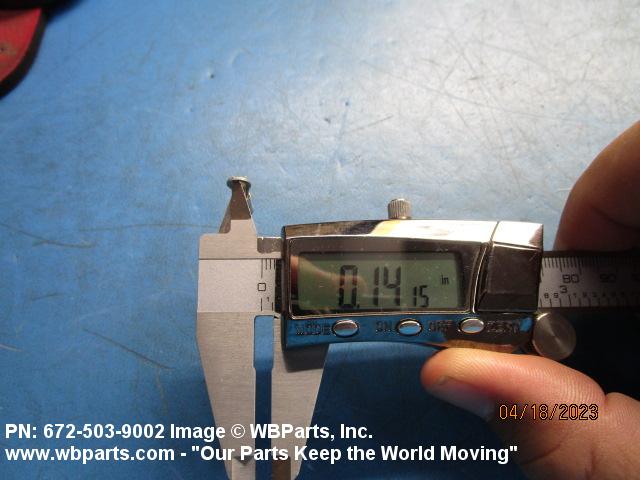

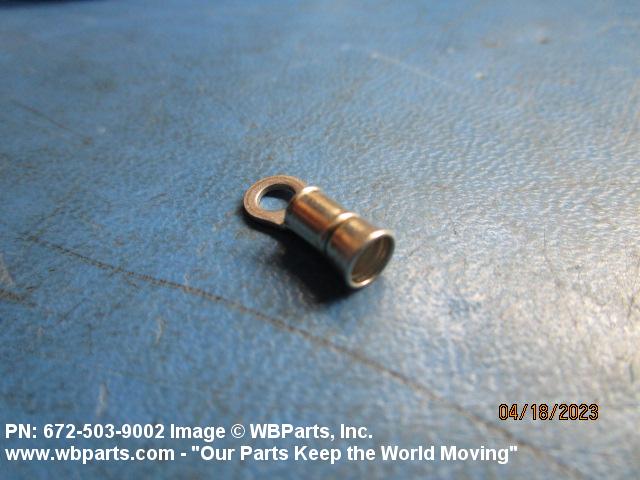

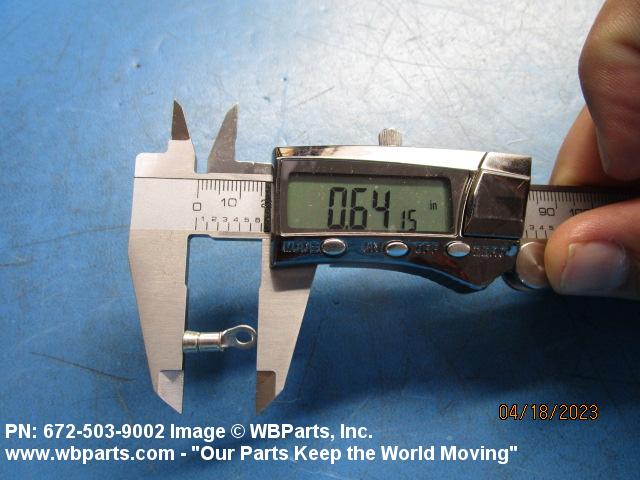

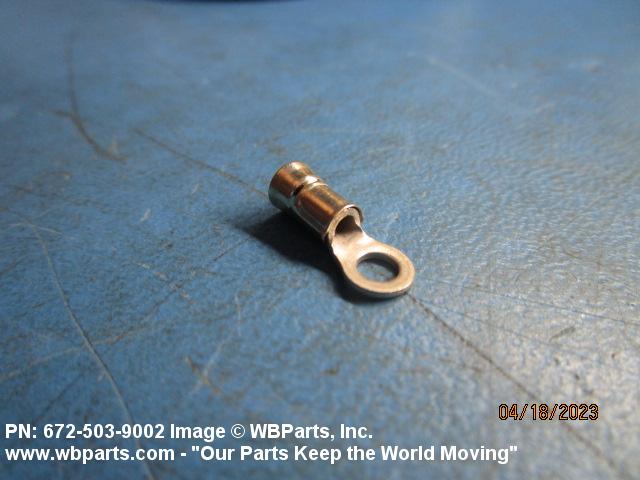

Drawings & Photos | NSN 5940-01-054-8402
Demand History | NSN 5940-01-054-8402
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-054-8402 | 2024-11-319 | 1 | United States |
| 5940-01-054-8402 | 2024-08-240 | 1 | United States |
| 6725039002 | 2023-04-100 | 25 | United States |
| 5940-01-054-8402 | 2021-04-96 | 100 | United States |
Cross Reference | NSN 5940-01-054-8402
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 672-503-9002 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-054-8402
Technical Data | NSN 5940-01-054-8402
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A30 CRIMP |
| OVERALL LENGTH | 0.312 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | STRAIGHT BARREL ALL ENDS |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 12 AWG |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| III END ITEM IDENTIFICATION | F16 |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 672-503-9002 |
Restrictions/Controls & Freight Information | NSN 5940-01-054-8402
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC SUB2 |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
