NSN 5940-01-064-1079 LS7000A1026, LS7000A10-26, 01-064-1079
Product Details | TERMINAL BOARD
5940-01-064-1079 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: LS7000A1026, LS7000A10-26, 5940-01-064-1079, 01-064-1079, 5940010641079, 010641079
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 AUG 1978 | 01-064-1079 | 00404 ( TERMINAL BOARD ) |

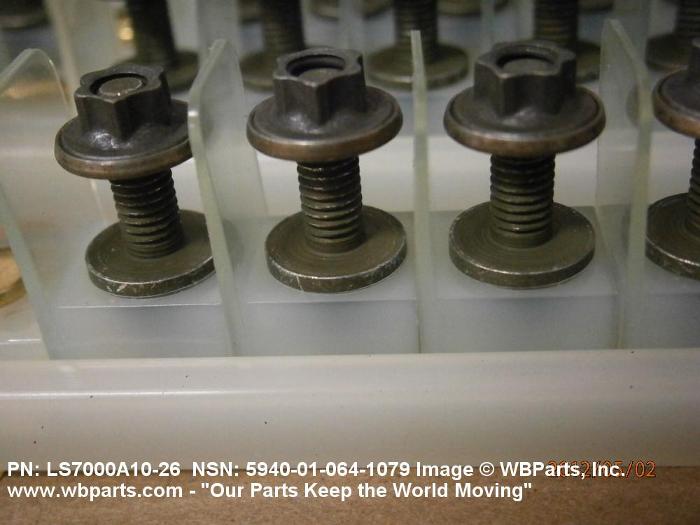

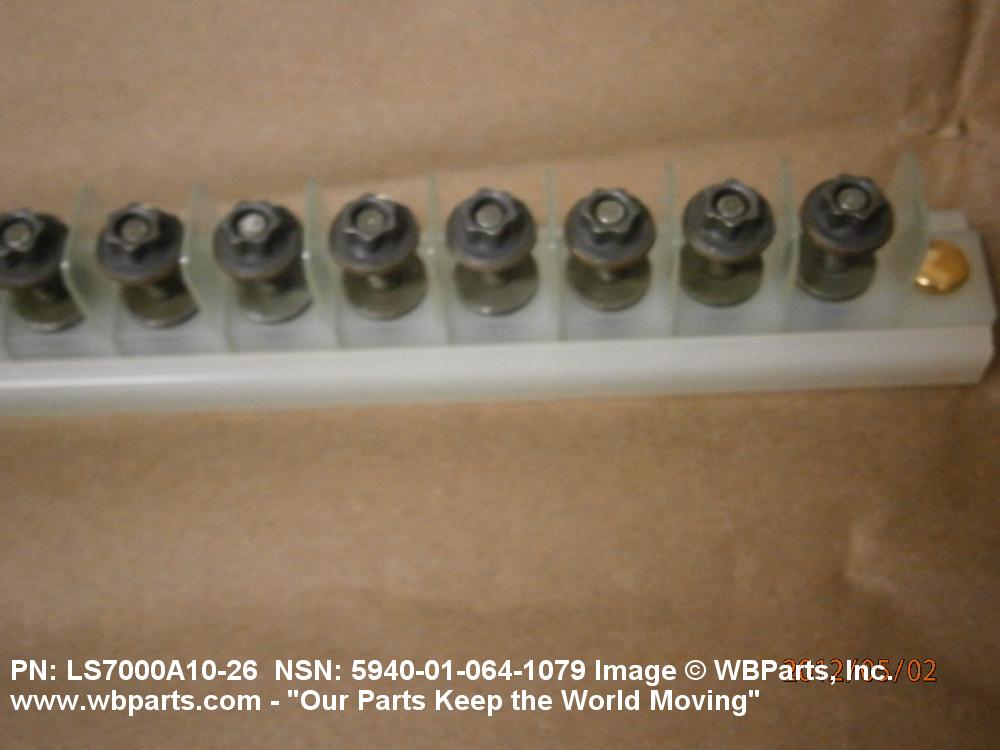

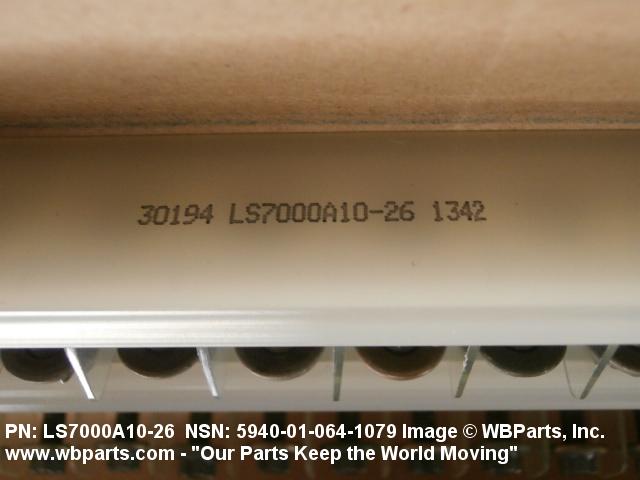

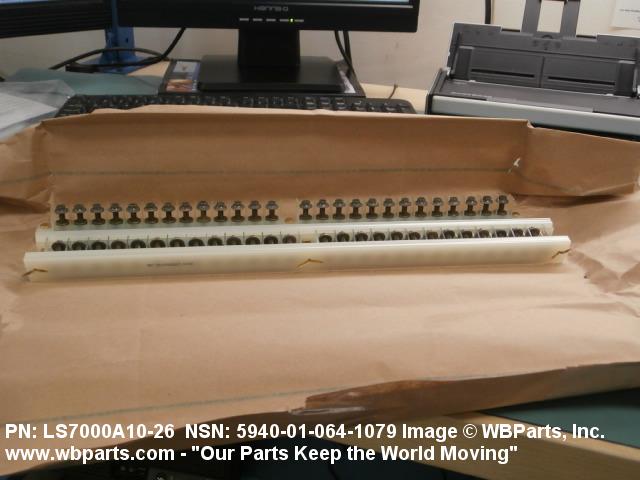

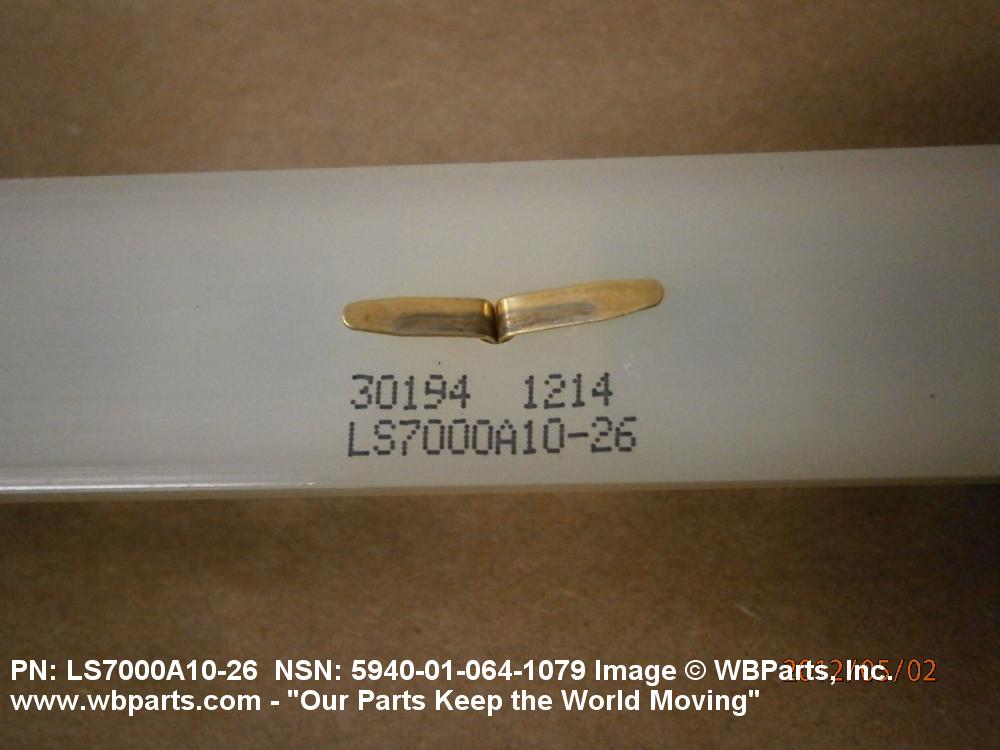

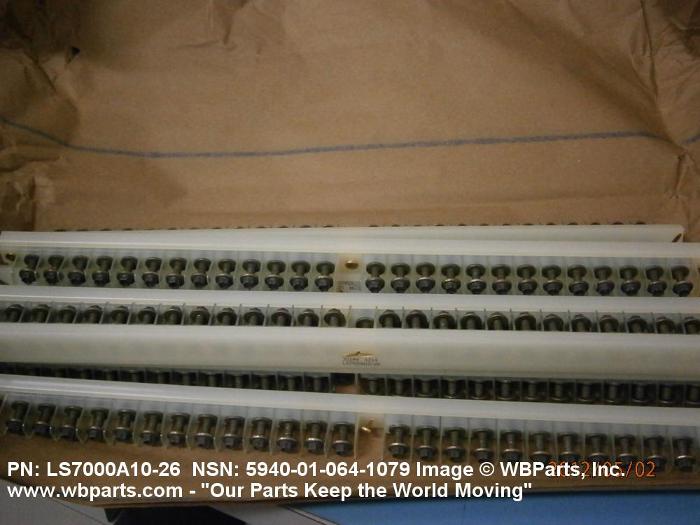

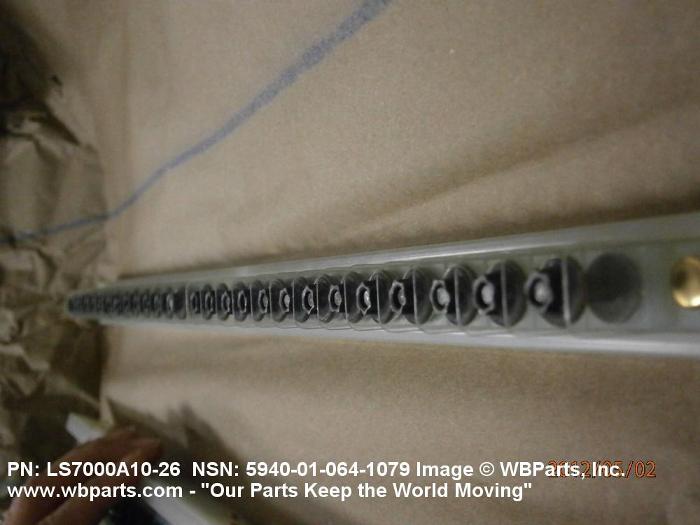

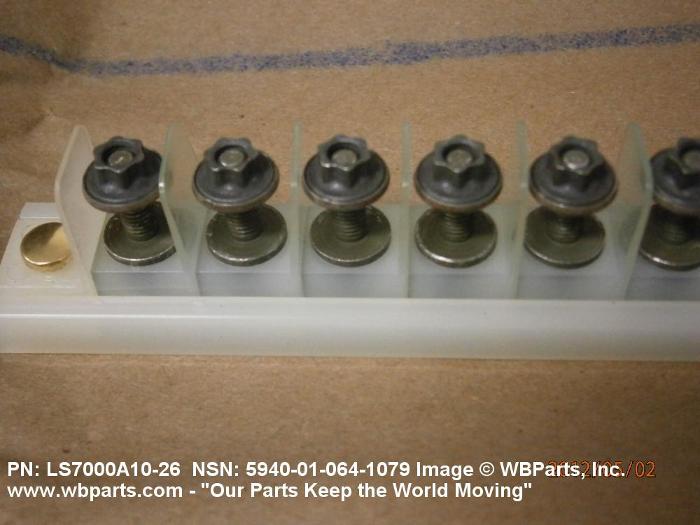

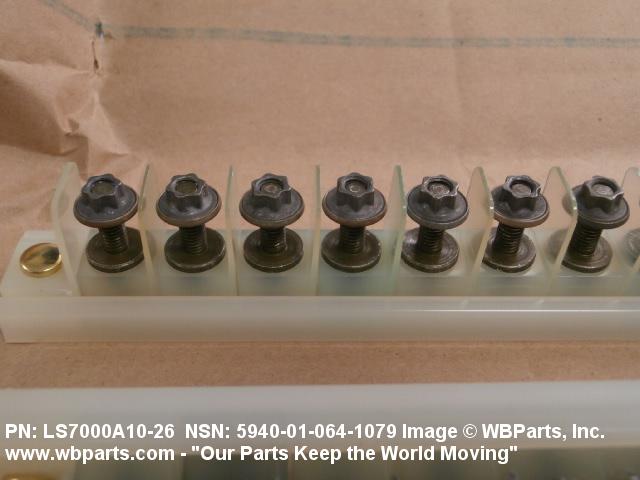

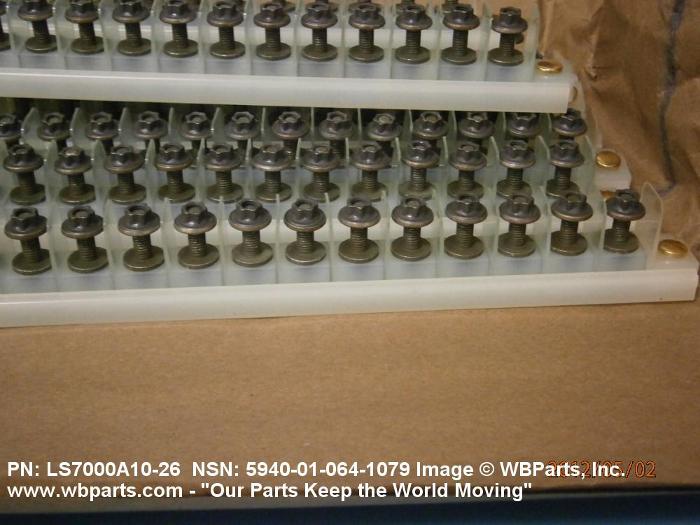

Drawings & Photos | NSN 5940-01-064-1079
Demand History | NSN 5940-01-064-1079
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-064-1079 | 2017-07-204 | 79 | DIBBS |
| 5940-01-064-1079 | 2015-08-217 | 102 | DIBBS |
| 5940-01-064-1079 | 2015-06-172 | 575 | DIBBS |
| 5940-01-064-1079 | 2015-06-154 | 2 | DIBBS |
| 5940-01-064-1079 | 2015-06-153 | 75 | DIBBS |
| 5940-01-064-1079 | 2014-08-230 | 500 | DIBBS |
| 5940-01-064-1079 | 2014-02-54 | 50 | DIBBS |
| LS7000A1026 | 2013-10-289 | 3 | United States |
| 5940-01-064-1079 | 2013-07-203 | 48 | DIBBS |
| LS7000A1026 | 2013-06-168 | 9 | US |
| LS7000A1026 | 2013-06-154 | 3 | United States |
| LS7000A1026 | 2012-05-139 | 48 | United States |
| 5940-01-064-1079 | 2012-05-134 | 2 | DIBBS |
| 5940-01-064-1079 | 2012-03-88 | 18 | United States |
| LS7000A1026 | 2011-03-76 | 78 | United States |
| LS7000A1026 | 2007-09-268 | 1 | us |
Cross Reference | NSN 5940-01-064-1079
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS7000A10-26 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-064-1079
Technical Data | NSN 5940-01-064-1079
| Characteristic | Specifications |
|---|---|
| BODY STYLE | A1 BARRIER TYPE |
| BOARD OVERALL LENGTH | 16.180 INCHES |

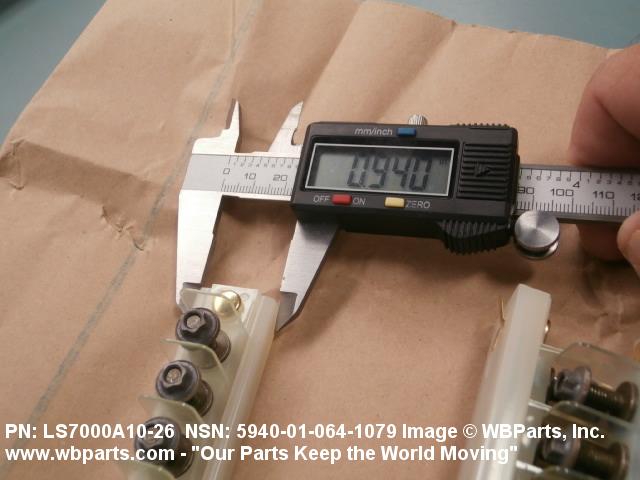

| BOARD OVERALL WIDTH | 0.940 INCHES |

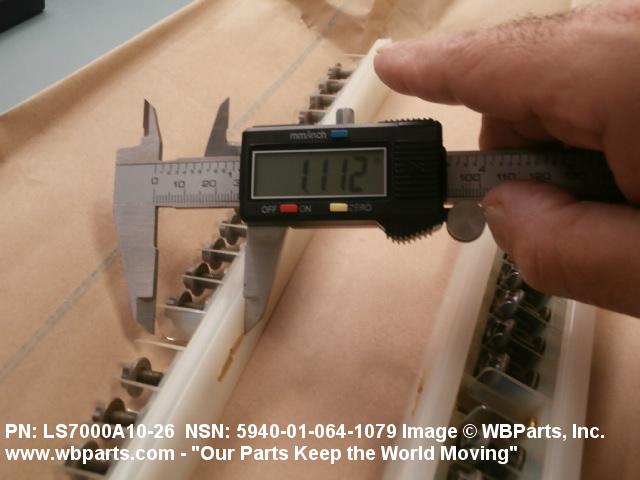

| BOARD OVERALL HEIGHT | 1.112 INCHES |
| BOARD HEIGHT EXCLUDING TERMINALS | 1.112 INCHES |

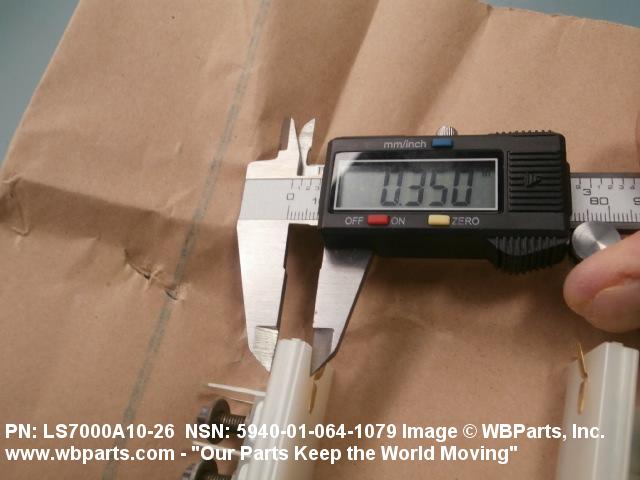

| BASE THICKNESS | 0.350 INCHES |
| TERMINAL PATTERN ARRANGEMENT | SINGLE ROW |
| TERMINAL ROW QUANTITY | 1 |

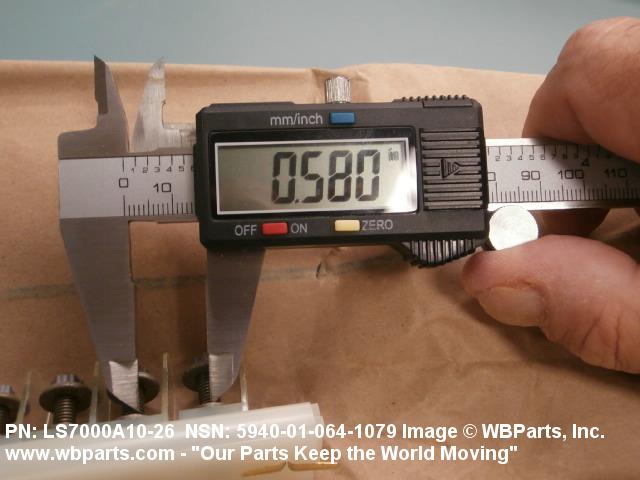

| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.580 INCHES |
| TERMINAL DESIGN | NONFEEDTHRU |
| NONFEEDTHRU TERMINAL TYPE | 598 SINGLE |
| NONFEEDTHRU TERMINAL QUANTITY | 26 SINGLE |
| BOARD CONSTRUCTION | CONSTRUCTED OF INDIVIDUAL PIECES WHICH ARE MOUNTED ON A TRACK OR CHANNEL |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 UNTHREADED HOLE |
| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 0.250 INCHES |
| MOUNTING HOLE DIAMETER | 0.146 INCHES |
Restrictions/Controls & Freight Information | NSN 5940-01-064-1079
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-064-1079
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
