NSN 5940-01-065-9414 9311437, 01-065-9414, 010659414
Product Details | TERMINAL BOARD
5940-01-065-9414 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: 9311437, 5940-01-065-9414, 01-065-9414, 5940010659414, 010659414
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 SEP 1978 | 01-065-9414 | 00404 ( TERMINAL BOARD ) |

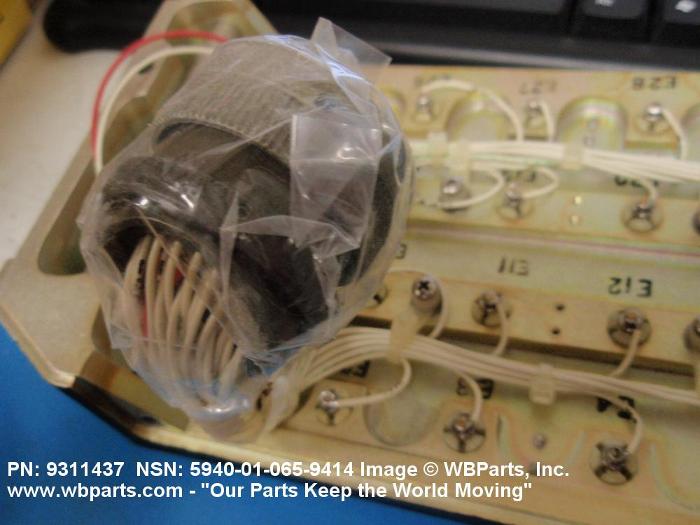

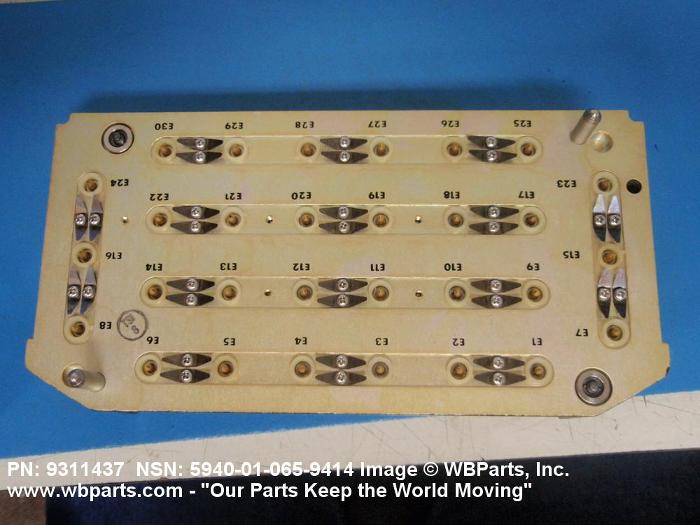

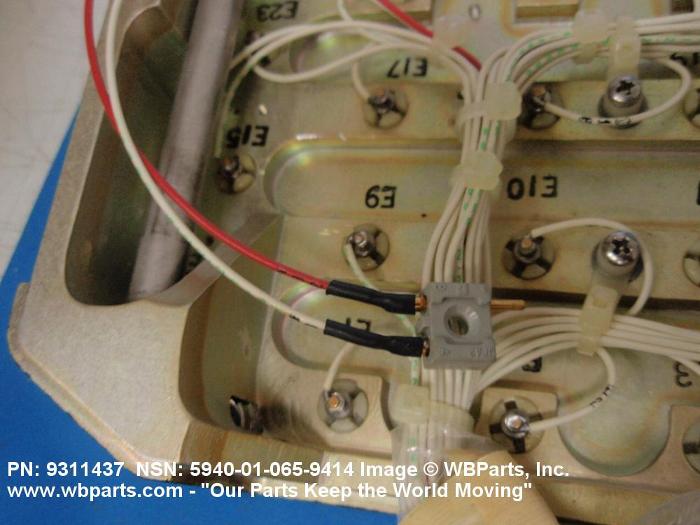

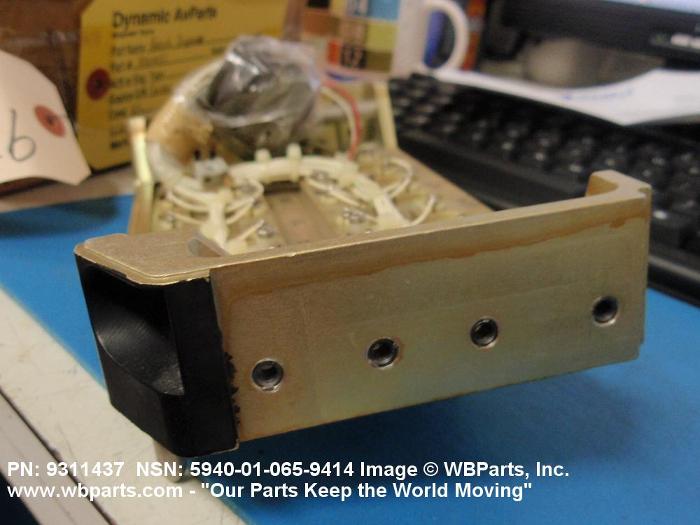

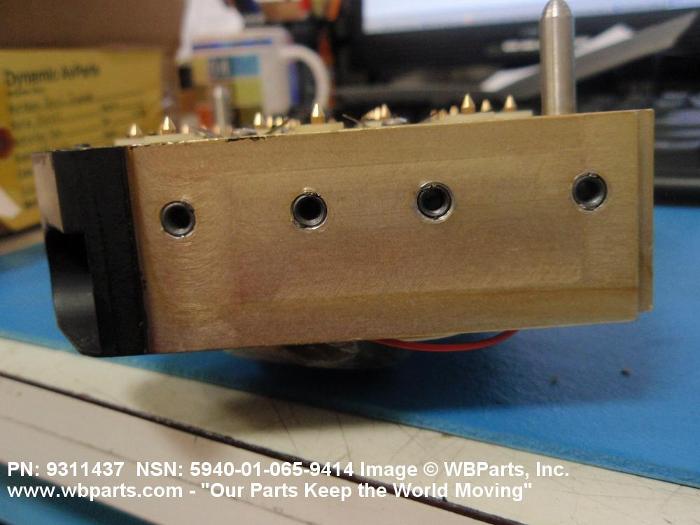

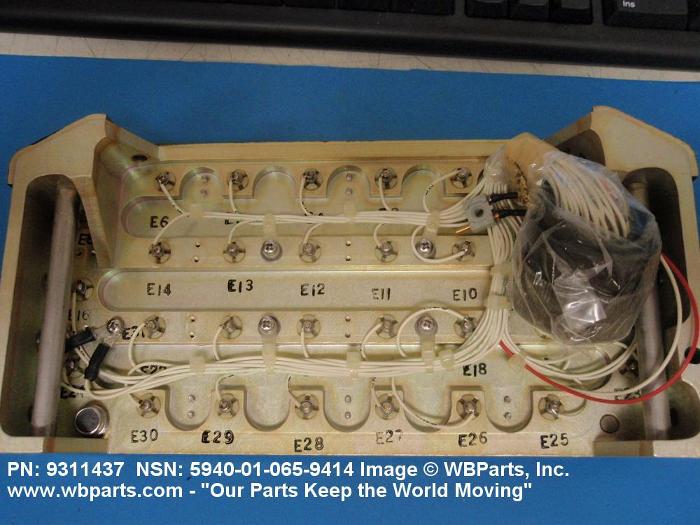

Drawings & Photos | NSN 5940-01-065-9414
Demand History | NSN 5940-01-065-9414
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9311437 | 2011-01-10 | 2 | Israel |
Cross Reference | NSN 5940-01-065-9414
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9311437 | 19203 | PICATINNY ARSENAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-065-9414
Technical Data | NSN 5940-01-065-9414
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 AND STEEL COMP 416 TERMINALS |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423 FED SPEC 1ST MATERIAL RESPONSE AND ASTM A581 ASSN STD 2ND MATERIAL RESPONSE TERMINALS |
| SURFACE TREATMENT | PASSIVATE TERMINALS |
| BODY STYLE | A10 BLOCK TYPE |
| BOARD OVERALL LENGTH | 8.590 INCHES |
| BOARD OVERALL WIDTH | 4.375 INCHES |
| BOARD THICKNESS | 0.335 INCHES |
| TERMINAL PATTERN ARRANGEMENT | MULTI-ROW |
| TERMINAL ROW QUANTITY | 4 |
| DISTANCE BETWEEN TERMINAL ROW CENTERS | 0.5475 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.5475 INCHES |
| TERMINAL DESIGN | FEEDTHRU |
| FEEDTHRU CONNECTION END TYPE | 433 FIRST END FIRST COMBINATION 448 SECOND END FIRST COMBINATION 448 SECOND END FIRST COMBINATION |
| FEEDTHRU TERMINAL QUANTITY | 30 SINGLE COMBINATION |
| BOARD CONSTRUCTION | SOLID CONSTRUCTION |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| MOUNTING FACILITY THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY NOMINAL THREAD DIAMETER | 0.164 INCHES |
| MOUNTING FACILITY THREAD QUANTITY PER INCH | 32 |
| SPECIAL FEATURES | WIRED F/SEQUENTIAL FLARE FIRING |
| III END ITEM IDENTIFICATION | M130 GENERAL DISPENSER |
| MANUFACTURERS CODE | 19203 |
| DESIGN CONTROL REFERENCE | 9311437 |
Restrictions/Controls & Freight Information | NSN 5940-01-065-9414
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
