NSN 5940-01-073-2935 M7928/4-115, M7928/7-115, M79284115
Product Details | LUG TERMINAL
5940-01-073-2935 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: M7928/4-115, M7928/7-115, M79284115, M79287115, AS7928/4, AS7928/4-115 , AS79284, AS79284115, MIL-T-7928/4, MILT79284, 539781, 53978-1, 5940-01-073-2935, 01-073-2935, 5940010732935, 010732935
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 MAR 1979 | 01-073-2935 | 00746 ( TERMINAL, LUG ) |

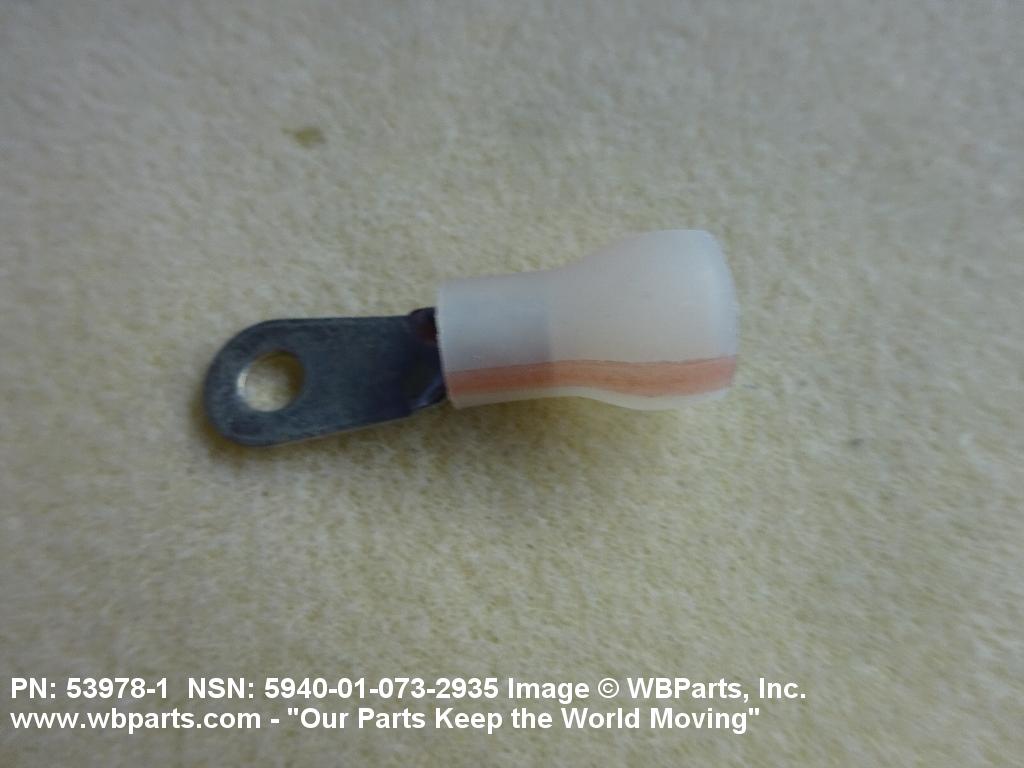

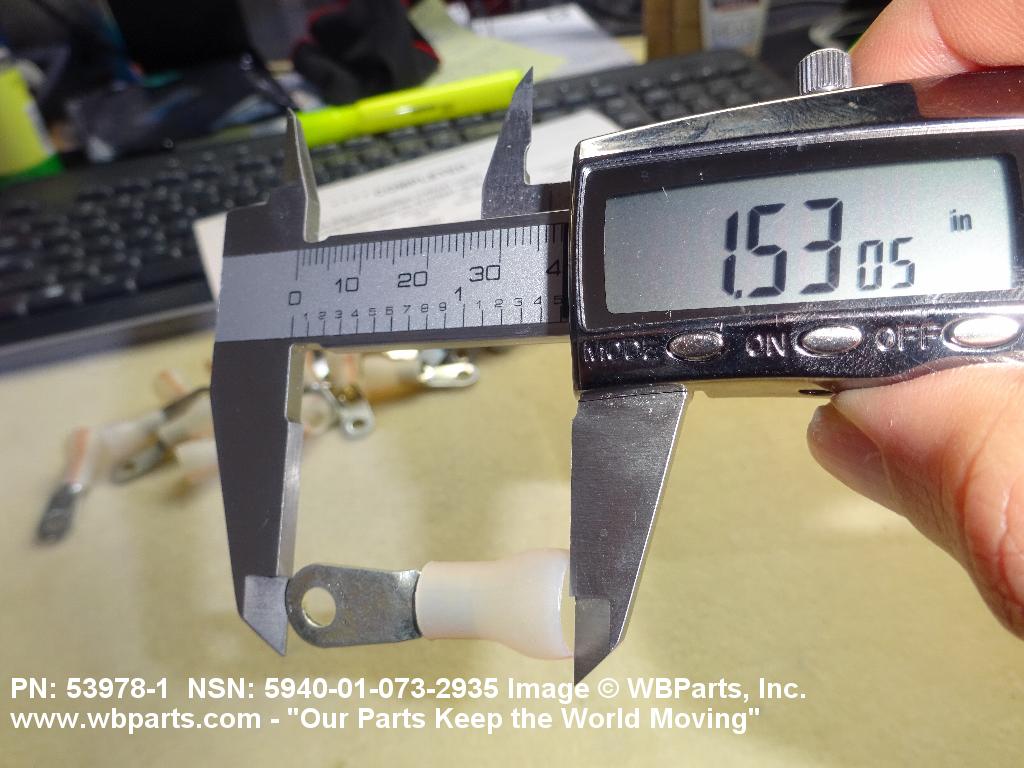

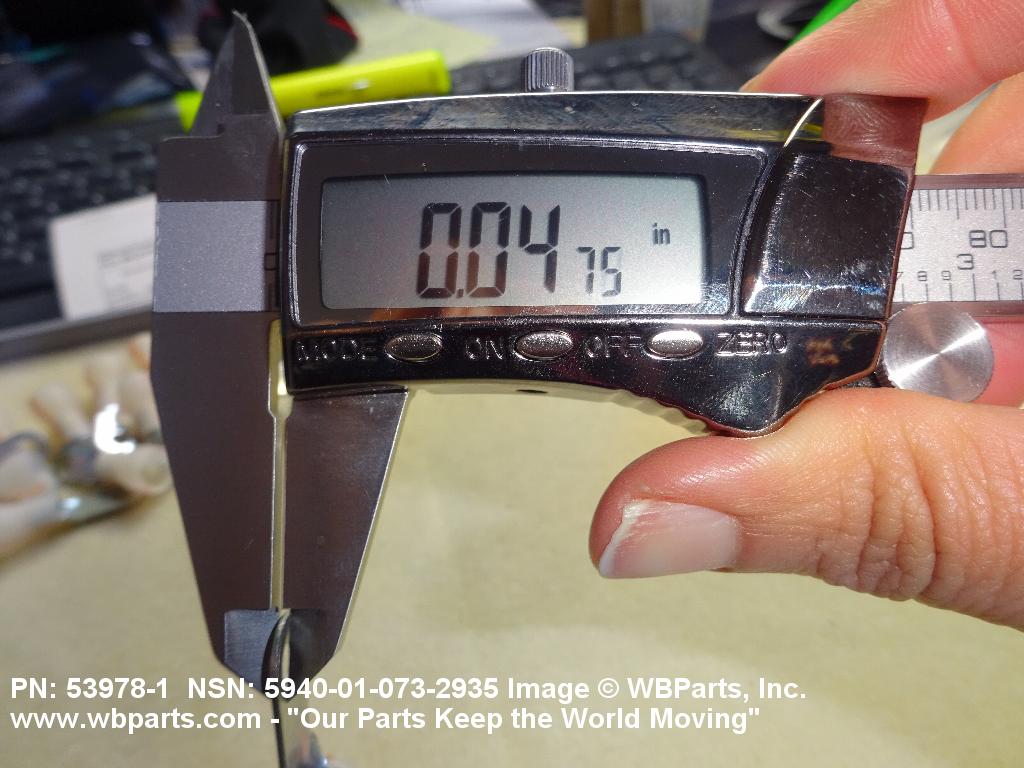

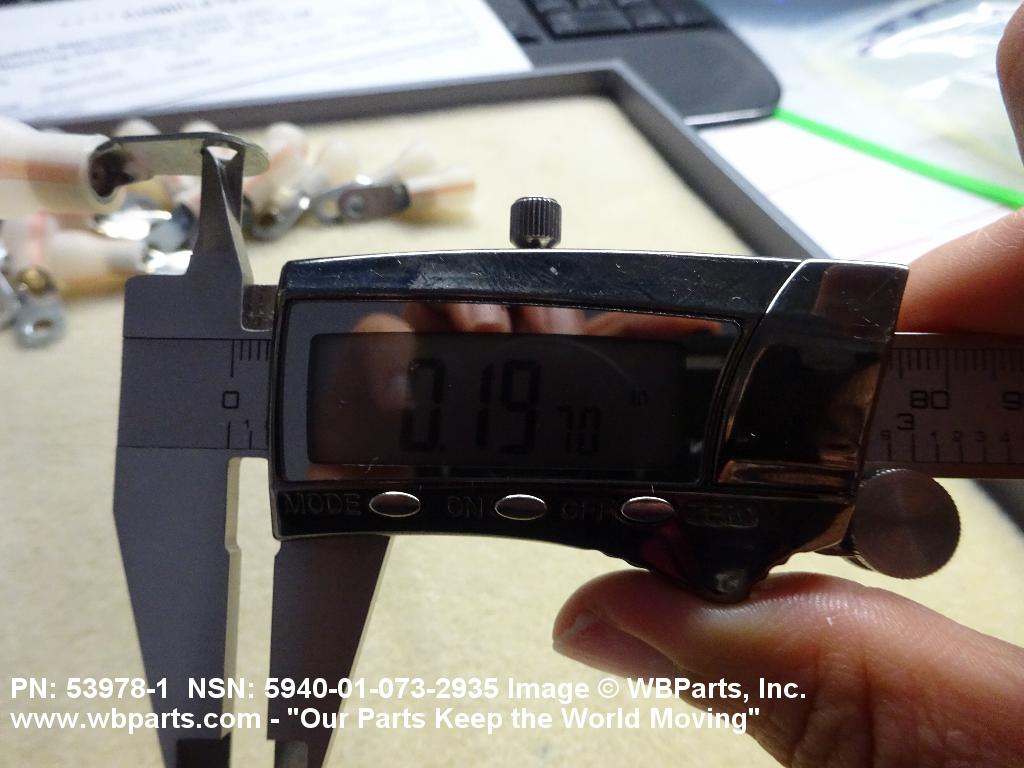

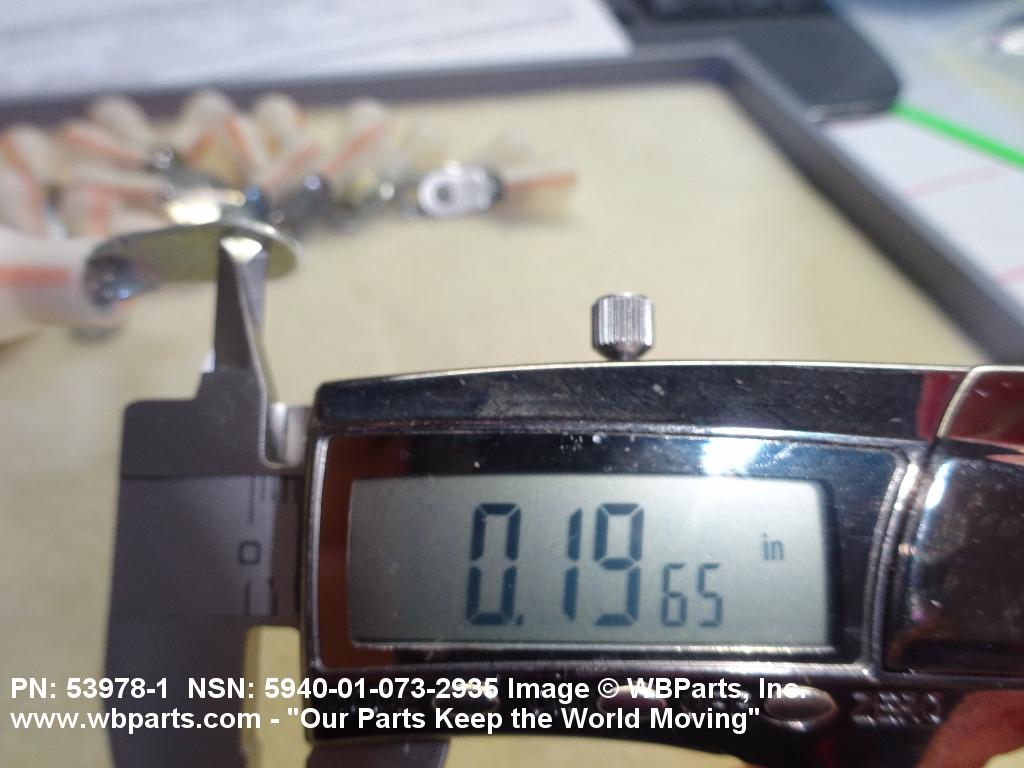

Drawings & Photos | NSN 5940-01-073-2935
Demand History | NSN 5940-01-073-2935
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-073-2935 | 2025-09-266 | 90 | United States |
| M79284115 | 2025-09-259 | 11 | United States |
| AS79284 | 2023-10-275 | 4 | United States |
| AS79284115 | 2023-10-275 | 4 | United States |
| M79284115 | 2023-10-275 | 4 | United States |
| MILT79284 | 2023-10-275 | 4 | United States |
| 53978-1 | 2023-06-170 | 218 | DIBBS |
| 53978-1 | 2023-03-87 | 218 | DIBBS |
| 53978-1 | 2023-03-75 | 218 | DIBBS |
| 53978-1 | 2022-11-324 | 259 | DIBBS |
| 539781 | 2022-10-292 | 4 | US |
| 539781 | 2022-10-292 | 6 | US |
| 53978-1 | 2022-10-285 | 218 | DIBBS |
| 5940-01-073-2935 | 2022-04-109 | 218 | DIBBS |
| 5940-01-073-2935 | 2022-01-13 | 218 | DIBBS |
| 5940-01-073-2935 | 2021-12-354 | 2 | United States |
| 5940-01-073-2935 | 2021-12-344 | 25 | United States |
| 5940-01-073-2935 | 2021-09-260 | 50 | MANUAL |
| 5940-01-073-2935 | 2021-08-221 | 14 | United States |
| 5940-01-073-2935 | 2020-12-348 | 1029 | DIBBS |
| 5940-01-073-2935 | 2020-12-337 | 5 | US |
| 5940-01-073-2935 | 2020-11-328 | 50 | United States |
| 5940-01-073-2935 | 2020-08-241 | 218 | DIBBS |
| 5940-01-073-2935 | 2020-08-233 | 218 | DIBBS |
| 5940-01-073-2935 | 2020-05-135 | 888 | DIBBS |
| 5940-01-073-2935 | 2020-05-127 | 888 | DIBBS |
| 5940-01-073-2935 | 2018-04-100 | 345 | US |
| 5940-01-073-2935 | 2017-04-114 | 24 | United States |
| 5940-01-073-2935 | 2016-02-49 | 772 | DIBBS |
| 5940-01-073-2935 | 2013-02-51 | 45 | US |
| 5940-01-073-2935 | 2013-01-22 | 358 | DIBBS |
| 5940-01-073-2935 | 2012-06-158 | 202 | DIBBS |
| 5940-01-073-2935 | 2012-03-89 | 97 | DIBBS |
| MILT79284 | 2011-10-279 | 1 | US |
| 5940-01-073-2935 | 2011-08-234 | 105 | DIBBS |
| 5940-01-073-2935 | 2011-07-203 | 161 | DIBBS |
| 5940-01-073-2935 | 2011-02-34 | 30 | DIBBS |
| 5940-01-073-2935 | 2011-01-14 | 30 | DIBBS |
Cross Reference | NSN 5940-01-073-2935
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 53978-1 | 00779 | TYCO ELECTRONICS CORPORATION |
| AS7928/4 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS7928/4-115 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M7928/4-115 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M7928/7-115 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-T-7928/4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-073-2935
Related Products | NSN 5940-01-073-2935
Technical Data | NSN 5940-01-073-2935
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A24 CRIMP |
| OVERALL LENGTH | 1.402 INCHES |
| OVERALL WIDTH | 0.407 INCHES |
| MATERIAL THICKNESS | 0.061 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | RECESSED BARREL SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 8 AWG |
| MOUNTING METHOD STYLE | D14 RING |
| MOUNTING HOLE DIAMETER | 0.198 INCHES |
| MOUNTING TONGUE WIDTH | 0.407 INCHES |
| MOUNTING FACILITY THICKNESS | 0.061 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | RED |
| MATERIAL | PLASTIC INSULATION COPPER OVERALL EXCEPT INSULATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-T-7928/4 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M7928/4-115 |
Restrictions/Controls & Freight Information | NSN 5940-01-073-2935
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063330 | ELECTRICAL TERMINAL/TERMINAL BLOCKS |
| Less than car load rating | ||
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-073-2935
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
