NSN 5940-01-105-8086 MS2721268, MS27212-6-8, 01-105-8086
Product Details | TERMINAL BOARD
5940-01-105-8086 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: MS2721268, MS27212-6-8, 5940-01-105-8086, 01-105-8086, 5940011058086, 011058086
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 JAN 1981 | 01-105-8086 | 00404 ( TERMINAL BOARD ) |

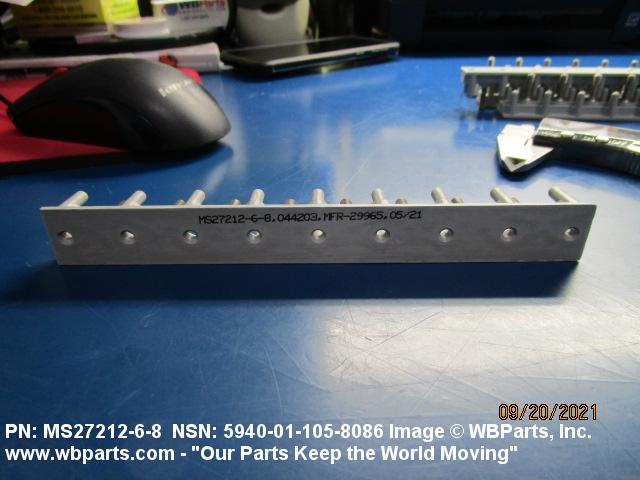

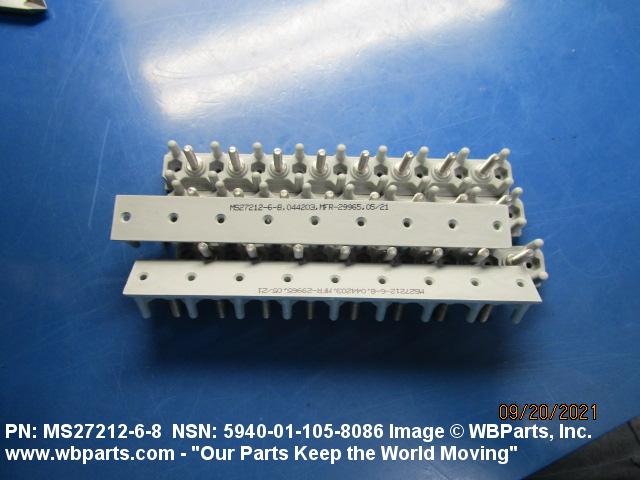

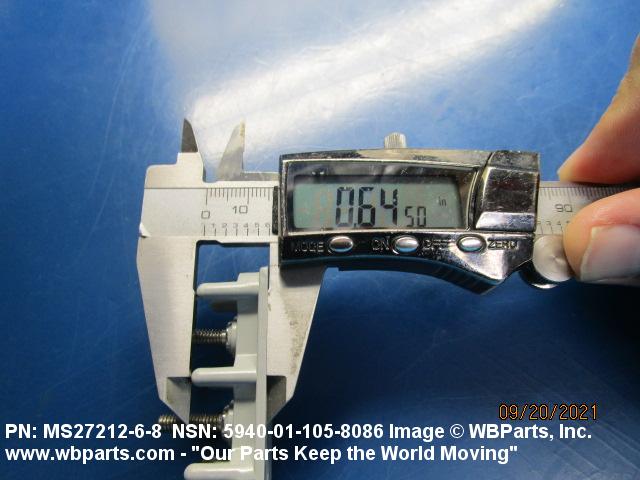

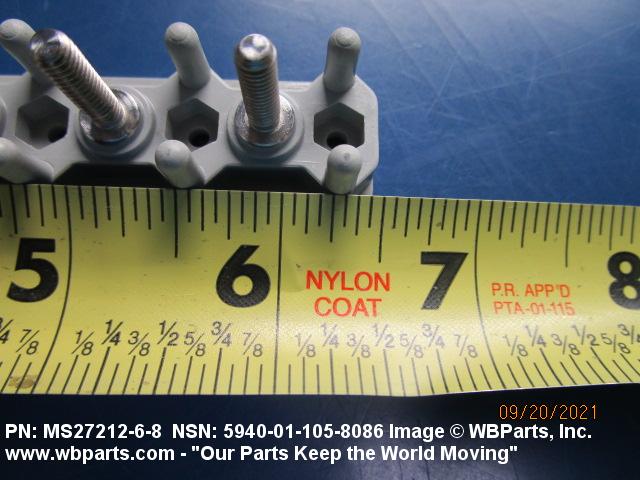

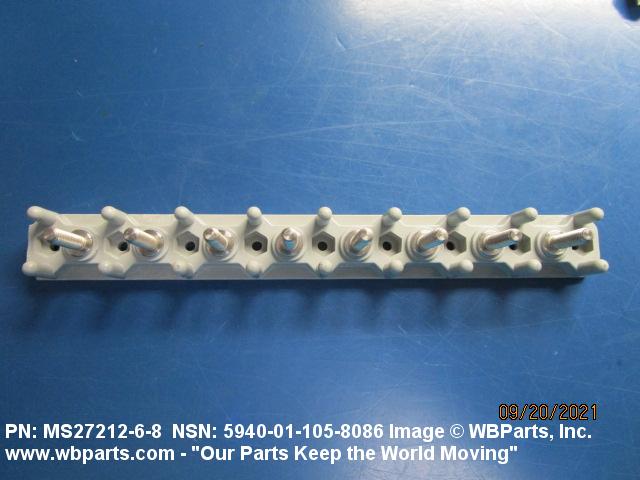

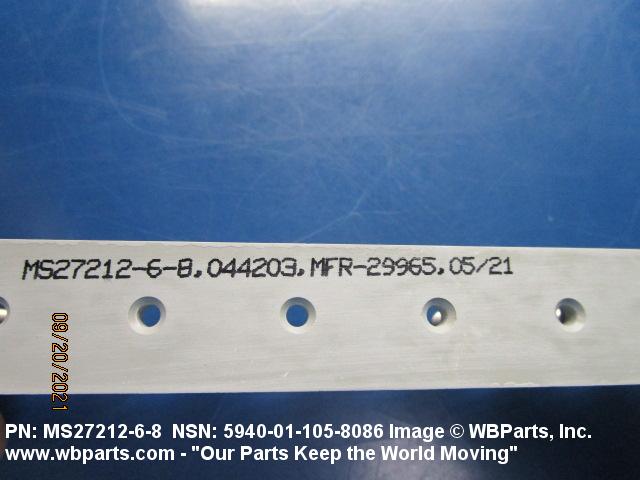

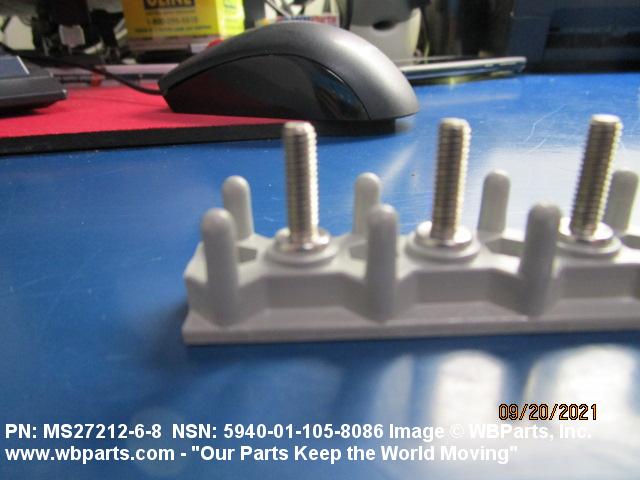

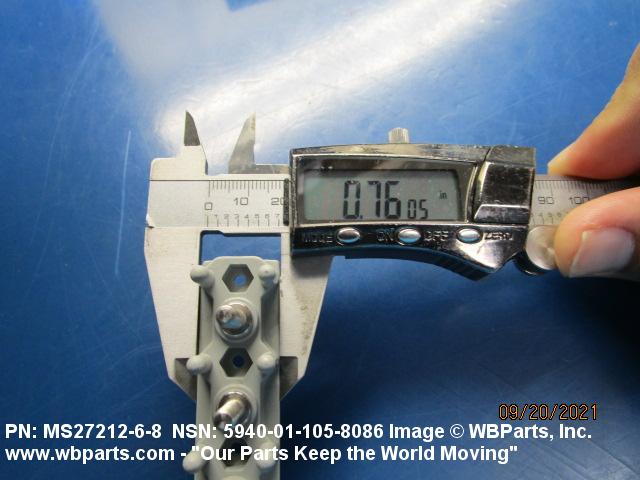

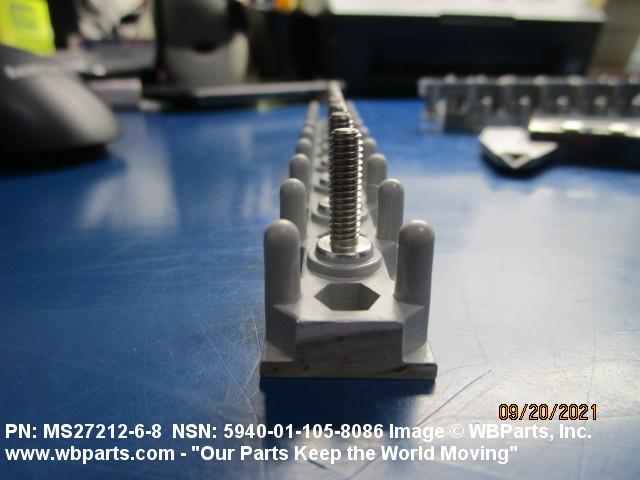

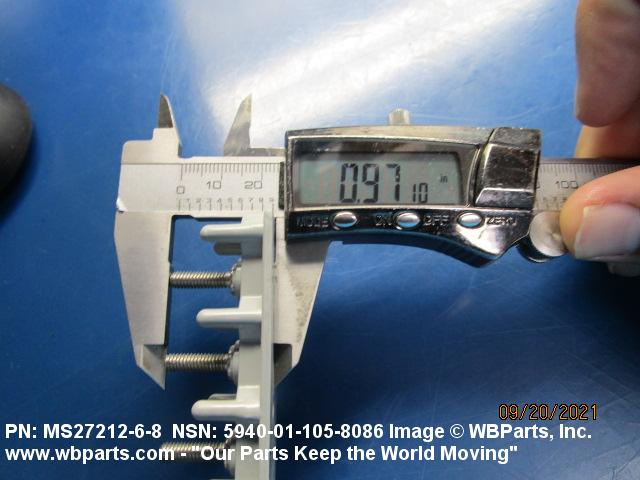

Drawings & Photos | NSN 5940-01-105-8086
Demand History | NSN 5940-01-105-8086
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2721268 | 2024-03-67 | 2 | United States |
| 5940-01-105-8086 | 2021-09-244 | 1 | United States |
| MS2721268 | 2014-04-112 | 6 | United States |
Cross Reference | NSN 5940-01-105-8086
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27212-6-8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-105-8086
Technical Data | NSN 5940-01-105-8086
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC DIALLYL PHTHALATE AND GLASS FIBER BOARD STEEL CORROSION RESISTING TERMINALS |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-19833 MIL SPEC ALL MATERIAL RESPONSES BOARD |
| BODY STYLE | A14 BARRIER STANDOFF |
| BOARD OVERALL LENGTH | 6.224 INCHES |
| BOARD OVERALL WIDTH | 0.780 INCHES |
| BOARD OVERALL HEIGHT | 1.005 INCHES |
| BOARD HEIGHT EXCLUDING TERMINALS | 0.625 INCHES |
| BASE THICKNESS | 0.281 INCHES |
| TERMINAL PATTERN ARRANGEMENT | SINGLE ROW |
| TERMINAL ROW QUANTITY | 1 |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.750 INCHES |
| TERMINAL DESIGN | NONFEEDTHRU |
| NONFEEDTHRU TERMINAL TYPE | 597 SINGLE |
| NONFEEDTHRU TERMINAL QUANTITY | 8 SINGLE |
| BOARD CONSTRUCTION | SOLID CONSTRUCTION |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 2500.0 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27212-6-8 |
Restrictions/Controls & Freight Information | NSN 5940-01-105-8086
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5940-01-105-8086
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
