NSN 5940-01-129-6214 MS2721236, MS27212-3-6, 01-129-6214
Product Details | TERMINAL BOARD
5940-01-129-6214 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: MS2721236, MS27212-3-6, 5940-01-129-6214, 01-129-6214, 5940011296214, 011296214
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 APR 1982 | 01-129-6214 | 00404 ( TERMINAL BOARD ) |

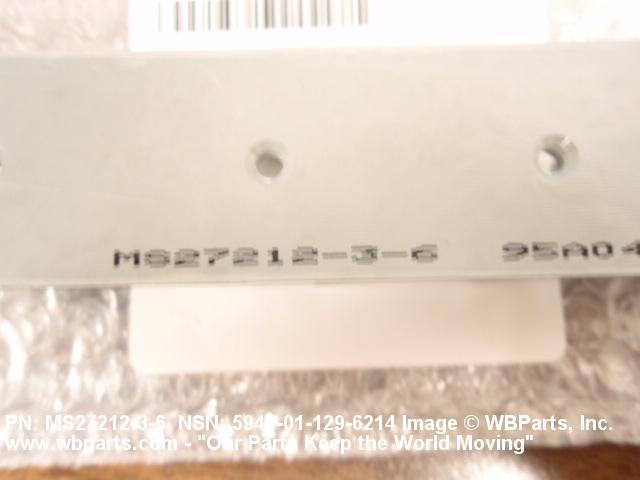

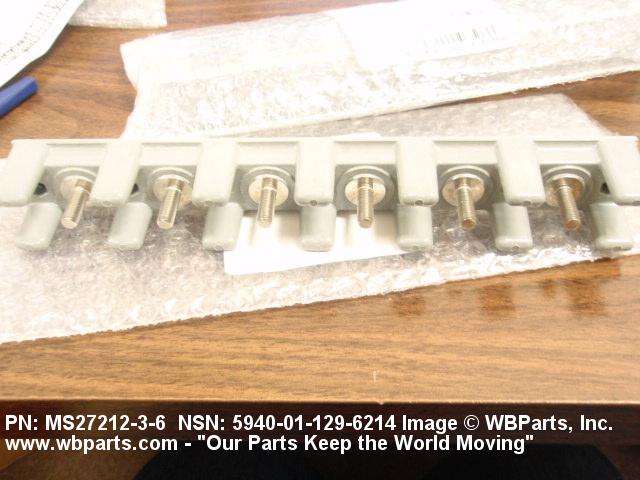

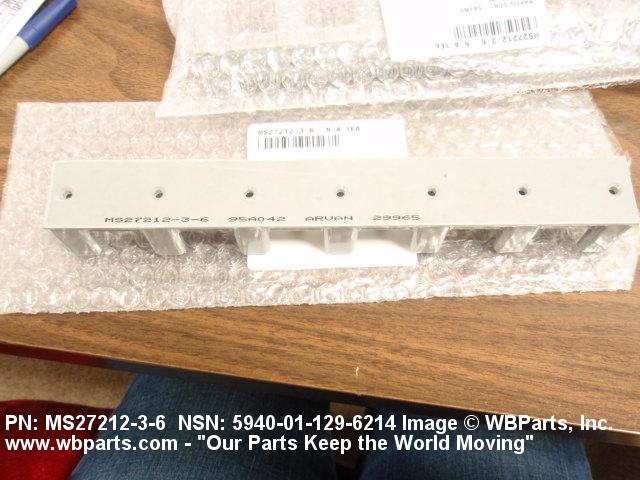

Drawings & Photos | NSN 5940-01-129-6214
Demand History | NSN 5940-01-129-6214
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2721236 | 2019-05-143 | 12 | United States |
| MS2721236 | 2019-05-135 | 69 | United States |
| MS2721236 | 2012-11-314 | 13 | US |
| 5940-01-129-6214 | 2011-04-91 | 2 | US |
| MS2721236 | 2010-10-292 | 2 | United States |
Cross Reference | NSN 5940-01-129-6214
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27212-3-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-129-6214
Technical Data | NSN 5940-01-129-6214
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC BOARD STEEL CORROSION RESISTING TERMINALS |
| BODY STYLE | A14 BARRIER STANDOFF |
| BOARD OVERALL LENGTH | 9.624 INCHES |
| BOARD OVERALL WIDTH | 1.250 INCHES |
| BOARD OVERALL HEIGHT | 1.321 INCHES |
| BOARD HEIGHT EXCLUDING TERMINALS | 1.297 INCHES |
| BASE THICKNESS | 0.455 INCHES |
| TERMINAL PATTERN ARRANGEMENT | SINGLE ROW |
| TERMINAL ROW QUANTITY | 1 |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 1.500 INCHES |
| TERMINAL DESIGN | NONFEEDTHRU |
| NONFEEDTHRU TERMINAL TYPE | 597 SINGLE |
| NONFEEDTHRU TERMINAL QUANTITY | 6 SINGLE |
| BOARD CONSTRUCTION | SOLID CONSTRUCTION |
| MOUNTING FACILITY TYPE AND QUANTITY | 7 UNTHREADED HOLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.500 INCHES |
| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 0.687 INCHES |
| DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY | 0.312 INCHES |
| MOUNTING HOLE DIAMETER | 0.125 INCHES |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 2500.0 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27212-3-6 |
Restrictions/Controls & Freight Information | NSN 5940-01-129-6214
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
