NSN 5940-01-190-6486 81828401, 8182-84-01, 818284010553
Product Details | QUICK DISCONNECT TERMINAL
5940-01-190-6486 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Part Alternates: 81828401, 8182-84-01, 818284010553, 8182-84-01-0553, 5940-01-190-6486, 01-190-6486, 5940011906486, 011906486
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 SEP 1984 | 01-190-6486 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
Drawings & Photos | NSN 5940-01-190-6486
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-190-6486
Technical Data | NSN 5940-01-190-6486
| Characteristic | Specifications |
|---|---|

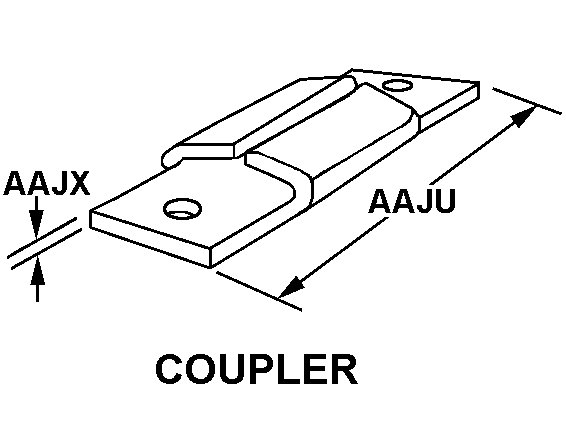

| BASIC SHAPE STYLE | A40 COUPLER |
| OVERALL LENGTH | 0.568 INCHES |

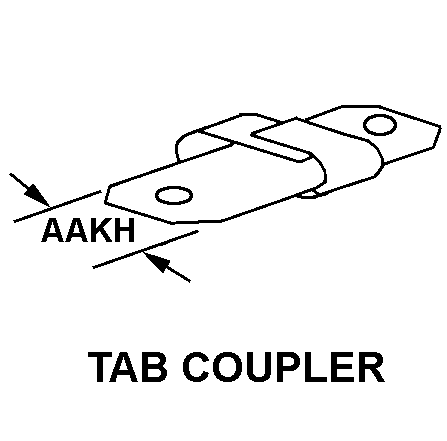

| QUICK DISCONNECT STYLE | G25 TAB COUPLER |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | STEEL OVERALL |
| SPECIAL FEATURES | SPRING CLIP MTG; ACCOM O.250 IN. AND 0.187 IN. FEMALE QUICK DISC TERM. LUGS |
| MANUFACTURERS CODE | 02768 |
| DESIGN CONTROL REFERENCE | 8182-84-01-0553 |
Restrictions/Controls & Freight Information | NSN 5940-01-190-6486
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
