NSN 5940-01-241-2144 48283018MIL, 48283018-MIL, 01-241-2144
Product Details | FEEDTHRU TERMINAL
5940-01-241-2144 A terminal designed to be mounted on a chassis or other partition, and having through connected wire mounting facilities. It may or may not be insulated. It is fabricated into a single item whose parts are not separable. For items whose parts are separable, see INSULATOR, FEEDTHRU.
Part Alternates: 48283018MIL, 48283018-MIL, 5940-01-241-2144, 01-241-2144, 5940012412144, 012412144
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 SEP 1986 | 01-241-2144 | 34672 ( TERMINAL, FEEDTHRU ) |
Drawings & Photos | NSN 5940-01-241-2144
Cross Reference | NSN 5940-01-241-2144
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 48283018-MIL | 22526 | FCI USA LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-241-2144
Technical Data | NSN 5940-01-241-2144
| Characteristic | Specifications |
|---|---|
| CONDUCTOR ACCOMMODATION TYPE | SQUARE PIN ALL ENDS |
| LARGEST WIDTH | 0.025 INCHES ALL ENDS |

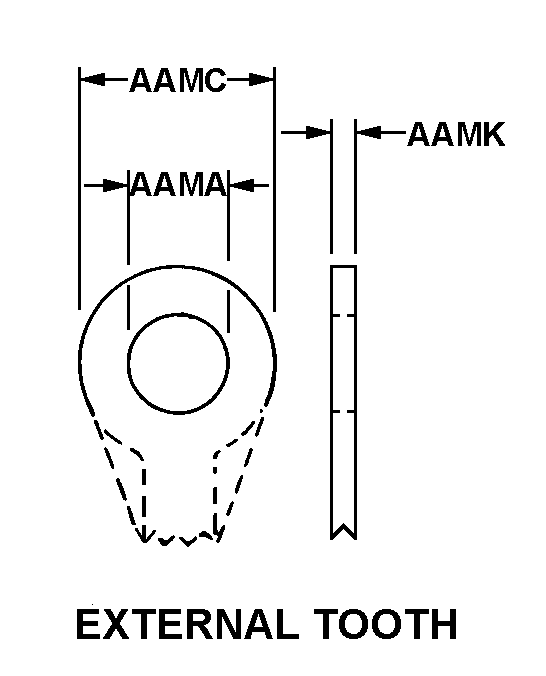

| MOUNTING METHOD STYLE | D14B EXTERNAL TOOTH |
| MOUNTING TONGUE WIDTH | 0.045 INCHES |
| MOUNTING FACILITY THICKNESS | 0.095 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL FIRST LAYER GOLD OVERALL SECOND LAYER |
Restrictions/Controls & Freight Information | NSN 5940-01-241-2144
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
