NSN 5940-01-370-3408 A540A517103, A540A517-103, AX00375103
Product Details | QUICK DISCONNECT SPLICE SET
5940-01-370-3408 A group of items consisting of mating terminals, or terminals with a joining device, designed to expedite or simplify the connection of two or more electrical wires without bringing them to a fixed point such as a binding post or terminal. It allows for simple, rapid separation of the spliced wires without the use of tools. May include an insulation sleeve. See also SPLICE, CONDUCTOR.
Part Alternates: A540A517103, A540A517-103, AX00375103, AX00375-103, 1514450024, 151445-0024, 21A00109103, 21A00109-103, 712133B24, 712-133B24, 5940-01-370-3408, 01-370-3408, 5940013703408, 013703408
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 JAN 1993 | 01-370-3408 | 61105 ( SPLICE SET, QUICK DISCONNECT ) |
Drawings & Photos | NSN 5940-01-370-3408
Cross Reference | NSN 5940-01-370-3408
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 151445-0024 | 05593 | ICORE INTERNATIONAL, INC. |
| 21A00109-103 | 07418 | JOSLYN SUNBANK COMPANY, LLC |
| 712-133B24 | 06324 | GLENAIR, INC. |
| A540A517-103 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| AX00375-103 | 05593 | ICORE INTERNATIONAL, INC. |
| AX00375-103 | 57224 | ENGINEERED TRANSITIONS CO INC DBA ENTRACO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-370-3408
Technical Data | NSN 5940-01-370-3408
| Characteristic | Specifications |
|---|---|

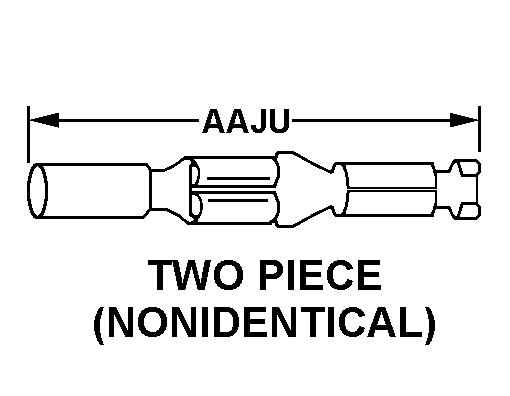

| BASIC SHAPE STYLE | A43 TWO PIECE NONIDENTICAL |
| OVERALL LENGTH | 2.400 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| MATERIAL | ALUMINUM ALLOY 2011 OVERALL EXCEPT INSULATION |
| SURFACE TREATMENT | CADMIUM OR CHROMATE OVERALL SINGLE LAYER |
Restrictions/Controls & Freight Information | NSN 5940-01-370-3408
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-370-3408
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
