NSN 5940-01-391-8645 ST4M2204B, ST4M220-4B , 86974
Product Details | RADIO FREQUENCY GROUNDING CONTACT STRIP
5940-01-391-8645 A semirigid metallic item of electrically conductive material designed for the specific purpose of grounding and/or bonding radio frequency equipment. It is normally attached to one item to give spring action to form a ground and/or bond with another item. Excludes TERMINAL STRIP, GROUNDING; CONTACT, ELECTRICAL; and STRIP, ELECTRICAL GROUNDING.
Part Alternates: ST4M2204B, ST4M220-4B , 86974, 869-74, 5940-01-391-8645, 01-391-8645, 5940013918645, 013918645
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 JUN 1994 | 01-391-8645 | 22600 ( CONTACT STRIP, RADIO FREQUENCY GROUNDING ) |

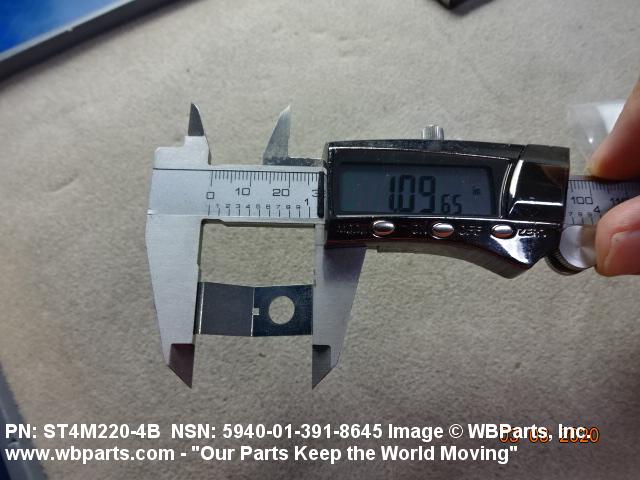

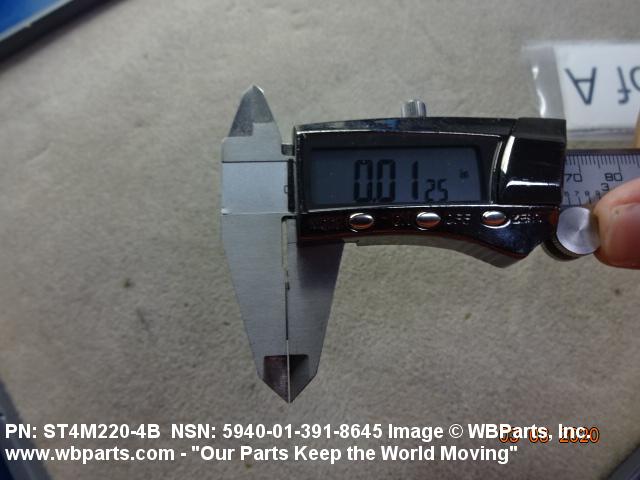

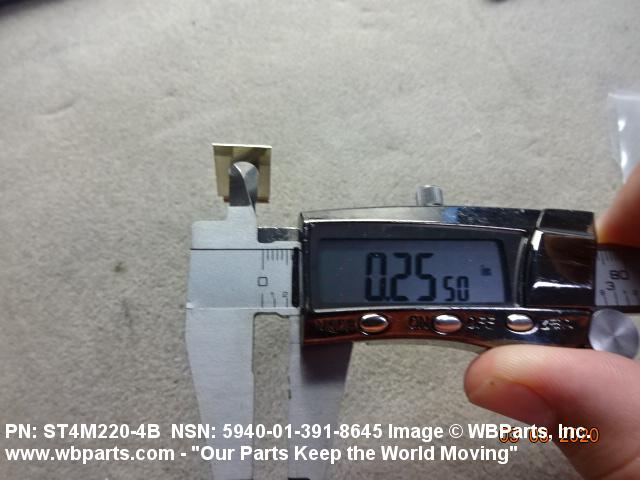

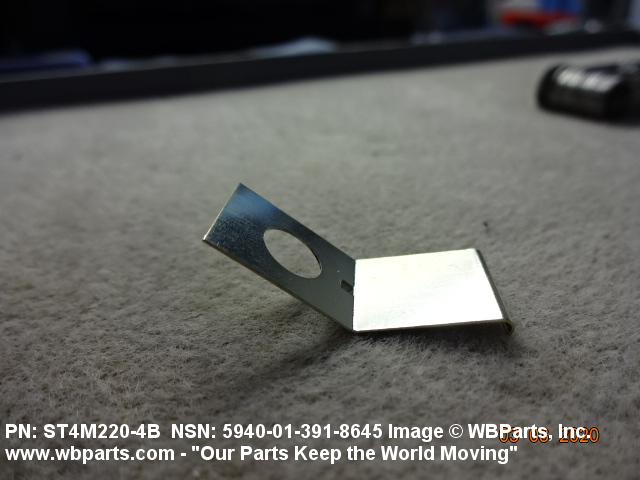

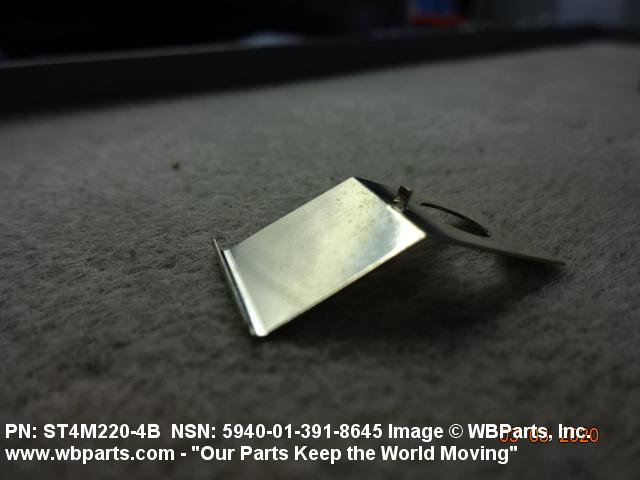

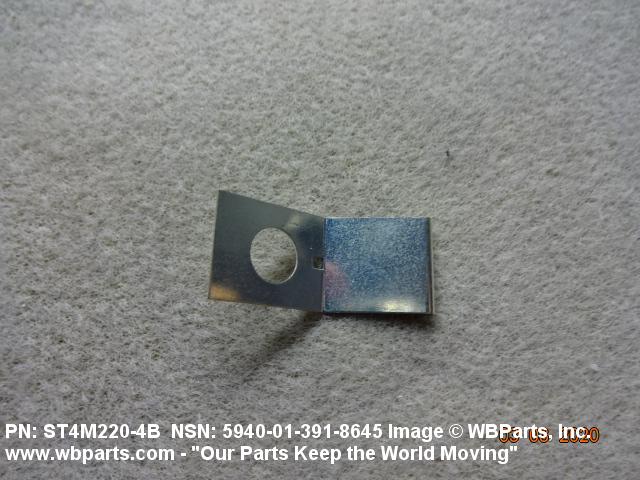

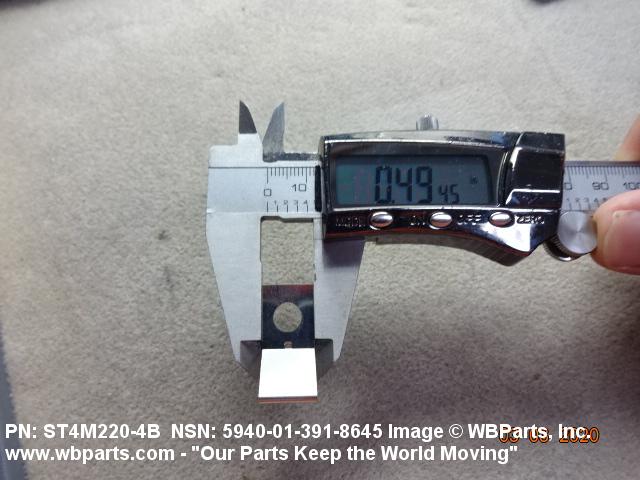

Drawings & Photos | NSN 5940-01-391-8645
Demand History | NSN 5940-01-391-8645
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST4M2204B | 2020-02-56 | 2 | United States |
| ST4M2204B | 2019-09-259 | 7 | US |
| 5940-01-391-8645 | 2019-07-183 | 2 | United States |
| 5940-01-391-8645 | 2018-09-249 | 82 | DIBBS |
| 5940-01-391-8645 | 2018-07-185 | 10 | DIBBS |
| 5940-01-391-8645 | 2018-03-61 | 2 | DIBBS |
| 5940-01-391-8645 | 2018-02-51 | 2 | DIBBS |
| 5940-01-391-8645 | 2014-04-119 | 10 | DIBBS |
| 5940-01-391-8645 | 2014-03-83 | 52 | United States |
| 5940-01-391-8645 | 2013-11-318 | 1 | DIBBS |
| 5940-01-391-8645 | 2013-11-317 | 50 | United States |
| 5940-01-391-8645 | 2012-11-318 | 1 | DIBBS |
| 5940-01-391-8645 | 2012-11-310 | 1 | DIBBS |
| 5940-01-391-8645 | 2012-10-282 | 1 | DIBBS |
| 5940-01-391-8645 | 2012-01-06 | 642 | US |
| ST4M2204B | 2011-03-68 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-391-8645
Technical Data | NSN 5940-01-391-8645
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | ANGLE |
| CONTACT FINGER QUANTITY | 2 |
| MATERIAL | BERYLLIUM COPPER |
| SURFACE TREATMENT | TIN PLATED, MIL-T-10727, TYPE 1 |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| OVERALL DEPTH | 0.250 INCHES NOMINAL |
| OVERALL THICKNESS | 0.012 INCHES NOMINAL |
| MOUNTING METHOD | HOLE |
Restrictions/Controls & Freight Information | NSN 5940-01-391-8645
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062140 | GROUND CLAMPS IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-391-8645
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
