NSN 5940-01-446-5904 MS250803DF, MS25080-3DF, 01-446-5904
Product Details | STUD TERMINAL
5940-01-446-5904 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: MS250803DF, MS25080-3DF, 5940-01-446-5904, 01-446-5904, 5940014465904, 014465904
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 JUL 1997 | 01-446-5904 | 00887 ( TERMINAL, STUD ) |

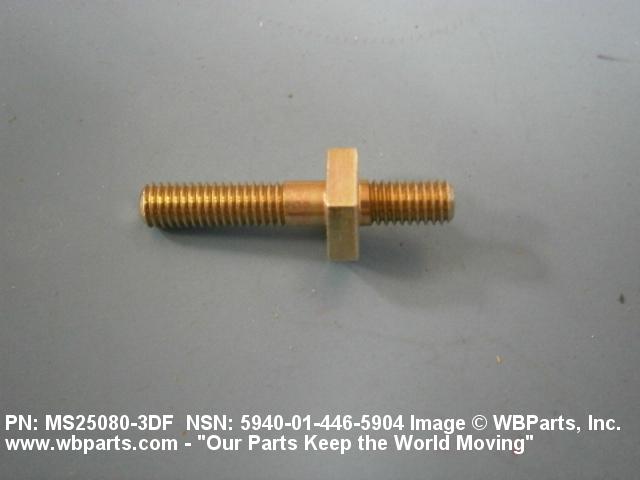

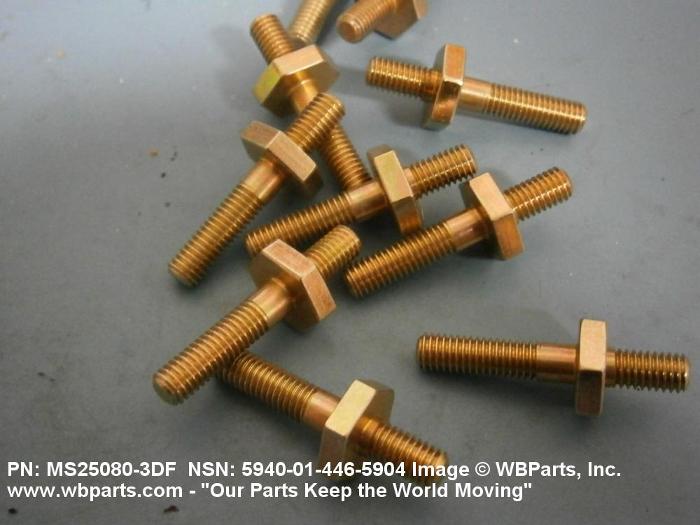

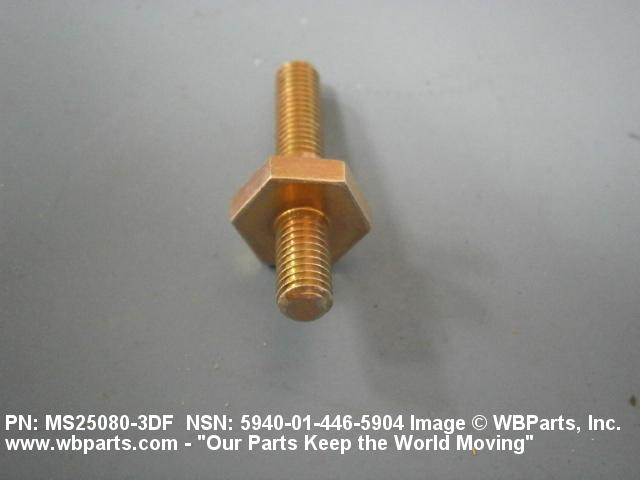

Drawings & Photos | NSN 5940-01-446-5904
Demand History | NSN 5940-01-446-5904
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS250803DF | 2015-08-243 | 5 | United States |
| MS250803DF | 2012-05-144 | 2 | United States |
| MS250803DF | 2012-05-129 | 6 | United States |
| MS250803DF | 2012-03-73 | 10 | United States |
| MS250803DF | 2012-01-12 | 2 | United States |
| MS250803DF | 2011-12-349 | 2 | United States |
| MS250803DF | 2011-11-332 | 8 | US |
| MS250803DF | 2011-09-265 | 6 | United States |
| MS250803DF | 2010-12-335 | 23 | United States |
| 5940-01-446-5904 | 2010-09-250 | 50 | United States |
Cross Reference | NSN 5940-01-446-5904
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS25080-3DF | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-446-5904
Related Products | NSN 5940-01-446-5904
Technical Data | NSN 5940-01-446-5904
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A8A NONTUBULAR, HEX |
| TERMINAL LENGTH | 0.375 INCHES |
| WIDTH ACROSS FLATS | 0.438 INCHES |
| OVERALL HEIGHT | 1.250 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | PIN SINGLE END |
| MOUNTING METHOD STYLE | D26 SHOULDERED STUD |
| MAJOR BUSHING LENGTH | 0.188 INCHES |
| THREAD LENGTH | 0.562 INCHES |
| MOUNTING THREAD SERIES | UNF |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER ALLOY 485 OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL SINGLE LAYER |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25080-3DF |
Restrictions/Controls & Freight Information | NSN 5940-01-446-5904
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-446-5904
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
