NSN 5940-01-478-2112 LE4160022, LE416-0022, LE41600220002

Product Details | LUG TERMINAL

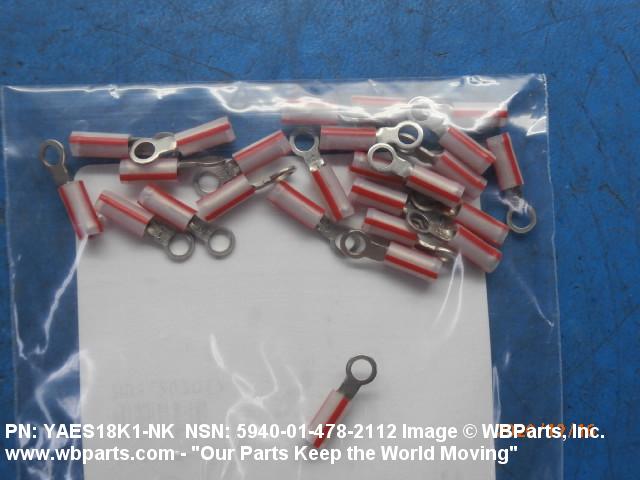

5940-01-478-2112 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.

Part Alternates: LE4160022, LE416-0022, LE41600220002, LE416-0022-0002, YAES18K1NK, YAES18K1-NK, 5940-01-478-2112, 01-478-2112, 5940014782112, 014782112

Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	31 AUG 2000	01-478-2112	00746 ( TERMINAL, LUG )

Drawings & Photos | NSN 5940-01-478-2112

Part Number	Request Date	QTY	Origin
5940-01-478-2112	2024-07-185	64	United States
5940-01-478-2112	2022-04-101	60	US
5940-01-478-2112	2021-09-245	5	US
5940-01-478-2112	2020-12-337	25	United States
5940-01-478-2112	2018-05-128	2287	DIBBS
5940-01-478-2112	2018-02-37	2112	DIBBS
LE416-0022-0002	2017-06-171	7	United States
5940-01-478-2112	2017-01-08	309	DIBBS
5940-01-478-2112	2016-06-178	362	DIBBS
5940-01-478-2112	2015-12-350	309	DIBBS
5940-01-478-2112	2015-10-294	309	DIBBS
5940-01-478-2112	2015-07-210	533	DIBBS
5940-01-478-2112	2015-06-168	375	DIBBS
5940-01-478-2112	2015-05-123	319	DIBBS
5940-01-478-2112	2015-03-84	311	DIBBS
5940-01-478-2112	2014-11-316	463	DIBBS
LE41600220002	2012-11-307	4	US
LE41600220002	2010-12-336	24	United States
5940-01-478-2112	2009-05-138	105	DIBBS
5940-01-478-2112	2009-01-21	26	DIBBS
5940-01-478-2112	2008-12-364	26	DIBBS
5940-01-478-2112	2008-08-242	79	DIBBS
5940-01-478-2112	2008-01-24	100	DIBBS
5940-01-478-2112	2007-11-318	142	DIBBS
5940-01-478-2112	2007-01-24	73	DIBBS
5940-01-478-2112	2006-05-136	26	DIBBS
5940-01-478-2112	2006-04-108	26	DIBBS

Cross Reference | NSN 5940-01-478-2112

Part Number	Cage Code	Manufacturer
LE416-0022	43999	BOEING COMPANY, THE DBA BOEING
LE416-0022-0002	43999	BOEING COMPANY, THE DBA BOEING
YAES18K1-NK	09922	SOURIAU USA, INC.
YAES18K1-NK	1NJK8	BURNDY LLC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5940-01-478-2112

Compare

Related Products | NSN 5940-01-478-2112

5940-01-478-2625, 5940-01-478-2974, 5940-01-478-3101, 5940-01-478-4008, 5940-01-478-4847

Technical Data | NSN 5940-01-478-2112

Characteristic	Specifications

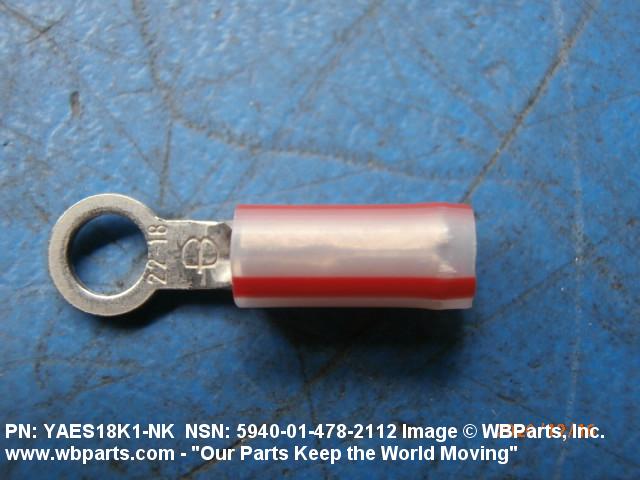

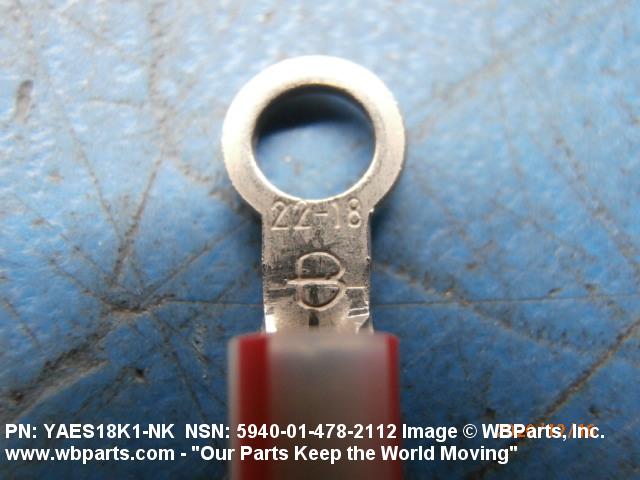

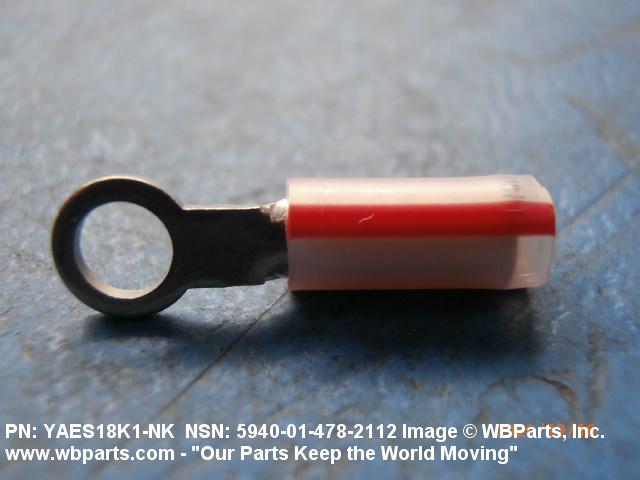

BASIC SHAPE STYLE	A24 CRIMP

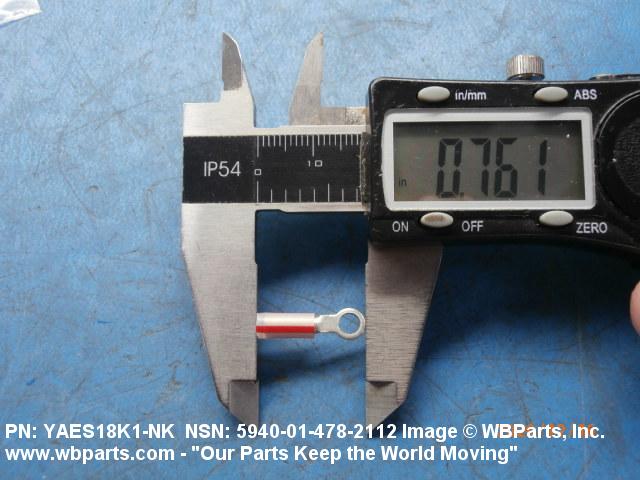

OVERALL LENGTH	0.755 INCHES

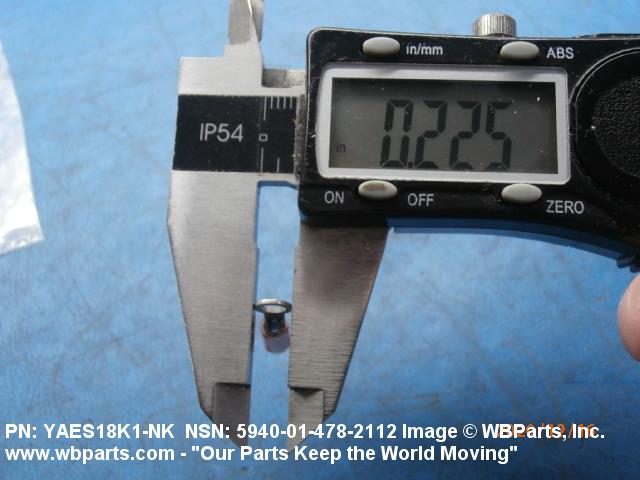

OVERALL WIDTH	0.230 INCHES

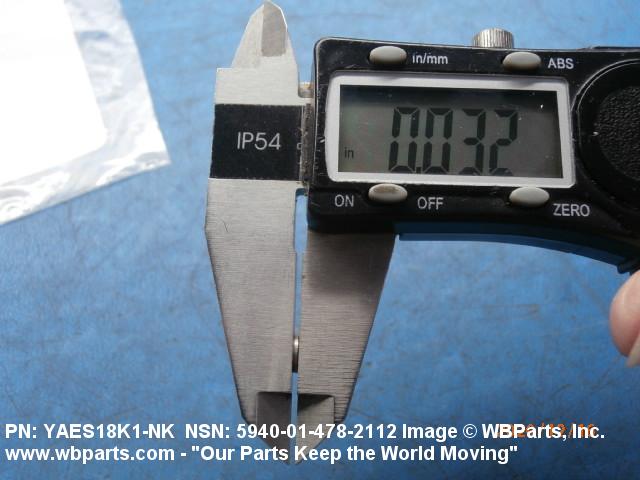

MATERIAL THICKNESS	0.035 INCHES

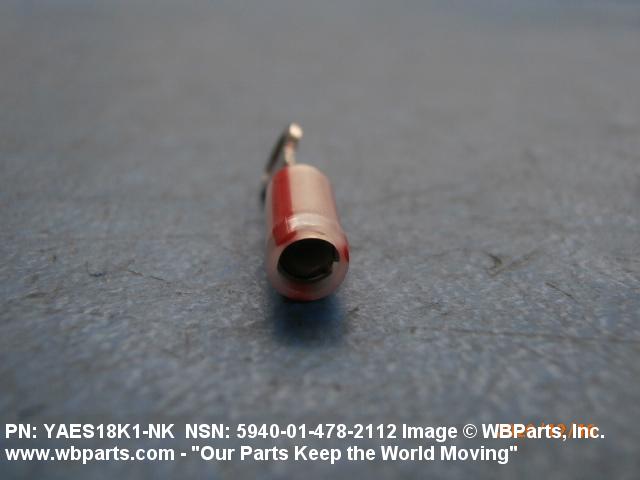

CONDUCTOR ACCOMMODATION TYPE	RECESSED BARREL SINGLE END
MAXIMUM CONDUCTOR SIZE ACCOMMODATED	18 AWG

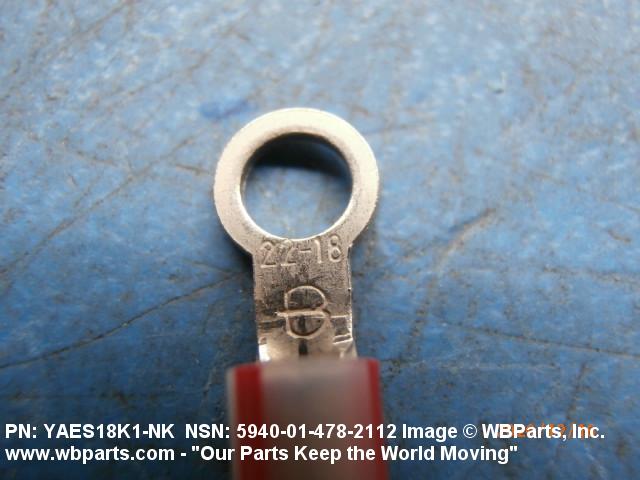

MOUNTING METHOD STYLE	D14 RING

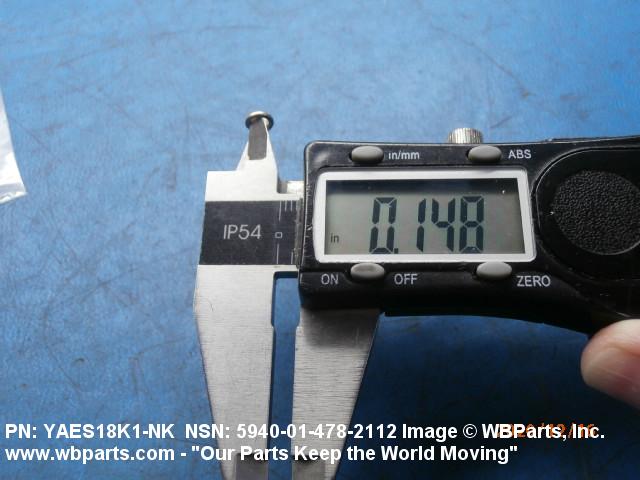

MOUNTING HOLE DIAMETER	0.152 INCHES
MOUNTING TONGUE WIDTH	0.230 INCHES
MOUNTING FACILITY THICKNESS	0.035 INCHES
ELECTRICAL INSULATION FEATURE	INSULATING SLEEVE
IDENTIFICATION CODE COLOR	RED
MATERIAL	PLASTIC POLYVINYLIDENE FLUORIDE INSULATION COPPER OVERALL EXCEPT INSULATION
SURFACE TREATMENT	NICKEL OVERALL EXCEPT INSULATION SINGLE LAYER
SPECIAL FEATURES	TEMPERATURE RANGE: -65 DEGREES C TO 150 DEGREES C; VOLTAGE RATING: 600V
III END ITEM IDENTIFICATION	B-1B CMUP BLK; B-1B BOMBER
