NSN 5940-01-482-9755 BACT12M140, 01-482-9755, 014829755
Product Details | LUG TERMINAL
5940-01-482-9755 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: BACT12M140, 5940-01-482-9755, 01-482-9755, 5940014829755, 014829755
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 MAR 2001 | 01-482-9755 | 00746 ( TERMINAL, LUG ) |

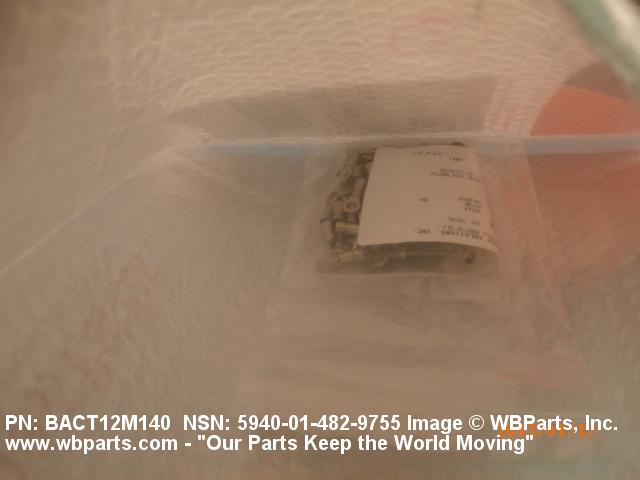

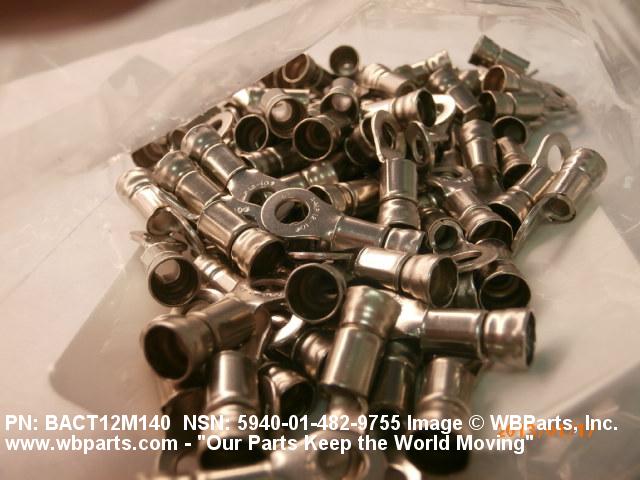

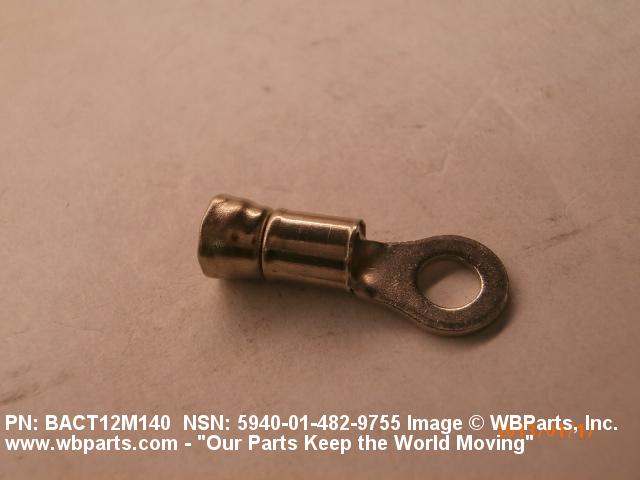

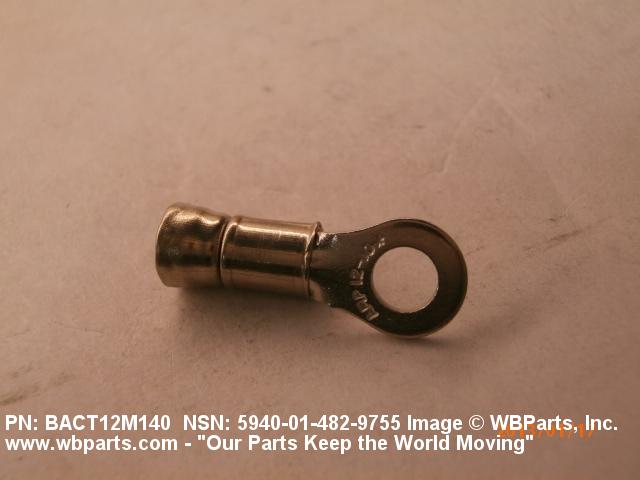

Drawings & Photos | NSN 5940-01-482-9755
Demand History | NSN 5940-01-482-9755
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACT12M140 | 2019-02-56 | 300 | Turkey |
| BACT12M140 | 2017-09-257 | 100 | US |
| BACT12M140 | 2012-11-334 | 100 | United States |
| BACT12M140 | 2010-03-64 | 5 | us |
Cross Reference | NSN 5940-01-482-9755
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACT12M140 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-482-9755
Technical Data | NSN 5940-01-482-9755
| Characteristic | Specifications |
|---|---|

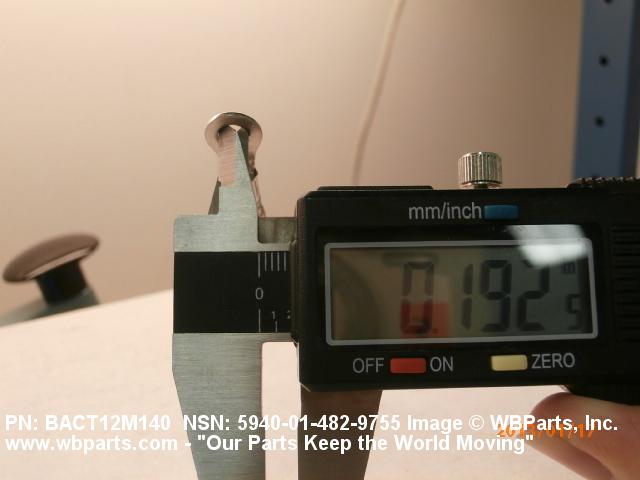

| MOUNTING HOLE DIAMETER | 0.197 INCHES |

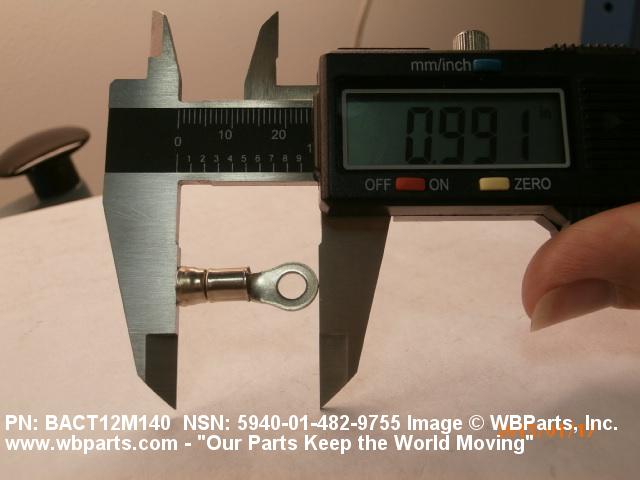

| OVERALL LENGTH | 1.007 INCHES |
| MATERIAL | COPPER ALLOY OVERALL |
| CONDUCTOR ACCOMMODATION TYPE | RECESSED BARREL SINGLE END |
| MATERIAL THICKNESS | 0.040 INCHES |

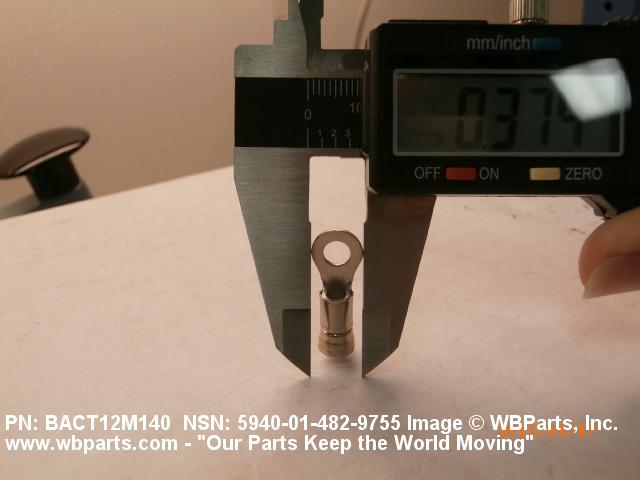

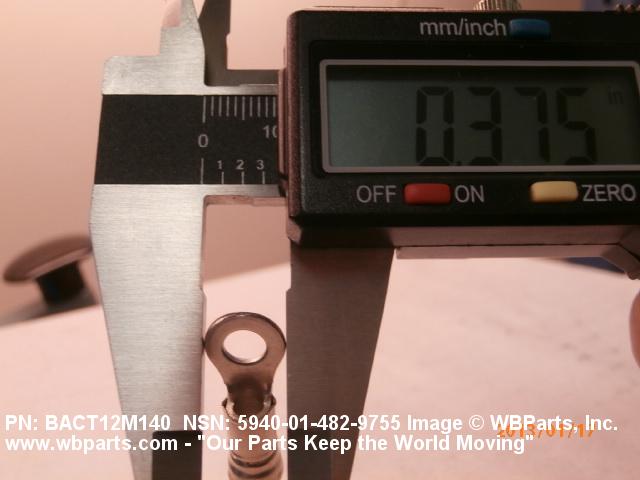

| OVERALL WIDTH | 0.375 INCHES |
| SURFACE TREATMENT | NICKEL OVERALL SINGLE LAYER |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MOUNTING METHOD STYLE | RING |
| MOUNTING TONGUE WIDTH | 0.375 INCHES |
| BASIC SHAPE STYLE | CRIMP |
| MOUNTING FACILITY THICKNESS | 0.040 INCHES |
Restrictions/Controls & Freight Information | NSN 5940-01-482-9755
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
