NSN 5940-01-485-5698 VNS1924CA3211, VNS1924CA3-2-11, 5M2997AA211

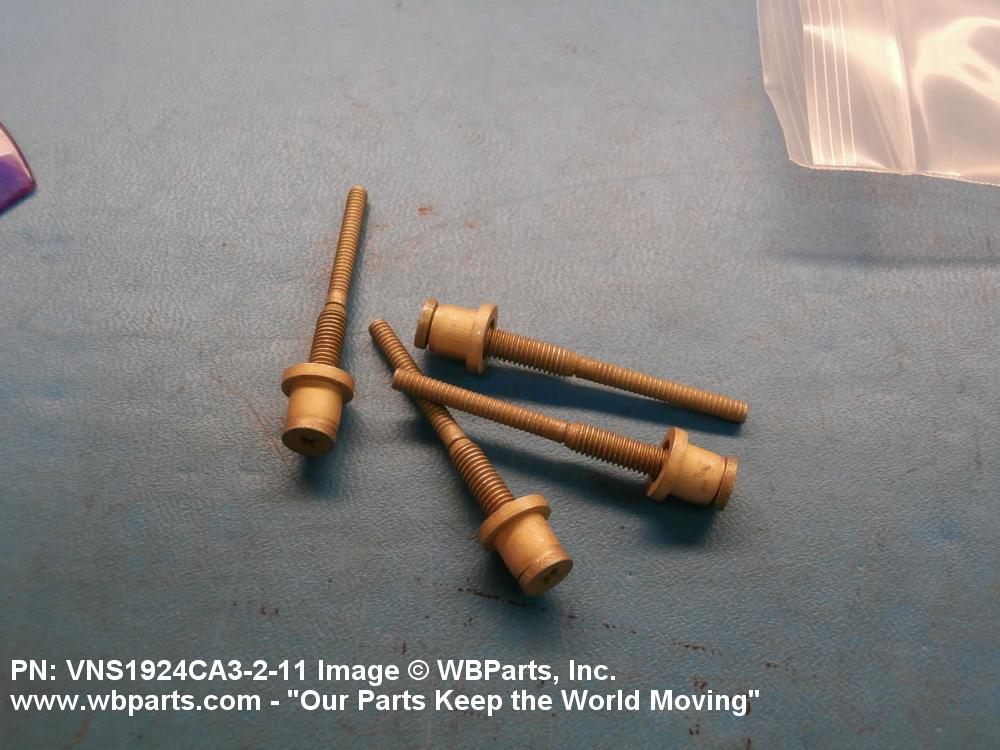

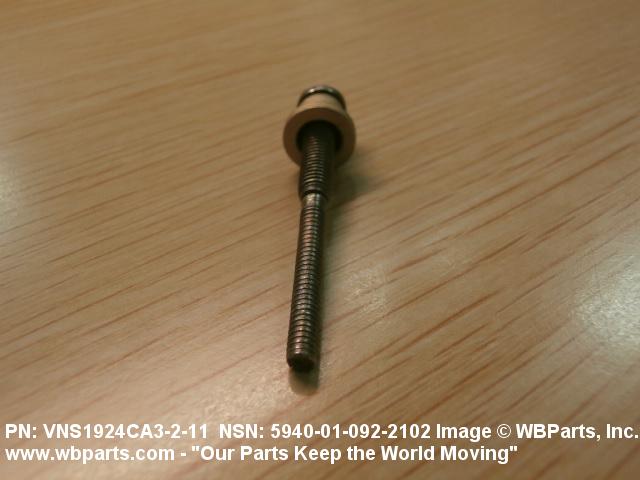

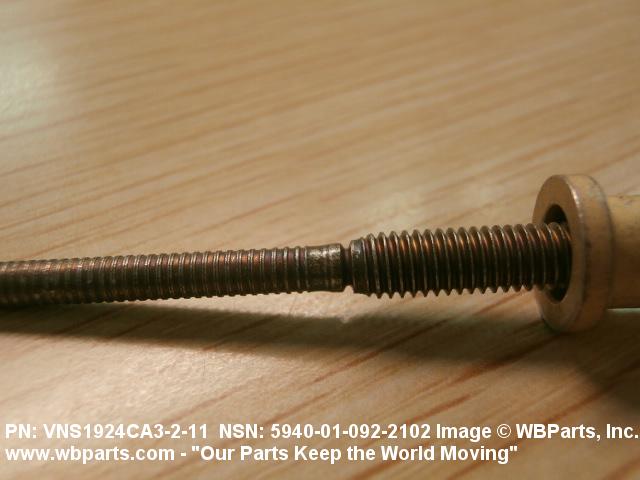

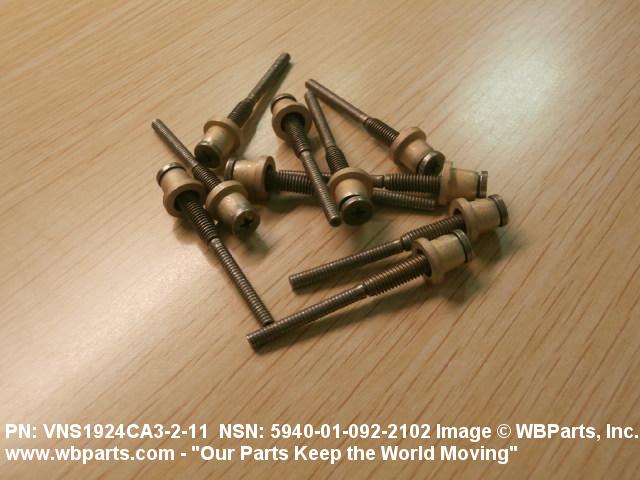

Product Details | STUD TERMINAL
5940-01-485-5698 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: VNS1924CA3211, VNS1924CA3-2-11, 5M2997AA211, 5M2997-AA211, 5940-01-485-5698, 01-485-5698, 5940014855698, 014855698
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 MAY 2001 | 01-485-5698 | 00887 ( TERMINAL, STUD ) |
Drawings & Photos | NSN 5940-01-485-5698
Demand History | NSN 5940-01-485-5698
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5M2997-AA211 | 2021-10-290 | 23 | DIBBS |
| VNS1924CA3-2-11 | 2021-10-290 | 23 | DIBBS |
| VNS1924CA3211 | 2014-12-351 | 50 | Canada |
| VNS1924CA3211 | 2014-12-351 | 100 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-485-5698
Technical Data | NSN 5940-01-485-5698
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A5 TUBULAR, ROUND |
| TERMINAL LENGTH | 0.687 INCHES |
| OVERALL HEIGHT | 0.972 INCHES |
| OVERALL DIAMETER | 0.311 INCHES |
| THRU-HOLE DIAMETER | 0.190 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | THREADED EXTERNAL SINGLE END |
| MOUNTING METHOD STYLE | D41 RIVET |
| MINOR BUSHING DIAMETER | 0.311 INCHES |
| MAJOR BUSHING DIAMETER | 0.311 INCHES |
| MINOR BUSHING LENGTH | 0.350 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| SPECIFICATION/STANDARD DATA | 763015M2997 MANUFACTURERS STANDARD |
| CRITICALITY CODE JUSTIFICATION | AGAV |
| III END ITEM IDENTIFICATION | F-18E/F AIRCRAFT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | TERMINAL,STUD,BLIND,FOR ELECTRICAL BONDING AND GROUNDING,NONINSULATED,0.190-32 UNJF-3A,CURRENT RATING: 35 AMPERES |
Restrictions/Controls & Freight Information | NSN 5940-01-485-5698
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
