NSN 5940-01-500-4281 01-500-4281, 015004281
Product Details | 01-500-4281, 015004281
5940-01-500-4281
Part Alternates: 5940-01-500-4281, 01-500-4281, 5940015004281, 015004281
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-500-4281 | ( ) |

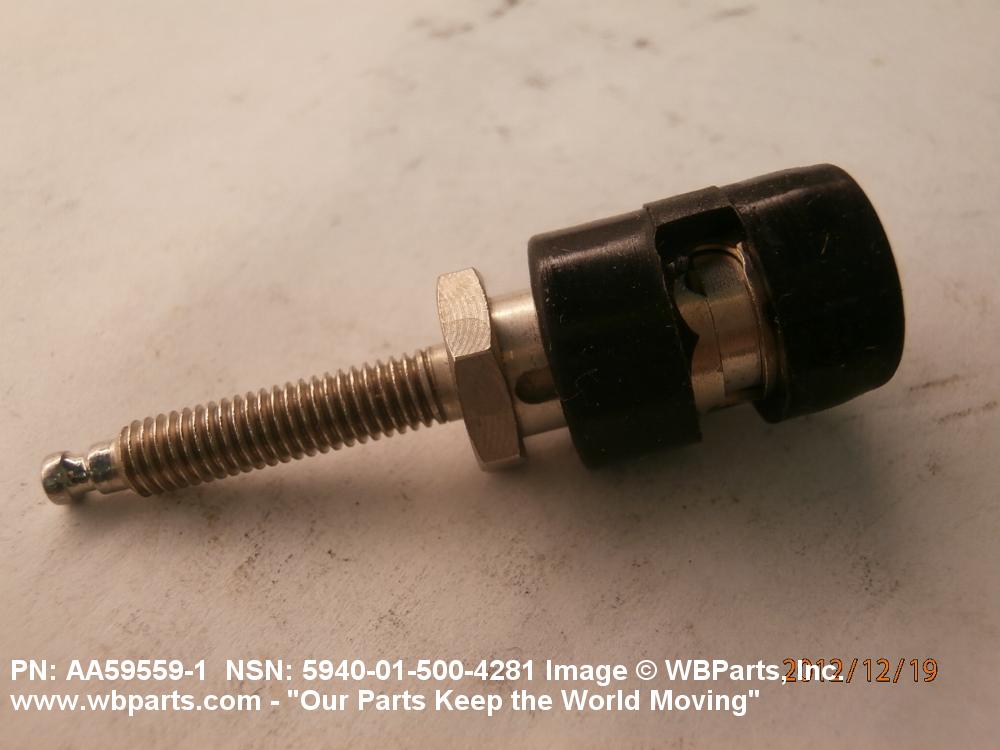

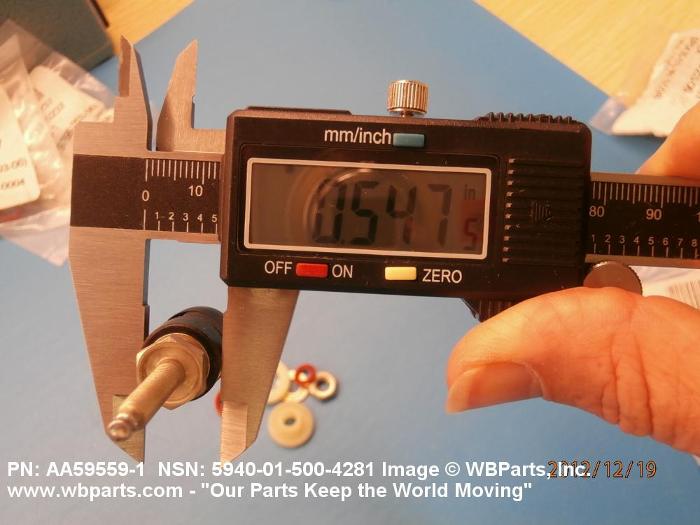

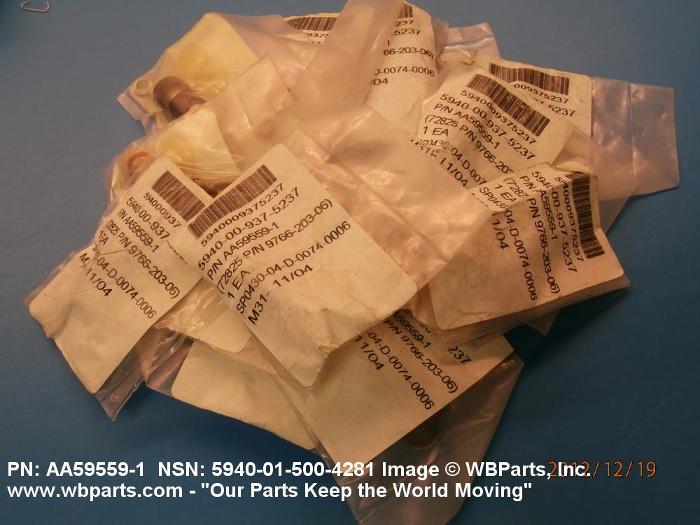

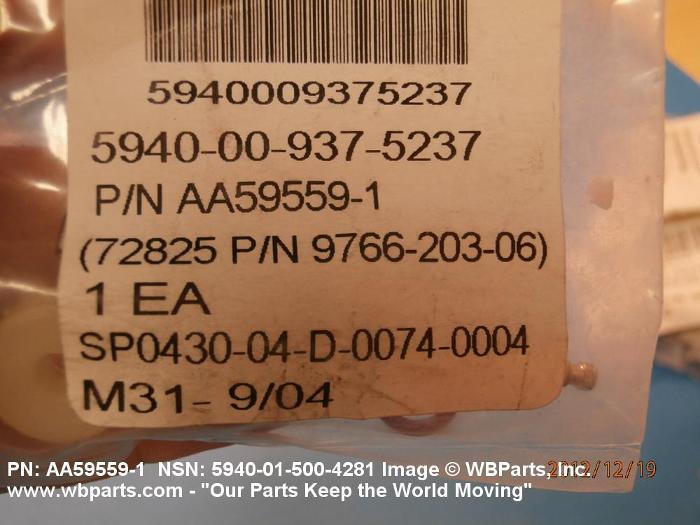

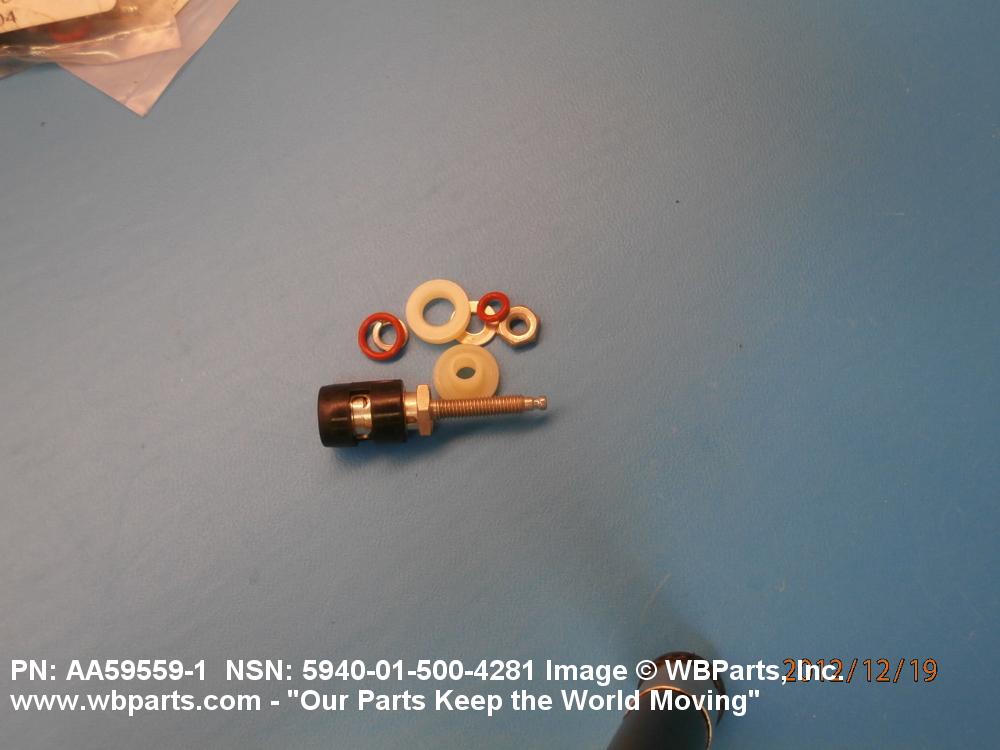

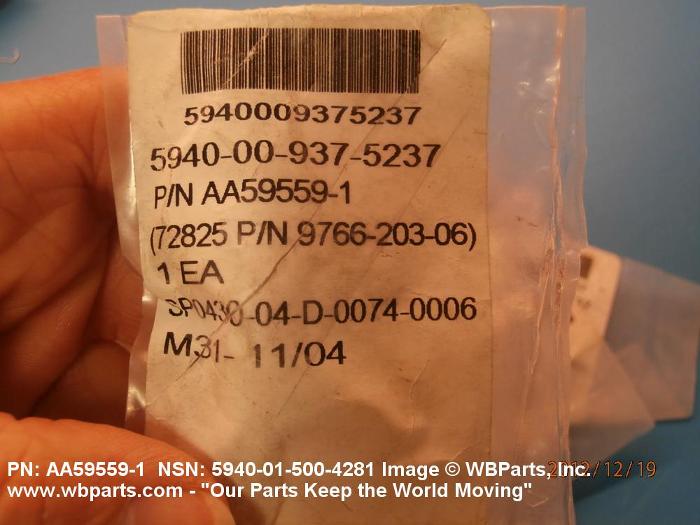

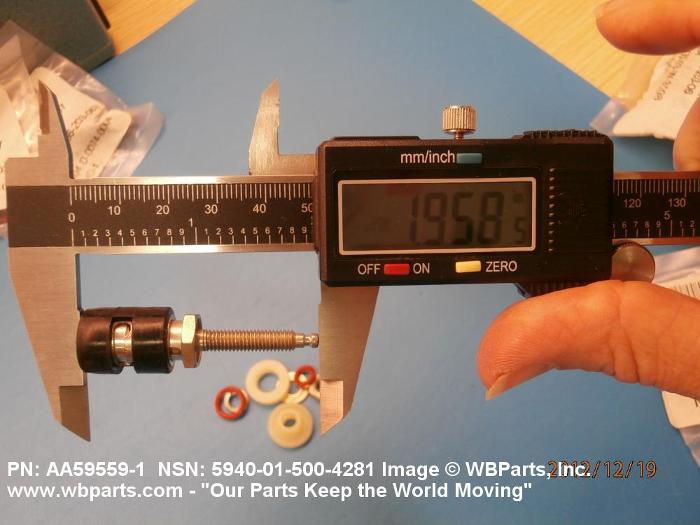

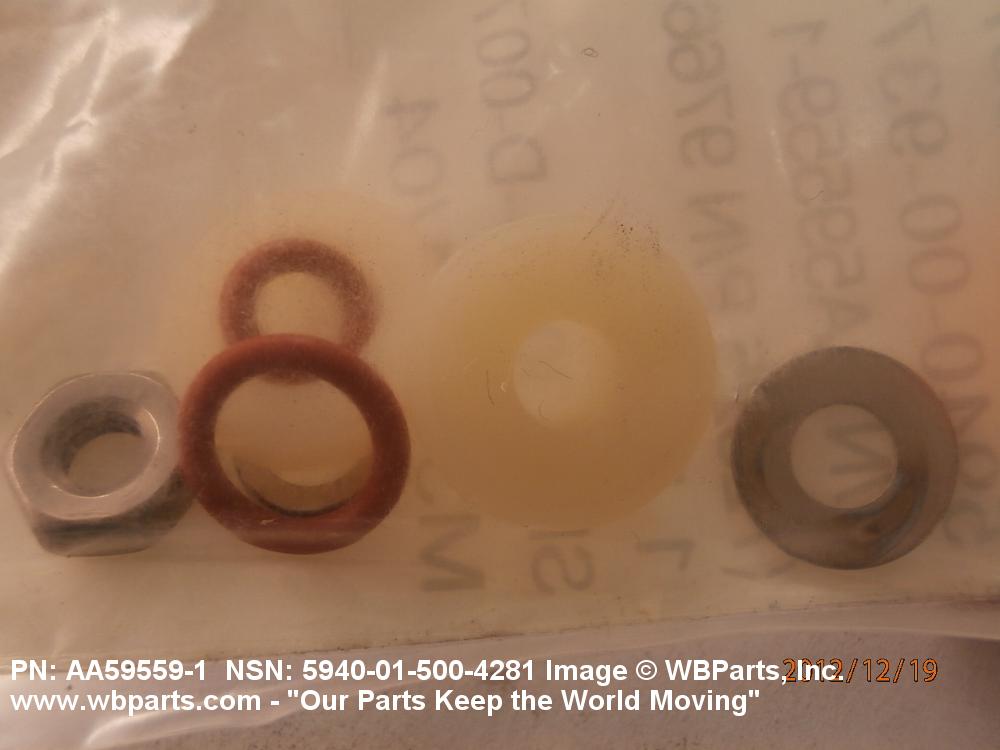

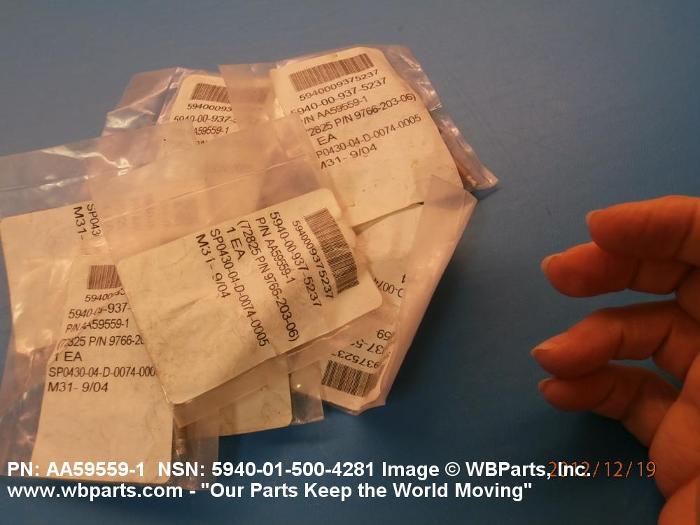

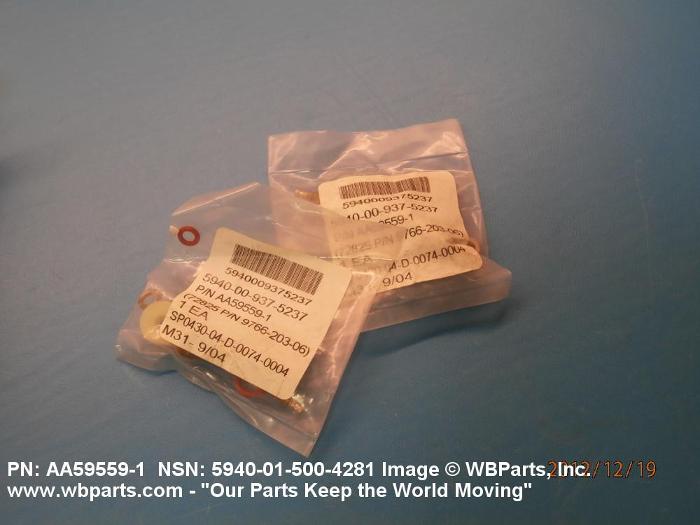

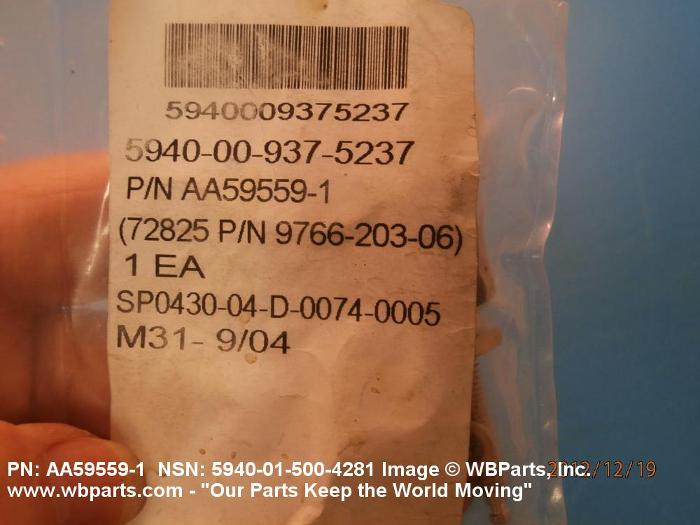

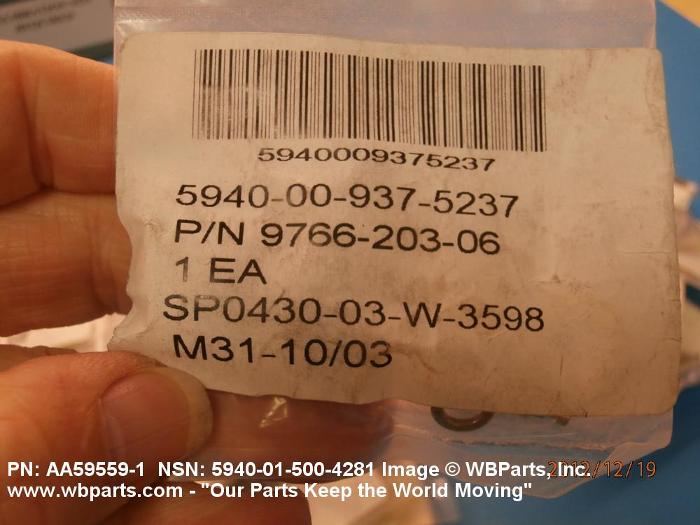

Drawings & Photos | NSN 5940-01-500-4281
Demand History | NSN 5940-01-500-4281
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-500-4281 | 2012-12-338 | 50 | United States |
| 5940-01-500-4281 | 2007-01-23 | 8 | DIBBS |
| 5940-01-500-4281 | 2007-01-23 | 36 | DIBBS |
Cross Reference | NSN 5940-01-500-4281
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 06A8165040-2 | 5B5M3 | EDGEWOOD CHEMICAL BIOLOGICAL CENTER DIV DEPT OF ARMY |
| 168110001 | D1876 | L-3 COMMUNICATIONS ELAC NAUTIK GMBH DBA L-3 ELAC NAUTIK |
| 168110001 | D9444 | HONEYWELL REGELSYSTEME GMBHGESCHAEFTSBEREICH SONDERTECHNIK |
| 2318-33322-00 | S0522 | TADIRAN LTD |
| 3522 023 18480 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
| 4995-2 | 4U744 | FLUKE ELECTRONICS CORPORATION DBA FLUKE |
| 7909805-00 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| A-A-59559 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-59559-1 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| GD600015 | K5435 | GENERAL DYNAMICS UNITED KINGDOM LIMITED |
| PB08NA01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| WB8CHA1BLACKCAP | 72825 | EBY HOLDING COMPANY, INC. DBA EBY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-500-4281
Related Products | NSN 5940-01-500-4281
Technical Data | NSN 5940-01-500-4281
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A1 SINGLE POST, ROUND |
| OVERALL HEIGHT | 2.000 INCHES |
| OVERALL DIAMETER | 0.583 INCHES |
| MAXIMUM HEIGHT ABOVE MOUNTING SURFACE | 1.000 INCHES |
| CAP OUTSIDE DIAMETER | 0.583 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | SCREW CAP W/JAW SINGLE END |
| MOUNTING METHOD STYLE | D27 STUD |

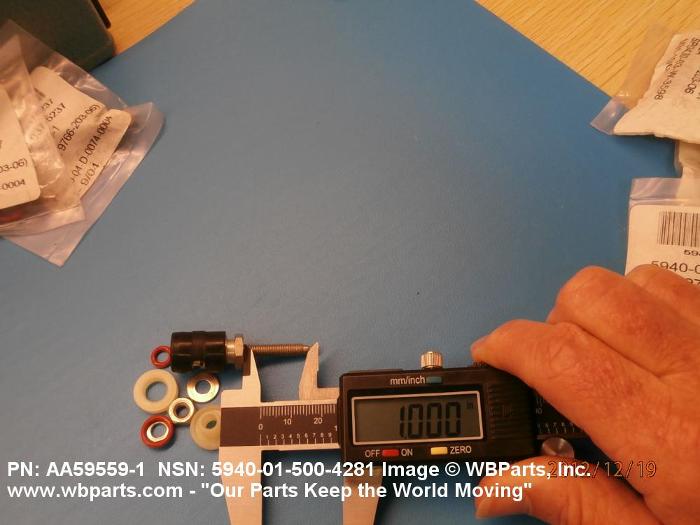

| THREAD LENGTH | 1.000 INCHES |
| MOUNTING THREAD SERIES | UNF |

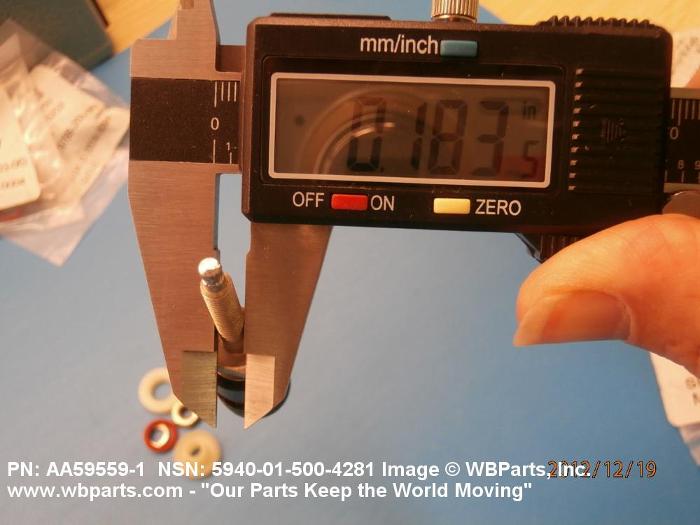

| MOUNTING THREAD DIAMETER | 0.190 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATED CAPS WITH INSULATED STUDS |
| IDENTIFICATION CODE COLOR | BLACK |
| MATERIAL | PLASTIC INSULATION COPPER ALLOY OVERALL EXCEPT INSULATION |
| III END ITEM IDENTIFICATION | INTERIM ARMORED VEHICLE (IAV); CONTRACTOR LOGISTICS SUPPORT (CLS) |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59559 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA59559-1 |
Restrictions/Controls & Freight Information | NSN 5940-01-500-4281
| Category | Code | Description |
|---|
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
