NSN 5940-01-527-7920 0181269210, 018-1269-210, 7907104-09
Product Details | FEEDTHRU TERMINAL
5940-01-527-7920 A terminal designed to be mounted on a chassis or other partition, and having through connected wire mounting facilities. It may or may not be insulated. It is fabricated into a single item whose parts are not separable. For items whose parts are separable, see INSULATOR, FEEDTHRU.
Part Alternates: 0181269210, 018-1269-210, 7907104-09, 5940-01-527-7920, 01-527-7920, 5940015277920, 015277920, 790710409
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 FEB 2005 | 01-527-7920 | 34672 ( TERMINAL, FEEDTHRU ) |
Drawings & Photos | NSN 5940-01-527-7920
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-527-7920
Technical Data | NSN 5940-01-527-7920
| Characteristic | Specifications |
|---|---|
| OVERALL DIAMETER | 0.050 INCHES |

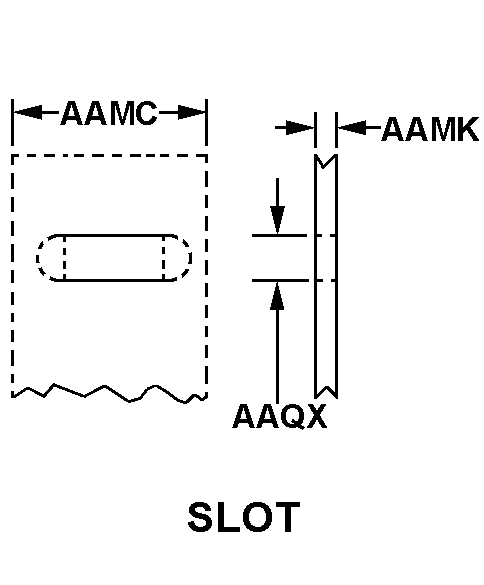

| MOUNTING METHOD STYLE | D21 SLOT |
| MOUNTING TONGUE WIDTH | 1.140 INCHES |
| SPECIAL FEATURES | LENGTH, MIN 1.016,MAX 1.036 |
| III PRECIOUS MATERIAL | GOLD |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | TERMINAL,ELECTRICAL FEED-THRU,P.C. BOARD |
| MANUFACTURERS CODE | 90536 |
| MFR SOURCE CONTROLLING REFERENCE | 7907104-09 |
Restrictions/Controls & Freight Information | NSN 5940-01-527-7920
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
