Product Details | TERMINAL BOARD
5940-01-529-7990 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: 1794TB3S, 1794-TB3S, 410-2050-1000-00, 5940-01-529-7990, 01-529-7990, 4102050100000, 5940015297990, 015297990
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 MAY 2005 | 01-529-7990 | 00404 ( TERMINAL BOARD ) |

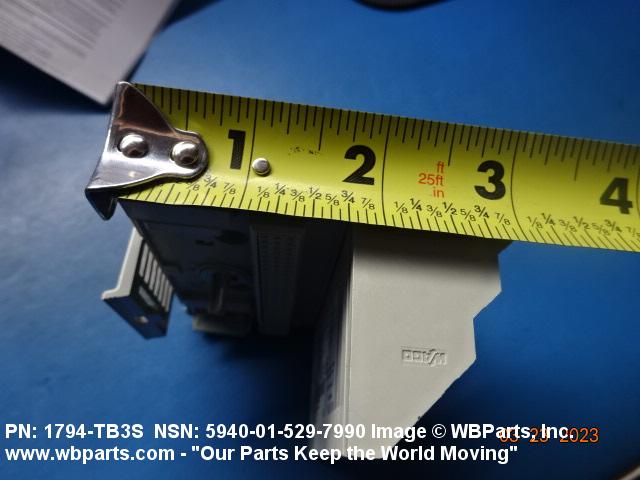

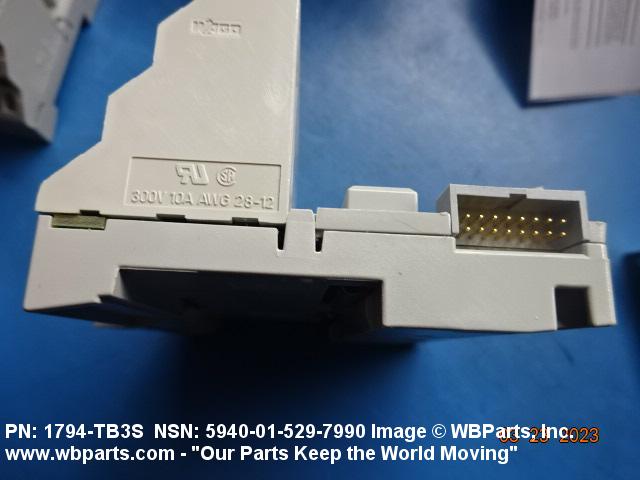

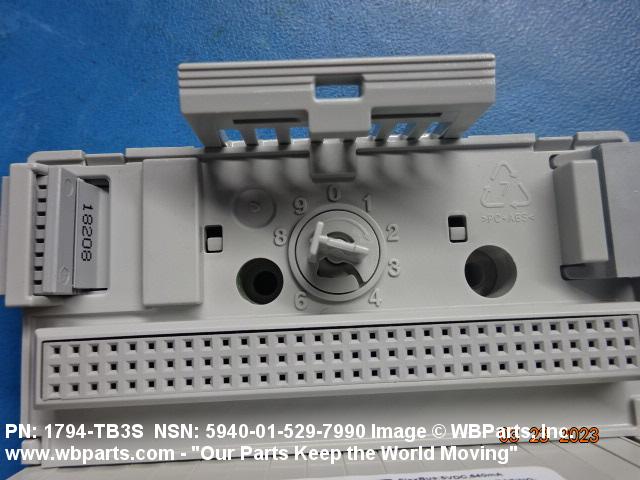

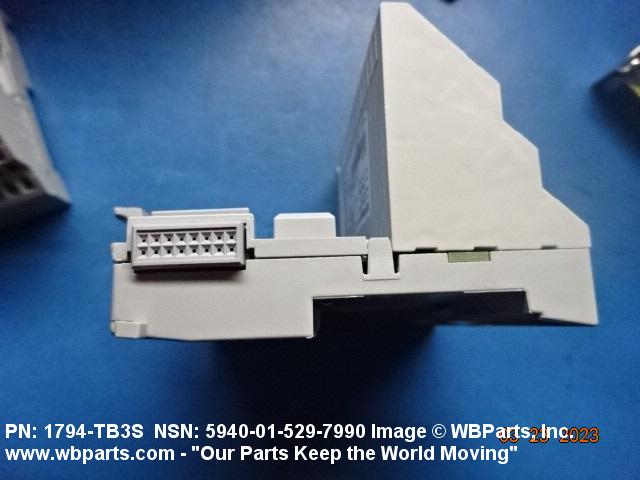

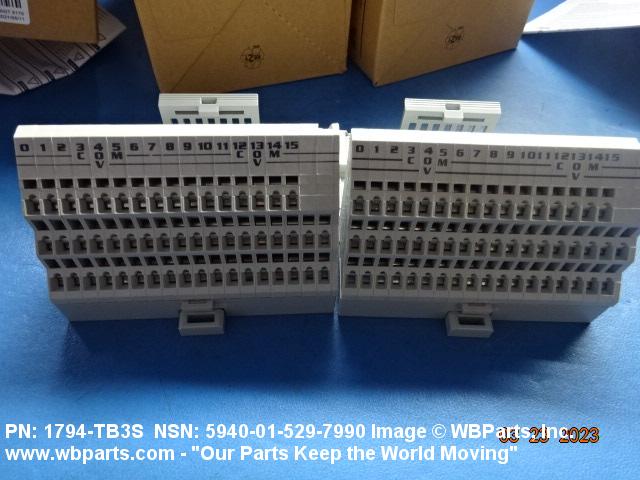

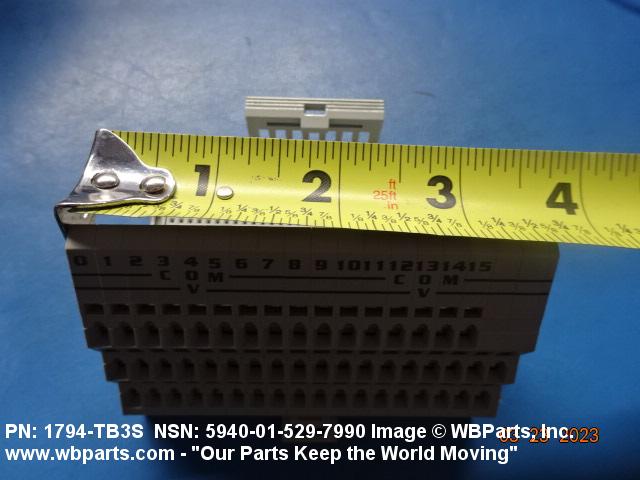

Drawings & Photos | NSN 5940-01-529-7990
Demand History | NSN 5940-01-529-7990
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1794TB3S | 2023-02-41 | 5 | United States |
| 1794-TB3S | 2021-01-14 | 13 | DIBBS |
| 410-2050-1000-00 | 2021-01-14 | 13 | DIBBS |
| 5940-01-529-7990 | 2013-08-225 | 61 | DIBBS |
| 5940-01-529-7990 | 2009-10-278 | 78 | DIBBS |
| 5940-01-529-7990 | 2009-02-50 | 17 | DIBBS |
| 5940-01-529-7990 | 2009-02-36 | 17 | DIBBS |
| 5940-01-529-7990 | 2008-11-322 | 22 | DIBBS |
| 5940-01-529-7990 | 2007-12-344 | 27 | DIBBS |
| 5940-01-529-7990 | 2007-05-129 | 50 | DIBBS |
| 5940-01-529-7990 | 2007-03-79 | 2 | DIBBS |
| 5940-01-529-7990 | 2007-03-79 | 4 | DIBBS |
| 5940-01-529-7990 | 2007-03-79 | 18 | DIBBS |
| 5940-01-529-7990 | 2007-03-79 | 36 | DIBBS |
| 5940-01-529-7990 | 2007-03-72 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-529-7990
Technical Data | NSN 5940-01-529-7990
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC BOARD |

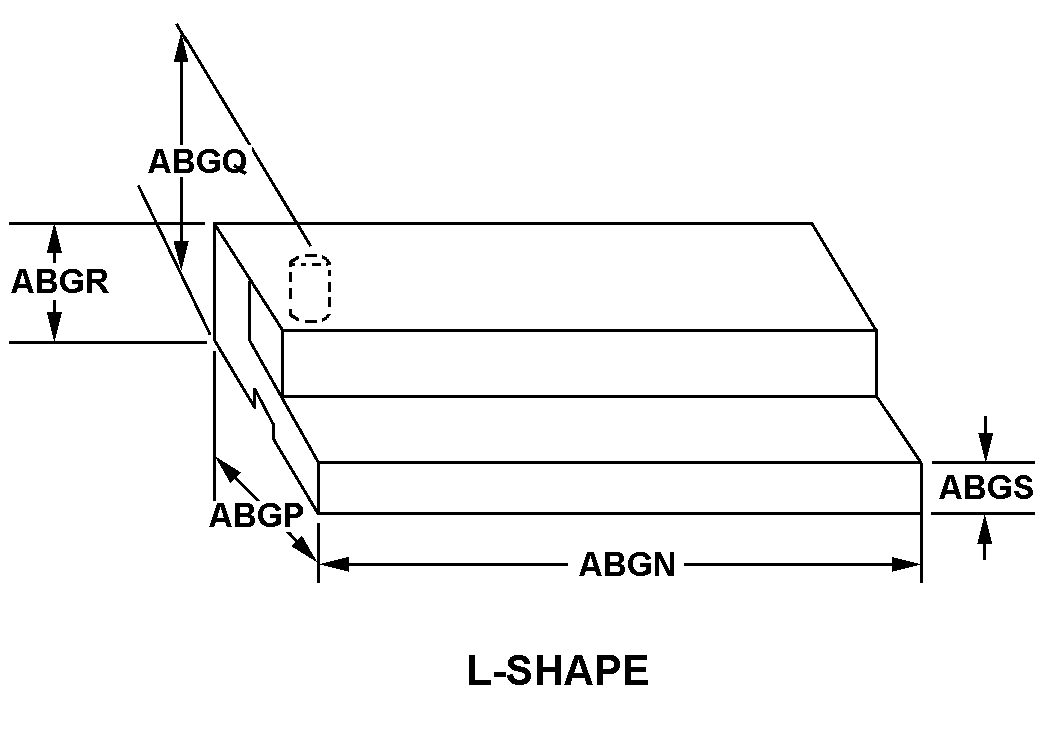

| BODY STYLE | A18 L-SHAPE |
