NSN 5945-00-089-2042 IC5181C101C6AA, 00-089-2042, 000892042
Product Details | ELECTROMAGNETIC RELAY
5945-00-089-2042 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: IC5181C101C6AA, 5945-00-089-2042, 00-089-2042, 5945000892042, 000892042
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-089-2042 | 32512 ( RELAY, ELECTROMAGNETIC ) |

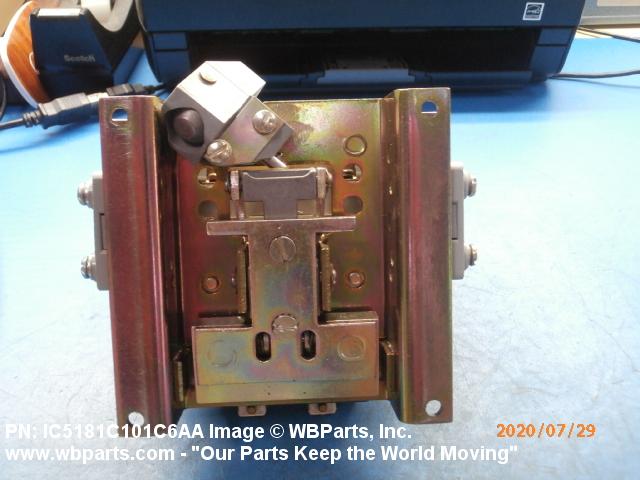

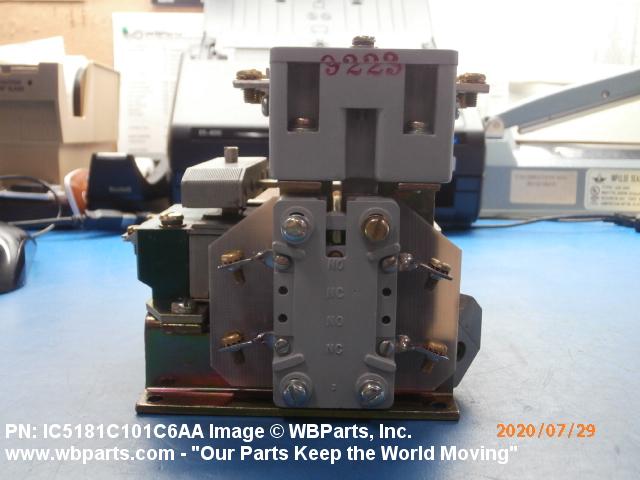

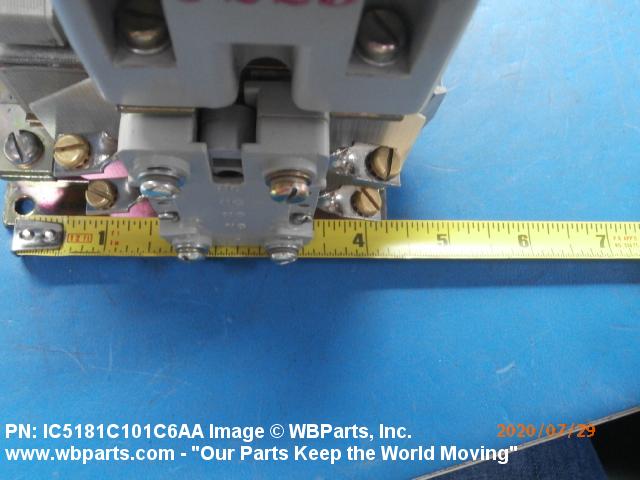

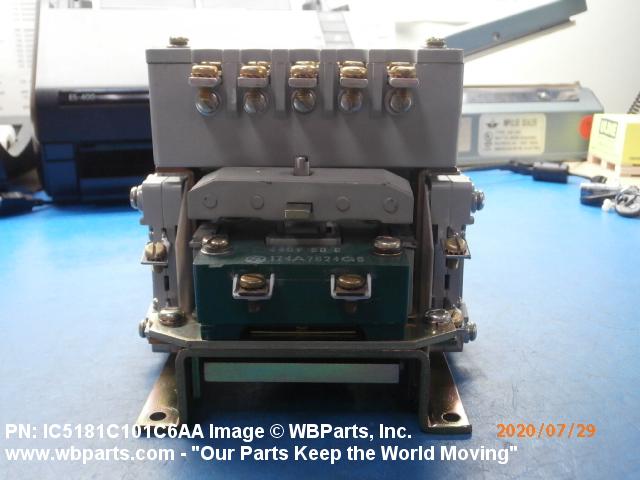

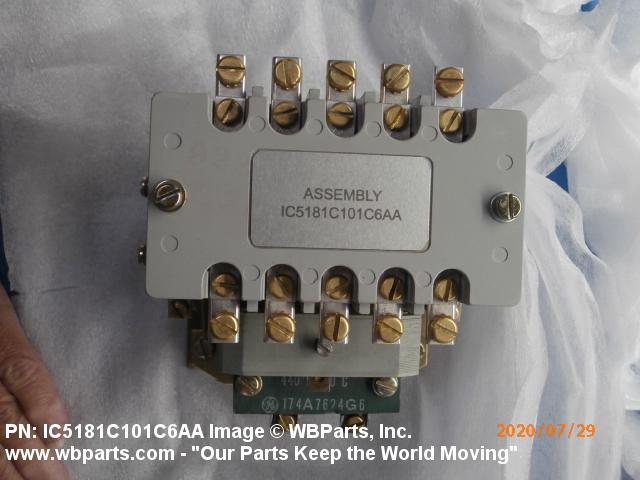

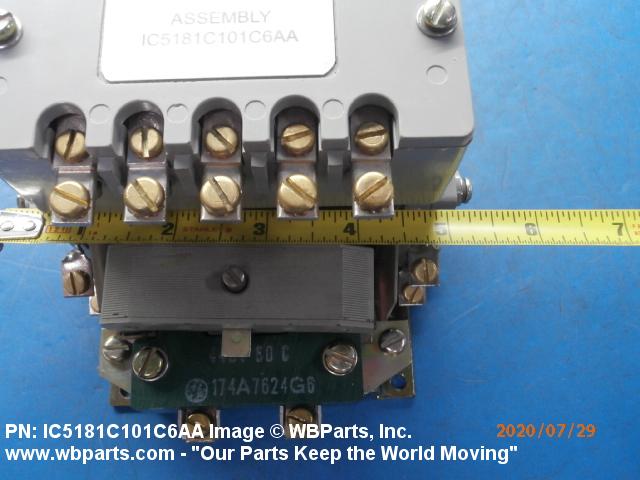

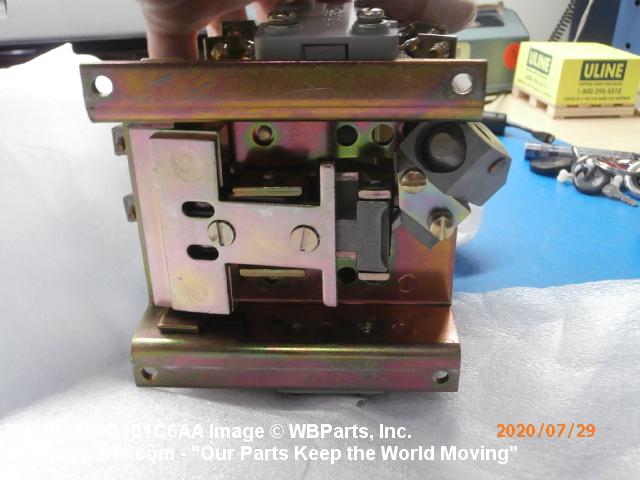

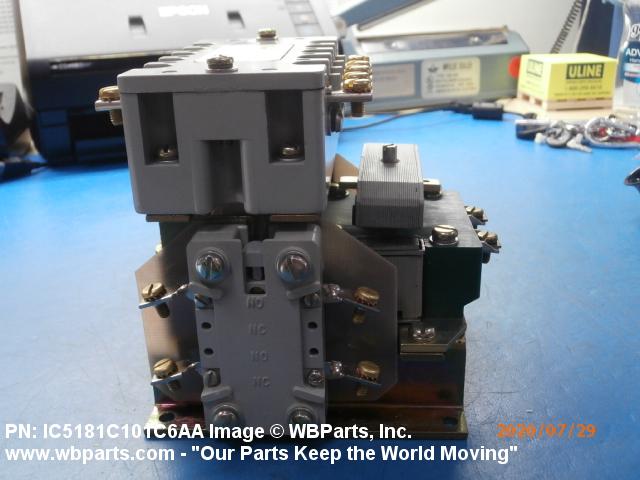

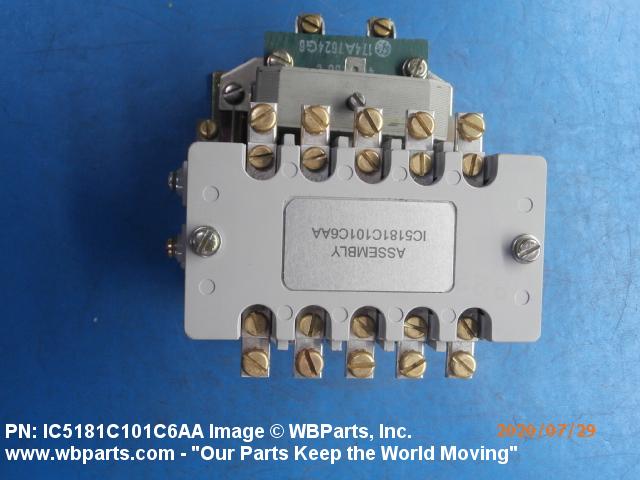

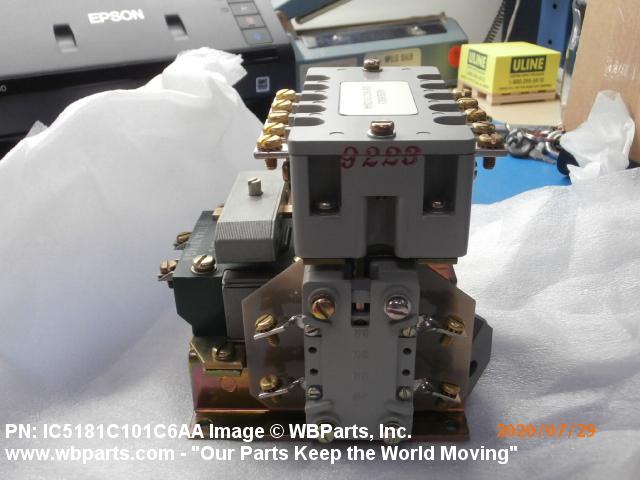

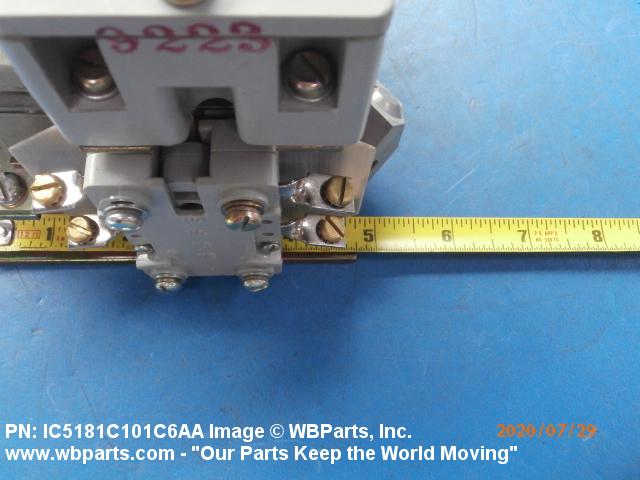

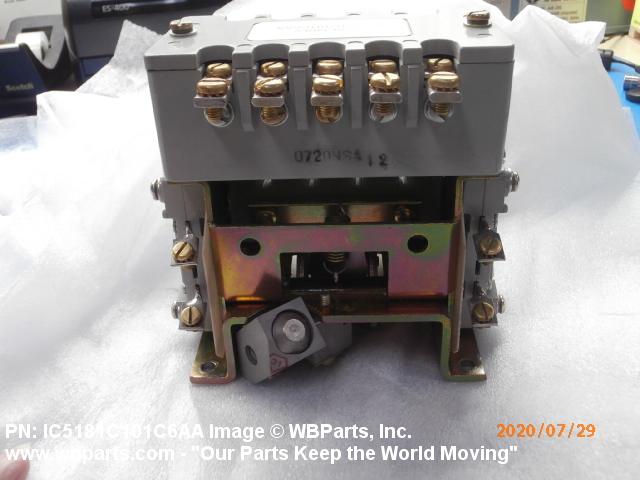

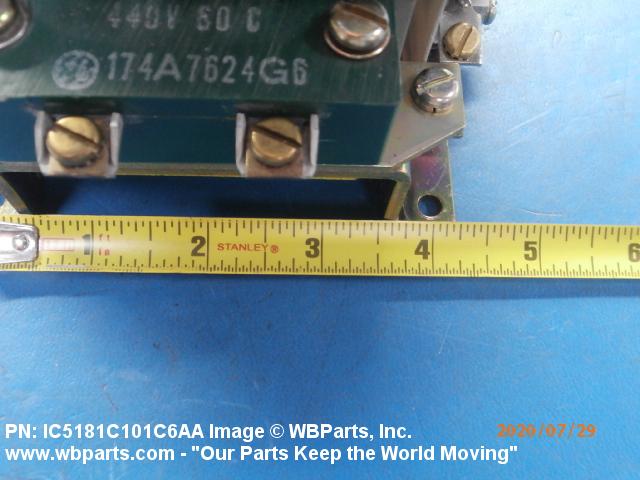

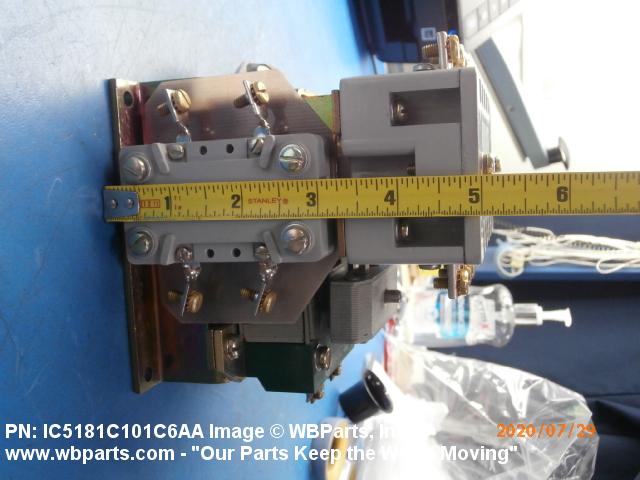

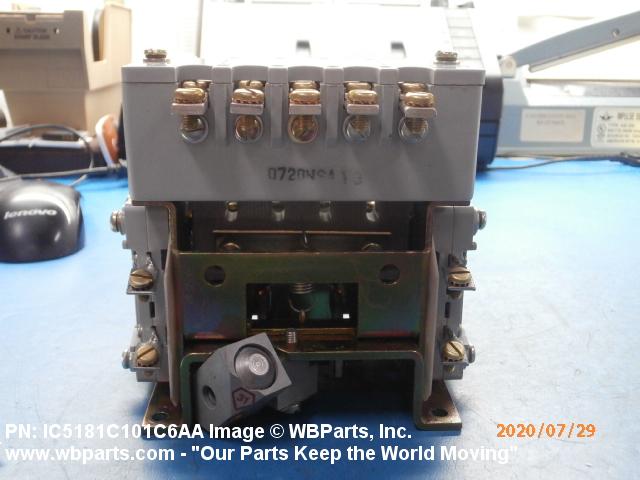

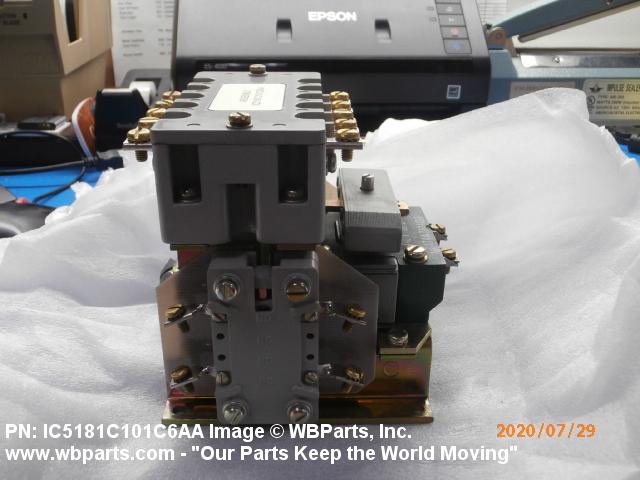

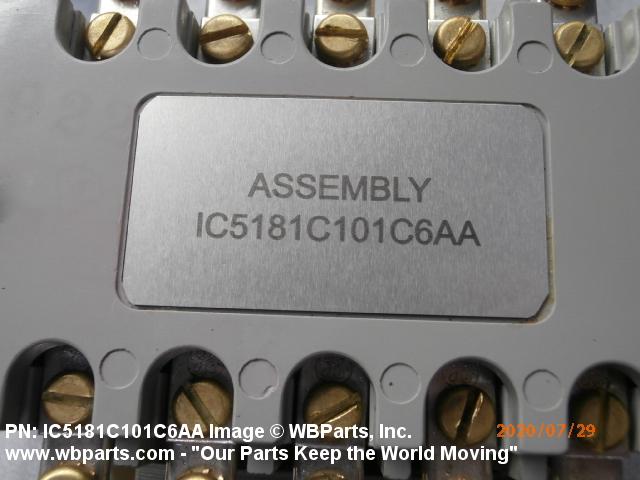

Drawings & Photos | NSN 5945-00-089-2042
Demand History | NSN 5945-00-089-2042
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-089-2042 | 2020-06-177 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-00-089-2042
Technical Data | NSN 5945-00-089-2042
| Characteristic | Specifications |
|---|---|
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 440.0 AC |
| AUXILIARY CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 440.0 AC AND 230.0 DC |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 440.0 VOLTS AC 25 DEG CELSIUS SINGLE WINDING |
| NOMINAL OPERATING CURRENT RATING AND TYPE | 80.0 MILLIAMPERES AC SINGLE WINDING |
| DUTY TYPE | CONTINUOUS |
| OVERALL LENGTH | 5.370 INCHES NOMINAL |
| OVERALL WIDTH | 5.250 INCHES NOMINAL |
| OVERALL HEIGHT | 5.150 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | RECTANGULAR SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 4.000 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 4.000 INCHES NOMINAL SINGLE MOUNTING FACILITY |

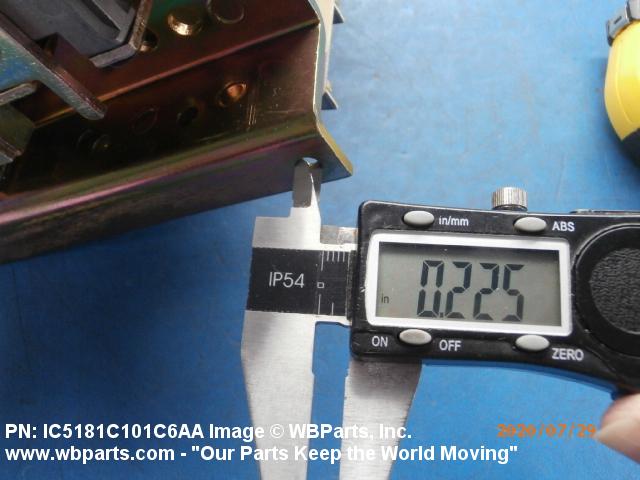

| UNTHREADED MOUNTING HOLE DIAMETER | 0.219 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| (NON-CORE DATA) FSC APPLICATION DATA | EXCEPT ENGINE |
| MANUFACTURERS CODE | 02989 |
| DESIGN CONTROL REFERENCE | IC5181C101C6AA |
Restrictions/Controls & Freight Information | NSN 5945-00-089-2042
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
