NSN 5945-00-104-5894 W97CPX2, W97CPX-2, WU024D3
Product Details | ELECTROMAGNETIC RELAY
5945-00-104-5894 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: W97CPX2, W97CPX-2, WU024D3, WU024D3129, WU024D3-129, 19238, 353-038-028, 430048, 5-89923-604, 5945-00-104-5894, 00-104-5894, 5945001045894, 589923604, 001045894, 353038028
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 JUN 1968 | 00-104-5894 | 32512 ( RELAY, ELECTROMAGNETIC ) |

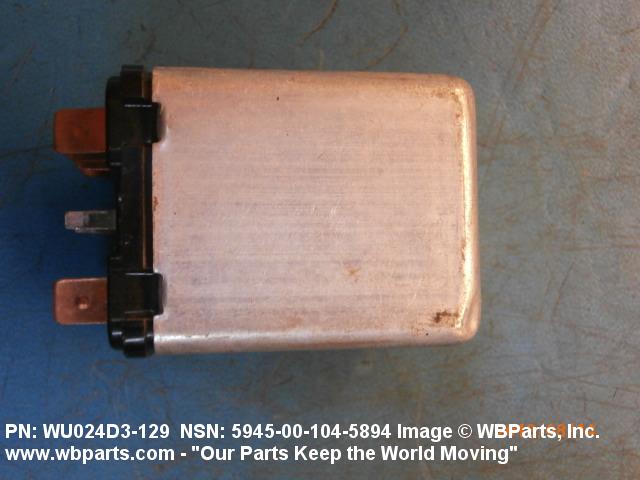

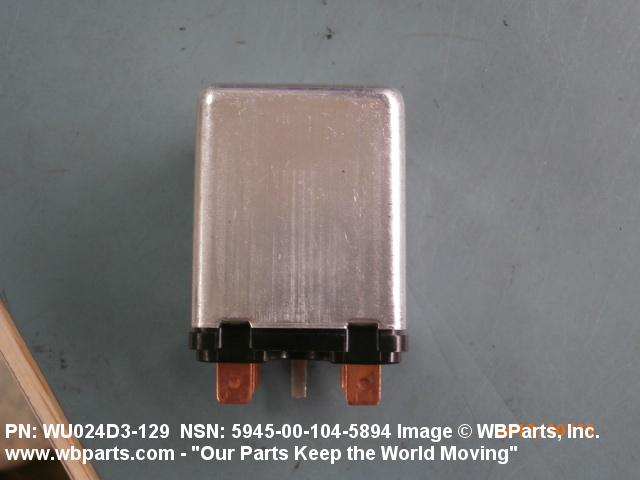

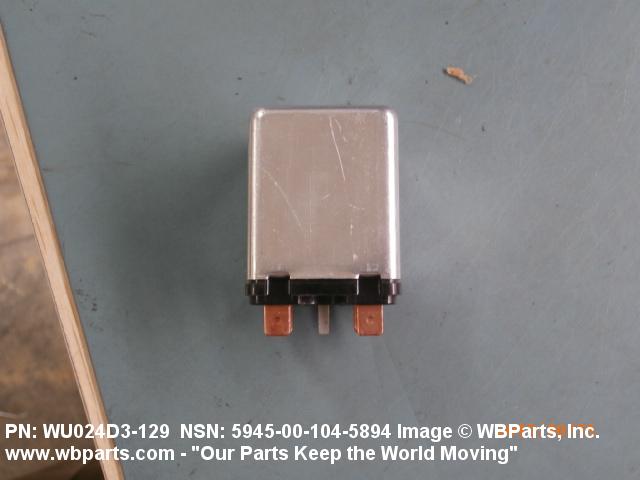

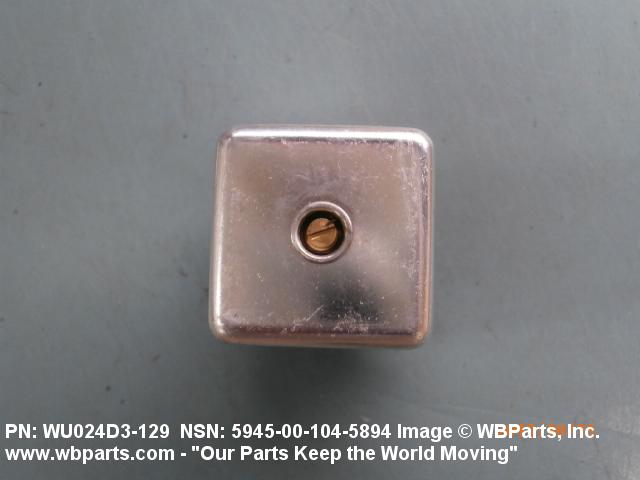

Drawings & Photos | NSN 5945-00-104-5894
Demand History | NSN 5945-00-104-5894
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-104-5894 | 2020-04-101 | 2 | US |
| WU024D3 | 2019-07-182 | 5 | AE |
| 5945-00-104-5894 | 2019-04-108 | 5 | United States |
| WU024D3129 | 2018-12-348 | 8 | United States |
| 5945-00-104-5894 | 2018-09-254 | 1 | United States |
| 5945-00-104-5894 | 2018-09-254 | 3 | United States |
| 5945-00-104-5894 | 2018-07-190 | 11 | United States |
| 5945-00-104-5894 | 2018-01-12 | 3 | United States |
| 5945-00-104-5894 | 2015-07-195 | 25 | US |
| W97CPX2 | 2014-02-48 | 2 | United States |
| WU024D3129 | 2013-09-273 | 1 | United States |
| WU024D3129 | 2008-11-311 | 4 | US |
| 5945-00-104-5894 | 2008-05-138 | 5 | Indonesia |
Cross Reference | NSN 5945-00-104-5894
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 19238 | 09017 | EDO |
| 353-038-028 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 430048 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 5-89923-604 | 76854 | ELECTRO SWITCH CORP. DBA OAK GRISGSBY |
| W97CPX-2 | 96496 | CARLSON TOOL & MACHINE CO |
| WU024D3 | 76854 | ELECTRO SWITCH CORP. DBA OAK GRISGSBY |
| WU024D3-129 | 76854 | ELECTRO SWITCH CORP. DBA OAK GRISGSBY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-104-5894
Related Products | NSN 5945-00-104-5894
Technical Data | NSN 5945-00-104-5894
| Characteristic | Specifications |
|---|---|

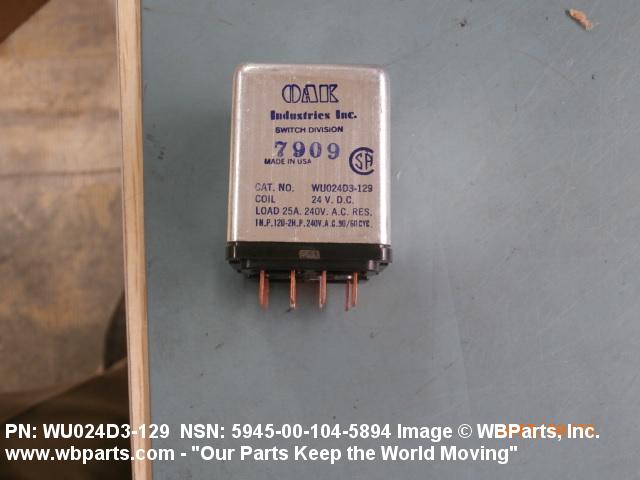

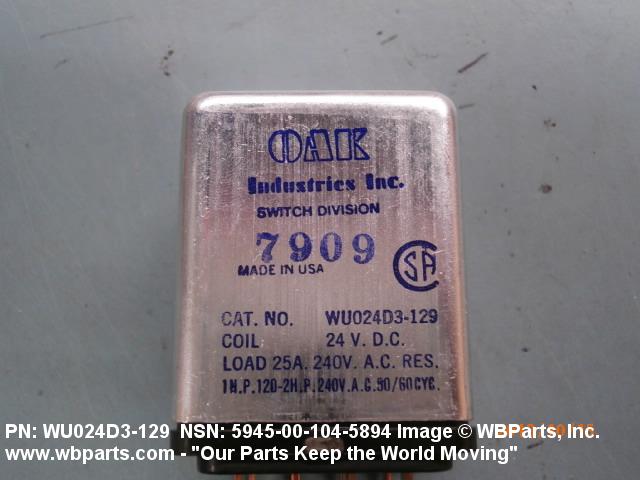

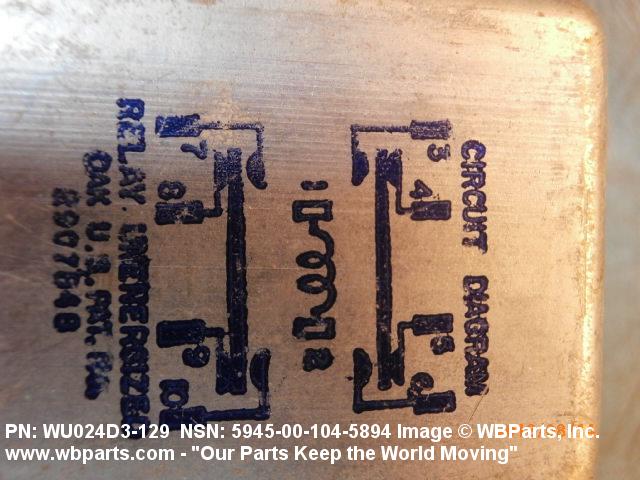

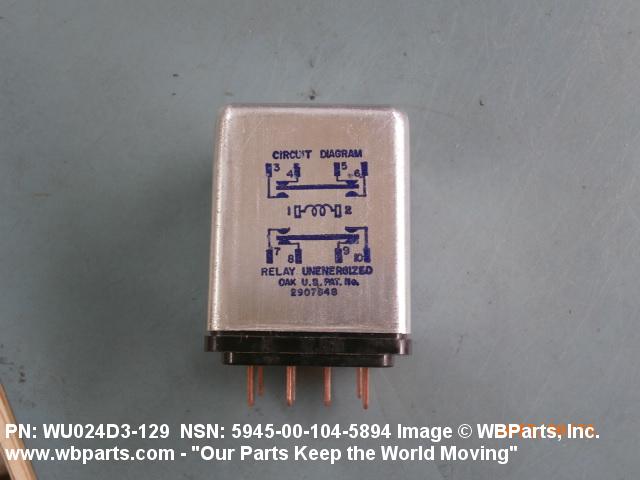

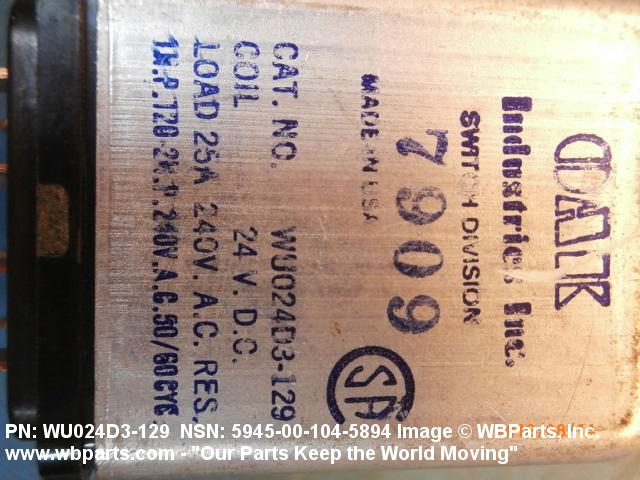

| NONPILE-UP MAIN CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 240.0 AC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 25.0 AMPERES AC RESISTIVE LOAD |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| WINDING DC RESISTANCE RATING | 220.0 OHMS NOMINAL SINGLE WINDING |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 24.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |
| TERMINAL TYPE AND QUANTITY | 8 PIN ALL FUNCTIONS |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | DUSTPROOF |

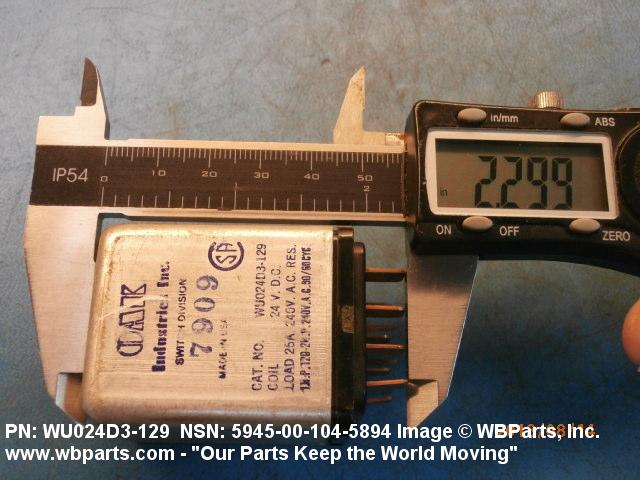

| OVERALL LENGTH | 1.563 INCHES NOMINAL |

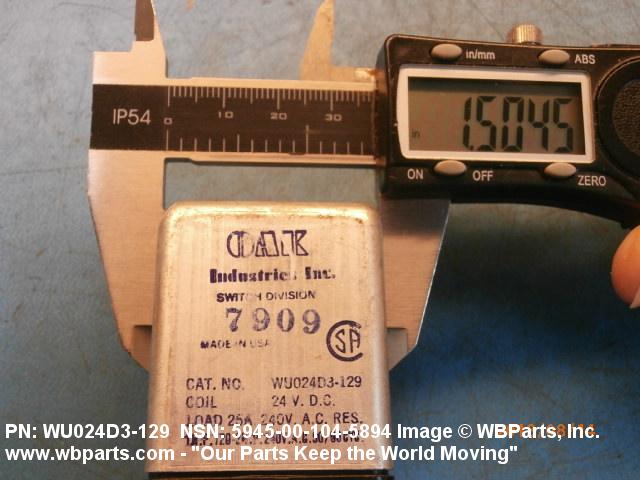

| OVERALL WIDTH | 1.563 INCHES NOMINAL |
| OVERALL HEIGHT | 2.281 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PLUG-IN TERMINAL SINGLE MOUNTING FACILITY |
