NSN 5945-00-111-4946 MS272554, MS27255-4, A41016105904

Product Details | ELECTROMAGNETIC RELAY

5945-00-111-4946 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS272554, MS27255-4, A41016105904, A410-161059-04, MILPRF6106, MIL-PRF-6106, MILR6106, MIL-R-6106, 224651-004, 5945-00-111-4946, 00-111-4946, 5945001114946, 224651004, 001114946

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	30 AUG 1968	00-111-4946	32512 ( RELAY, ELECTROMAGNETIC )

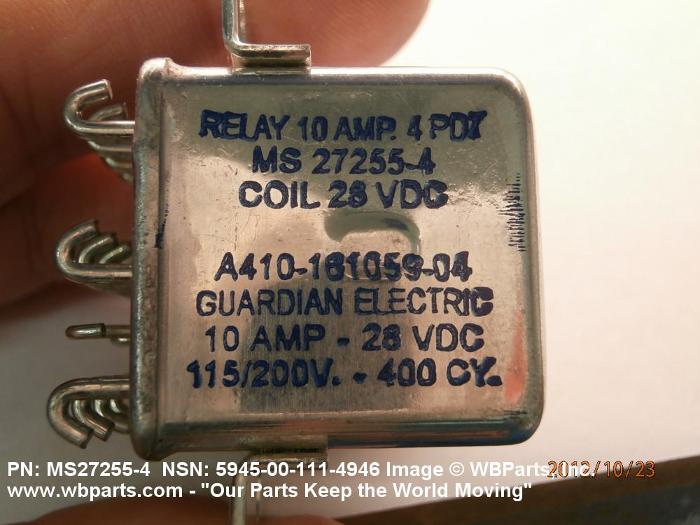

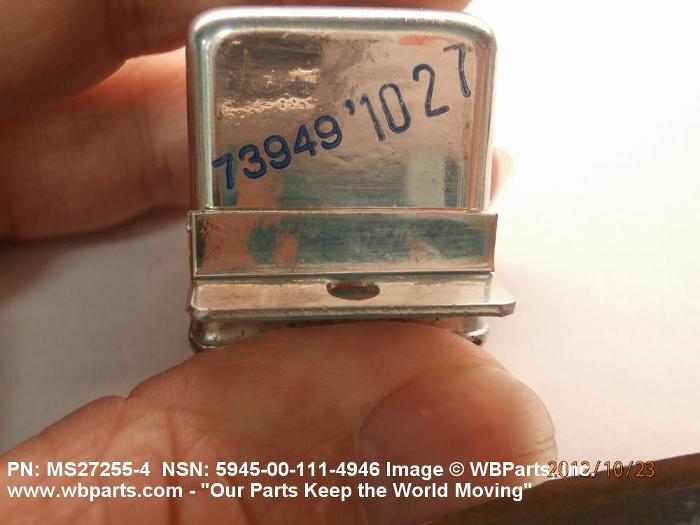

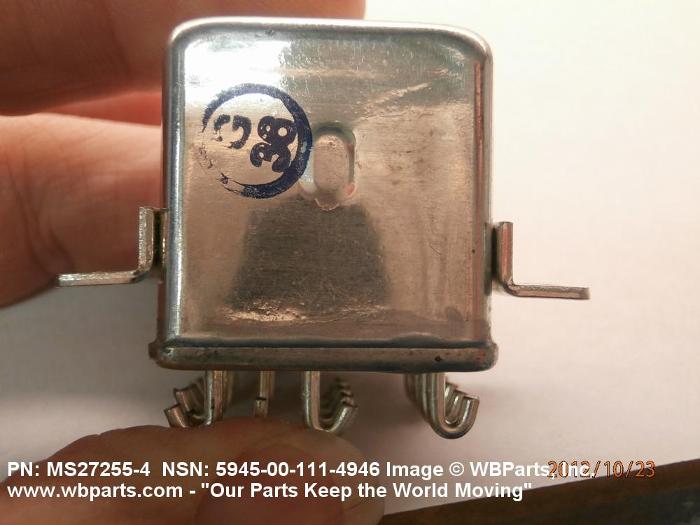

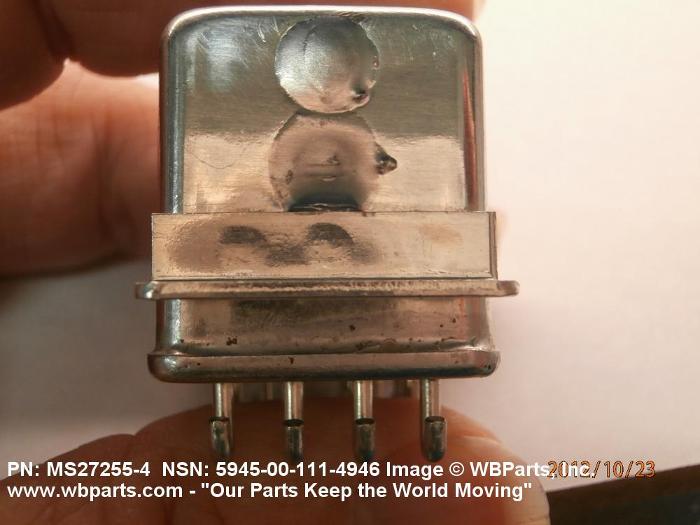

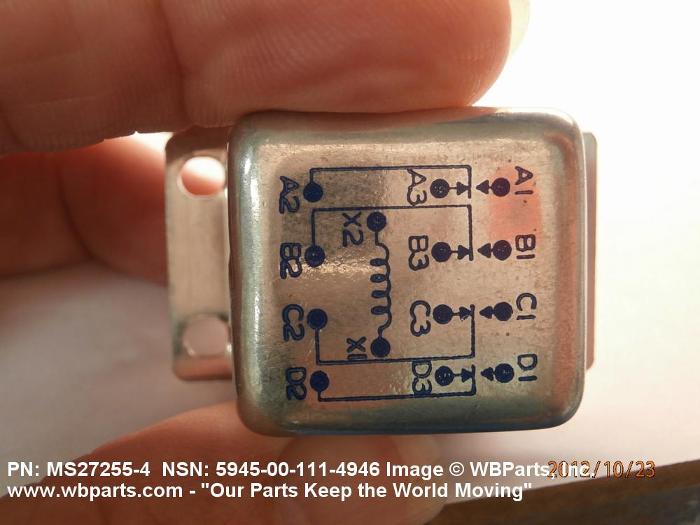

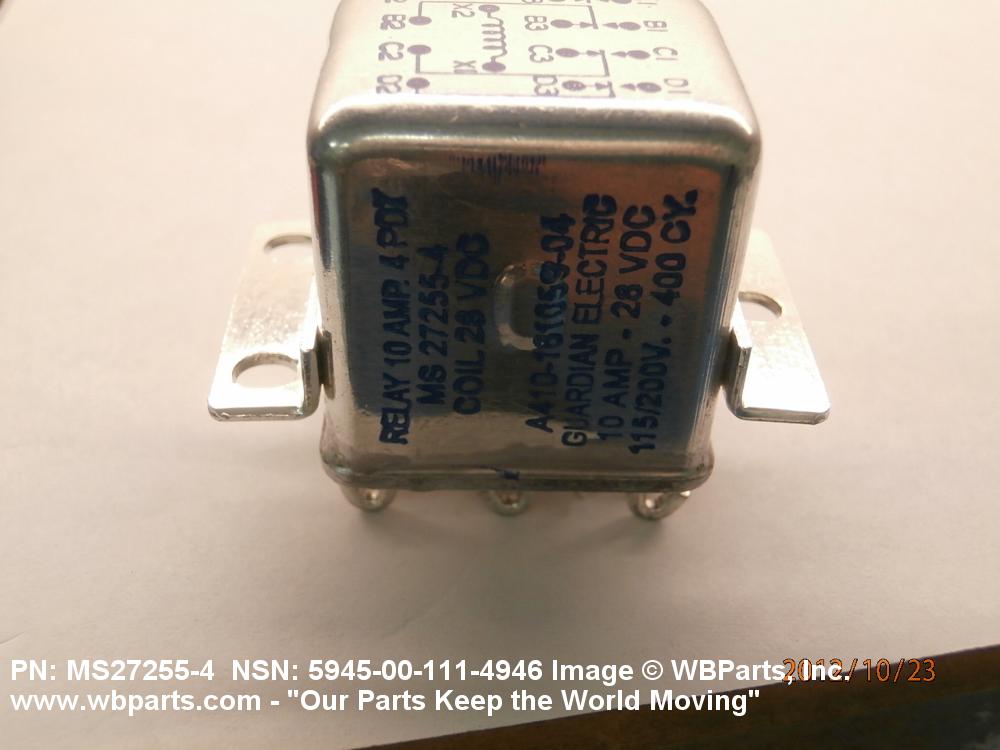

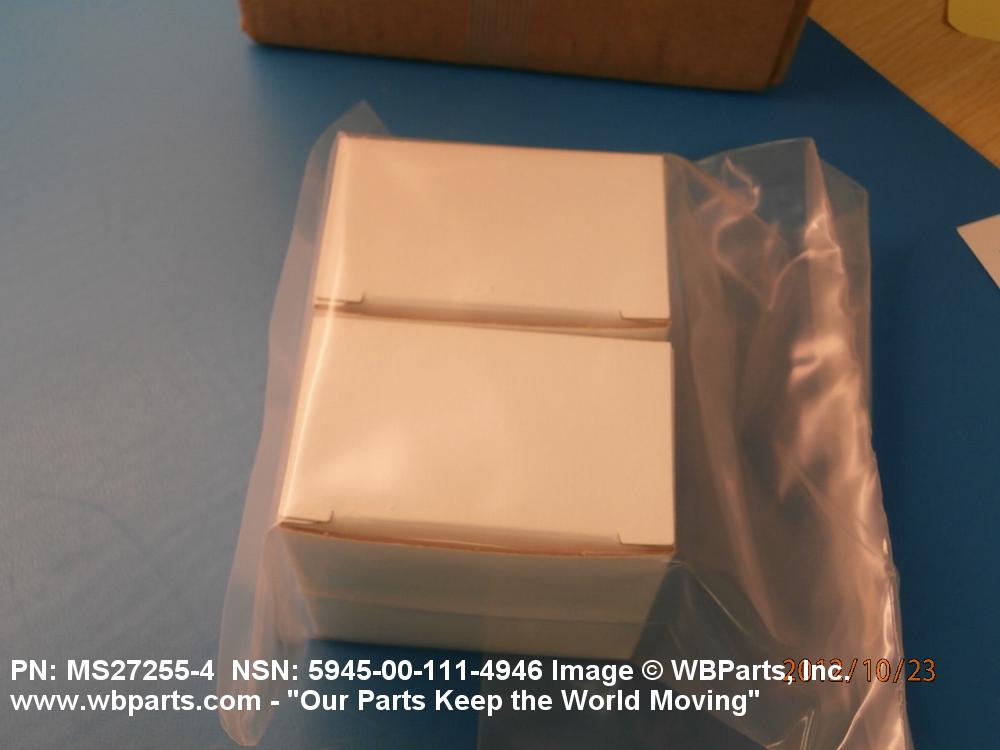

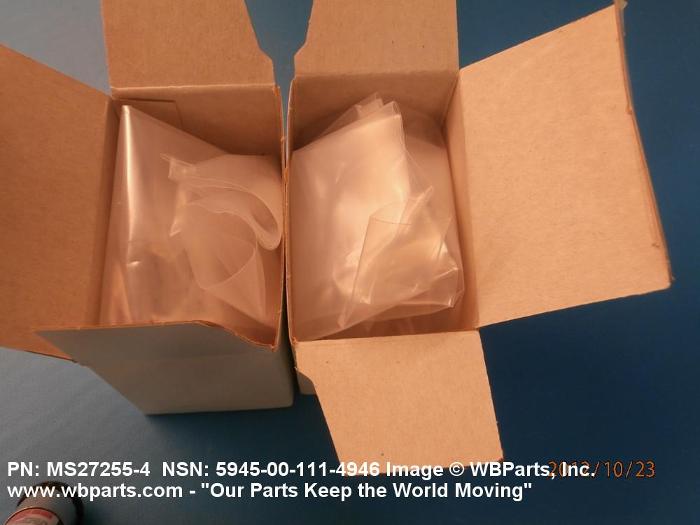

Drawings & Photos | NSN 5945-00-111-4946

Part Number	Request Date	QTY	Origin
5945-00-111-4946	2025-01-06	259	IN
5945-00-111-4946	2025-01-05	259	IN
5945-00-111-4946	2024-07-186	10	DIBBS
5945-00-111-4946	2024-06-169	5	DIBBS
5945-00-111-4946	2024-06-158	23	DIBBS
5945-00-111-4946	2024-04-109	6	DIBBS
5945-00-111-4946	2024-03-89	5	UK
5945-00-111-4946	2024-03-88	15	DIBBS
5945-00-111-4946	2024-03-81	4	DIBBS
MS272554	2024-03-78	36	United Arab Emirates
5945-00-111-4946	2024-03-78	40	Turkey
5945-00-111-4946	2024-03-77	12	DIBBS
5945-00-111-4946	2024-03-70	4	DIBBS
5945-00-111-4946	2024-02-53	4	DIBBS
5945-00-111-4946	2024-02-39	39	DIBBS
5945-00-111-4946	2023-08-215	32	DIBBS
5945-00-111-4946	2023-05-149	30	US
5945-00-111-4946	2023-02-54	20	DIBBS
5945-00-111-4946	2022-07-209	38	DIBBS
5945-00-111-4946	2022-04-97	19	DIBBS
5945-00-111-4946	2022-03-69	6	DIBBS
5945-00-111-4946	2022-02-55	20	DIBBS
5945-00-111-4946	2021-10-301	22	DIBBS
5945-00-111-4946	2021-10-295	8	US
5945-00-111-4946	2021-07-203	75	US
5945-00-111-4946	2021-07-202	75	DIBBS
5945-00-111-4946	2021-03-61	36	DIBBS
5945-00-111-4946	2021-02-46	36	DIBBS
5945-00-111-4946	2021-02-33	30	Thailand
5945-00-111-4946	2020-11-334	50	TR
5945-00-111-4946	2020-11-314	75	DIBBS
5945-00-111-4946	2020-10-301	75	DIBBS
5945-00-111-4946	2020-09-264	2	DIBBS
5945-00-111-4946	2020-08-243	3	DIBBS
5945-00-111-4946	2020-08-231	7	DIBBS
5945-00-111-4946	2020-07-211	7	DIBBS
5945-00-111-4946	2020-01-15	20	US
5945-00-111-4946	2019-12-346	63	DIBBS
5945-00-111-4946	2019-12-335	63	DIBBS
5945-00-111-4946	2019-09-262	55	DIBBS
5945-00-111-4946	2019-05-122	55	DIBBS
MS272554	2017-07-205	3	US
5945-00-111-4946	2017-04-93	67	DIBBS
5945-00-111-4946	2017-01-23	25	US
5945-00-111-4946	2015-12-340	86	DIBBS
5945-00-111-4946	2015-09-263	36	DIBBS
5945-00-111-4946	2015-06-154	69	DIBBS
5945-00-111-4946	2014-05-139	1	DIBBS
5945-00-111-4946	2014-04-120	51	DIBBS
5945-00-111-4946	2014-04-120	40	DIBBS
5945-00-111-4946	2014-03-73	13	DIBBS
5945-00-111-4946	2014-03-73	63	DIBBS
5945-00-111-4946	2013-09-269	140	DIBBS
5945-00-111-4946	2013-06-167	67	DIBBS
5945-00-111-4946	2013-03-86	3	United States
5945-00-111-4946	2013-02-32	71	DIBBS
5945-00-111-4946	2012-10-283	2	United Kingdom
5945-00-111-4946	2012-08-229	42	DIBBS
A41016105904	2012-07-191	5	TR
5945-00-111-4946	2012-03-62	36	DIBBS
5945-00-111-4946	2012-02-40	15	DIBBS
5945-00-111-4946	2011-09-273	41	DIBBS
5945-00-111-4946	2011-09-272	50	MANUAL
MS27255-4	2011-09-272	50	Hong Kong
MS272554	2010-09-244	1	us
5945-00-111-4946	2009-12-344	80	DIBBS
5945-00-111-4946	2009-11-323	210	DIBBS
5945-00-111-4946	2009-11-307	65	DIBBS
5945-00-111-4946	2009-09-253	11	DIBBS
A41016105904	2008-07-190	50	US
5945-00-111-4946	2008-05-136	74	DIBBS
5945-00-111-4946	2008-05-130	143	DIBBS
5945-00-111-4946	2007-12-351	15	DIBBS
5945-00-111-4946	2007-12-340	37	DIBBS
5945-00-111-4946	2007-07-188	276	DIBBS
5945-00-111-4946	2007-04-110	34	DIBBS
MS272554	2006-03-73	6	United States

Cross Reference | NSN 5945-00-111-4946

Part Number	Cage Code	Manufacturer
224651-004	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
A410-161059-04	73949	GUARDIAN ELECTRIC MANUFACTURING CO.
MIL-PRF-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27255-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-00-111-4946

Compare

Related Products | NSN 5945-00-111-4946

5945-00-111-4956, 5945-00-111-6205, 5945-00-111-6207, 5945-00-111-6305, 5945-00-111-6585

Technical Data | NSN 5945-00-111-4946

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	10.0 AMPERES AC AND 10.0 AMPERES DC RESISTIVE LOAD 10.0 AMPERES AC AND 10.0 AMPERES DC INDUCTIVE LOAD 3.0 AMPERES AC AND 3.0 AMPERES DC LAMP LOAD 5.0 AMPERES AC AND 5.0 AMPERES DC MOTOR LOAD
ARC QUENCHING METHOD	AIR
COIL QUANTITY	1
WINDING QUANTITY	1
WINDING DC RESISTANCE RATING	160.0 OHMS NOMINAL SINGLE WINDING
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING

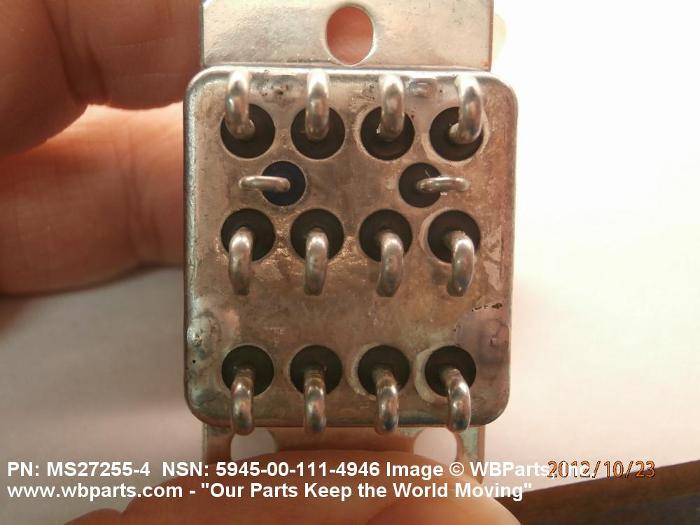

TERMINAL TYPE AND QUANTITY	14 WIRE HOOK ALL FUNCTIONS
TIME DELAY	0.01 SECONDS MAXIMUM FIXED OPERATE AND RELEASE TIME
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC
OVERALL LENGTH	1.718 INCHES MAXIMUM
OVERALL WIDTH	1.047 INCHES MAXIMUM
OVERALL HEIGHT	1.432 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	3 SLOTTED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	TRIANGLE SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	0.625 INCHES NOMINAL SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO THE ALTITUDE OF AN ISOSCELES TRIANGLE	1.446 INCHES NOMINAL SINGLE MOUNTING FACILITY
MOUNTING SLOT WIDTH	0.150 INCHES NOMINAL SINGLE MOUNTING FACILITY
TEST DATA DOCUMENT	81349-MIL-R-6106 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS27255 GOVERNMENT STANDARD
III PURPOSE FOR WHICH DESIGNED	GENERAL
III CUBIC MEASURE	2.575 CUBIC INCHES
III UNPACKAGED UNIT WEIGHT	0.200 POUNDS
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III CASE MATERIAL	METAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-6106
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS27255-4

Restrictions/Controls & Freight Information | NSN 5945-00-111-4946

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-00-111-4946

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
