Product Details | ELECTRONIC CHOPPER
5945-00-114-0023 An electromechanical or electronic (includes solid state semiconductor items) device designed to convert an electrical signal into a modified square wave output signal. For items excited by an alternating current, the output signal is the same frequency as, and bears a definite phase relationship to, the excitation voltage. For those electronic items designed to operate on direct current only, the output frequency of the item is dependent upon the inherent properties of the item, or the internal or external circuit constants, or the applied driving coil voltage impressed on the input signal. For an electromechanical item whose coil is designed for direct current only, see VIBRATOR, INTERRUPTER and VIBRATOR, SELF-RECTIFYING.20259450020Relays and Solenoids59630018Electronic Modules
Part Alternates: 3500093010, 350-0093-010, 5945-00-114-0023, 00-114-0023, 5945001140023, 001140023
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 SEP 1968 | 00-114-0023 | 19759 ( CHOPPER, ELECTRONIC ) |
Drawings & Photos | NSN 5945-00-114-0023
Demand History | NSN 5945-00-114-0023
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 350-0093-010 | 2020-11-307 | 6 | DIBBS |
| 350-0093-010 | 2020-10-294 | 6 | DIBBS |
| 350-0093-010 | 2019-08-234 | 8 | DIBBS |
| 5945-00-114-0023 | 2010-09-251 | 1 | DIBBS |
| 5945-00-114-0023 | 2010-07-207 | 2 | DIBBS |
| 5945-00-114-0023 | 2009-06-174 | 2 | DIBBS |
| 5945-00-114-0023 | 2009-06-160 | 2 | DIBBS |
| 5945-00-114-0023 | 2009-05-126 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-00-114-0023
Technical Data | NSN 5945-00-114-0023
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | ELECTRONIC |
| SEMICONDUCTOR MATERIAL | METAL |
| INPUT VOLTAGE RATING | 120.0 AC VOLTS NOMINAL |
| DRIVE VOLTAGE RELATIONSHIP TO INPUT VOLTAGE | NOT RATED |
| OUTPUT/INPUT VOLTAGE RELATIONSHIP | NOT RATED |
| PHASE ANGLE IN DEG | NOT RATED |
| DWELL TIME RATING IN DEG | NOT RATED |
| HERMETICALLY SEALED FEATURE | PROVIDED |
| CASE MATERIAL | PLASTIC |
| OPERATING TEMP RANGE | -0.0 TO 100.0 DEG CELSIUS |
| OVERALL LENGTH | 0.719 INCHES NOMINAL |
| OVERALL WIDTH | 0.688 INCHES NOMINAL |
| OVERALL HEIGHT | 0.469 INCHES NOMINAL |
| PLUG IN MOUNTING FEATURE | NOT PROVIDED |
| MOUNTING METHOD | TERMINAL |
| MOUNTING PROVISION | TERMINALS |
| MOUNTING FACILITY QUANTITY | 6 |
| MOUNTING FACILITY SIZE | 0.063 IN. DIA BY 1.750 IN. LG |
| MOUNTING CONFIGURATION | SIX WIRES MTG,THREE ON EACH SIDE |

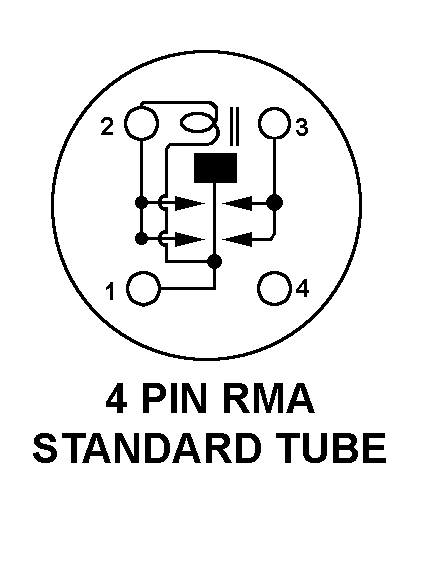

| BASE CONNECTION WIRING STYLE | A2 4 PIN STANDARD TUBE |
