NSN 5945-00-142-8200 CR9503211EAB273, CR9503-211EAB273, 2237032AB273
Product Details | ELECTRICAL SOLENOID

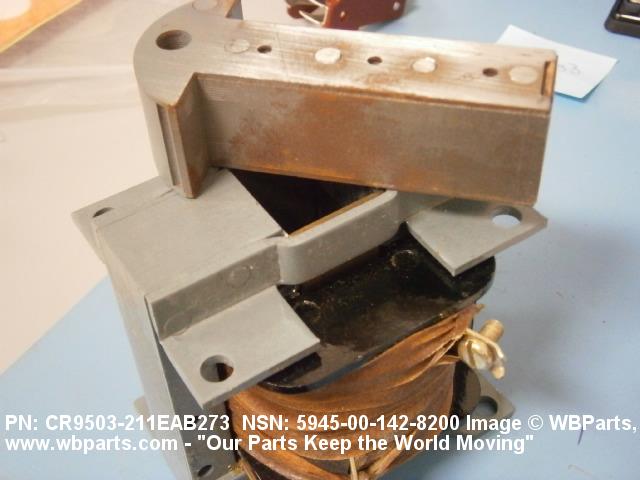

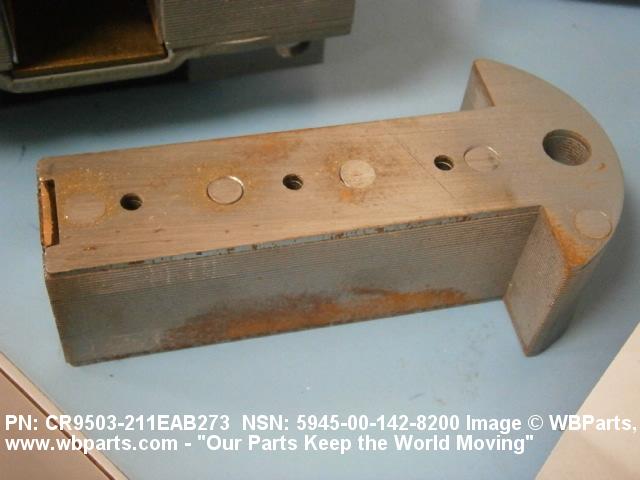

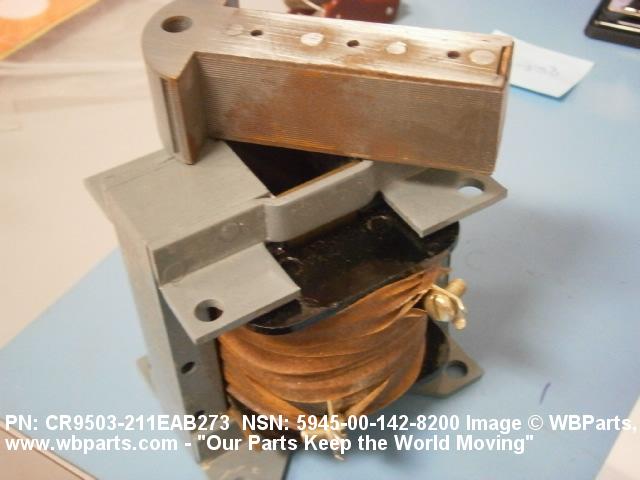

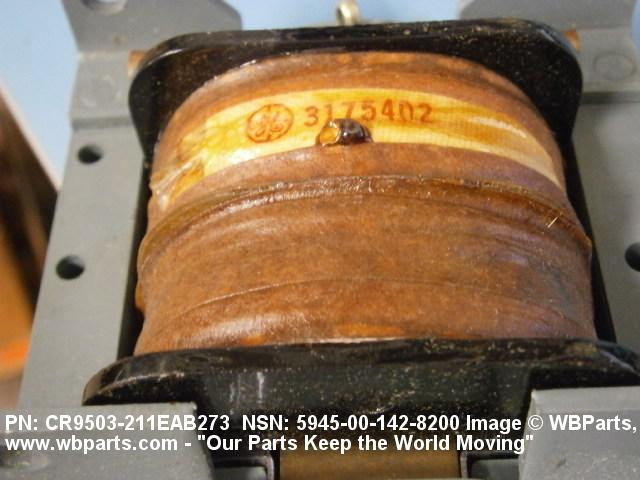

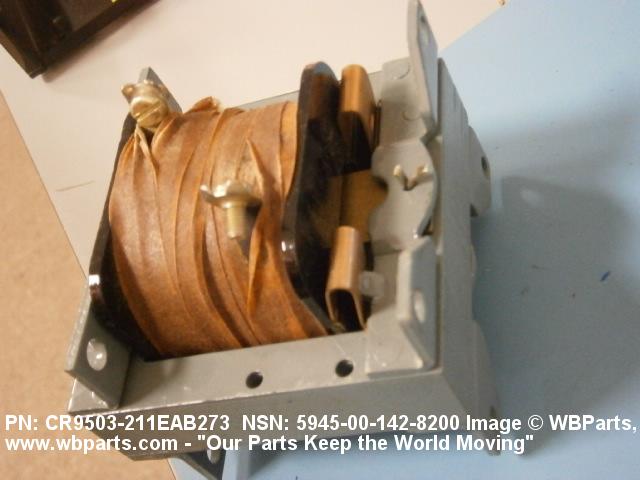

5945-00-142-8200 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: CR9503211EAB273, CR9503-211EAB273, 2237032AB273, 2237032AB273CR9503211E, 2237032AB273CR9503-211E, 5986111892930PC36, 598-611-1892930PC36, 9857154PC36, 9857-154PC36, 5945-00-142-8200, 00-142-8200, 5945001428200, 001428200
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-142-8200 | 00310 ( SOLENOID, ELECTRICAL ) |

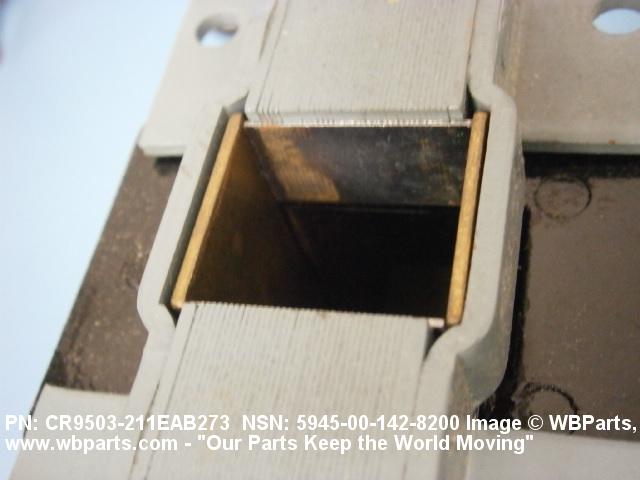

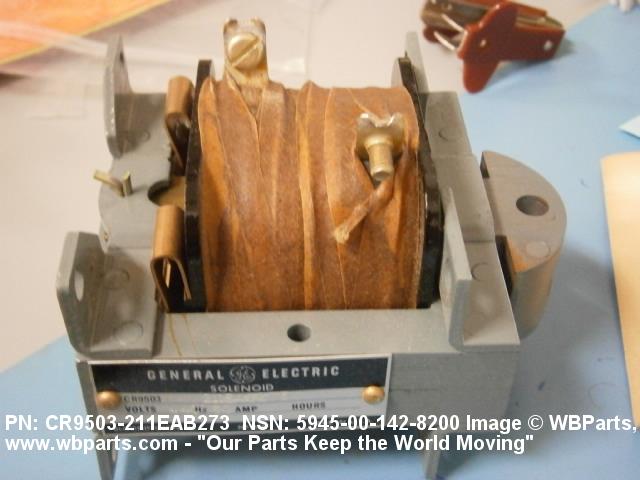

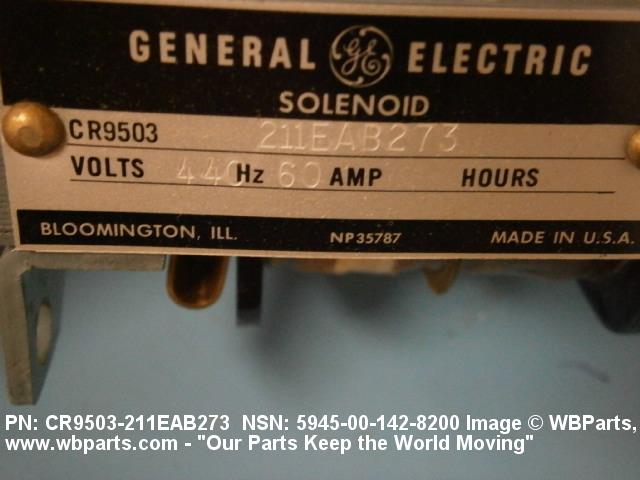

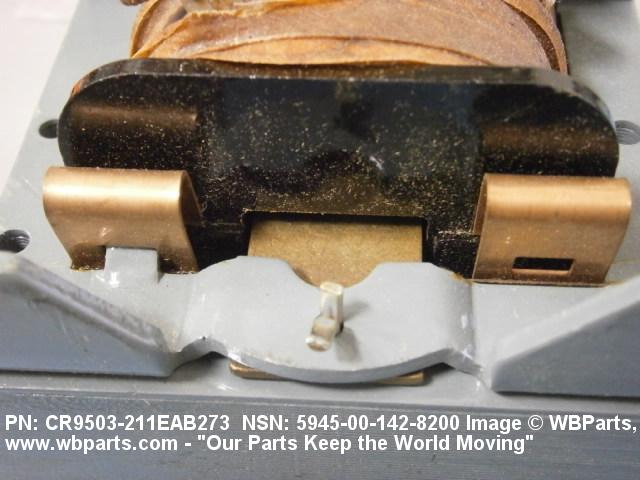

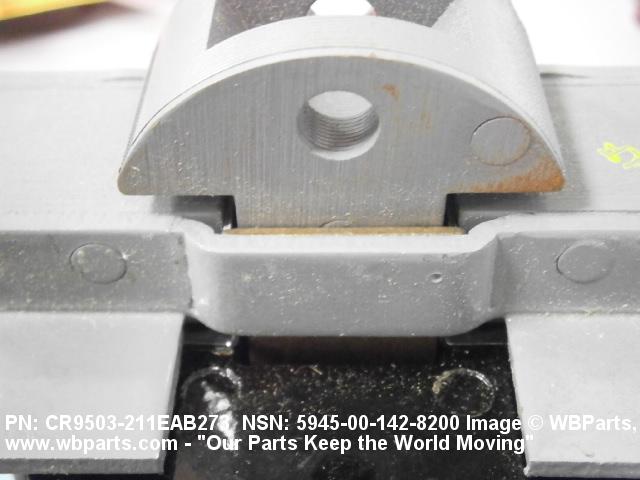

Drawings & Photos | NSN 5945-00-142-8200
Demand History | NSN 5945-00-142-8200
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CR9503211EAB273 | 2018-08-219 | 1 | United States |
| CR9503211EAB273 | 2012-12-340 | 1 | US |
| 2237032AB273 | 2012-10-289 | 2 | US |
| 5945-00-142-8200 | 2012-03-73 | 1 | United States |
| CR9503211EAB273 | 2010-11-306 | 1 | US |
Cross Reference | NSN 5945-00-142-8200
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2237032AB273 | 24446 | GENERAL ELECTRIC CO |
| 2237032AB273CR9503-211E | 71669 | GENERAL ELECTRIC CO SWITCHGEAR AND CONTROL DIVISION |
| 598-611-1892930PC36 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 9857-154PC36 | 96169 | ELECTRIC BOAT CORPORATION |
| CR9503-211EAB273 | 03497 | GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION |
