NSN 5945-00-170-5885 MH91155, TSH1641, TSH-1641
Product Details | ELECTROMAGNETIC RELAY
5945-00-170-5885 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: MH91155, TSH1641, TSH-1641, 128C802H01, 5945-00-170-5885, 00-170-5885, 5945001705885, 001705885
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 AUG 1972 | 00-170-5885 | 32512 ( RELAY, ELECTROMAGNETIC ) |

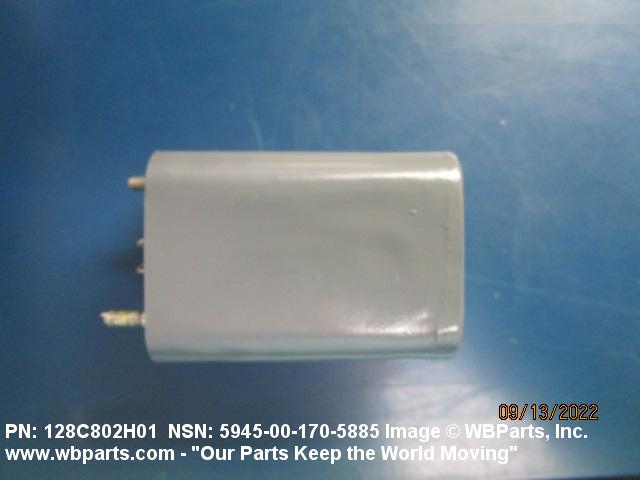

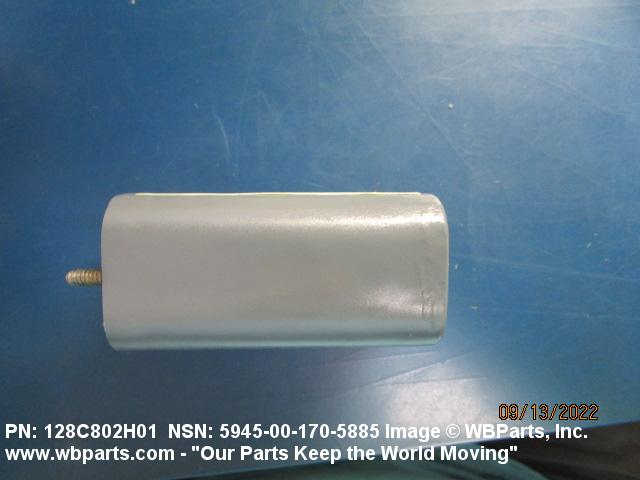

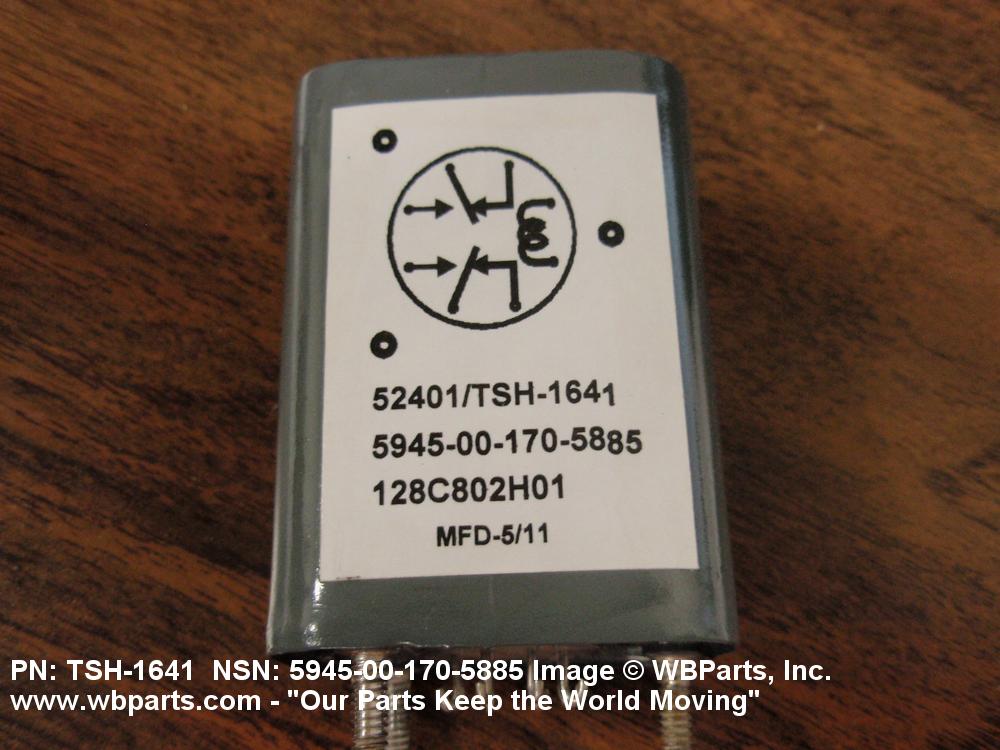

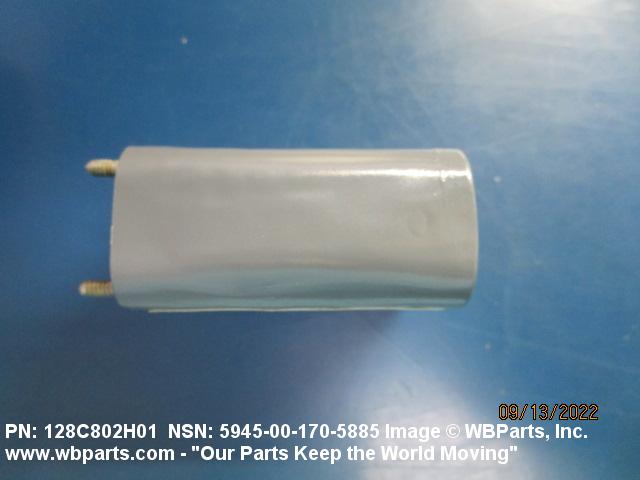

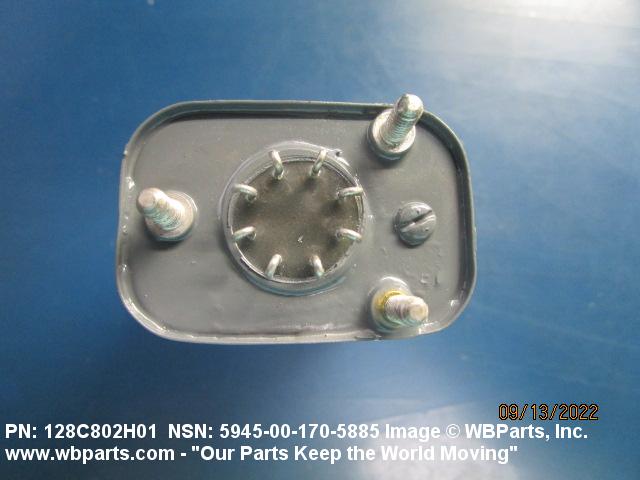

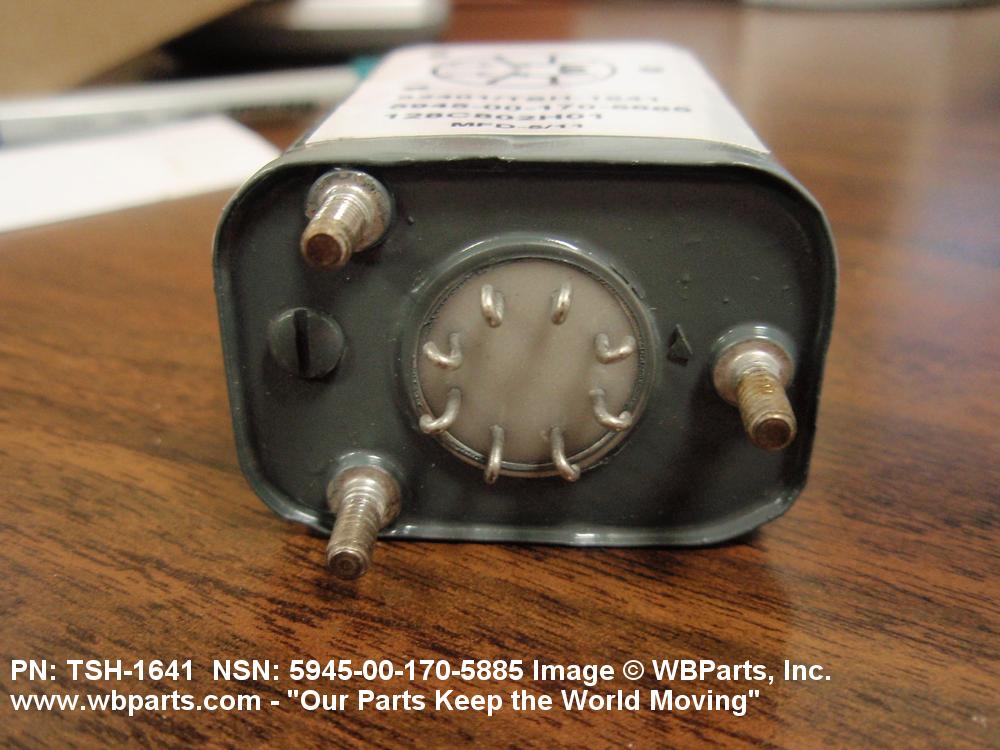

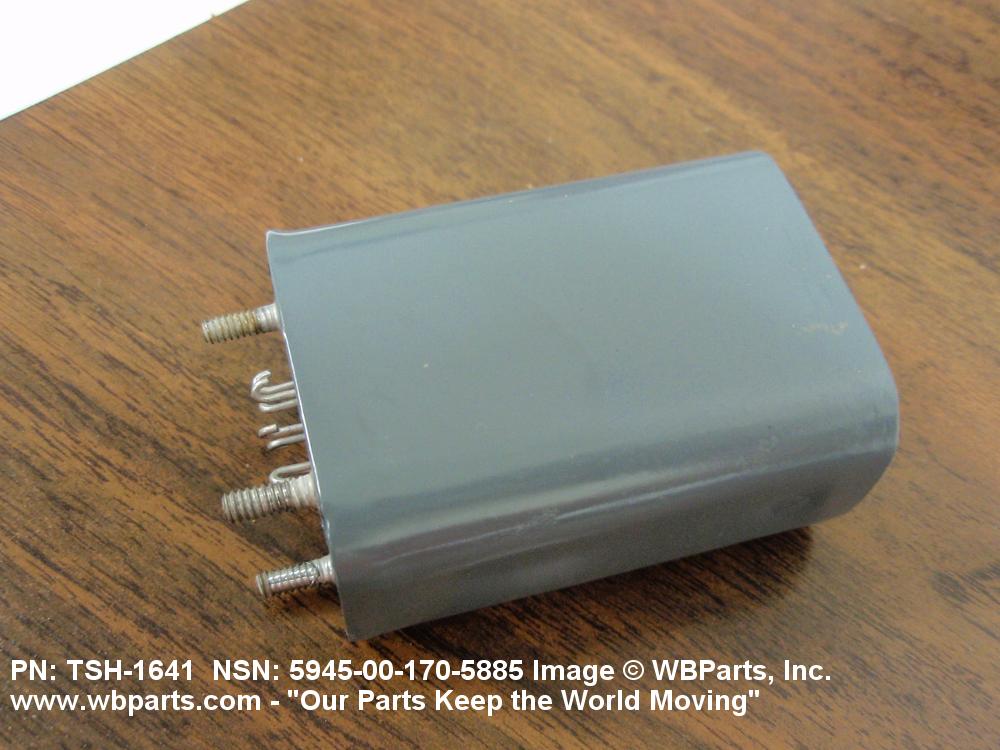

Drawings & Photos | NSN 5945-00-170-5885
Demand History | NSN 5945-00-170-5885
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-170-5885 | 2025-07-212 | 25 | US |
| 5945-00-170-5885 | 2024-04-100 | 1 | Taiwan |
| 5945-00-170-5885 | 2024-03-64 | 1 | Taiwan |
| 5945-00-170-5885 | 2023-08-230 | 1 | Taiwan |
| TSH1641 | 2022-08-236 | 1 | Serbia |
| 5945-00-170-5885 | 2022-08-222 | 1 | US |
| 5945-00-170-5885 | 2022-04-117 | 4 | US |
| 5945-00-170-5885 | 2022-04-117 | 4 | US |
| 5945-00-170-5885 | 2022-04-109 | 4 | US |
| 128C802H01 | 2022-04-108 | 4 | Serbia |
| 5945-00-170-5885 | 2022-02-54 | 1 | Serbia |
| TSH1641 | 2019-05-130 | 1 | Serbia |
| MH91155 | 2019-05-130 | 1 | Serbia |
| 5945-00-170-5885 | 2019-05-130 | 1 | Serbia |
| 5945-00-170-5885 | 2018-12-337 | 3 | US |
| 128C802H01 | 2018-10-290 | 3 | United States |
| 5945-00-170-5885 | 2018-08-242 | 1 | Serbia |
| 5945-00-170-5885 | 2018-01-18 | 22 | DIBBS |
| 5945-00-170-5885 | 2015-11-306 | 27 | DIBBS |
| 5945-00-170-5885 | 2015-10-302 | 33 | DIBBS |
| 5945-00-170-5885 | 2015-10-294 | 27 | DIBBS |
| 5945-00-170-5885 | 2015-08-234 | 5 | DE |
| 5945-00-170-5885 | 2015-08-230 | 20 | US |
| 5945-00-170-5885 | 2014-08-233 | 22 | DIBBS |
| 5945-00-170-5885 | 2014-08-222 | 15 | DIBBS |
| 5945-00-170-5885 | 2013-10-295 | 10 | DIBBS |
| 128C802H01 | 2013-04-119 | 5 | United States |
| MH91155 | 2012-11-310 | 5 | US |
| 5945-00-170-5885 | 2012-07-200 | 10 | us |
| 128C802H01 | 2012-01-30 | 10 | United States |
| 5945-00-170-5885 | 2012-01-11 | 3 | US |
| 128C802H01 | 2011-12-343 | 10 | US |
| 128C802H01 | 2011-10-283 | 6 | YU |
| 5945-00-170-5885 | 2011-09-269 | 6 | YU |
| 5945-00-170-5885 | 2011-06-180 | 9 | DIBBS |
| 128C802H01 | 2011-05-143 | 1 | United States |
| 128C802H01 | 2011-01-27 | 10 | United States |
| 128C802H01 | 2010-12-350 | 10 | United States |
| 128C802H01 | 2010-11-321 | 10 | United States |
| 5945-00-170-5885 | 2010-08-214 | 6 | DIBBS |
| 5945-00-170-5885 | 2010-06-162 | 2 | DIBBS |
| 5945-00-170-5885 | 2010-04-91 | 6 | DIBBS |
| 5945-00-170-5885 | 2010-04-91 | 11 | DIBBS |
| 5945-00-170-5885 | 2009-11-313 | 9 | DIBBS |
| 5945-00-170-5885 | 2009-07-212 | 11 | DIBBS |
| 5945-00-170-5885 | 2008-09-247 | 6 | DIBBS |
| 5945-00-170-5885 | 2008-05-133 | 10 | DIBBS |
| 5945-00-170-5885 | 2008-04-112 | 21 | DIBBS |
| TSH1641 | 2007-11-311 | 1 | United States |
| 128C802H01 | 2007-11-311 | 1 | US |
| 5945-00-170-5885 | 2007-05-125 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-170-5885
Related Products | NSN 5945-00-170-5885
Technical Data | NSN 5945-00-170-5885
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 120.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.0 AMPERES AC AND 500.0 MILLIAMPERES DC RESISTIVE LOAD |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| NOMINAL OPERATING CURRENT RATING AND TYPE | 3.2 AMPERES AC SINGLE WINDING |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| TERMINAL TYPE AND QUANTITY | 8 WIRE HOOK ALL FUNCTIONS |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | HERMETIC |

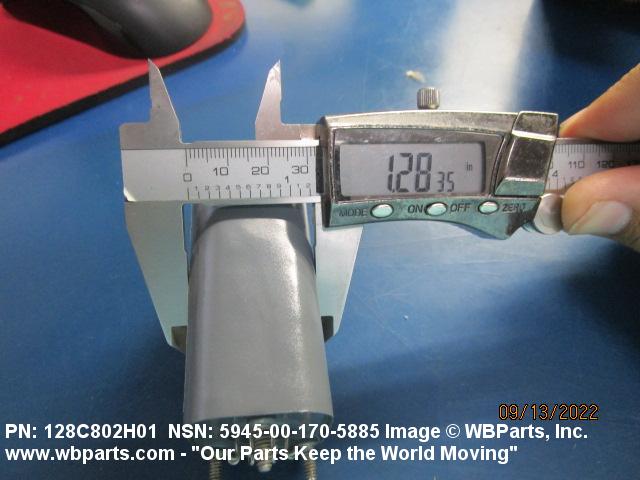

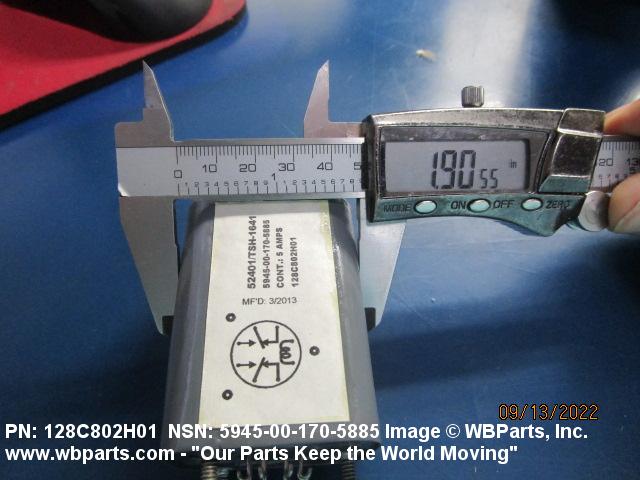

| OVERALL LENGTH | 1.910 INCHES NOMINAL |

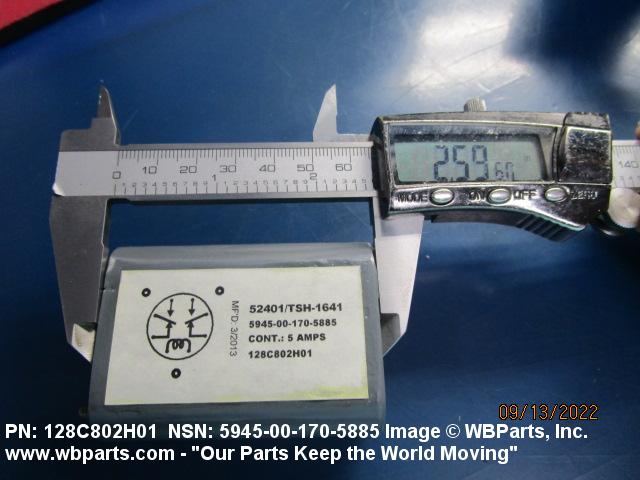

| OVERALL WIDTH | 1.310 INCHES NOMINAL |

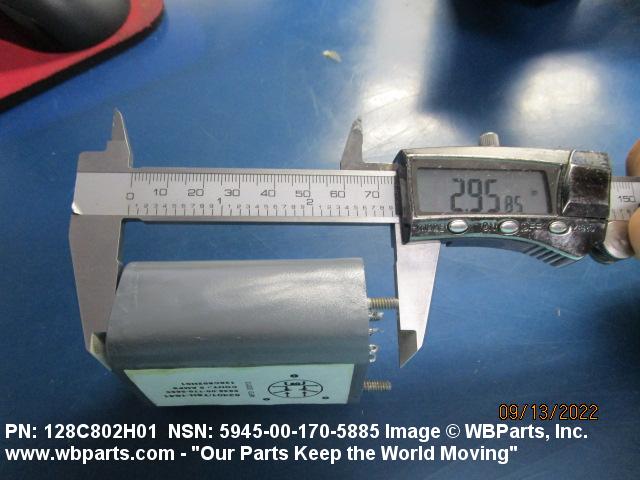

| OVERALL HEIGHT | 2.940 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 THREADED STUD SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | TRIANGLE SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.940 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO THE ALTITUDE OF AN ISOSCELES TRIANGLE | 1.190 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNC SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.138 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |
| THREAD QUANTITY PER INCH | 32 SINGLE MOUNTING FACILITY |
| THREAD DIRECTION | RIGHT-HAND SINGLE MOUNTING FACILITY |
| III CONTACT MATERIAL | SILVER |
| III CONTACT SURFACE TREATMENT | CADMIUM PLATED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
Restrictions/Controls & Freight Information | NSN 5945-00-170-5885
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
