Product Details | ELECTROMAGNETIC RELAY

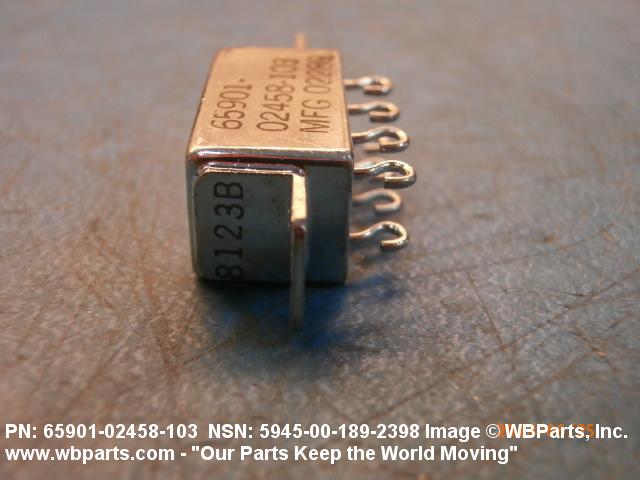

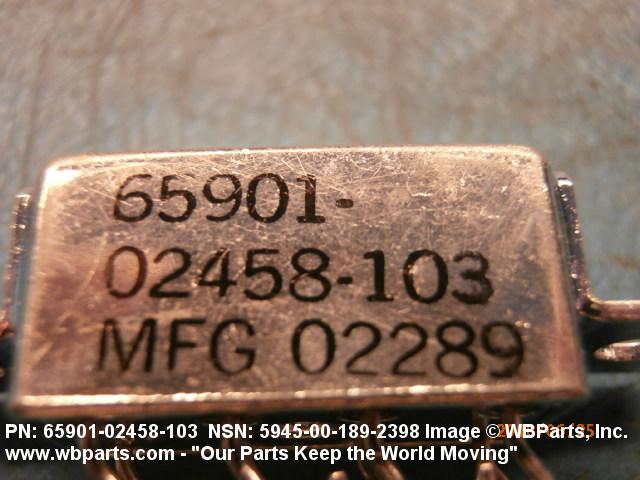

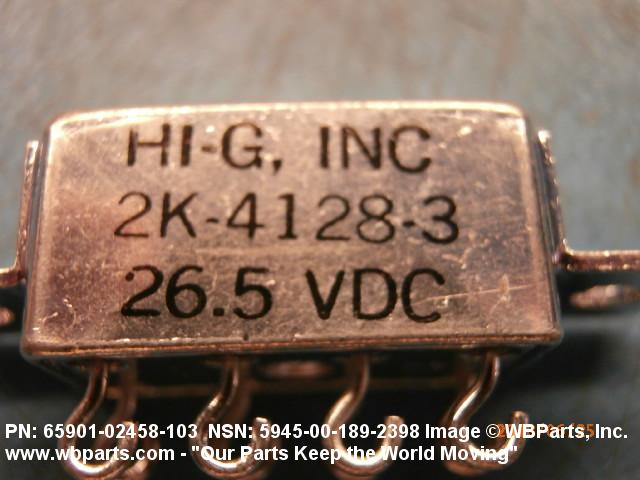

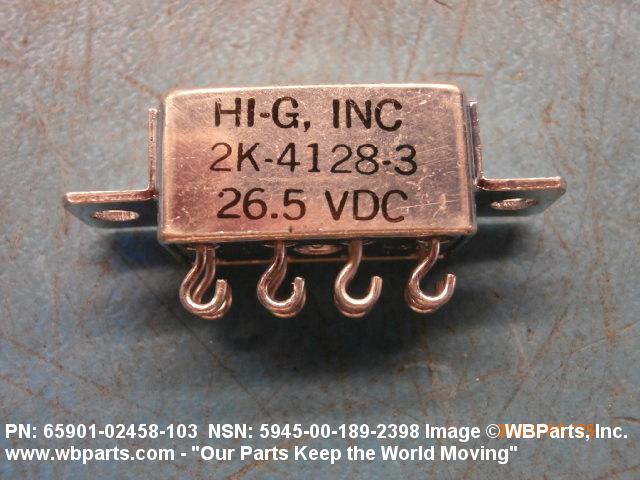

5945-00-189-2398 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: 011098, 2K41283, 2K4128-3, 65901-02458-103, 5945-00-189-2398, 00-189-2398, 6590102458103, 5945001892398, 001892398
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 MAR 1973 | 00-189-2398 | 32512 ( RELAY, ELECTROMAGNETIC ) |

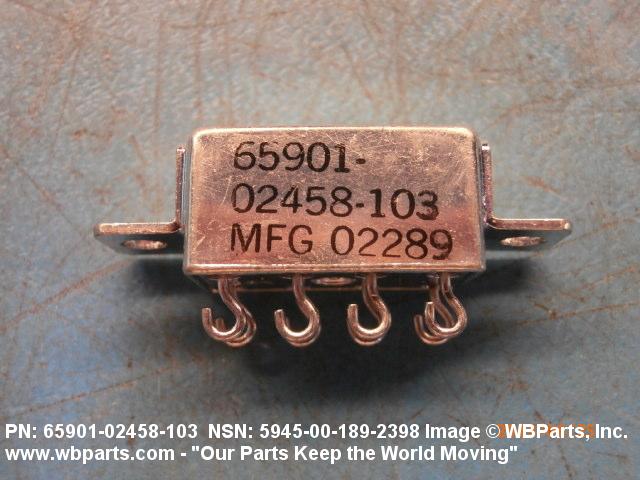

Drawings & Photos | NSN 5945-00-189-2398
Demand History | NSN 5945-00-189-2398
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-189-2398 | 2021-08-237 | 2 | South Korea |
| 5945-00-189-2398 | 2021-08-235 | 2 | South Korea |
| 6590-10-245-8103 | 2018-06-179 | 2 | US |
| 6590-10-245-8103 | 2018-06-171 | 1 | United States |
| 6590-10-245-8103 | 2018-06-156 | 1 | United States |
| 5945-00-189-2398 | 2018-01-17 | 1 | US |
| 5945-00-189-2398 | 2018-01-11 | 1 | US |
| 5945-00-189-2398 | 2017-06-159 | 7 | US |
| 5945-00-189-2398 | 2017-06-159 | 7 | US |
| 6590-10-245-8103 | 2012-08-234 | 14 | us |
| 5945-00-189-2398 | 2010-11-328 | 6 | United States |
| 5945-00-189-2398 | 2010-11-321 | 1 | United States |
| 6590-10-245-8103 | 2010-11-321 | 1 | United States |
| 2K41283 | 2010-11-315 | 1 | US |
| 6590-10-245-8103 | 2010-07-205 | 20 | CO |
| 5945-00-189-2398 | 2010-04-97 | 1 | United States |
| 6590-10-245-8103 | 2009-07-212 | 1 | US |
| 5945-00-189-2398 | 2009-06-181 | 2 | US |
| 2K41283 | 2008-09-248 | 5 | Australia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-189-2398
Related Products | NSN 5945-00-189-2398
Technical Data | NSN 5945-00-189-2398

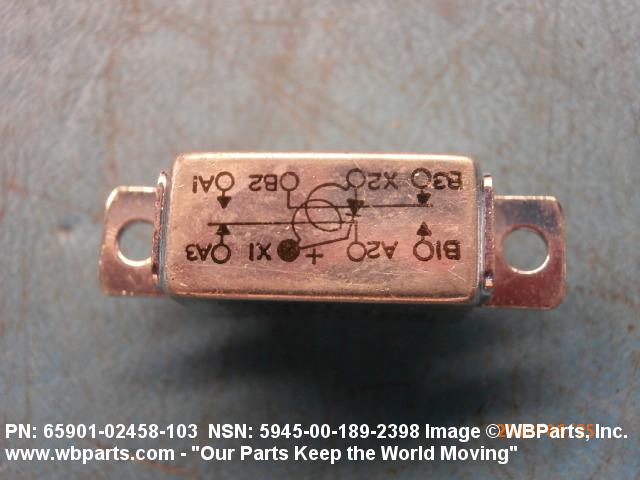

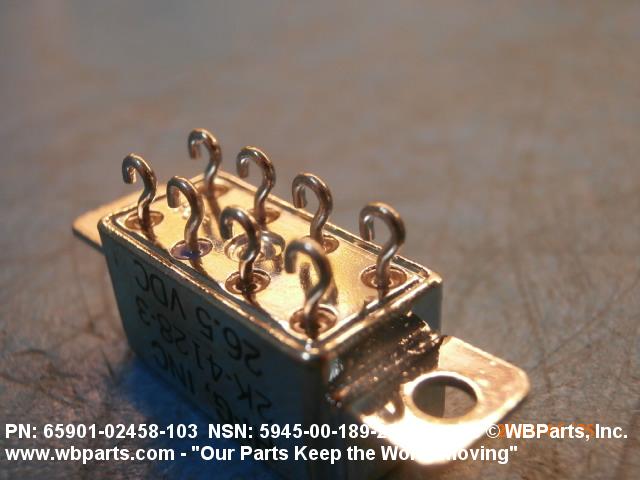

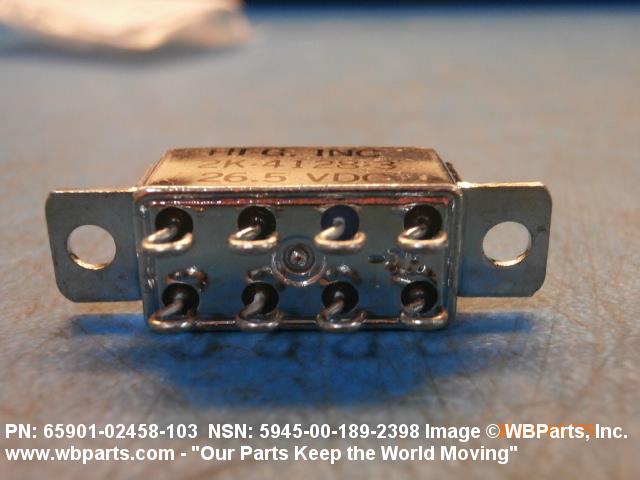

| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 26.5 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 2.0 AMPERES DC RESISTIVE LOAD |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| WINDING DC RESISTANCE RATING | 700.0 OHMS NOMINAL SINGLE WINDING |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 26.5 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |
| TERMINAL TYPE AND QUANTITY | 8 PIN ALL FUNCTIONS |
| TIME DELAY | 0.0025 SECONDS NOMINAL FIXED OPERATE TIME 0.001 SECONDS NOMINAL FIXED RELEASE TIME |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | HERMETIC |

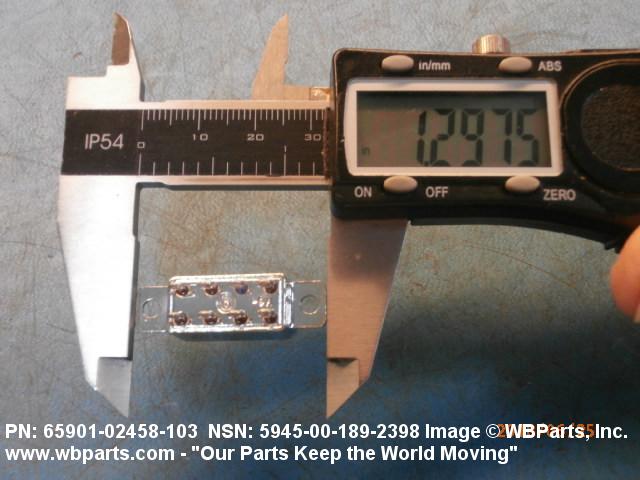

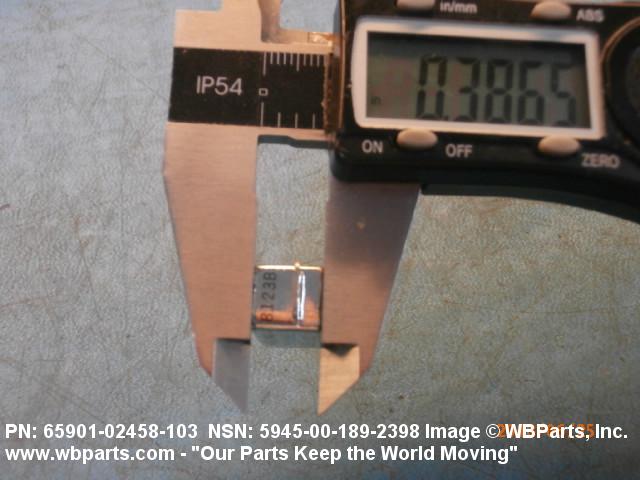

| OVERALL LENGTH | 1.344 INCHES MAXIMUM |
| OVERALL WIDTH | 0.587 INCHES MAXIMUM |

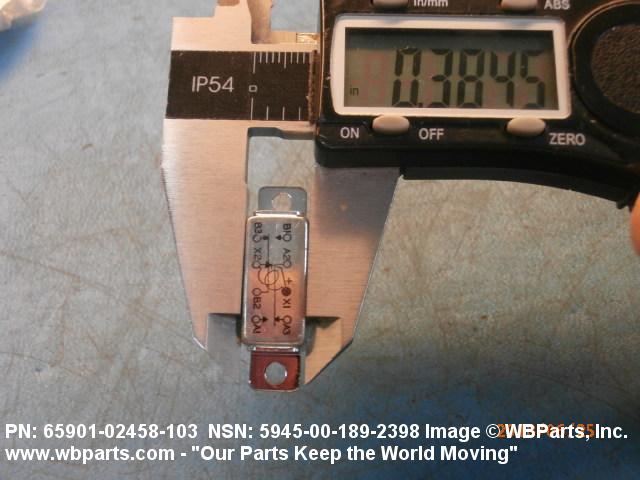

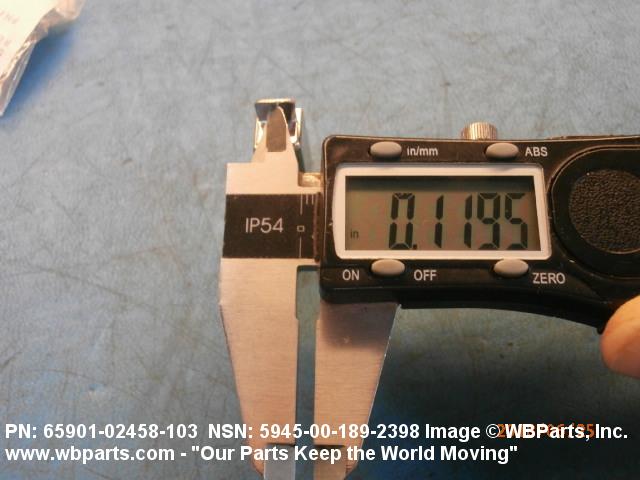

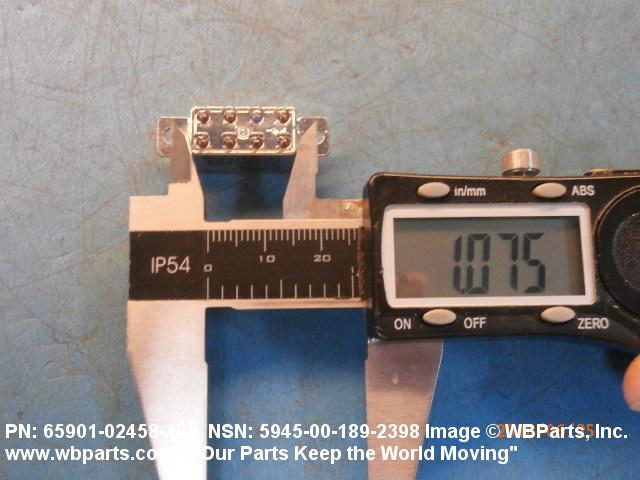

| OVERALL HEIGHT | 0.400 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | IN-LINE SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.078 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.096 INCHES NOMINAL SINGLE MOUNTING FACILITY |
Restrictions/Controls & Freight Information | NSN 5945-00-189-2398
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
