NSN 5945-00-215-8287 010511000700, 010-511-0007-00, 25801
Product Details | ELECTRONIC CHOPPER
5945-00-215-8287 An electromechanical or electronic (includes solid state semiconductor items) device designed to convert an electrical signal into a modified square wave output signal. For items excited by an alternating current, the output signal is the same frequency as, and bears a definite phase relationship to, the excitation voltage. For those electronic items designed to operate on direct current only, the output frequency of the item is dependent upon the inherent properties of the item, or the internal or external circuit constants, or the applied driving coil voltage impressed on the input signal. For an electromechanical item whose coil is designed for direct current only, see VIBRATOR, INTERRUPTER and VIBRATOR, SELF-RECTIFYING.20259450020Relays and Solenoids59630018Electronic Modules
Part Alternates: 010511000700, 010-511-0007-00, 25801, 2580-1, 5945-00-215-8287, 00-215-8287, 5945002158287, 002158287
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 MAY 1973 | 00-215-8287 | 19759 ( CHOPPER, ELECTRONIC ) |
Drawings & Photos | NSN 5945-00-215-8287
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-00-215-8287
Technical Data | NSN 5945-00-215-8287
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | ELECTROMECHANICAL |
| INPUT VOLTAGE RATING | 6.3 DC VOLTS NOMINAL |
| DRIVE VOLTAGE RELATIONSHIP TO INPUT VOLTAGE | NOT RATED |
| OUTPUT/INPUT VOLTAGE RELATIONSHIP | EQUAL |
| CONTACT ARRANGEMENT | SINGLE POLE, DOUBLE THROW |
| CONTACT OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| PHASE ANGLE IN DEG | 20.0 |
| DWELL TIME RATING IN DEG | 165.0 NOMINAL |
| HERMETICALLY SEALED FEATURE | NOT PROVIDED |
| CASE MATERIAL | METAL |
| OPERATING TEMP RANGE | -65.0 TO 100.0 DEG CELSIUS |
| TERMINAL QUANTITY | 1 |
| TERMINAL TYPE | TUBE PLUG |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 2.500 INCHES NOMINAL |
| PLUG IN MOUNTING FEATURE | NOT PROVIDED |
| MOUNTING METHOD | FLANGE |
| MOUNTING PROVISION | HOLES |
| MOUNTING FACILITY QUANTITY | 4 |
| MOUNTING FACILITY SIZE | 0.116 IN. DIA |
| MOUNTING CONFIGURATION | 4 THD HOLES SPACED 0.688 IN. BY 0.938 IN. APART |

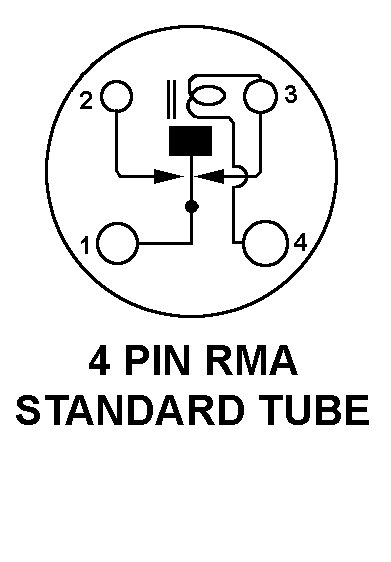

| BASE CONNECTION WIRING STYLE | A4 4 PIN STANDARD TUBE |
| COIL TYPE | ISOLATED |
| CONNECTION LOCATION | TOP |
| III UNPACKAGED UNIT WEIGHT | 0.188 POUNDS |
Restrictions/Controls & Freight Information | NSN 5945-00-215-8287
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-215-8287
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | T | Other Electronics Equipment |
| Weapons Systems/End Item or Homogeneous Group | TV | VINSON IK/componets |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
