NSN 5945-00-219-6129 M5957/22-001, M595722001, M83726/7-5001
Product Details | HYBRID RELAY

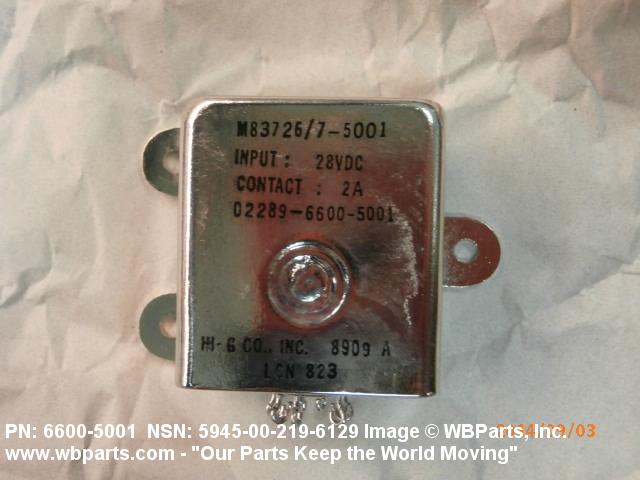

5945-00-219-6129 A self-contained device that performs the function of opening or closing an electrical circuit in response to electrical changes in an external circuit. It consists of a combination of semiconductor and passive circuit devices, which in turn control an integral electro-magnetic relay. Excludes relays which employ diodes, rectifiers or other passive devices to achieve contact protection or coil modification. Excludes RELAY, SOLID STATE.
Part Alternates: M5957/22-001, M595722001, M83726/7-5001, M83726/7-5001W, M8372675001, M8372675001W, MIL-R-83726/7, MILR837267, 93410-5001, 5945-00-219-6129, 00-219-6129, 5945002196129, 934105001, 002196129
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 MAY 1973 | 00-219-6129 | 31445 ( RELAY, HYBRID ) |

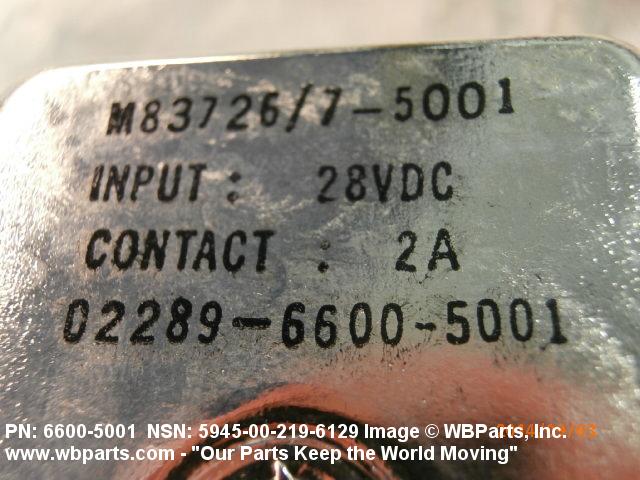

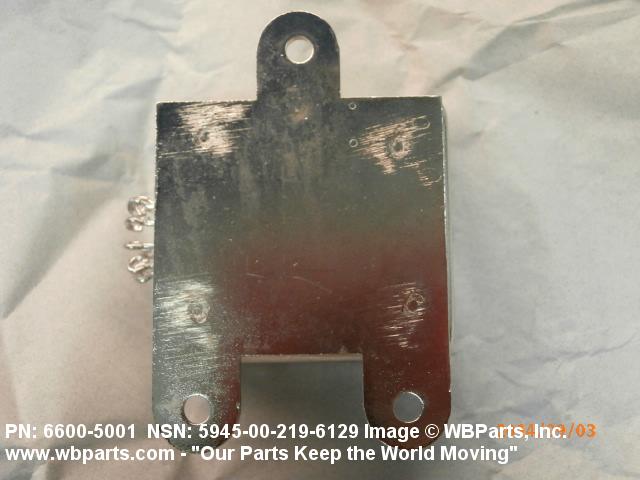

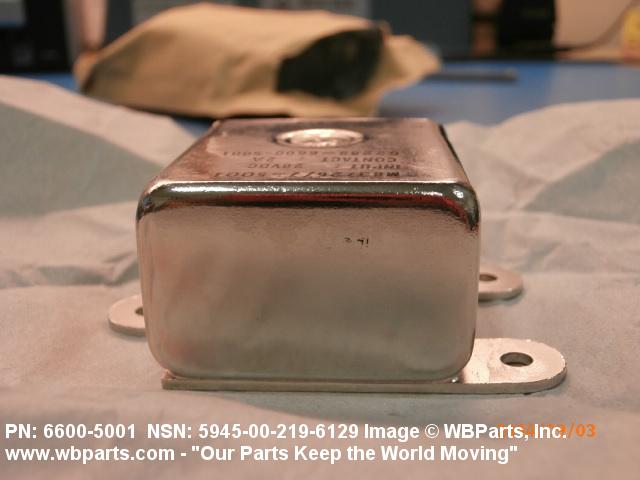

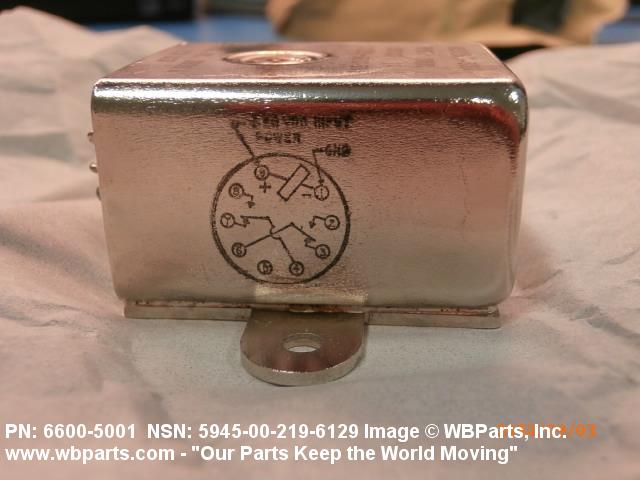

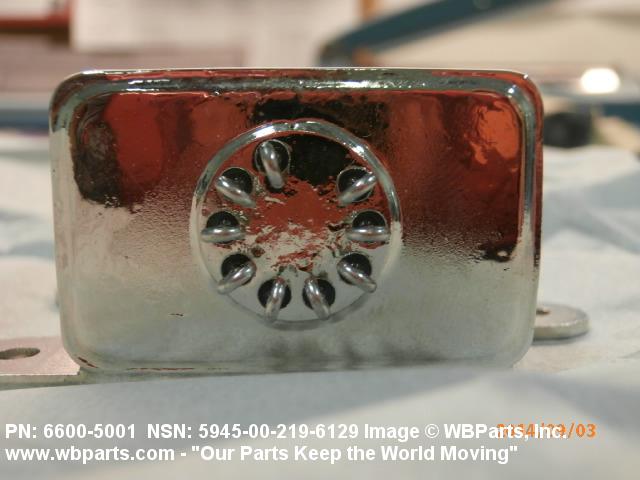

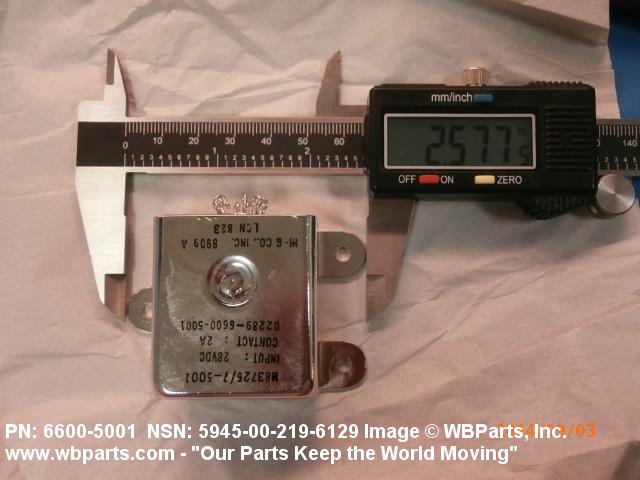

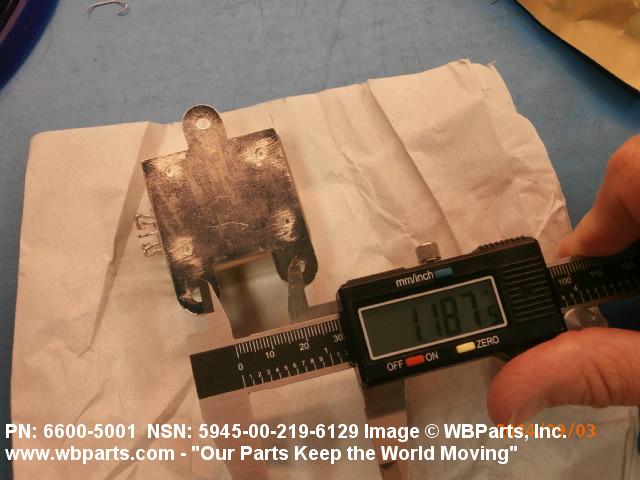

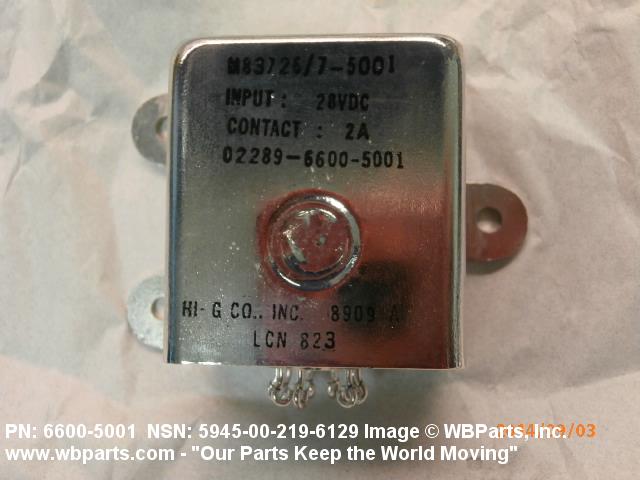

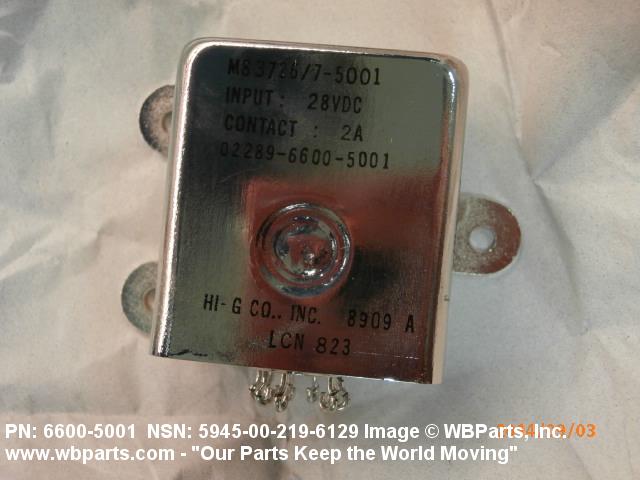

Drawings & Photos | NSN 5945-00-219-6129
Demand History | NSN 5945-00-219-6129
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-219-6129 | 2014-08-240 | 9 | United States |
| 5945-00-219-6129 | 2014-07-204 | 9 | DIBBS |
Cross Reference | NSN 5945-00-219-6129
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 93410-5001 | 07031 | TEMPO INSTRUMENT INC DEFENSE ELECTRONICS DIV |
| M5957/22-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83726/7-5001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83726/7-5001W | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-83726/7 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-219-6129
Related Products | NSN 5945-00-219-6129
Technical Data | NSN 5945-00-219-6129
| Characteristic | Specifications |
|---|---|
| TIME DELAY | 5.00 SECONDS NOMINAL DELAY |
| CONTACT ARRANGEMENT | DOUBLE POLE, DOUBLE THROW |

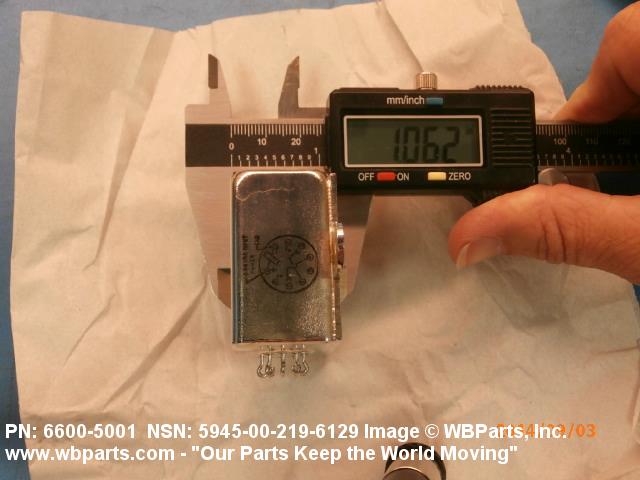

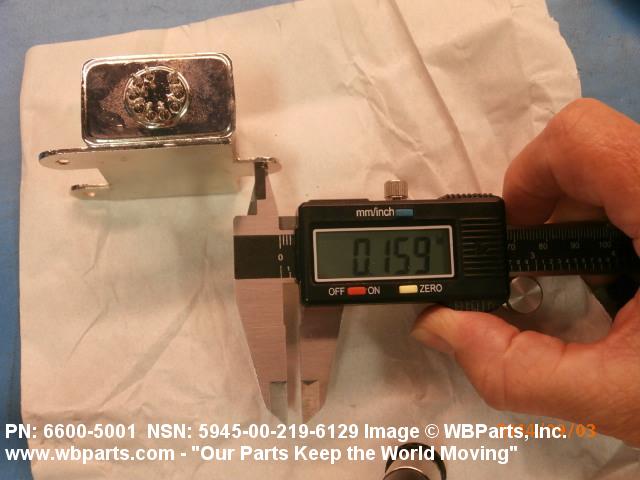

| SPECIAL FEATURES | MODERATELY RUGGED;LEVEL W QUALITY;2 AMPS;28 VDC I/P;WIRE HOOK TERMINALS;2.593 IN. LG;1.750 IN. W;1.000 IN. H;THREE 0.159 IN. DIA UNTHD MTG HOLES ON TRIANGLE SPACED 1.188 IN. W X 2.093 IN. LG |
