NSN 5945-00-228-2956 16KKK100AP10, 494549, 00-228-2956
Product Details | ELECTRICAL SOLENOID
5945-00-228-2956 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: 16KKK100AP10, 494549, 5945-00-228-2956, 00-228-2956, 5945002282956, 002282956
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-228-2956 | 00310 ( SOLENOID, ELECTRICAL ) |
Drawings & Photos | NSN 5945-00-228-2956
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-00-228-2956
Technical Data | NSN 5945-00-228-2956
| Characteristic | Specifications |
|---|---|

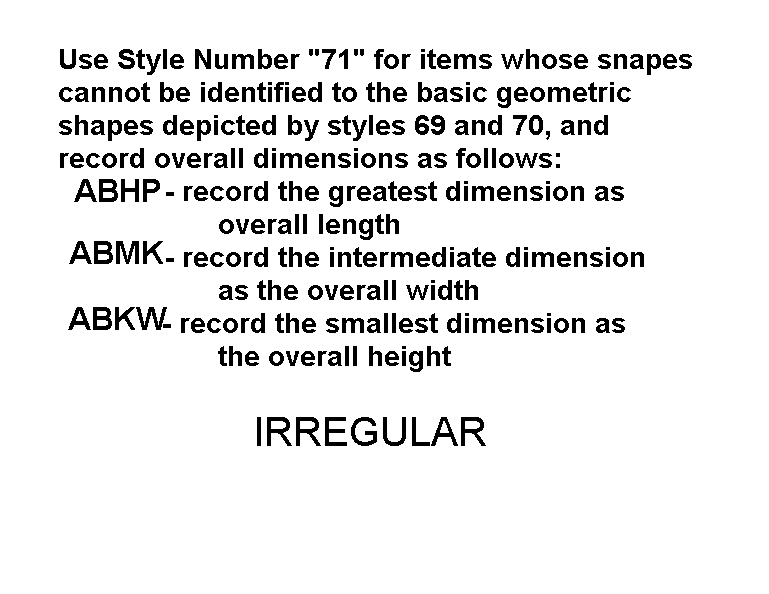

| BODY STYLE | 71 IRREGULAR |
| OVERALL LENGTH | 3.250 INCHES NOMINAL |
| OVERALL WIDTH | 2.125 INCHES NOMINAL |
| OVERALL HEIGHT | 1.625 INCHES NOMINAL |
| MAGNETIC COIL QUANTITY | 1 |
| VOLTAGE RATING IN VOLTS | 115.0 AC MAXIMUM |
| CURRENT RATING | 1.298 AMPERES NOMINAL |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PUSH |
| LINEAR FORCE DELIVERED | 3.00 POUNDS |
| ENERGIZING STROKE MAXIMUM LENGTH | 1.000 INCHES |
| POWER TAKEOFF CONNECTION TYPE | PLAIN |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.495 INCHES MINIMUM AND 1.505 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.203 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LOCATION | ONE SIDE |
| INCLOSURE TYPE | FULLY INCLOSED |
| CASE SURFACE TREATMENT | CADMIUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | 46-P-1 MIL SPEC SINGLE TREATMENT RESPONSE |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
Restrictions/Controls & Freight Information | NSN 5945-00-228-2956
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063100 | SOLENOIDS/PARTS W/WO ARMATURES |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-228-2956
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
