NSN 5945-00-237-1237 R921320, R92-1320, TLAC1389
Product Details | ELECTROMAGNETIC RELAY
5945-00-237-1237 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: R921320, R92-1320, TLAC1389, TLAC-1389, 40074, 9S5170ALT5PC124, 9S5170LALT5, 9S5170LPC124, 5945-00-237-1237, 00-237-1237, 5945002371237, 002371237
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-237-1237 | 32512 ( RELAY, ELECTROMAGNETIC ) |

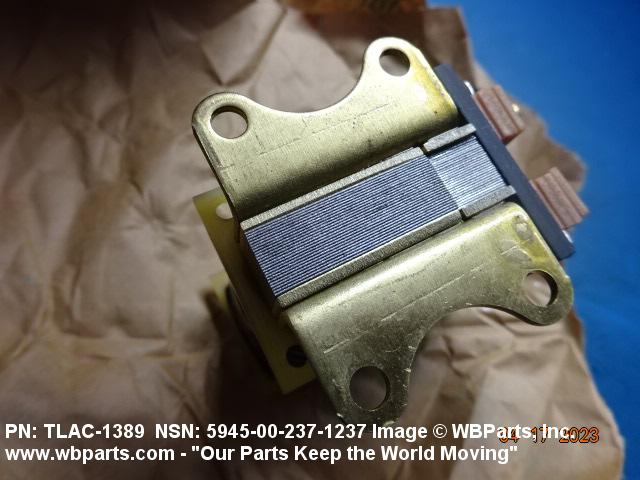

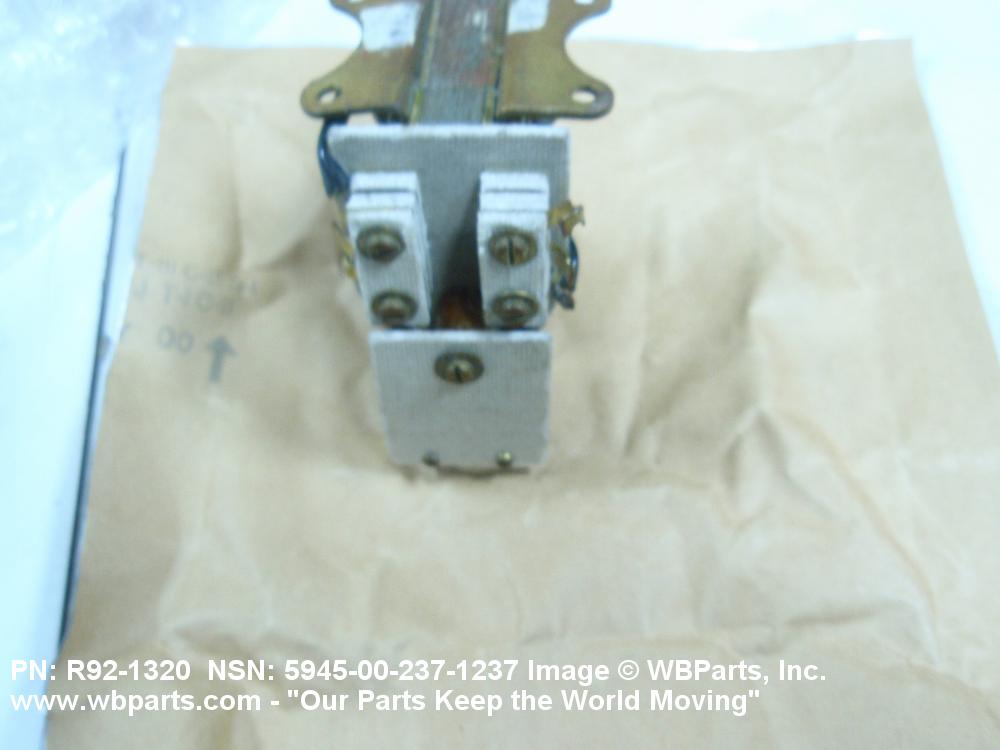

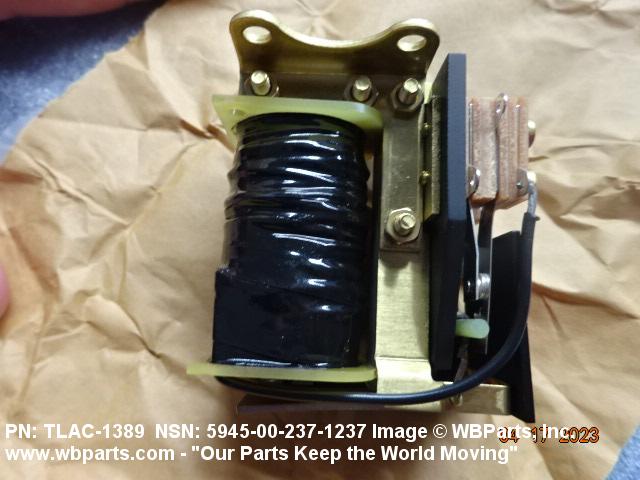

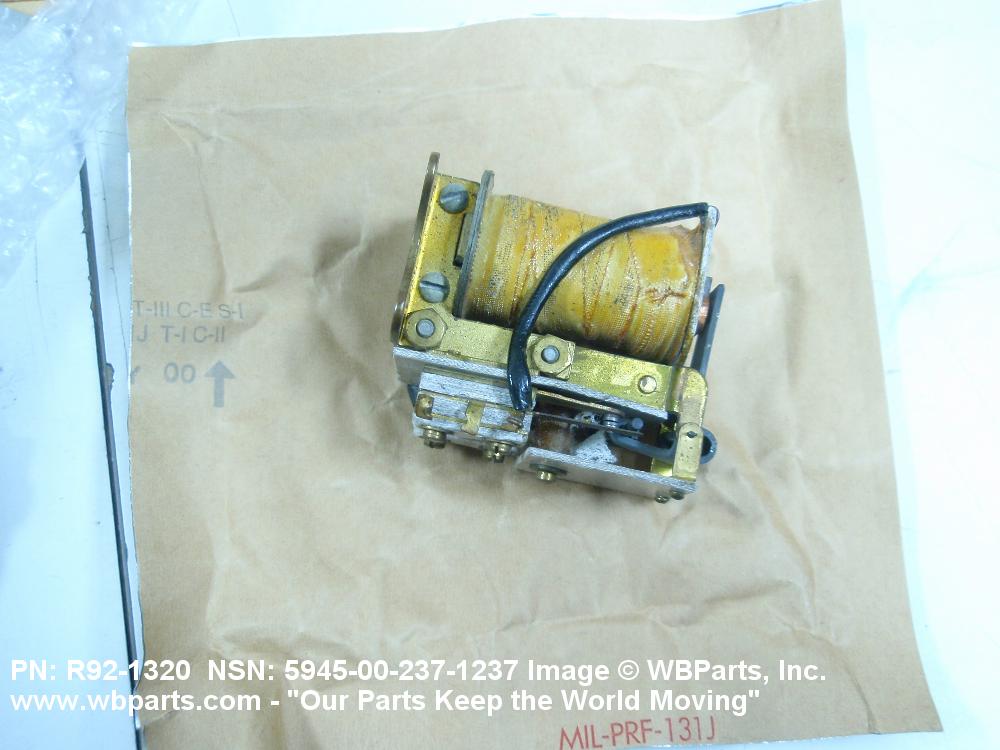

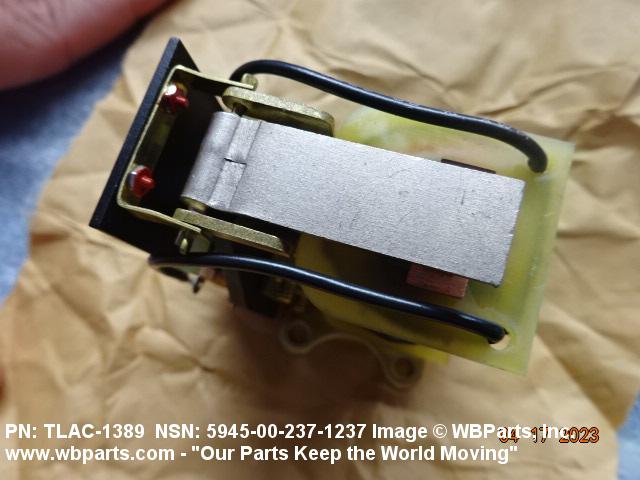

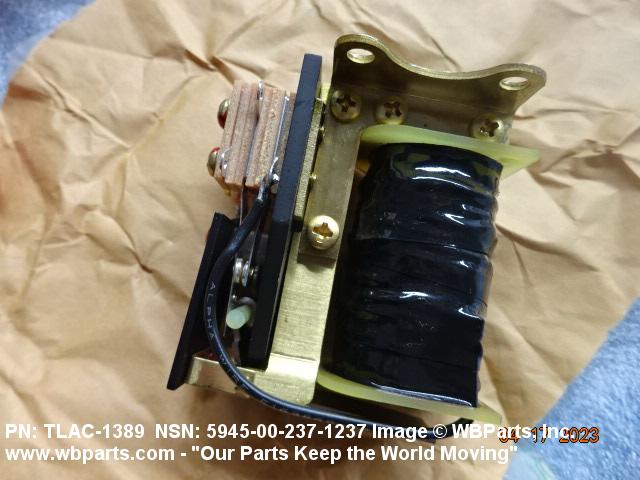

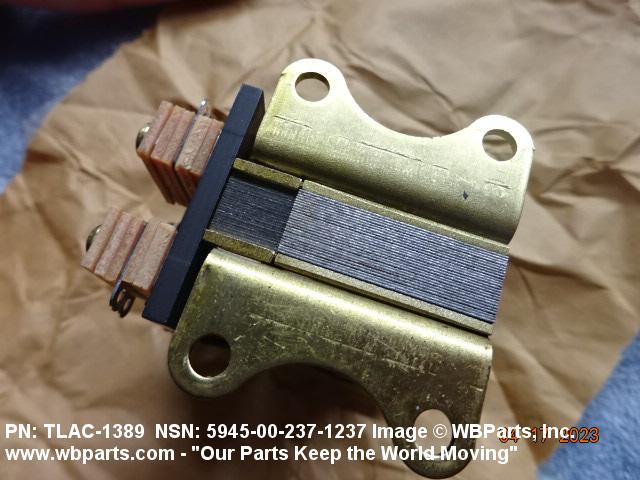

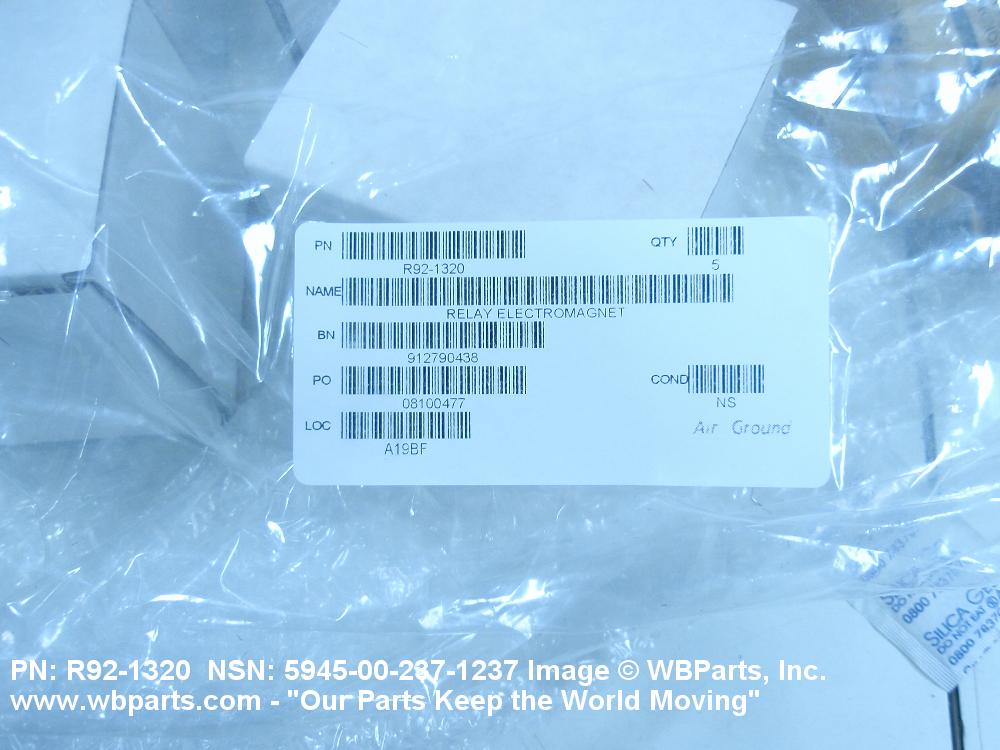

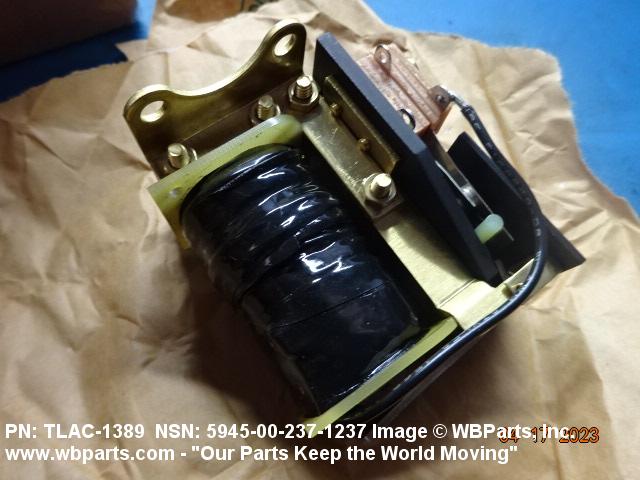

Drawings & Photos | NSN 5945-00-237-1237
Demand History | NSN 5945-00-237-1237
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-237-1237 | 2025-12-351 | 4 | Taiwan |
| 40074 | 2025-12-349 | 27 | DIBBS |
| TLAC-1389 | 2025-12-349 | 27 | DIBBS |
| 40074 | 2025-11-310 | 34 | DIBBS |
| TLAC-1389 | 2025-11-310 | 34 | DIBBS |
| 40074 | 2025-04-114 | 46 | DIBBS |
| TLAC-1389 | 2025-04-114 | 46 | DIBBS |
| 40074 | 2024-12-344 | 26 | DIBBS |
| TLAC-1389 | 2024-12-344 | 26 | DIBBS |
| 40074 | 2024-03-88 | 46 | DIBBS |
| TLAC-1389 | 2024-03-88 | 46 | DIBBS |
| 40074 | 2024-03-77 | 46 | DIBBS |
| TLAC-1389 | 2024-03-77 | 46 | DIBBS |
| 40074 | 2024-02-39 | 33 | DIBBS |
| TLAC-1389 | 2024-02-39 | 33 | DIBBS |
| 40074 | 2024-01-28 | 33 | DIBBS |
| TLAC-1389 | 2024-01-28 | 33 | DIBBS |
| 5945-00-237-1237 | 2023-07-207 | 5 | Taiwan |
| 5945-00-237-1237 | 2023-07-202 | 5 | Taiwan |
| 5945-00-237-1237 | 2023-04-100 | 2 | US |
| 40074 | 2023-04-100 | 79 | DIBBS |
| TLAC-1389 | 2023-04-100 | 79 | DIBBS |
| 5945-00-237-1237 | 2023-03-87 | 2 | us |
| 5945-00-237-1237 | 2022-12-335 | 5 | Taiwan |
| 40074 | 2022-11-332 | 132 | DIBBS |
| TLAC-1389 | 2022-11-332 | 132 | DIBBS |
| 40074 | 2022-11-319 | 132 | DIBBS |
| TLAC-1389 | 2022-11-319 | 132 | DIBBS |
| 40074 | 2022-06-158 | 18 | DIBBS |
| TLAC-1389 | 2022-06-158 | 18 | DIBBS |
| 40074 | 2022-04-94 | 73 | DIBBS |
| TLAC-1389 | 2022-04-94 | 73 | DIBBS |
| 40074 | 2022-03-83 | 73 | DIBBS |
| TLAC-1389 | 2022-03-83 | 73 | DIBBS |
| 40074 | 2021-10-285 | 69 | DIBBS |
| TLAC-1389 | 2021-10-285 | 69 | DIBBS |
| 40074 | 2021-09-272 | 69 | DIBBS |
| TLAC-1389 | 2021-09-272 | 69 | DIBBS |
| TLAC1389 | 2020-12-349 | 1 | US |
| 40074 | 2020-11-314 | 87 | DIBBS |
| TLAC-1389 | 2020-11-314 | 87 | DIBBS |
| 40074 | 2020-10-299 | 87 | DIBBS |
| TLAC-1389 | 2020-10-299 | 87 | DIBBS |
| 40074 | 2020-10-282 | 68 | DIBBS |
| TLAC-1389 | 2020-10-282 | 68 | DIBBS |
| 5945-00-237-1237 | 2020-05-133 | 1 | Taiwan |
| 40074 | 2020-01-23 | 84 | DIBBS |
| TLAC-1389 | 2020-01-23 | 84 | DIBBS |
| 40074 | 2019-05-136 | 83 | DIBBS |
| TLAC-1389 | 2019-05-136 | 83 | DIBBS |
| 40074 | 2019-01-03 | 44 | DIBBS |
| TLAC-1389 | 2019-01-03 | 44 | DIBBS |
| 5945-00-237-1237 | 2017-11-327 | 61 | DIBBS |
| 5945-00-237-1237 | 2017-09-271 | 43 | DIBBS |
| 5945-00-237-1237 | 2017-04-96 | 60 | DIBBS |
| 5945-00-237-1237 | 2017-03-61 | 57 | DIBBS |
| 5945-00-237-1237 | 2016-06-173 | 44 | DIBBS |
| 5945-00-237-1237 | 2015-03-70 | 49 | DIBBS |
| 5945-00-237-1237 | 2014-12-337 | 48 | DIBBS |
| 5945-00-237-1237 | 2014-08-224 | 48 | DIBBS |
| 5945-00-237-1237 | 2014-02-37 | 37 | DIBBS |
| 5945-00-237-1237 | 2013-06-156 | 40 | DIBBS |
| 5945-00-237-1237 | 2013-03-62 | 54 | DIBBS |
| 5945-00-237-1237 | 2012-11-325 | 0 | DIBBS |
| 5945-00-237-1237 | 2012-10-278 | 11 | DIBBS |
| 5945-00-237-1237 | 2012-08-234 | 27 | DIBBS |
| 5945-00-237-1237 | 2012-05-152 | 24 | DIBBS |
| 5945-00-237-1237 | 2012-02-44 | 14 | DIBBS |
| 5945-00-237-1237 | 2012-02-44 | 19 | DIBBS |
| 5945-00-237-1237 | 2011-11-318 | 9 | DIBBS |
| 5945-00-237-1237 | 2011-11-318 | 18 | DIBBS |
| 40074 | 2011-08-243 | 4 | |
| 5945-00-237-1237 | 2011-08-223 | 18 | DIBBS |
| 5945-00-237-1237 | 2011-08-223 | 27 | DIBBS |
| 40074 | 2011-08-215 | 4 | |
| 5945-00-237-1237 | 2011-07-187 | 19 | DIBBS |
| TLAC1389 | 2011-06-175 | 1 | United States |
| 5945-00-237-1237 | 2011-03-63 | 11 | DIBBS |
| 5945-00-237-1237 | 2010-12-364 | 24 | DIBBS |
| 5945-00-237-1237 | 2010-10-286 | 38 | DIBBS |
| TLAC1389 | 2008-12-337 | 10 | United States |
| TLAC1389 | 2008-11-318 | 10 | United States |
| 5945-00-237-1237 | 2008-09-274 | 14 | DIBBS |
Cross Reference | NSN 5945-00-237-1237
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 40074 | 52115 | L. L. ROWE COMPANY |
| 9S5170ALT5PC124 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 9S5170LALT5 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 9S5170LPC124 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| R92-1320 | 04221 | MIDLAND-ROSS CORP MIDTEX DIV |
| TLAC-1389 | 52401 | PRECISION SWITCHING INC DBA CENTURY WHEELS RESEARCH DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-237-1237
Related Products | NSN 5945-00-237-1237
Technical Data | NSN 5945-00-237-1237
| Characteristic | Specifications |
|---|---|
| PILE-UP MAIN CONTACT FORM ARRANGEMENT | 1B AND 1B |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 70.0 MILLIAMPERES AC RESISTIVE LOAD |
| ARC QUENCHING METHOD | AIR |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| WINDING DC RESISTANCE RATING | 1.0 OHMS NOMINAL SINGLE WINDING |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 115.0 VOLTS AC 25 DEG CELSIUS SINGLE WINDING |
| NOMINAL OPERATING CURRENT RATING AND TYPE | 260.0 MILLIAMPERES AC SINGLE WINDING |
| FREQUENCY IN HERTZ | 60.0 NOMINAL |
| DUTY TYPE | CONTINUOUS |
| OVERALL LENGTH | 2.750 INCHES MAXIMUM |
| OVERALL WIDTH | 2.000 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.437 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | RECTANGULAR SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.062 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.500 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| III PURPOSE FOR WHICH DESIGNED | GENERAL |
| III END ITEM IDENTIFICATION | TYPE A-S-AC,B-S-AC,C-S-AC AND D-S-AC |
| III CUBIC MEASURE | 13.404 CUBIC INCHES |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
Restrictions/Controls & Freight Information | NSN 5945-00-237-1237
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-237-1237
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
