NSN 5945-00-401-7727 HS26WDK18SAA, RD6CA2608, RD6CA2613

Product Details | ELECTROMAGNETIC RELAY

5945-00-401-7727 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: HS26WDK18SAA, RD6CA2608, RD6CA2613, 110052, 110-052, 1100521, 110-052-1, 1100522S, 110-052-2S, 26WDK18SAA, 5945-00-401-7727, 00-401-7727, 5945004017727, 004017727

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	03 APR 1970	00-401-7727	32512 ( RELAY, ELECTROMAGNETIC )

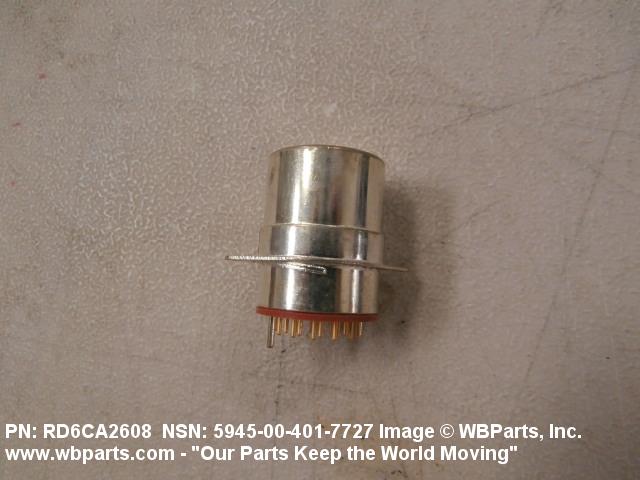

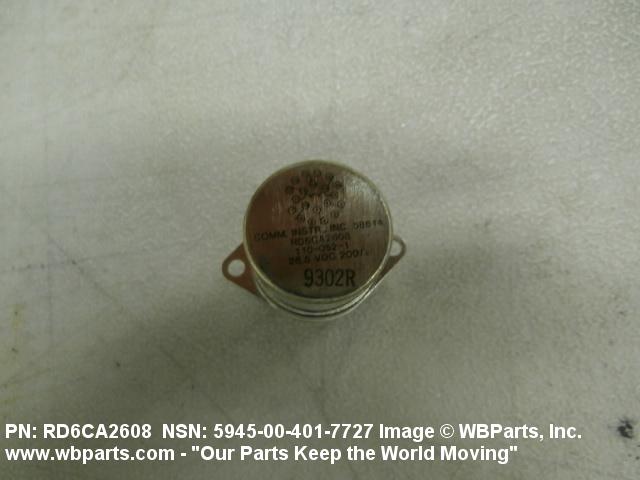

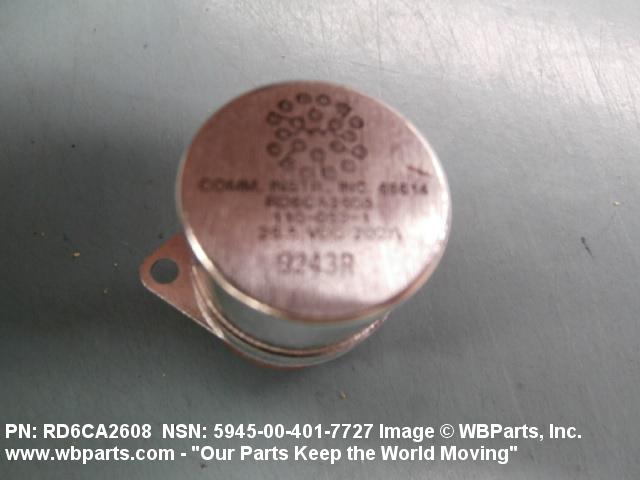

Drawings & Photos | NSN 5945-00-401-7727

Part Number	Request Date	QTY	Origin
5945-00-401-7727	2023-12-355	24	DIBBS
5945-00-401-7727	2023-09-249	14	DIBBS
5945-00-401-7727	2022-05-135	13	DIBBS
5945-00-401-7727	2022-03-81	33	DIBBS
5945-00-401-7727	2019-10-279	34	DIBBS
5945-00-401-7727	2019-08-216	22	DIBBS
5945-00-401-7727	2019-06-168	62	DIBBS
5945-00-401-7727	2018-11-305	20	DIBBS
5945-00-401-7727	2018-08-242	19	DIBBS
5945-00-401-7727	2017-11-313	25	US
5945-00-401-7727	2017-11-310	23	DIBBS
5945-00-401-7727	2016-05-144	20	DIBBS
5945-00-401-7727	2016-02-38	53	DIBBS
5945-00-401-7727	2016-01-26	22	DIBBS
5945-00-401-7727	2015-09-260	22	DIBBS
RD6CA2613	2015-06-162	57	US
5945-00-401-7727	2015-03-78	1	United States
5945-00-401-7727	2015-02-40	2	DIBBS
5945-00-401-7727	2015-01-29	2	DIBBS
5945-00-401-7727	2014-10-293	30	US
5945-00-401-7727	2014-10-286	40	US
5945-00-401-7727	2014-10-286	39	DIBBS
5945-00-401-7727	2014-06-176	13	United States
5945-00-401-7727	2014-06-176	54	DIBBS
5945-00-401-7727	2014-06-162	46	DIBBS
5945-00-401-7727	2014-06-153	76	DIBBS
5945-00-401-7727	2014-05-141	26	DIBBS
5945-00-401-7727	2010-09-259	57	DIBBS
5945-00-401-7727	2010-07-209	200	US
5945-00-401-7727	2009-11-307	14	DIBBS
5945-00-401-7727	2009-11-307	60	DIBBS
5945-00-401-7727	2009-02-36	72	DIBBS
5945-00-401-7727	2009-01-27	72	DIBBS
5945-00-401-7727	2008-10-295	20	DIBBS
5945-00-401-7727	2008-10-295	22	DIBBS
5945-00-401-7727	2008-10-295	23	DIBBS
5945-00-401-7727	2008-10-295	24	DIBBS

Cross Reference | NSN 5945-00-401-7727

Part Number	Cage Code	Manufacturer
110-052	97499	BELL HELICOPTER TEXTRON INC.
110-052-1	97499	BELL HELICOPTER TEXTRON INC.
110-052-2S	97499	BELL HELICOPTER TEXTRON INC.
26WDK18SAA	99699	DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE
HS26WDK18SAA	99699	DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE
RD6CA2608	00779	TYCO ELECTRONICS CORPORATION
RD6CA2608	58614	TYCO ELECTRONICS CORPORATION DBA CII TECHNOLOGIES
RD6CA2613	00779	TYCO ELECTRONICS CORPORATION
RD6CA2613	58614	TYCO ELECTRONICS CORPORATION DBA CII TECHNOLOGIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-00-401-7727

Compare

Related Products | NSN 5945-00-401-7727

5945-00-401-7739, 5945-00-401-7775, 5945-00-401-8067, 5945-00-401-8649, 5945-00-401-8747

Technical Data | NSN 5945-00-401-7727

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	6 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	2.0 AMPERES DC RESISTIVE LOAD
COIL QUANTITY	1
WINDING QUANTITY	1

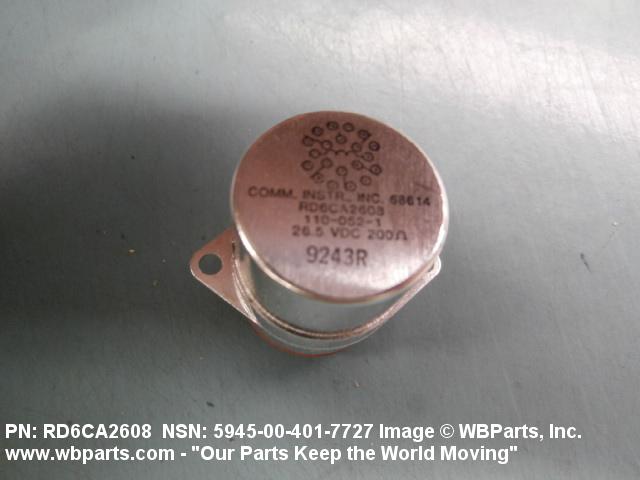

WINDING DC RESISTANCE RATING	200.0 OHMS NOMINAL SINGLE WINDING
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	26.5 VOLTS DC 25 DEG CELSIUS SINGLE WINDING

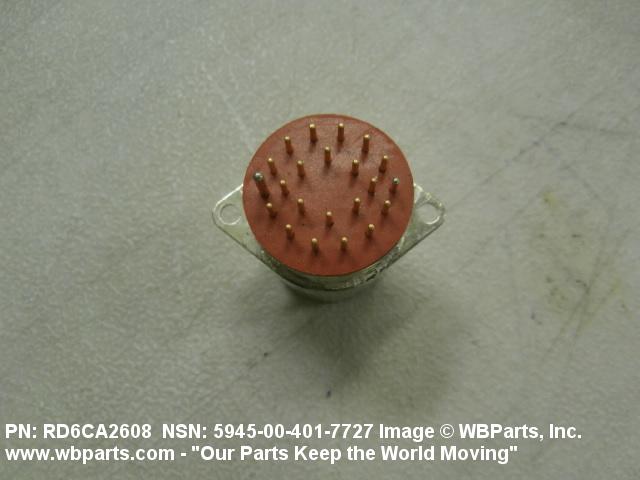

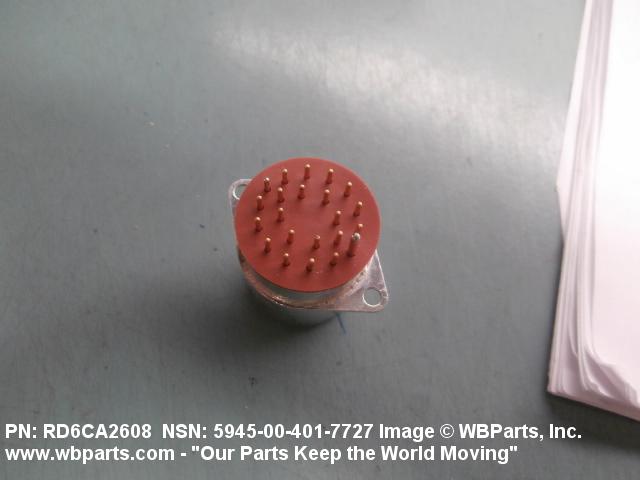

TERMINAL TYPE AND QUANTITY	20 PIN ALL FUNCTIONS
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC

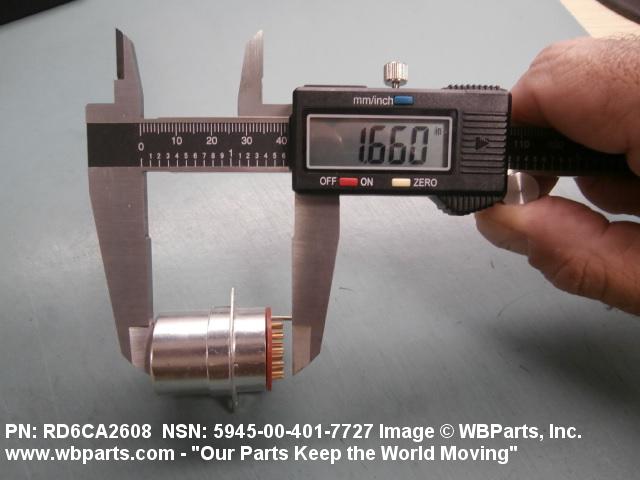

OVERALL LENGTH	1.660 INCHES NOMINAL
OVERALL DIAMETER	1.130 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY	2 UNTHREADED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	IN-LINE SINGLE MOUNTING FACILITY

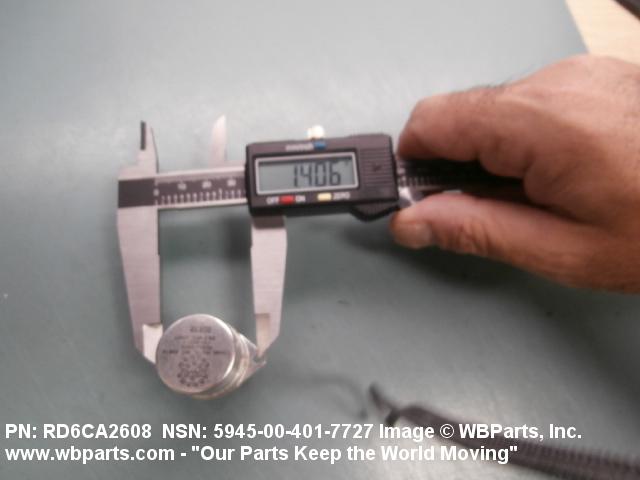

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	1.406 INCHES NOMINAL SINGLE MOUNTING FACILITY

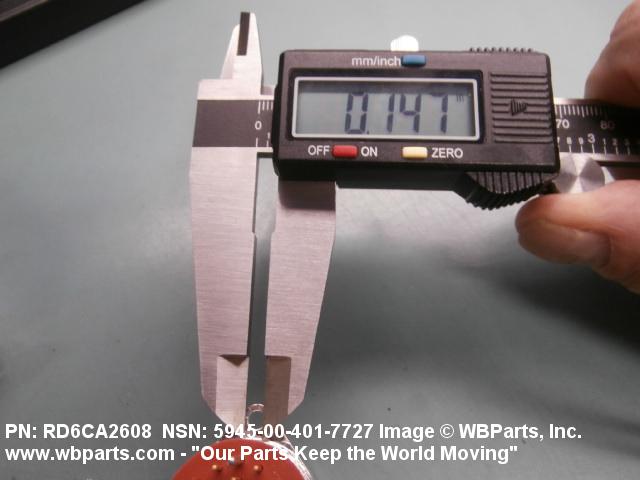

UNTHREADED MOUNTING HOLE DIAMETER	0.147 INCHES NOMINAL SINGLE MOUNTING FACILITY
