NSN 5945-00-458-3351 A283XCXC24VDC, CRH103D24, CRH-10-3D24

Product Details | ELECTROMAGNETIC RELAY

5945-00-458-3351 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: A283XCXC24VDC, CRH103D24, CRH-10-3D24, S1217026, S121-7026, W388CPX11, GP3R231AD2000, KUP14D1524VDC, KUP14D15-24VDC, 788XCXC24D, 788XCXC-24D , 788XCXRC24D, 788XCXRC-24D , 85-33032-02, 8821085, 88-21085 , 889109, 020495, 020-495, 11908951, 11-908-951, 1459A23H03, 15723C200, 157-23C200, 15723C2LC, 157-23C2LC, 330213, 33-0213, 3522 290 08530, 352229008530, 4006006, 4106032010, 410-6032-010, 5945-00-458-3351, 00-458-3351, 5945004583351, 004583351, 853303202

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	30 APR 1969	00-458-3351	32512 ( RELAY, ELECTROMAGNETIC )

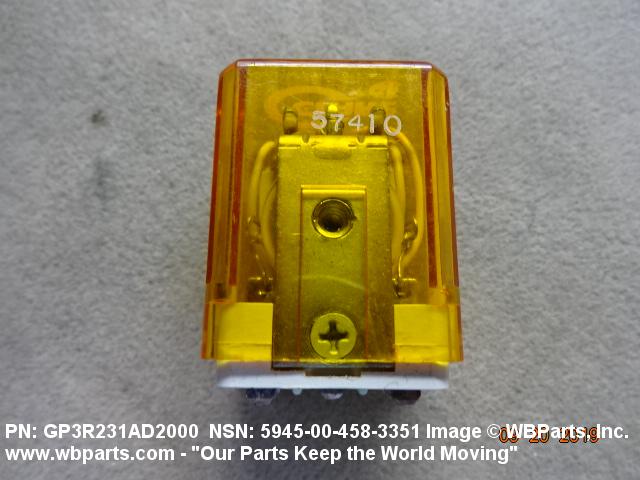

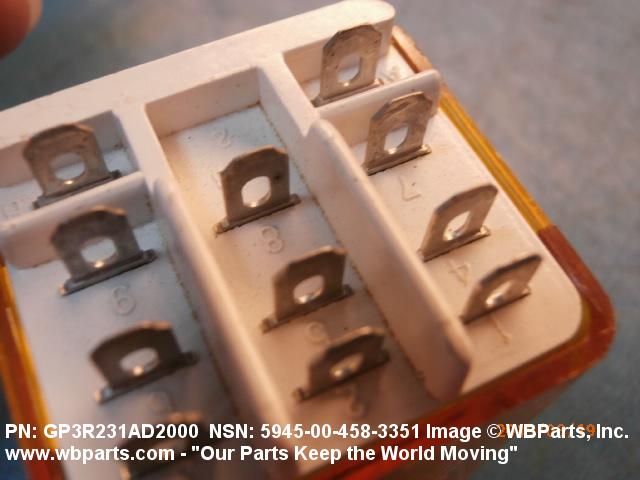

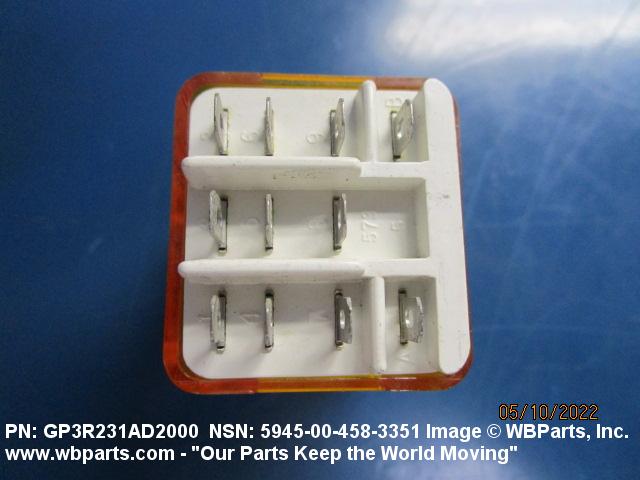

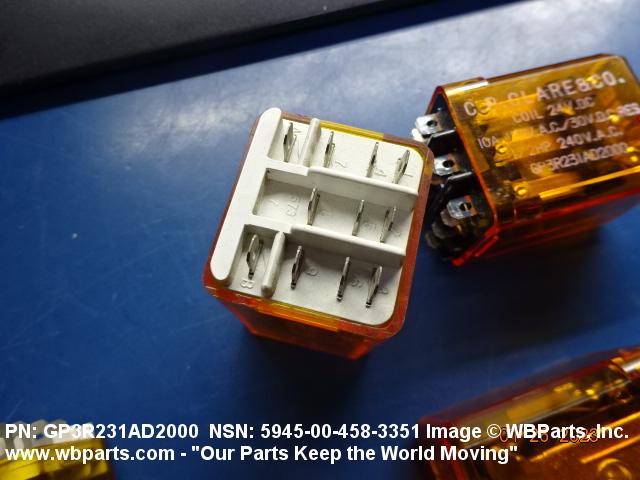

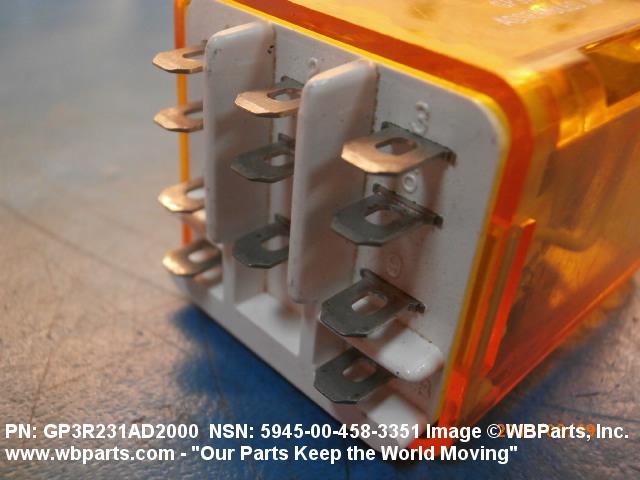

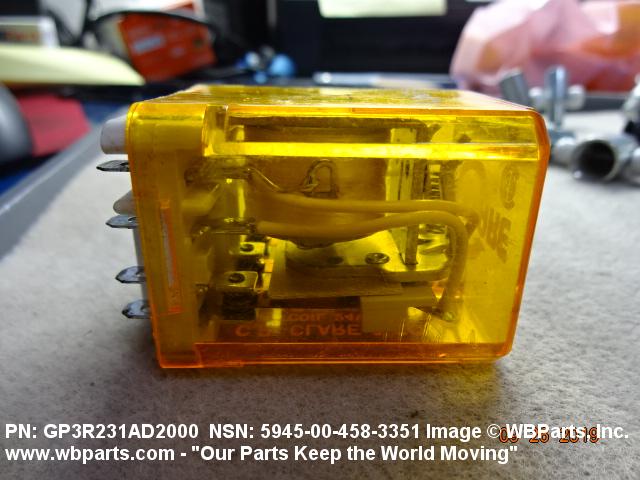

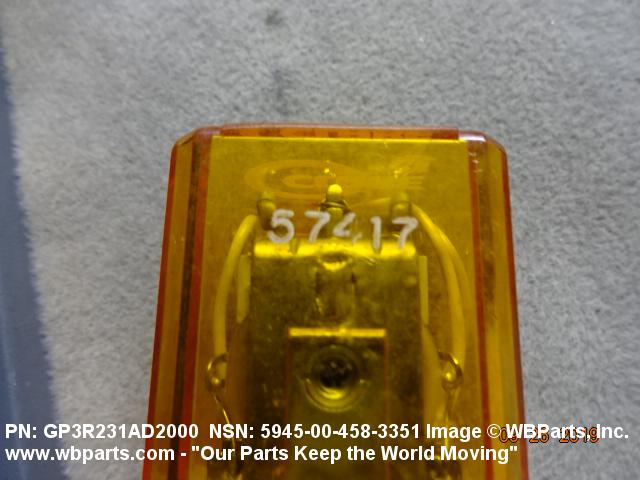

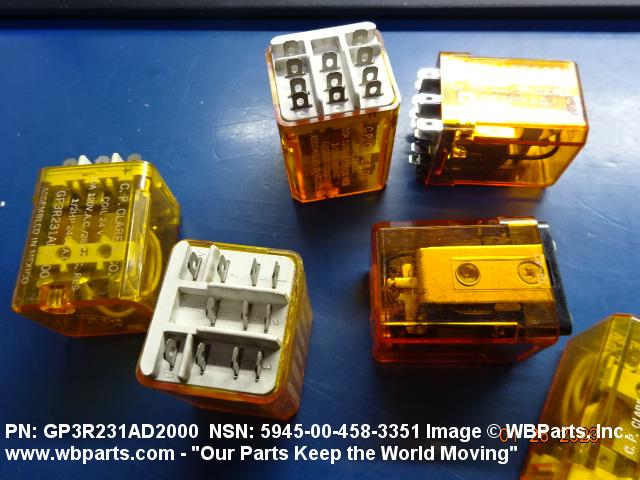

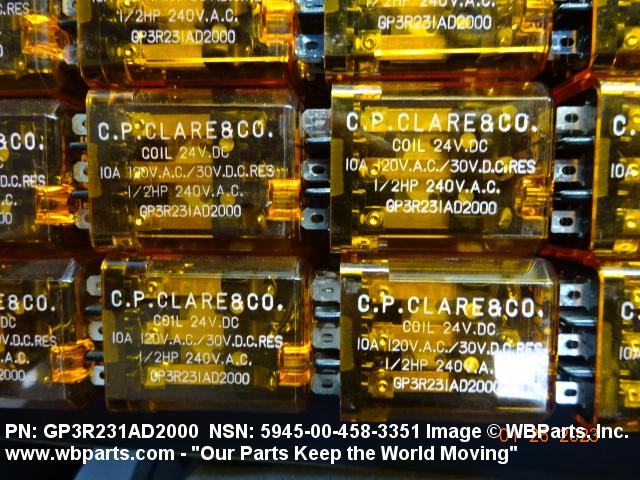

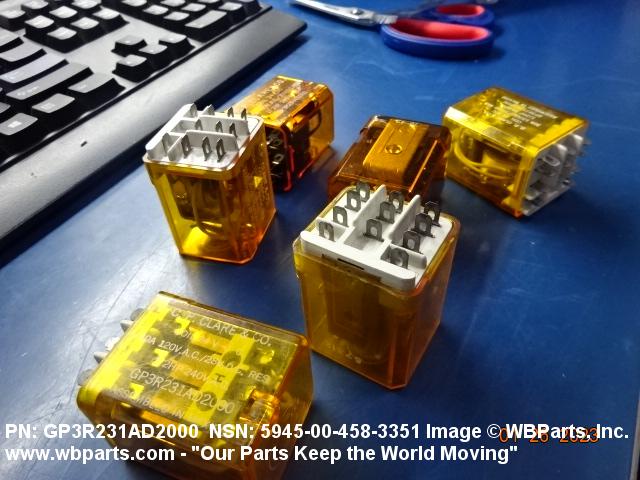

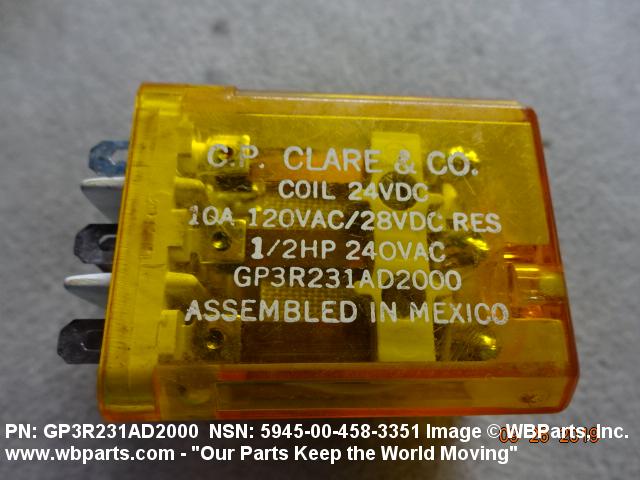

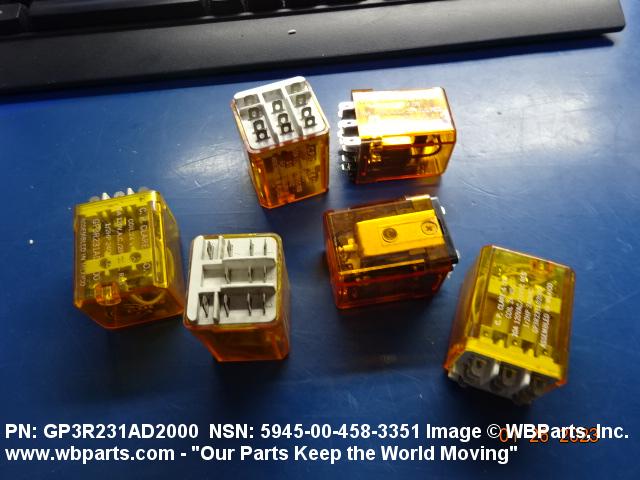

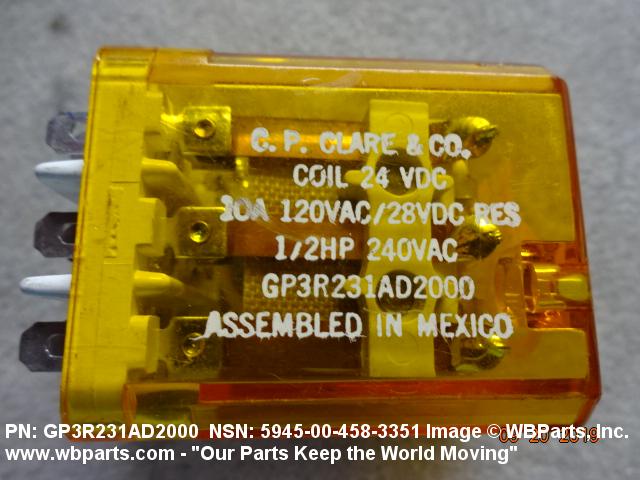

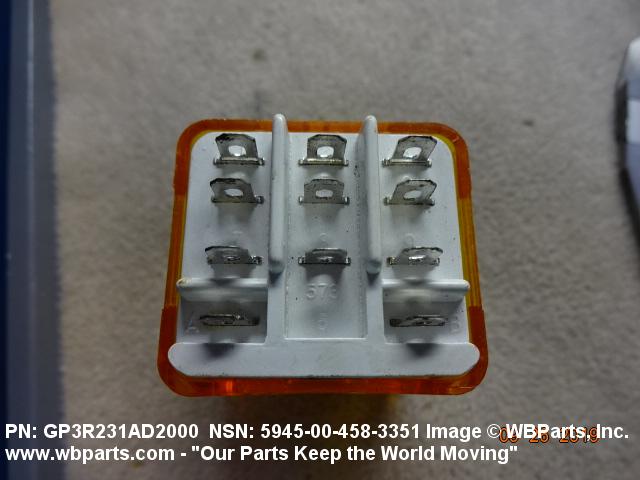

Drawings & Photos | NSN 5945-00-458-3351

Part Number	Request Date	QTY	Origin
KUP14D1524VDC	2025-01-22	30	US
5945-00-458-3351	2024-12-348	1	US
5945-00-458-3351	2024-07-199	1	US
5945-00-458-3351	2024-03-79	1	US
8821085	2023-12-346	20	US
5945-00-458-3351	2022-11-326	32	United States
5945-00-458-3351	2022-09-264	32	United States
5945-00-458-3351	2022-03-66	48	United States
5945-00-458-3351	2022-03-66	48	United States
5945-00-458-3351	2021-08-225	1	CA
5945-00-458-3351	2021-08-217	20	US
5945-00-458-3351	2020-12-366	8	US
15723C200	2019-12-344	3	KR
15723C200	2019-12-338	3	KR
5945-00-458-3351	2019-12-336	5	United States
5945-00-458-3351	2019-12-336	5	JO
5945-00-458-3351	2019-09-254	8	United States
5945-00-458-3351	2019-09-252	10	United States
5945-00-458-3351	2019-09-244	10	US
5945-00-458-3351	2019-07-190	8	United States
5945-00-458-3351	2019-07-190	20	United States
5945-00-458-3351	2019-07-190	8	United States
5945-00-458-3351	2019-07-190	20	United States
5945-00-458-3351	2019-06-161	20	KW
5945-00-458-3351	2019-05-148	8	United States
5945-00-458-3351	2019-05-134	8	United States
5945-00-458-3351	2019-05-133	30	US
5945-00-458-3351	2019-01-22	8	DIBBS-KIT
5945-00-458-3351	2018-11-324	5088	DIBBS
5945-00-458-3351	2018-11-310	5088	DIBBS
5945-00-458-3351	2018-03-81	10	United Arab Emirates
5945-00-458-3351	2018-03-79	5	US
5945-00-458-3351	2018-03-68	2874	DIBBS
5945-00-458-3351	2018-02-57	2874	DIBBS
KUP14D15-24VDC	2017-11-307	8
5945-00-458-3351	2017-07-212	30	United States
5945-00-458-3351	2017-04-109	10	us
KUP14D1524VDC	2016-09-247	30	US
5945-00-458-3351	2014-08-216	3	DIBBS
5945-00-458-3351	2014-07-190	1	DIBBS
5945-00-458-3351	2014-07-190	15	DIBBS
5945-00-458-3351	2014-06-175	1	DIBBS
5945-00-458-3351	2014-06-167	15	DIBBS
5945-00-458-3351	2014-06-159	13	DIBBS
5945-00-458-3351	2014-06-155	15	DIBBS
5945-00-458-3351	2014-05-140	850	MANUAL
5945-00-458-3351	2014-05-134	850	TR
5945-00-458-3351	2013-05-121	1550	MANUAL
5945-00-458-3351	2012-07-209	1704	MANUAL
853303202	2012-07-201	1704	US
5945-00-458-3351	2012-02-60	8	AE
853303202	2012-02-57	8	AE
1459A23H03	2012-01-26	6	United States
5945-00-458-3351	2011-11-318	1	US
5945-00-458-3351	2011-06-168	61	DIBBS
5945-00-458-3351	2011-06-161	100	DIBBS
5945-00-458-3351	2011-03-85	25	DIBBS
5945-00-458-3351	2011-03-68	945	MANUAL
5945-00-458-3351	2011-03-63	310	United States
853303202	2010-11-329	4	United Arab Emirates
853303202	2010-10-284	4	US
S1217026	2010-07-200	465	us
5945-00-458-3351	2009-04-118	4	United Kingdom
5945-00-458-3351	2007-03-89	12407	DIBBS
5945-00-458-3351	2006-05-137	5827	DIBBS
5945-00-458-3351	2006-01-05	25	United States

Cross Reference | NSN 5945-00-458-3351

Part Number	Cage Code	Manufacturer
020-495	92739	AMPEX SYSTEMS CORP
020-495	94987	CUBIC DEFENSE APPLICATIONS, INC.
11-908-951	82796	COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE
1459A23H03	65054	WESTINGHOUSE ELECTRIC CORP POWER GENERATION-GENERATOR DIV
157-23C200	04221	MIDLAND-ROSS CORP MIDTEX DIV
157-23C2LC	04221	MIDLAND-ROSS CORP MIDTEX DIV
33-0213	25787	GRAHAM CO INC
3522 290 08530	H0673	ALCATEL-LUCENT NETWORK SYSTEMS
4006006	23496	EMPIRE GENERATOR CORPORATION
410-6032-010	52151	CONTINENTAL ELECTRONICS CORPORATION
788XCXC-24D	94696	SE RELAYS LLC MAGNECRAFT DIV SE RELAYS LLC MAGNECRAFT
85-33032-02	30554	DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER
88-21085	30554	DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER
889109	1PQF4	L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING
889109	36378	RAYTHEON TECHNICAL SERVICES COMPANY
A283XCXC24VDC	78290	STRUTHERS-DUNN INC
CRH-10-3D24	07065	G GENERAL ELECTRO-COMPONENTS INC
GP3R231AD2000	71482	CP CLARE CORP NORTH AMERICAN SALES OPERATIONS
KUP14D15-24VDC	77342	TYCO ELECTRONICS CORPORATION
S121-7026	54418	MILTOPE CORPORATION
W388CPX11	94696	SE RELAYS LLC MAGNECRAFT DIV SE RELAYS LLC MAGNECRAFT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-00-458-3351

Compare

Related Products | NSN 5945-00-458-3351

5945-00-458-3365, 5945-00-458-3366, 5945-00-458-3379, 5945-00-458-3381, 5945-00-458-3931

Technical Data | NSN 5945-00-458-3351

Characteristic	Specifications
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	120.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	10.0 AMPERES AC AND 10.0 AMPERES DC INDUCTIVE LOAD
COIL QUANTITY	1
WINDING QUANTITY	1
WINDING DC RESISTANCE RATING	472.0 OHMS NOMINAL SINGLE WINDING
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	24.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING
NOMINAL OPERATING CURRENT RATING AND TYPE	50.0 MILLIAMPERES DC SINGLE WINDING

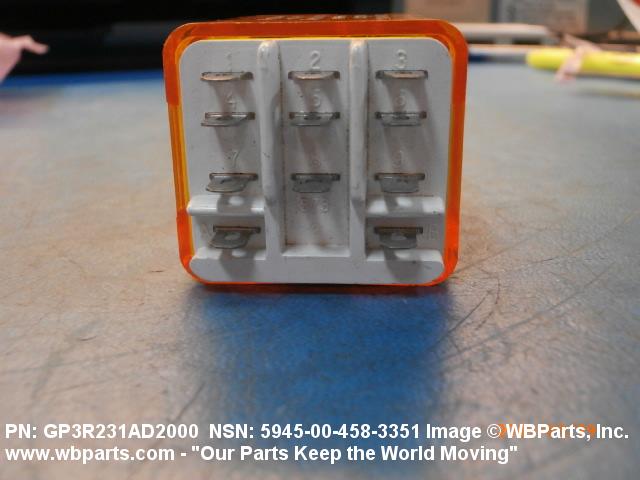

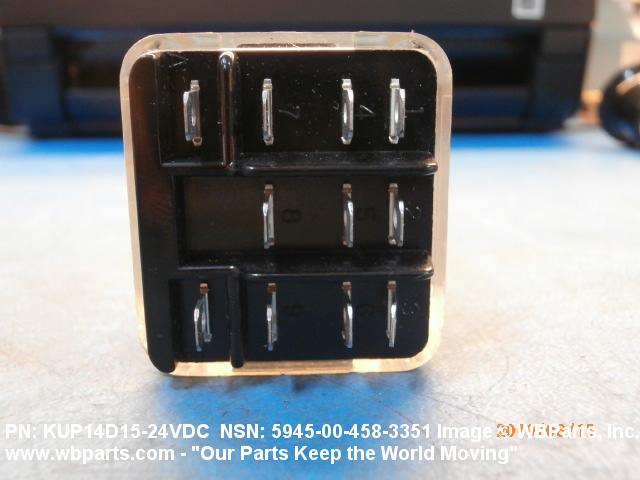

TERMINAL TYPE AND QUANTITY	11 PIN ALL FUNCTIONS
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	DUSTPROOF

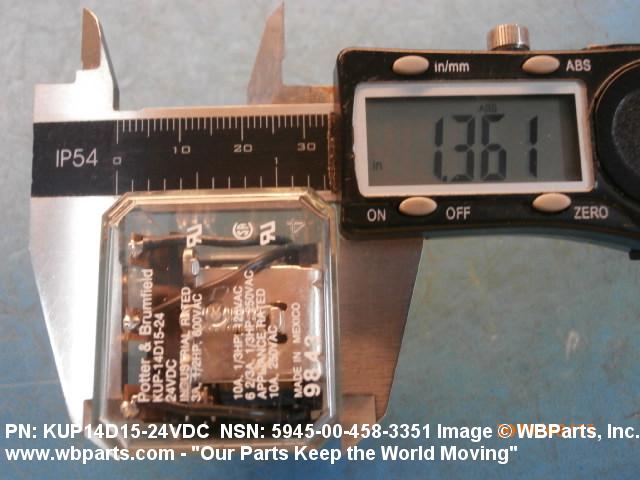

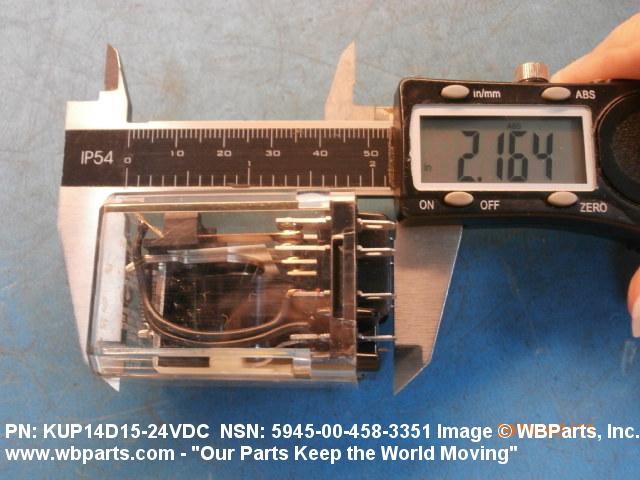

OVERALL LENGTH	2.330 INCHES NOMINAL

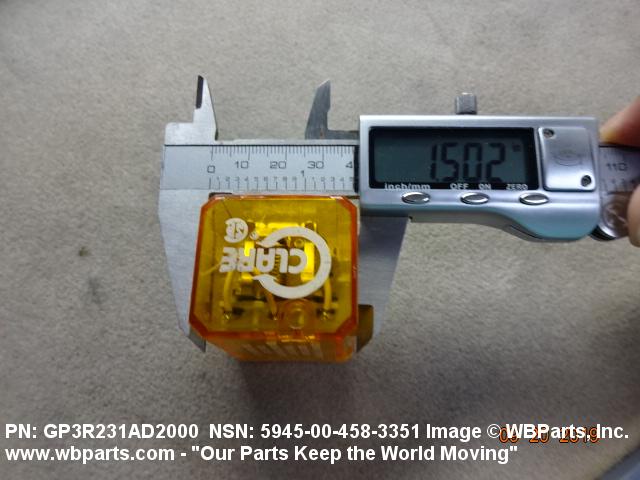

OVERALL WIDTH	1.530 INCHES NOMINAL
OVERALL HEIGHT	1.400 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY	1 PLUG-IN TERMINAL SINGLE MOUNTING FACILITY
