NSN 5945-00-500-7195 MS24185D1, MS24185-D1, AN33802

Product Details | ELECTROMAGNETIC RELAY

5945-00-500-7195 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS24185D1, MS24185-D1, AN33802, AN3380-2, MILPRF6106, MIL-PRF-6106, MILR6106, MIL-R-6106, 31574001, 315-74-001, 6041H172A, 6041H217, 825RL0084, 5945-00-500-7195, 00-500-7195, 5945005007195 , 005007195

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-500-7195	32512 ( RELAY, ELECTROMAGNETIC )

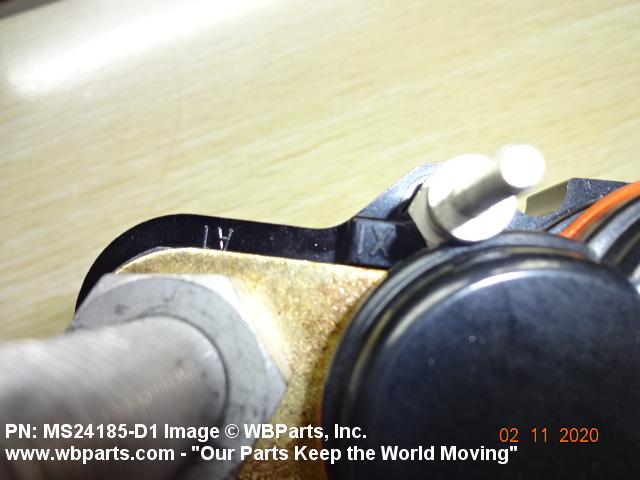

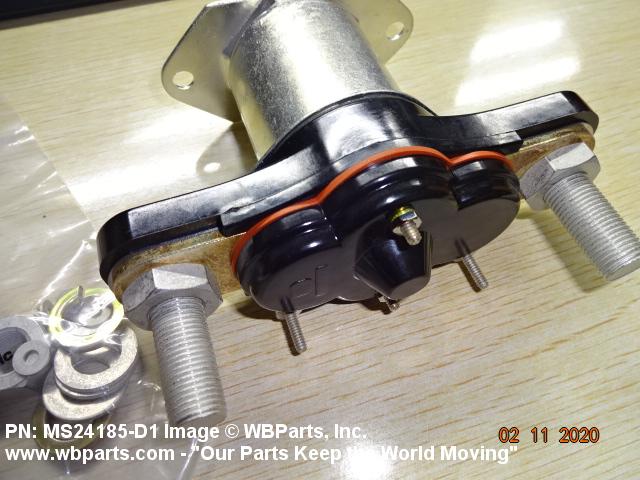

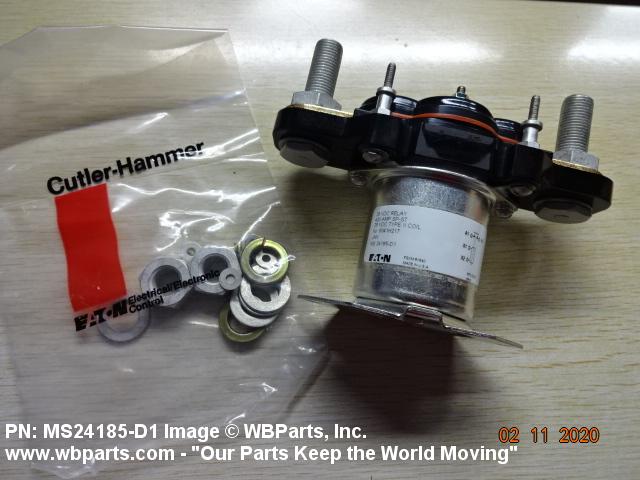

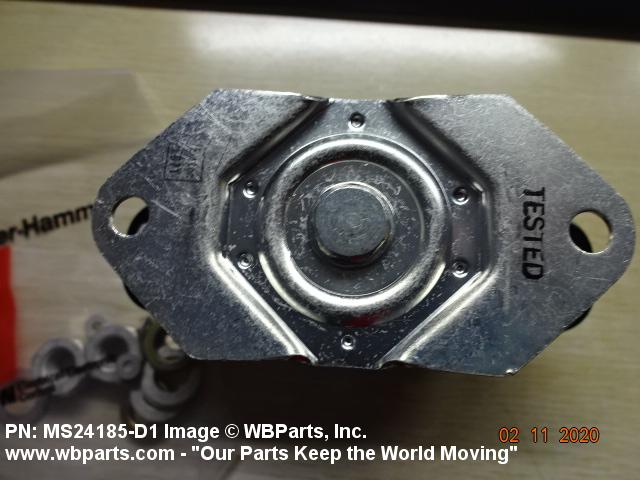

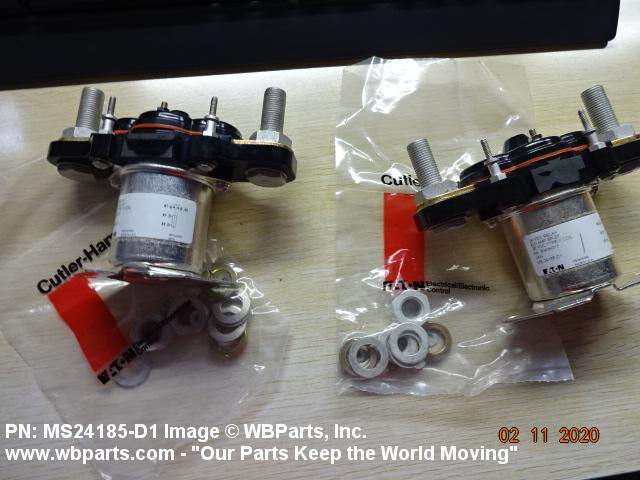

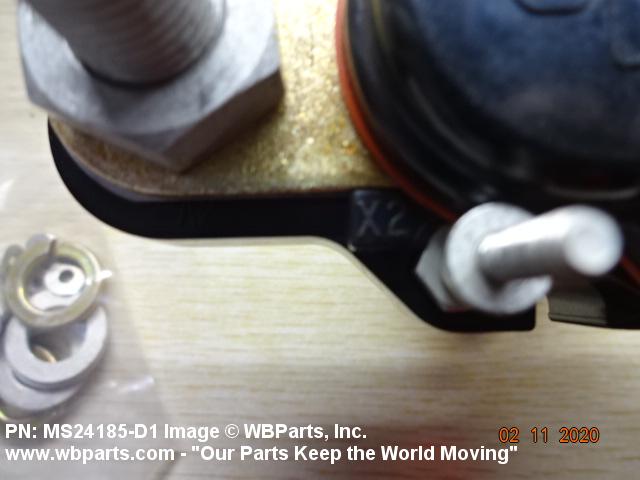

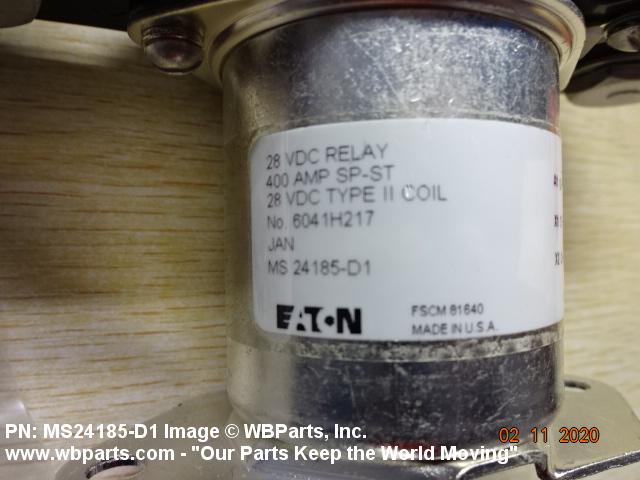

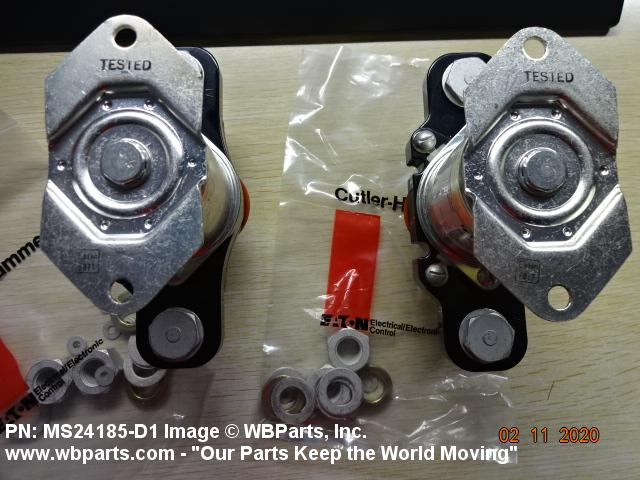

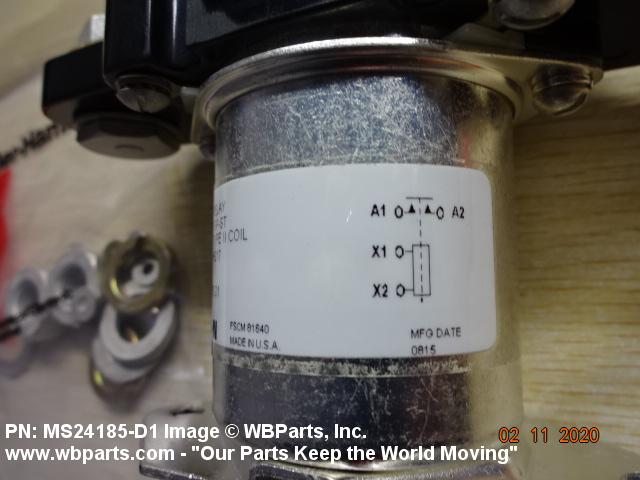

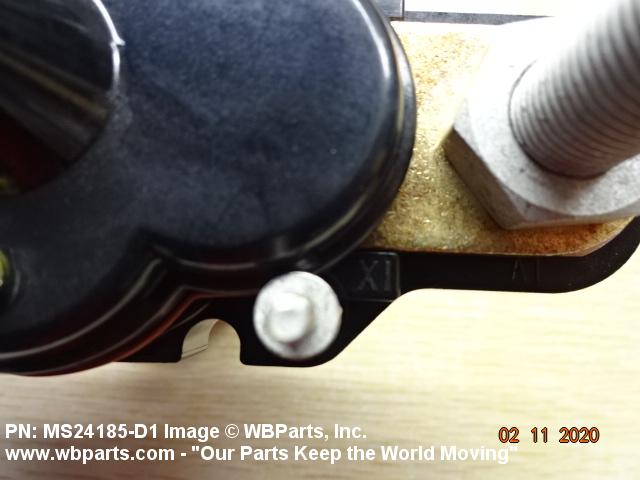

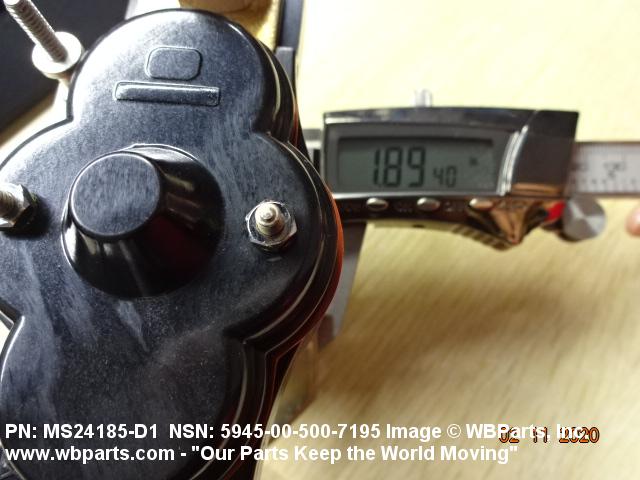

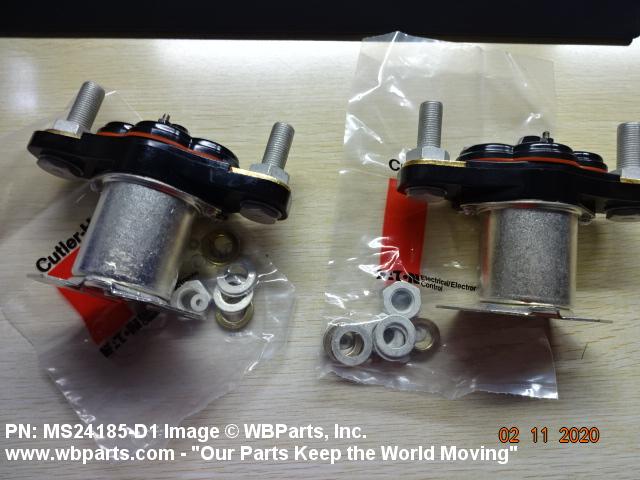

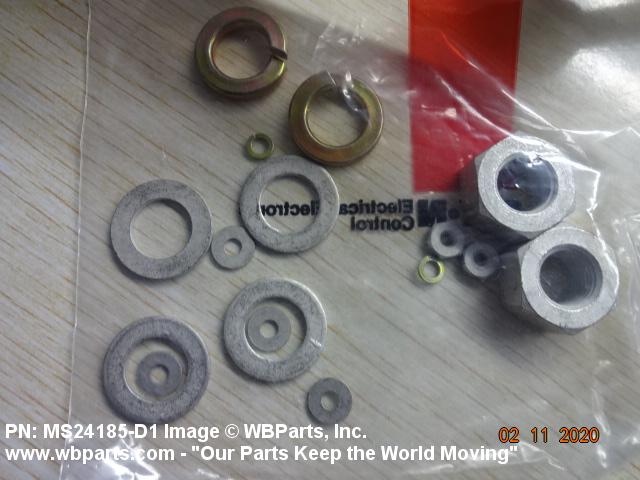

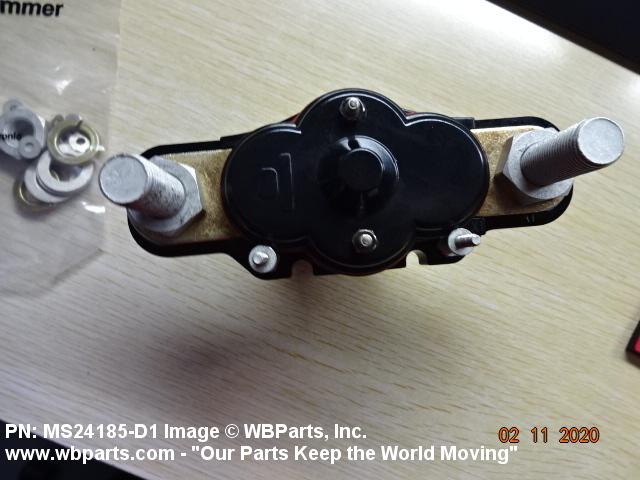

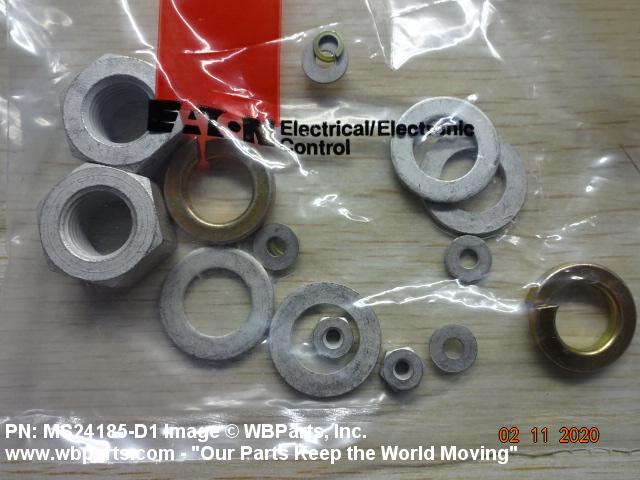

Drawings & Photos | NSN 5945-00-500-7195

Part Number	Request Date	QTY	Origin
5945-00-500-7195	2025-08-235	15	JO
5945-00-500-7195	2025-02-55	2	US
5945-00-500-7195	2024-08-225	105	DIBBS
5945-00-500-7195	2024-08-214	105	DIBBS
5945-00-500-7195	2024-07-197	70	DIBBS
5945-00-500-7195	2024-07-186	70	DIBBS
5945-00-500-7195	2024-06-162	68	DIBBS
5945-00-500-7195	2024-05-151	68	DIBBS
5945-00-500-7195	2024-05-126	231	DIBBS
5945-00-500-7195	2024-04-116	57	DIBBS
5945-00-500-7195	2024-04-100	3	us
5945-00-500-7195	2024-02-60	33	DIBBS
5945-00-500-7195	2024-01-11	124	DIBBS
5945-00-500-7195	2023-12-341	137	DIBBS
MS24185D1	2023-11-333	2	United States
5945-00-500-7195	2023-05-135	71	DIBBS
5945-00-500-7195	2023-04-110	86	DIBBS
5945-00-500-7195	2023-02-49	25	TW
5945-00-500-7195	2022-12-365	23	Taiwan
5945-00-500-7195	2022-10-300	178	DIBBS
5945-00-500-7195	2022-08-234	219	DIBBS
5945-00-500-7195	2022-08-214	265	DIBBS
MS24185D1	2022-05-140	1	United States
5945-00-500-7195	2022-03-67	89	DIBBS
5945-00-500-7195	2022-02-53	133	DIBBS
5945-00-500-7195	2022-02-41	133	DIBBS
MS24185D1	2021-07-207	10	Turkey
MS24185D1	2021-05-131	3	United States
5945-00-500-7195	2021-03-64	1	DIBBS-RFPs
5945-00-500-7195	2020-11-313	206	DIBBS
MS24185D1	2020-10-296	2	United States
5945-00-500-7195	2020-09-258	10	US
5945-00-500-7195	2019-09-269	203	DIBBS
5945-00-500-7195	2019-09-266	30	DIBBS
5945-00-500-7195	2019-09-262	9	DIBBS
5945-00-500-7195	2019-08-241	5	DIBBS
5945-00-500-7195	2019-08-230	9	DIBBS
5945-00-500-7195	2019-08-223	4	DIBBS
5945-00-500-7195	2019-08-217	63	DIBBS
5945-00-500-7195	2019-06-170	153	DIBBS
5945-00-500-7195	2018-11-330	5	DIBBS
5945-00-500-7195	2018-08-221	12	DIBBS
5945-00-500-7195	2017-09-255	300	DIBBS
5945-00-500-7195	2017-07-211	50	DIBBS
5945-00-500-7195	2017-06-157	185	DIBBS
5945-00-500-7195	2017-05-135	256	DIBBS
5945-00-500-7195	2017-05-124	256	DIBBS
5945-00-500-7195	2017-04-118	5	TR
MS24185D1	2016-12-350	1	US
5945-00-500-7195	2016-01-22	20	MANUAL
MS24185-D1	2016-01-22	20	TR
5945-00-500-7195	2015-09-265	4	US
5945-00-500-7195	2015-09-263	3	DIBBS
5945-00-500-7195	2015-08-243	1	US
5945-00-500-7195	2015-08-237	3	DIBBS
5945-00-500-7195	2015-07-201	6	DIBBS
MS24185D1	2015-06-170	1	US
MS24185D1	2015-05-139	1	US
5945-00-500-7195	2014-06-170	2	United States
5945-00-500-7195	2014-06-160	1	DIBBS
5945-00-500-7195	2014-06-154	1	DIBBS
MS24185D1	2013-11-330	1	US
MS24185D1	2011-06-172	1	Singapore
MS24185D1	2011-06-160	1	Singapore
MS24185D1	2011-06-152	4	Israel
5945-00-500-7195	2011-03-68	78	MANUAL
5945-00-500-7195	2009-01-30	27	DIBBS
5945-00-500-7195	2008-11-316	190	DIBBS
5945-00-500-7195	2008-10-281	46	DIBBS
6041H217	2008-07-189	2	US
5945-00-500-7195	2008-05-150	375	DIBBS
5945-00-500-7195	2008-04-100	232	DIBBS
MS24185D1	2008-03-74	8	US
5945-00-500-7195	2008-02-60	103	DIBBS
MS24185D1	2008-02-38	1600	US
5945-00-500-7195	2007-12-346	213	DIBBS
MS24185D1	2007-11-325	8	US
5945-00-500-7195	2007-09-250	88	DIBBS
AN33802	2007-05-141	2	United Kingdom
5945-00-500-7195	2007-04-108	59	DIBBS
5945-00-500-7195	2007-02-43	59	DIBBS
5945-00-500-7195	2006-07-195	145	DIBBS

Cross Reference | NSN 5945-00-500-7195

Part Number	Cage Code	Manufacturer
315-74-001	58475	WESTWOOD CORPORATION DBA NMP DIVISION
6041H172A	81640	EATON CORPORATION DBA FLUID POWER DIV
6041H217	27192	DRS POWER & CONTROL TECHNOLOGIES, INC.
825RL0084	0291H	ROSOMAK S.A
AN3380-2	81352	AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS
MIL-PRF-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS24185-D1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-00-500-7195

Compare

Related Products | NSN 5945-00-500-7195

5945-00-729-2548, 5945-00-758-5228, 5945-00-774-6239, 5945-00-972-5378, 5945-01-012-5958

Technical Data | NSN 5945-00-500-7195

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	1 POLE, SINGLE THROW, NORMALLY OPEN, DOUBLE MAKE, MOMENTARY ACTION
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	400.0 AMPERES DC RESISTIVE LOAD 100.0 AMPERES DC INDUCTIVE LOAD 400.0 AMPERES DC MOTOR LOAD
ARC QUENCHING METHOD	AIR
COIL QUANTITY	1
WINDING QUANTITY	1
WINDING DC RESISTANCE RATING	66.0 OHMS NOMINAL SINGLE WINDING
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING
NOMINAL OPERATING CURRENT RATING AND TYPE	600.0 MILLIAMPERES DC SINGLE WINDING
TERMINAL TYPE AND QUANTITY	4 THREADED STUD ALL FUNCTIONS
TIME DELAY	0.04 SECONDS MAXIMUM FIXED OPERATE TIME 0.01 SECONDS MAXIMUM FIXED RELEASE TIME
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC

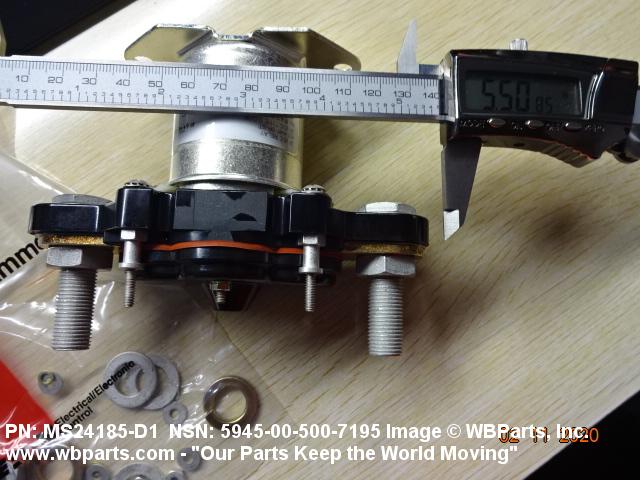

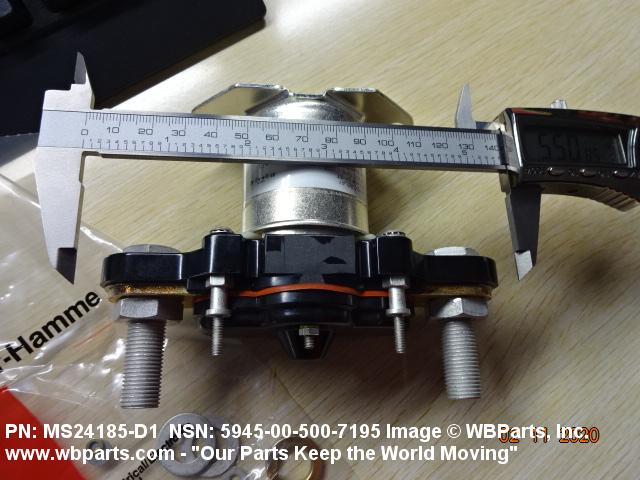

OVERALL LENGTH	5.500 INCHES MAXIMUM
OVERALL WIDTH	4.500 INCHES MAXIMUM
OVERALL HEIGHT	2.438 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	2 UNTHREADED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	IN-LINE SINGLE MOUNTING FACILITY

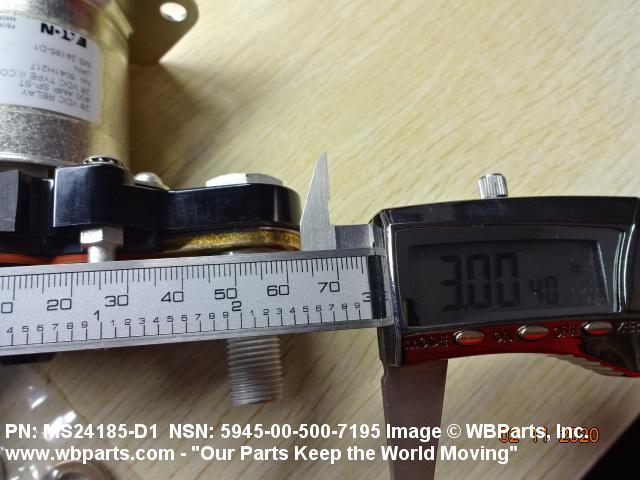

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	3.000 INCHES NOMINAL SINGLE MOUNTING FACILITY
UNTHREADED MOUNTING HOLE DIAMETER	0.266 INCHES NOMINAL SINGLE MOUNTING FACILITY
TEST DATA DOCUMENT	81349-MIL-R-6106 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS24185 GOVERNMENT STANDARD
III PURPOSE FOR WHICH DESIGNED	GENERAL
III CUBIC MEASURE	60.340 CUBIC INCHES
III UNPACKAGED UNIT WEIGHT	2.600 POUNDS
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III CASE MATERIAL	METAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-6106
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS24185-D1

Restrictions/Controls & Freight Information | NSN 5945-00-500-7195

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-00-500-7195

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	Q	Avionics
Weapons Systems/End Item or Homogeneous Group	QA	Av VHF/UHF/AM
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
