NSN 5945-00-501-6586 A5028, CH36426VAC60, CH364-26VAC60
Product Details | ELECTRONIC CHOPPER
5945-00-501-6586 An electromechanical or electronic (includes solid state semiconductor items) device designed to convert an electrical signal into a modified square wave output signal. For items excited by an alternating current, the output signal is the same frequency as, and bears a definite phase relationship to, the excitation voltage. For those electronic items designed to operate on direct current only, the output frequency of the item is dependent upon the inherent properties of the item, or the internal or external circuit constants, or the applied driving coil voltage impressed on the input signal. For an electromechanical item whose coil is designed for direct current only, see VIBRATOR, INTERRUPTER and VIBRATOR, SELF-RECTIFYING.20259450020Relays and Solenoids59630018Electronic Modules
Part Alternates: A5028, CH36426VAC60, CH364-26VAC60, 3211042P1, 321-1042P1, 5945-00-501-6586, 00-501-6586, 5945005016586, 005016586
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-501-6586 | 19759 ( CHOPPER, ELECTRONIC ) |
Drawings & Photos | NSN 5945-00-501-6586
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-00-501-6586
Technical Data | NSN 5945-00-501-6586
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | ELECTRONIC |
| INPUT VOLTAGE RATING | 26.0 AC VOLTS MINIMUM |
| INPUT CURRENT RATING | 32.0 MILLIAMPERES NOMINAL |
| DRIVE VOLTAGE RELATIONSHIP TO INPUT VOLTAGE | EQUAL |
| DRIVE VOLTAGE RATING | 26.0 AC VOLTS NOMINAL |
| OUTPUT/INPUT VOLTAGE RELATIONSHIP | UNEQUAL |
| OUTPUT VOLTAGE RATING | 30.0 AC VOLTS NOMINAL |
| OUTPUT CURRENT RATING | 32.0 MILLIAMPERES NOMINAL |
| OUTPUT FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| CONTACT ARRANGEMENT | DOUBLE POLE, DOUBLE THROW |
| CONTACT OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| CONTACT VOLTAGE RATING | 1.500 DC VOLTS MAXIMUM |
| CONTACT CURRENT RATING | 1.0 MILLIAMPERES NOMINAL |
| PHASE ANGLE IN DEG | 30.0 |
| DWELL TIME RATING IN DEG | 170.0 NOMINAL |
| HERMETICALLY SEALED FEATURE | NOT PROVIDED |
| OPERATING TEMP RANGE | -55.0 TO 85.0 DEG CELSIUS |
| TERMINAL QUANTITY | 8 |
| OVERALL DIAMETER | 1.010 INCHES NOMINAL |
| OVERALL LENGTH | 2.938 INCHES NOMINAL |
| PLUG IN MOUNTING FEATURE | PROVIDED |
| BASE TYPE | STANDARD BASE |
| BASE MOUNTING SIZE DESIGNATION | OCTAL TUBE BASE SIZE |
| TERMINAL PATTERN ARRANGEMENT | STANDARD OCTAL EIGHT PIN |

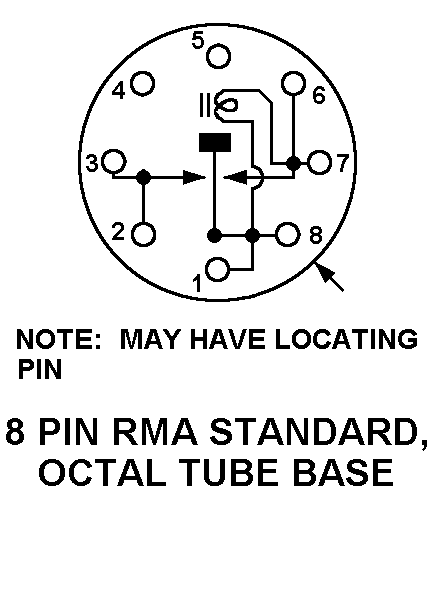

| BASE CONNECTION WIRING STYLE | E4 8 PIN STANDARD OCTAL TUBE |
| COIL TYPE | NOT ISOLATED |
| TEST DATA DOCUMENT | 49956-321-1042P1 DRAWING |
Restrictions/Controls & Freight Information | NSN 5945-00-501-6586
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-501-6586
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
