NSN 5945-00-543-8127 MS24143D2, MS24143-D2, MILPRF6106
Product Details | ELECTROMAGNETIC RELAY
5945-00-543-8127 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: MS24143D2, MS24143-D2, MILPRF6106, MIL-PRF-6106, MILR6106, MIL-R-6106, 271R95P1, 6042H142, 5945-00-543-8127, 00-543-8127, 5945005438127, 005438127
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-543-8127 | 32512 ( RELAY, ELECTROMAGNETIC ) |

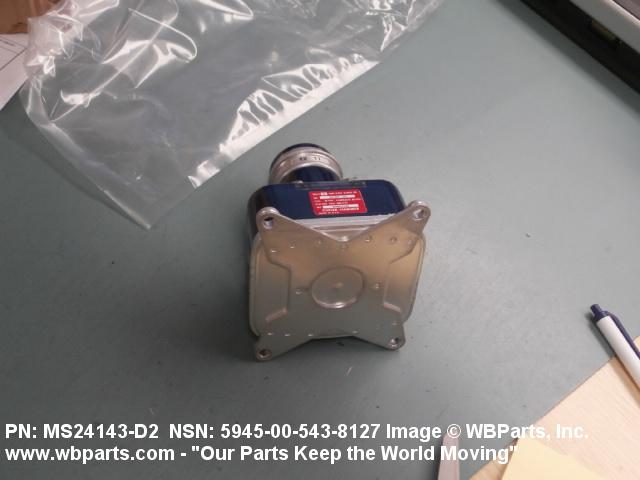

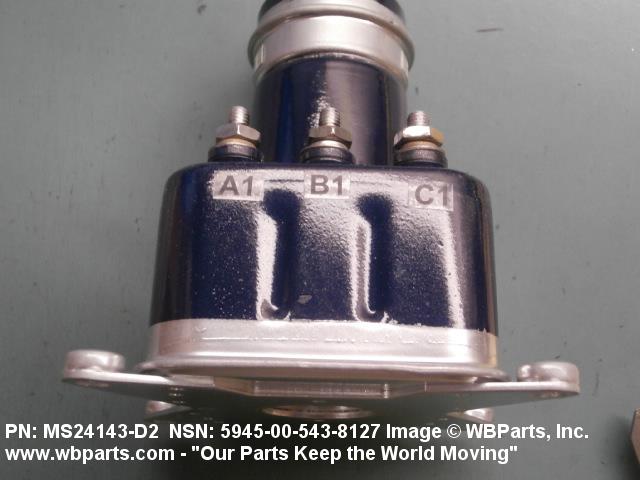

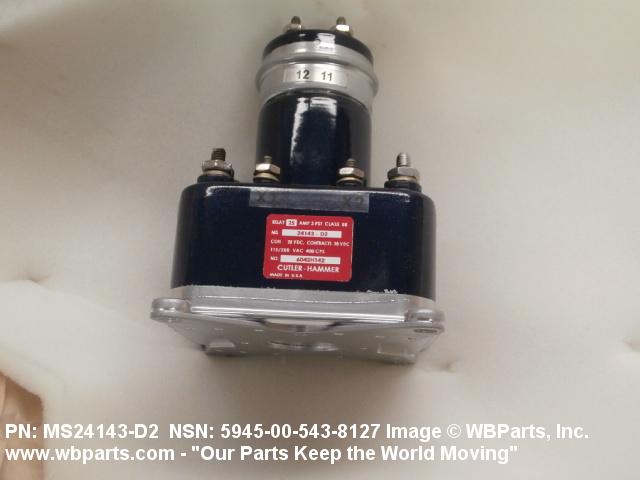

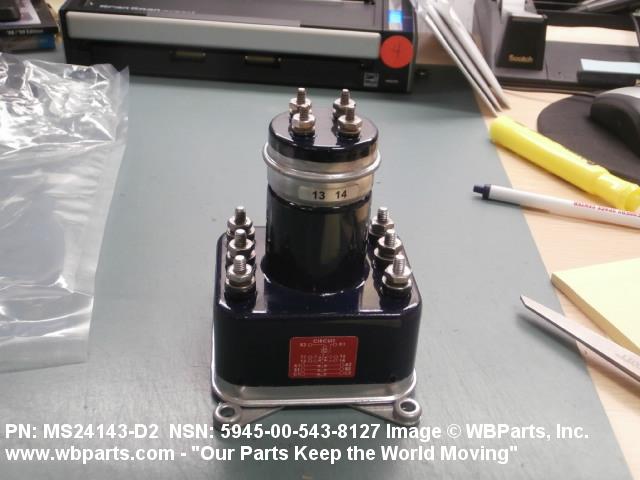

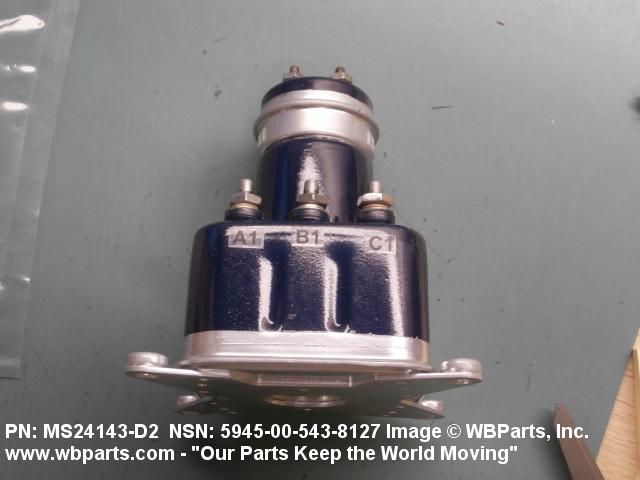

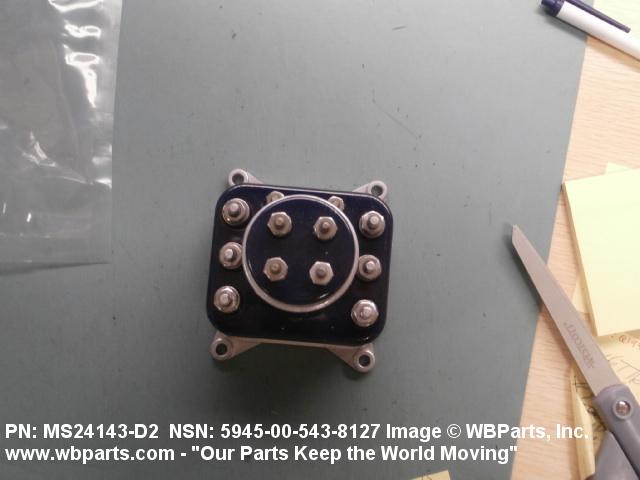

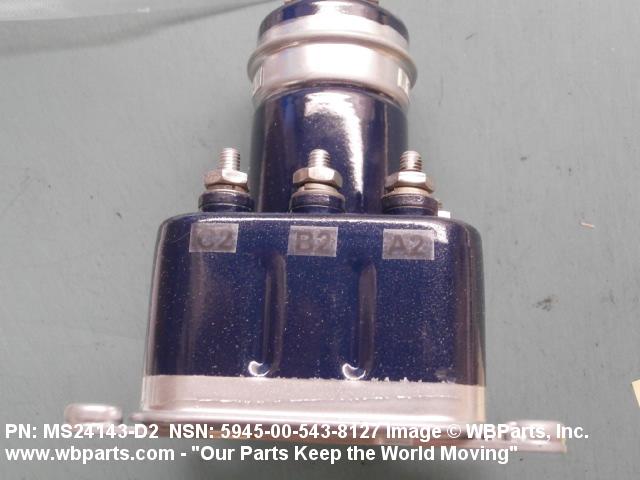

Drawings & Photos | NSN 5945-00-543-8127
Demand History | NSN 5945-00-543-8127
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-543-8127 | 2024-08-233 | 1 | DIBBS |
| 5945-00-543-8127 | 2024-05-142 | 5 | DIBBS |
| 5945-00-543-8127 | 2024-04-109 | 6 | DIBBS |
| 5945-00-543-8127 | 2024-02-36 | 6 | DIBBS |
| 5945-00-543-8127 | 2023-04-100 | 10 | DIBBS |
| 5945-00-543-8127 | 2023-01-26 | 6 | DIBBS |
| 5945-00-543-8127 | 2022-11-311 | 9 | DIBBS |
| 5945-00-543-8127 | 2022-10-300 | 9 | DIBBS |
| 5945-00-543-8127 | 2022-07-199 | 8 | DIBBS |
| 5945-00-543-8127 | 2022-07-188 | 8 | DIBBS |
| 5945-00-543-8127 | 2019-11-331 | 1 | us |
| 5945-00-543-8127 | 2019-11-331 | 1 | us |
| 5945-00-543-8127 | 2019-08-219 | 12 | United Kingdom |
| 5945-00-543-8127 | 2019-08-213 | 12 | Singapore |
| 5945-00-543-8127 | 2019-07-212 | 12 | IN |
| 5945-00-543-8127 | 2018-09-260 | 5 | Singapore |
| 5945-00-543-8127 | 2018-09-260 | 5 | Singapore |
| 5945-00-543-8127 | 2018-07-192 | 4 | US |
| 5945-00-543-8127 | 2018-04-93 | 1 | UK |
| 5945-00-543-8127 | 2015-05-125 | 20 | SG |
| 5945-00-543-8127 | 2014-02-52 | 16 | United States |
| 5945-00-543-8127 | 2013-08-213 | 7 | DIBBS |
| 5945-00-543-8127 | 2013-07-198 | 7 | DIBBS |
| 5945-00-543-8127 | 2013-05-136 | 13 | DIBBS |
| 5945-00-543-8127 | 2013-05-121 | 13 | DIBBS |
| 5945-00-543-8127 | 2011-11-313 | 51 | DIBBS |
| 5945-00-543-8127 | 2011-03-73 | 22 | DIBBS |
| 5945-00-543-8127 | 2011-03-73 | 30 | DIBBS |
| 5945-00-543-8127 | 2011-01-05 | 22 | DIBBS |
| 5945-00-543-8127 | 2010-12-357 | 30 | DIBBS |
Cross Reference | NSN 5945-00-543-8127
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 271R95P1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 6042H142 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 6042H142 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| MIL-PRF-6106 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-6106 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24143-D2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-543-8127
Related Products | NSN 5945-00-543-8127
Technical Data | NSN 5945-00-543-8127
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 3 POLE, SINGLE THROW, NORMALLY OPEN, DOUBLE MAKE, MOMENTARY ACTION |
| NONPILE-UP AUXILIARY CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, DOUBLE BREAK, MOMENTARY ACTION AND 1 POLE, SINGLE THROW, NORMALLY OPEN, DOUBLE MAKE, MOMENTARY ACTION |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| AUXILIARY CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 25.0 AMPERES AC AND 25.0 AMPERES DC RESISTIVE LOAD 25.0 AMPERES AC AND 25.0 AMPERES DC INDUCTIVE LOAD 25.0 AMPERES AC AND 25.0 AMPERES DC MOTOR LOAD |
| AUXILIARY CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.0 AMPERES AC AND 5.0 AMPERES DC RESISTIVE LOAD 5.0 AMPERES AC AND 5.0 AMPERES DC INDUCTIVE LOAD 750.0 MILLIAMPERES AC AND 750.0 MILLIAMPERES DC LAMP LOAD 25.0 AMPERES AC AND 25.0 AMPERES DC MOTOR LOAD |
| ARC QUENCHING METHOD | AIR |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| WINDING DC RESISTANCE RATING | 52.0 OHMS NOMINAL SINGLE WINDING |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |
| NOMINAL OPERATING CURRENT RATING AND TYPE | 600.0 MILLIAMPERES DC SINGLE WINDING |
| TERMINAL TYPE AND QUANTITY | 12 THREADED STUD ALL FUNCTIONS |
| TIME DELAY | 0.025 SECONDS MAXIMUM FIXED OPERATE TIME 0.01 SECONDS MAXIMUM FIXED RELEASE TIME |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | HERMETIC |
| OVERALL LENGTH | 3.700 INCHES MAXIMUM |
| OVERALL WIDTH | 3.305 INCHES MAXIMUM |
| OVERALL HEIGHT | 4.576 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | RECTANGULAR SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.250 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 2.687 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.218 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| TEST DATA DOCUMENT | 81349-MIL-R-6106 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS24143 GOVERNMENT STANDARD |
| III PURPOSE FOR WHICH DESIGNED | GENERAL |
Restrictions/Controls & Freight Information | NSN 5945-00-543-8127
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
