NSN 5945-00-556-5233 1720636, 17-2063-6, 00-556-5233
Product Details | RELAY SUBASSEMBLY
5945-00-556-5233 Two or more different types of items having a common mounting or mounted on each other, which together form a portion of a relay, but which in itself is not a complete functioning item and cannot be assigned a more definite item name. Excludes CONTACT ASSEMBLY, ELECTRICAL and CONTACT SET, RELAY.
Part Alternates: 1720636, 17-2063-6, 5945-00-556-5233, 00-556-5233, 5945005565233, 005565233
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-556-5233 | 00598 ( RELAY SUBASSEMBLY ) |

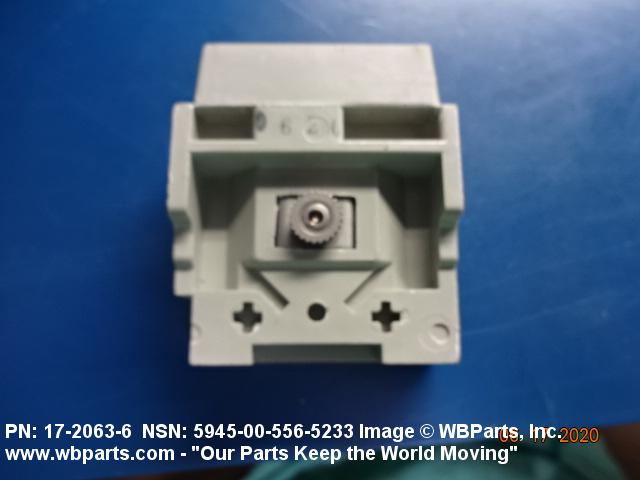

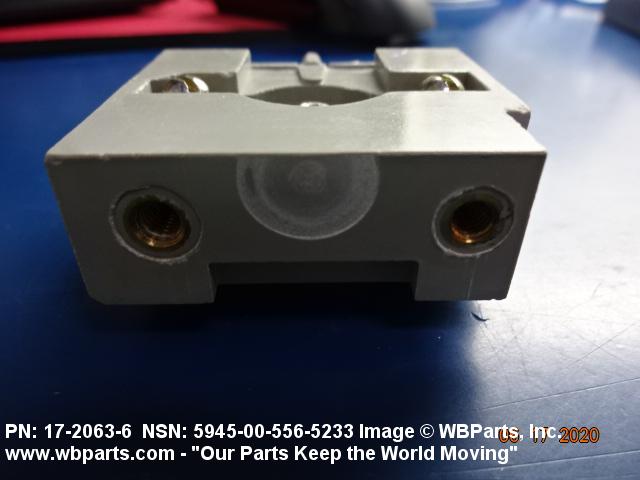

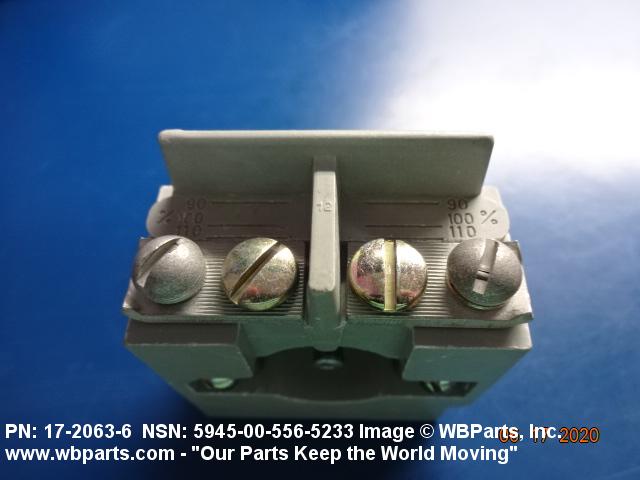

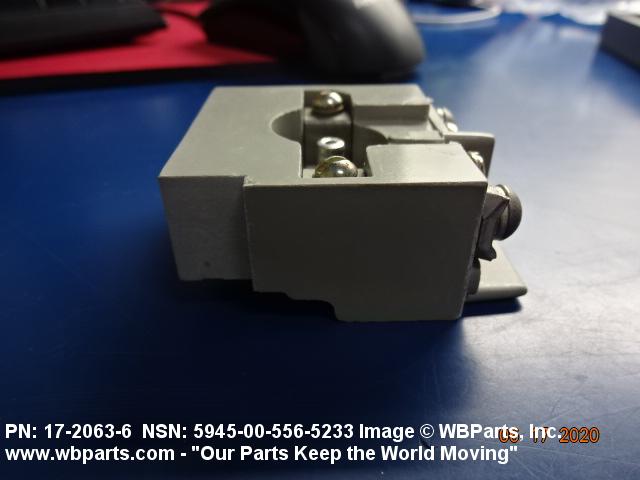

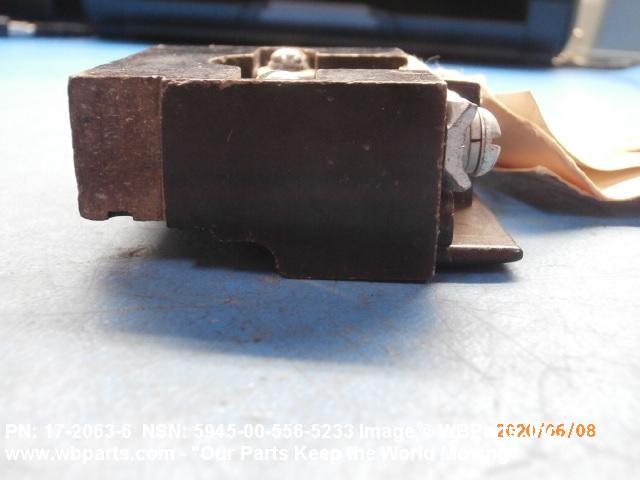

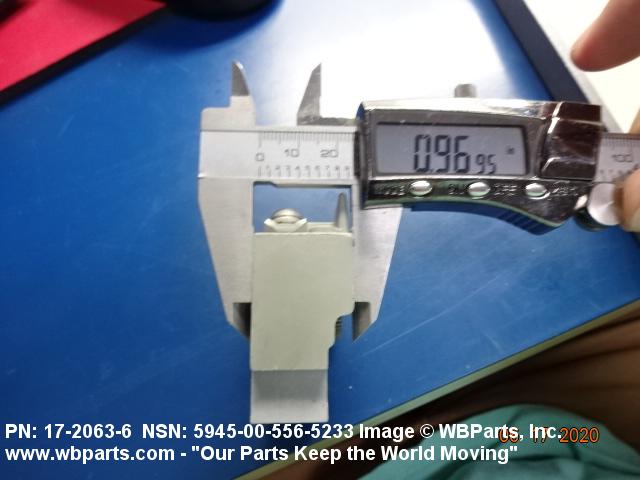

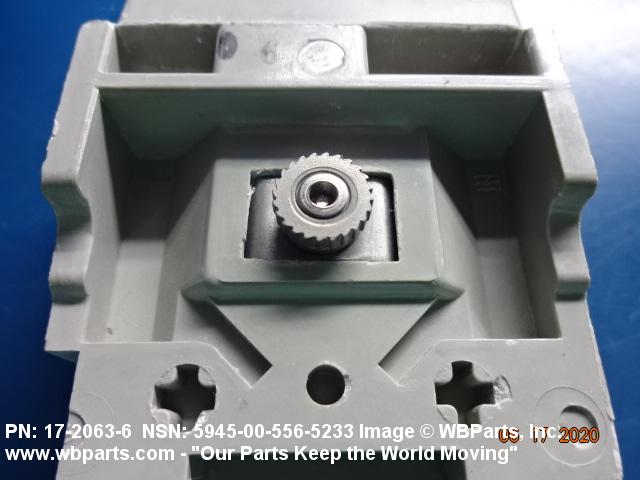

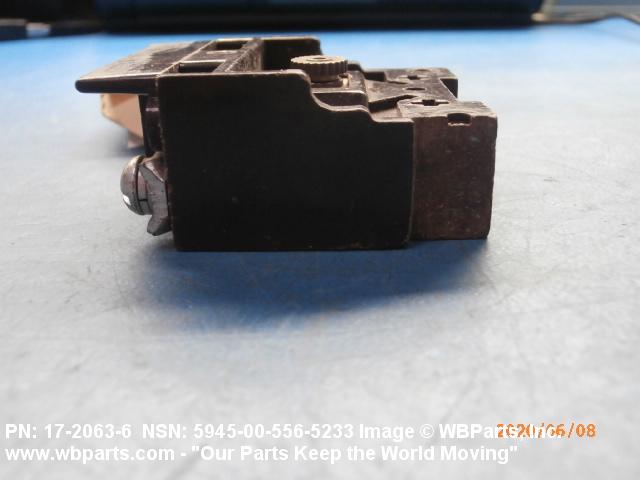

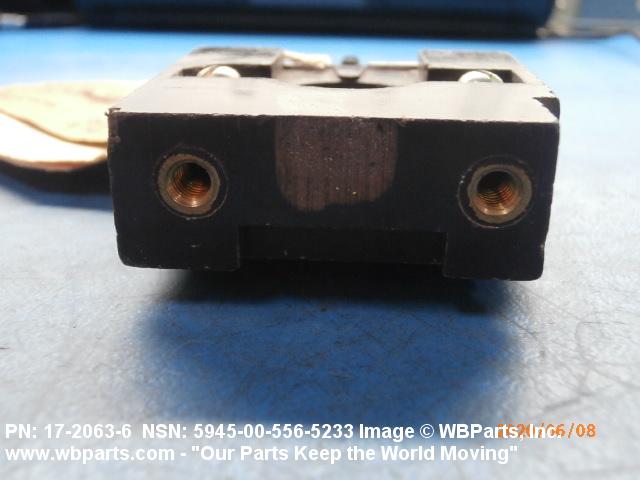

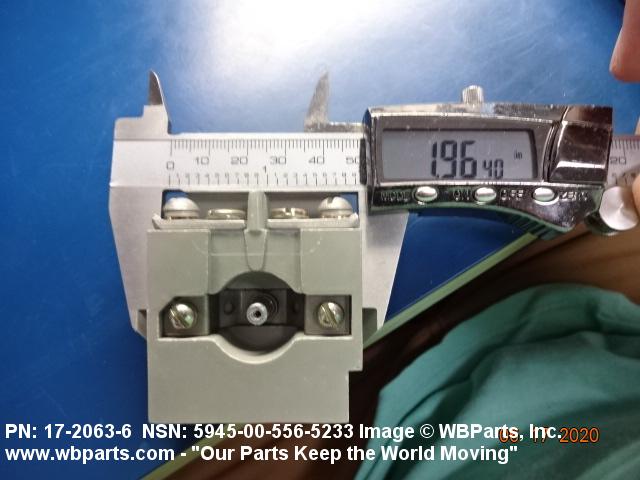

Drawings & Photos | NSN 5945-00-556-5233
Demand History | NSN 5945-00-556-5233
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-556-5233 | 2021-03-64 | 4 | Taiwan |
| 5945-00-556-5233 | 2020-04-108 | 2 | Taiwan |
| 5945-00-556-5233 | 2013-03-74 | 2 | Taiwan |
Cross Reference | NSN 5945-00-556-5233
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17-2063-6 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-00-556-5233
Technical Data | NSN 5945-00-556-5233
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 1.938 INCHES NOMINAL |
| OVERALL HEIGHT | 2.243 INCHES NOMINAL |
| OVERALL WIDTH | 0.977 INCHES NOMINAL |
| SPECIAL FEATURES | BASE,LH 1;LOCKWASHERS 2;SCREWS,RH HEAD 2;SCREWS,SPECIAL BINDING HEAD 4;TERMINAL PLATES 2;THERMAL ELEMENT,RH 1;SHAKEPROOF WASHERS 4;TWO NO. 10-32 TAP HOLES SPACED 1.250 IN. C TO C |
| MANUFACTURERS CODE | 15605 |
| DESIGN CONTROL REFERENCE | 17-2063-6 |
Restrictions/Controls & Freight Information | NSN 5945-00-556-5233
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-556-5233
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
