NSN 5945-00-578-3142 DMS 81015B, DMS81015B, 3021
Product Details | ELECTRONIC CHOPPER
5945-00-578-3142 An electromechanical or electronic (includes solid state semiconductor items) device designed to convert an electrical signal into a modified square wave output signal. For items excited by an alternating current, the output signal is the same frequency as, and bears a definite phase relationship to, the excitation voltage. For those electronic items designed to operate on direct current only, the output frequency of the item is dependent upon the inherent properties of the item, or the internal or external circuit constants, or the applied driving coil voltage impressed on the input signal. For an electromechanical item whose coil is designed for direct current only, see VIBRATOR, INTERRUPTER and VIBRATOR, SELF-RECTIFYING.20259450020Relays and Solenoids59630018Electronic Modules
Part Alternates: DMS 81015B, DMS81015B, 3021, 302-1, 446988, 5945-00-578-3142, 00-578-3142, 5945005783142, 005783142
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-578-3142 | 19759 ( CHOPPER, ELECTRONIC ) |
Drawings & Photos | NSN 5945-00-578-3142
Demand History | NSN 5945-00-578-3142
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3021 | 2017-09-261 | 2 | Philippines |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-00-578-3142
Technical Data | NSN 5945-00-578-3142
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | ELECTROMECHANICAL |
| INPUT VOLTAGE RATING | 115.0 AC VOLTS NOMINAL |
| DRIVE VOLTAGE RELATIONSHIP TO INPUT VOLTAGE | UNEQUAL |
| DRIVE VOLTAGE RATING | 5.7 AC VOLTS MINIMUM AND 6.9 AC VOLTS MAXIMUM |
| DRIVE CURRENT RELATIONSHIP TO INPUT CURRENT | UNEQUAL |
| DRIVE CURRENT RATING | 30.0 MILLIAMPERES NOMINAL |
| DRIVE FREQUENCY RATING | 400.0 HERTZ NOMINAL |
| OUTPUT/INPUT VOLTAGE RELATIONSHIP | NOT RATED |
| REED TYPE | ANY ACCEPTABLE |
| CONTACT ARRANGEMENT | SINGLE POLE, DOUBLE THROW |
| CONTACT OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| CONTACT VOLTAGE RATING | 100.0 AC VOLTS MAXIMUM |
| CONTACT CURRENT RATING | 2.0 MILLIAMPERES MAXIMUM |
| PHASE ANGLE IN DEG | 65.0 |
| DWELL TIME RATING IN DEG | 130.0 MINIMUM AND 165.0 MAXIMUM |
| HERMETICALLY SEALED FEATURE | PROVIDED |
| CASE MATERIAL | BRASS |
| OPERATING TEMP RANGE | -65.0 TO 100.0 DEG CELSIUS |
| TERMINAL QUANTITY | 7 |
| TERMINAL TYPE | SOLDERLESS LUG |
| OVERALL DIAMETER | 0.745 INCHES MINIMUM AND 0.763 INCHES MAXIMUM |
| OVERALL LENGTH | 1.688 INCHES MAXIMUM |
| PLUG IN MOUNTING FEATURE | NOT PROVIDED |
| MOUNTING METHOD | BRACKET AND HOLE |
| MOUNTING PROVISION | HOLES |
| MOUNTING FACILITY QUANTITY | 4 |
| MOUNTING FACILITY SIZE | 0.125 IN. DIA HOLES |
| MOUNTING CONFIGURATION | 4 HOLES ON MTG BRACKET 1.125 IN. BY 0.719 IN. |

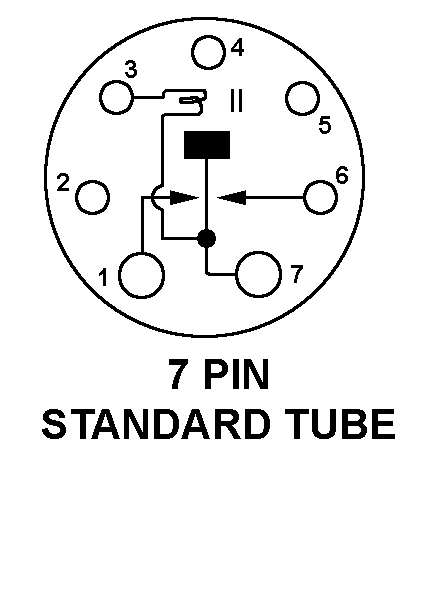

| BASE CONNECTION WIRING STYLE | D1 7 PIN STANDARD TUBE |
Restrictions/Controls & Freight Information | NSN 5945-00-578-3142
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-578-3142
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | AW | SX:AIRBORNE WARNING AND CONTROL SYSTEM (AWACS) 411L |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
