Product Details | ELECTROMAGNETIC RELAY
5945-00-612-5740 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: 8724750, 5945-00-612-5740, 00-612-5740, 2920006125740 , 5945006125740, 006125740
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-612-5740 | 32512 ( RELAY, ELECTROMAGNETIC ) |

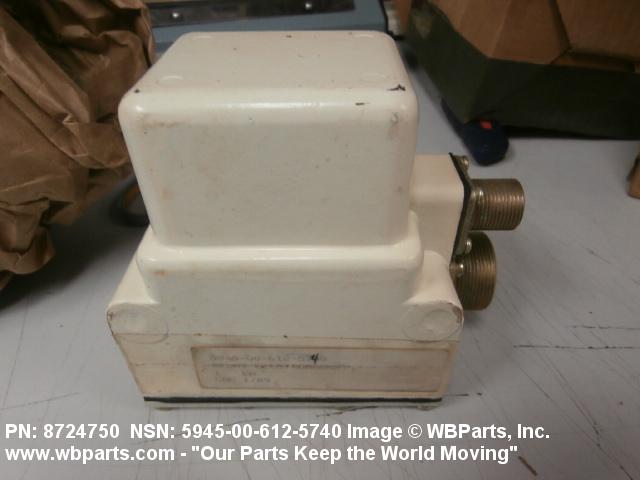

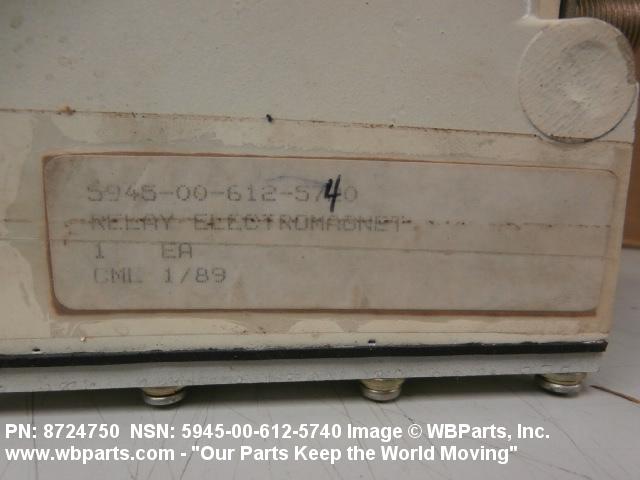

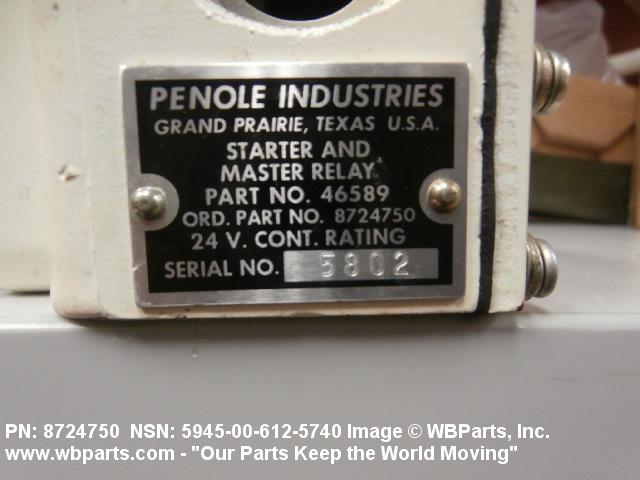

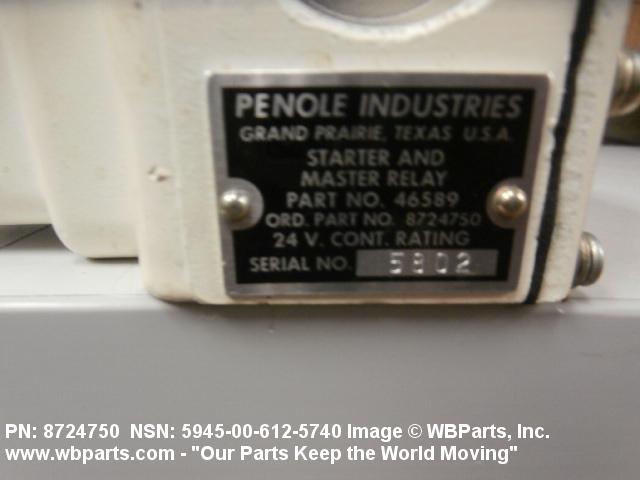

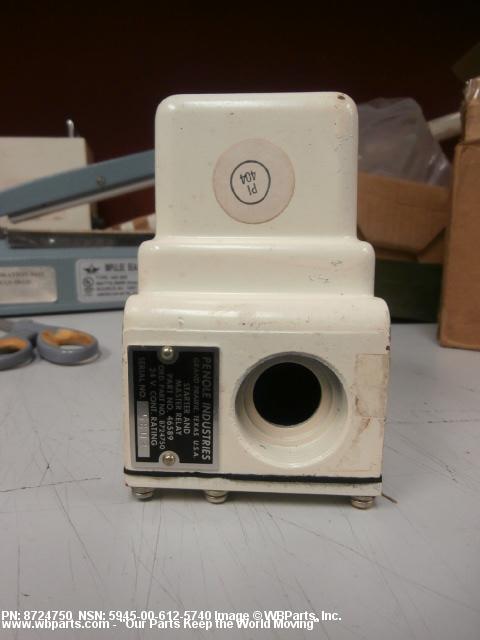

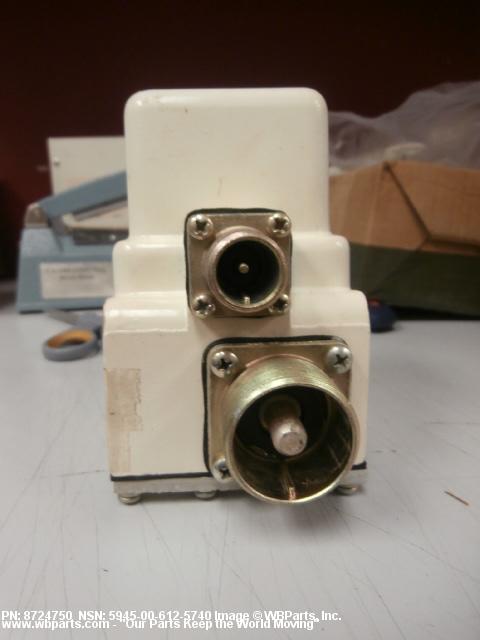

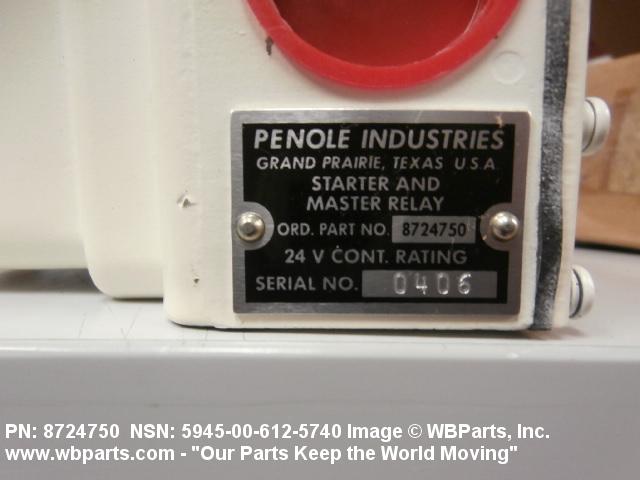

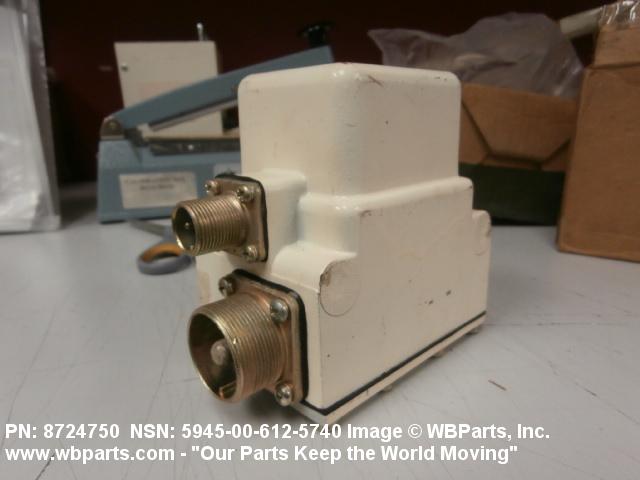

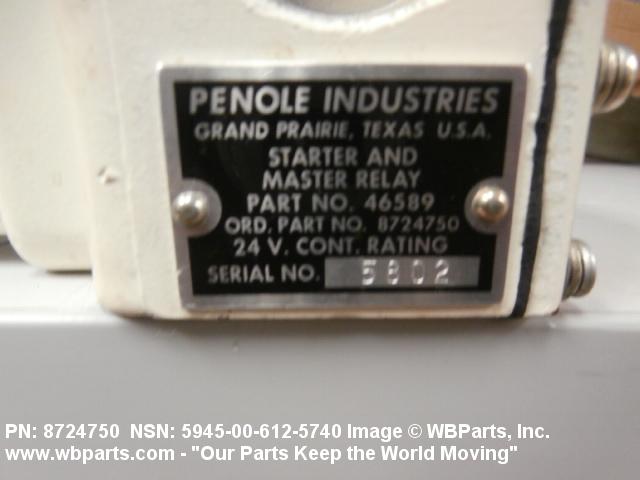

Drawings & Photos | NSN 5945-00-612-5740
Demand History | NSN 5945-00-612-5740
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-612-5740 | 2023-11-331 | 30 | DIBBS |
| 5945-00-612-5740 | 2023-11-320 | 30 | DIBBS |
| 5945-00-612-5740 | 2017-05-124 | 14 | DIBBS |
| 5945-00-612-5740 | 2017-04-114 | 3 | DIBBS |
| 5945-00-612-5740 | 2017-04-101 | 3 | DIBBS |
| 8724750 | 2016-04-119 | 2 | United States |
| 5945-00-612-5740 | 2011-03-73 | 6 | DIBBS |
| 5945-00-612-5740 | 2010-05-131 | 57 | DIBBS |
| 5945-00-612-5740 | 2008-06-170 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-612-5740
Related Products | NSN 5945-00-612-5740
Technical Data | NSN 5945-00-612-5740
| Characteristic | Specifications |
|---|---|
| PILE-UP MAIN CONTACT FORM ARRANGEMENT | 1B |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 24.0 AC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 200.0 MILLIAMPERES DC RESISTIVE LOAD |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| WINDING DC RESISTANCE RATING | 70.0 OHMS NOMINAL SINGLE WINDING |
| NOMINAL OPERATING CURRENT RATING AND TYPE | 340.0 MILLIAMPERES DC SINGLE WINDING |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, RECEPTACLE CONTACTS |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | DUSTPROOF AND SHOCK PROOF AND WATERTIGHT |
| OVERALL LENGTH | 4.620 INCHES NOMINAL |
| OVERALL WIDTH | 2.120 INCHES NOMINAL |
| OVERALL HEIGHT | 3.370 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | IN-LINE SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.406 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.273 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| (NON-CORE DATA) FSC APPLICATION DATA | ENGINE ELECTRICAL SYSTEM,NONAIRCRAFT |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 8724750 |
