NSN 5945-00-643-7719 CR282441C, CR2824-41C, CR282441L
Product Details | THERMAL RELAY

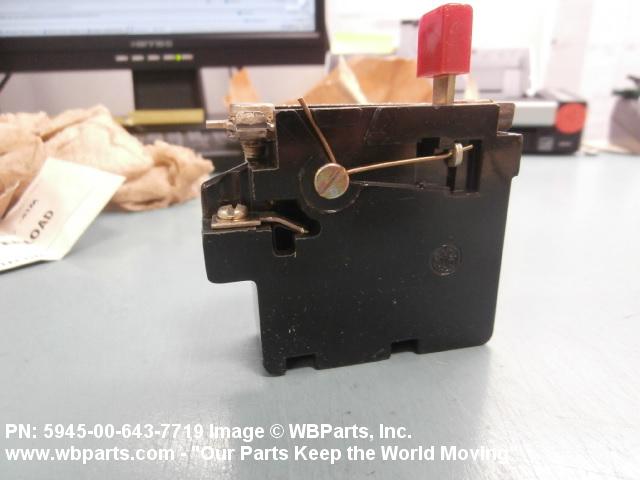

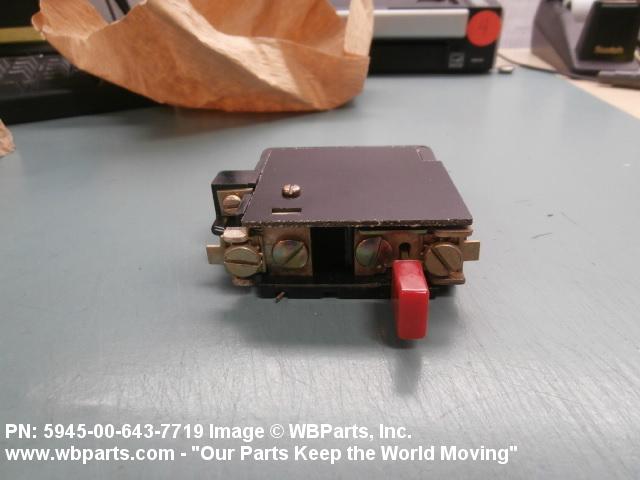

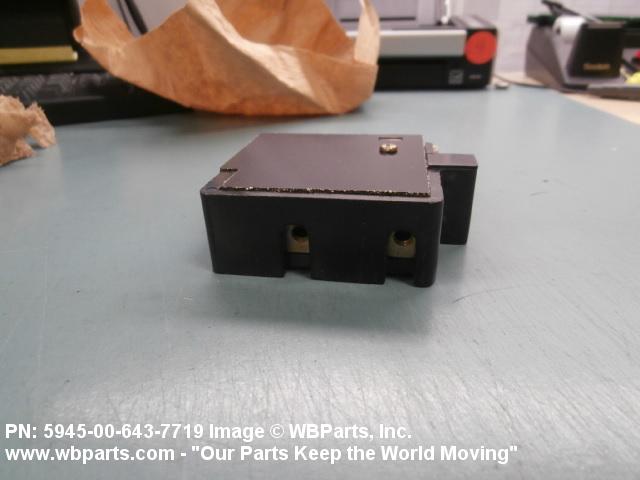

5945-00-643-7719 A relay switch which is actuated by the effect of internal heat generated by the current in its energizing circuit. For items actuated by ambient, rather than internal temperature changes, see SWITCH, THERMOSTATIC.
Part Alternates: CR282441C, CR2824-41C, CR282441L, CR2824-41L, GEF3558CREF22, K6978789ITEM6, K8078722ITEM6, 107844, 11K150ITEM6, 11K1622ITEM, 11K1831ITEM6, 12K31PC7, 12K32PC7, 12K44PC14, 320119, 320-119, 5945-00-643-7719, 00-643-7719, 5945006437719, 006437719
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-643-7719 | 03883 ( RELAY, THERMAL ) |

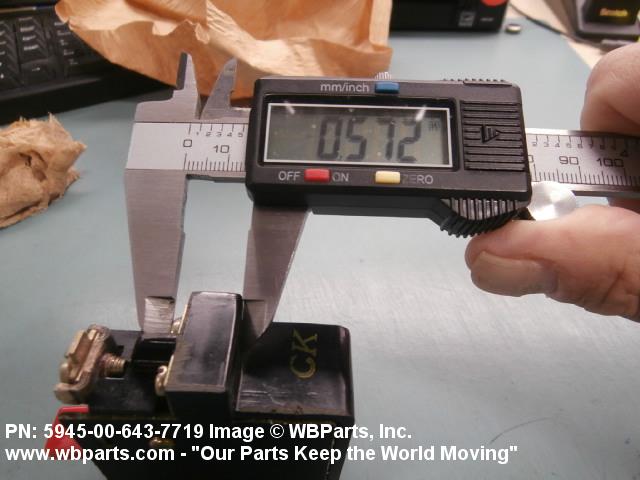

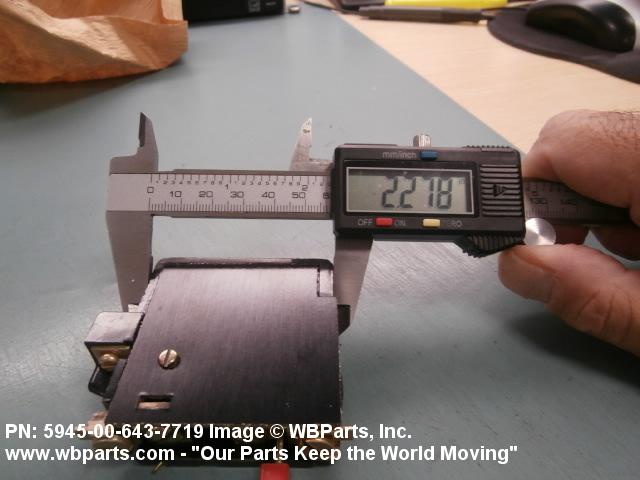

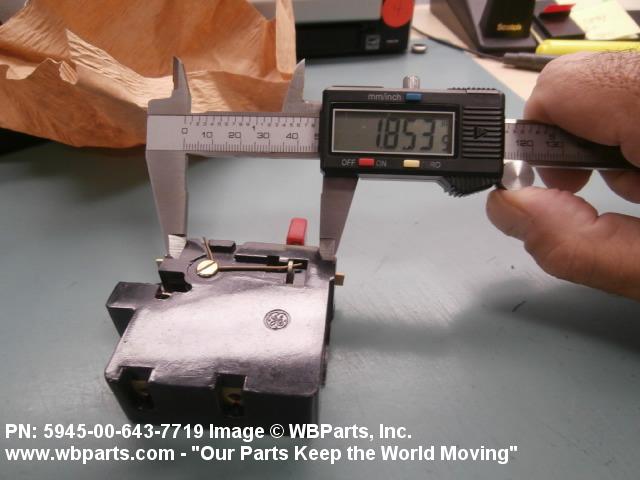

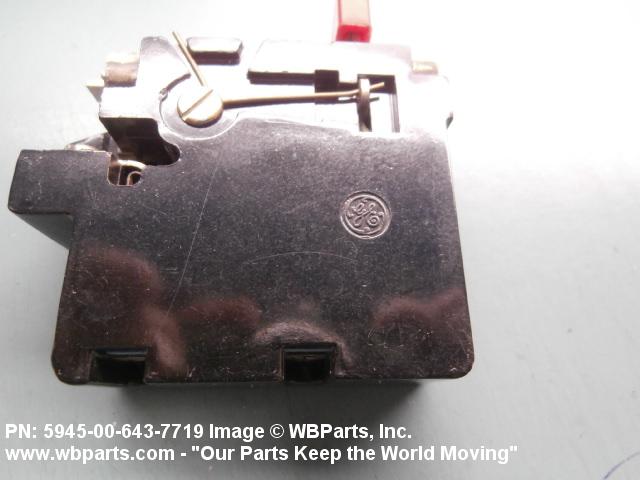

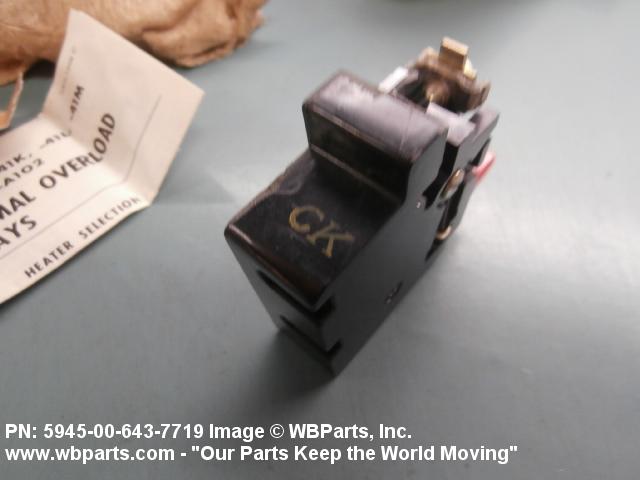

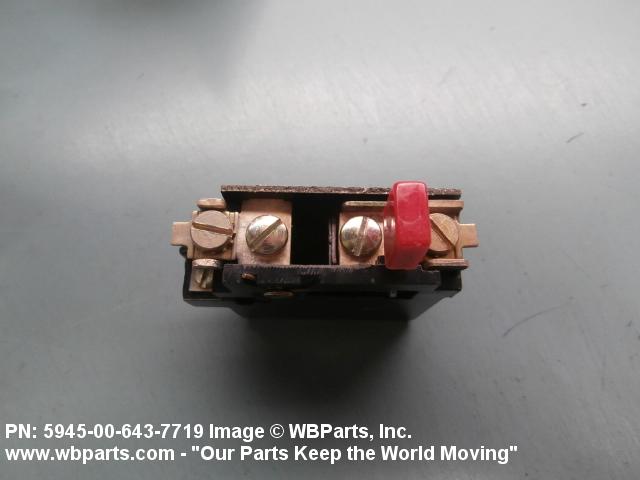

Drawings & Photos | NSN 5945-00-643-7719
Demand History | NSN 5945-00-643-7719
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-643-7719 | 2014-07-195 | 1 | United States |
| CR282441C | 2010-03-71 | 6 | US |
Cross Reference | NSN 5945-00-643-7719
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 107844 | 71313 | VIKING TECHNOLOGIES, LTD. |
| 11K150ITEM6 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 11K1622ITEM | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 11K1831ITEM6 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 12K31PC7 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 12K32PC7 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 12K44PC14 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 320-119 | 44940 | CUMMINS POWER GENERATION INC. |
| CR2824-41C | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| CR2824-41L | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| CR2824-41L | 71669 | GENERAL ELECTRIC CO SWITCHGEAR AND CONTROL DIVISION |
| CR2824-41L | 93125 | GENERAL ELECTRIC CO INDUSTRY CONTROL DEPT OF |
| GEF3558CREF22 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| K6978789ITEM6 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| K8078722ITEM6 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-643-7719
Related Products | NSN 5945-00-643-7719
Technical Data | NSN 5945-00-643-7719
| Characteristic | Specifications |
|---|---|

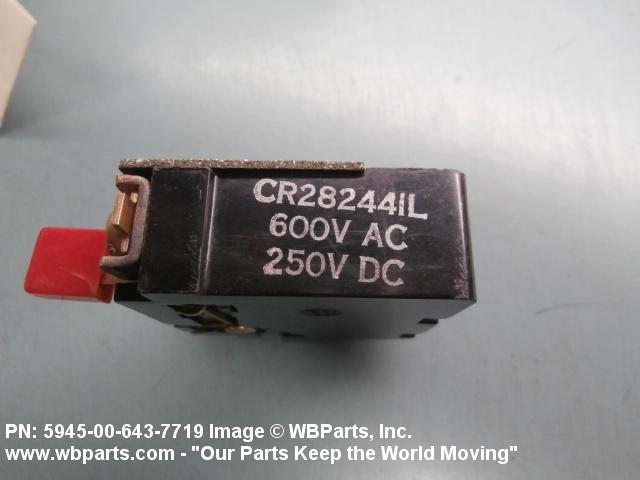

| CONTACT ARRANGEMENT | SINGLE POLE, SINGLE THROW, NORMALLY CLOSED |
| CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 600.0 AC |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 100.0 AC |
| HEATER VOLTAGE RATING IN VOLTS | 230.0 |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |

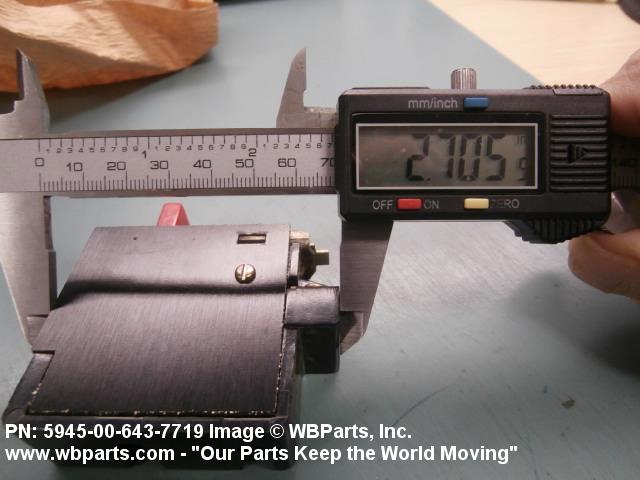

| OVERALL LENGTH | 3.078 INCHES NOMINAL |
