NSN 5945-00-660-9315 MS24171D1, MS24171-D1, H2280203

Product Details | ELECTROMAGNETIC RELAY

5945-00-660-9315 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS24171D1, MS24171-D1, H2280203, H22-80-203, B113868, B11386-8, D1899262, D18992-62, MILPRF6106, MIL-PRF-6106, MILR6106, MIL-R-6106, Q531541051, 154-0183-88, 1637412, 30AA13, 33702, 3370-2, 4521499, 452-1499, 507401597000, 507-4-01597-000, 5957264570, 595-7264-570, 5M.4751.221.59, 5M475122159, 6041H70A, 724879003700, 72644654, 7264-4654, 7264570, 7264-570, 825RL0027, 825RL0194, 981022, 981-022, 5945-00-660-9315, 00-660-9315, 5945006609315, 154018388, 006609315

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-660-9315	32512 ( RELAY, ELECTROMAGNETIC )

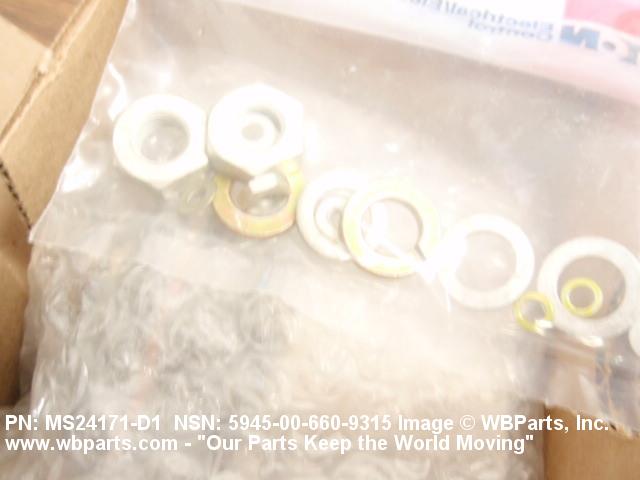

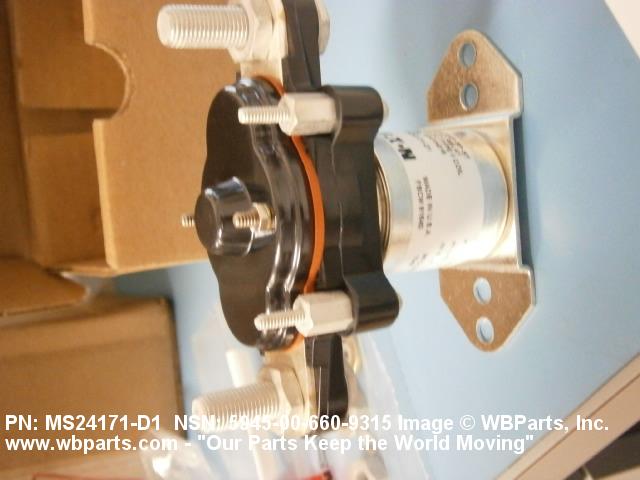

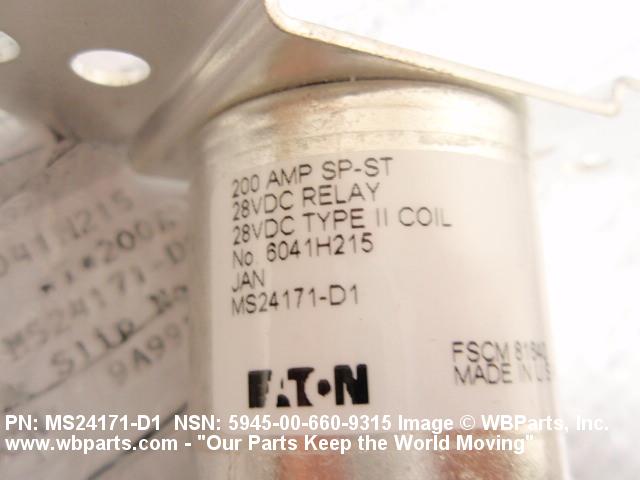

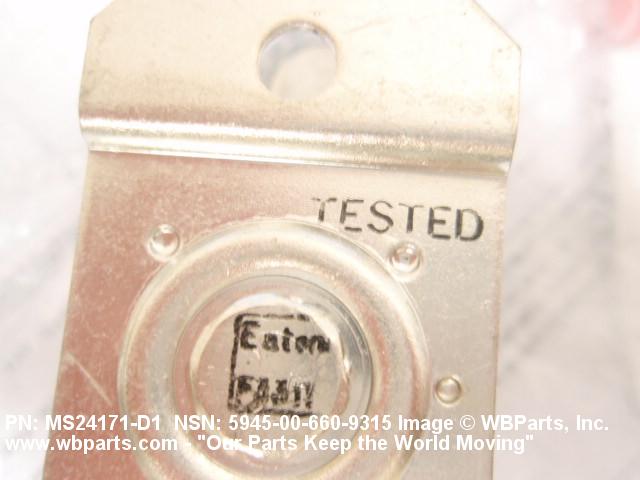

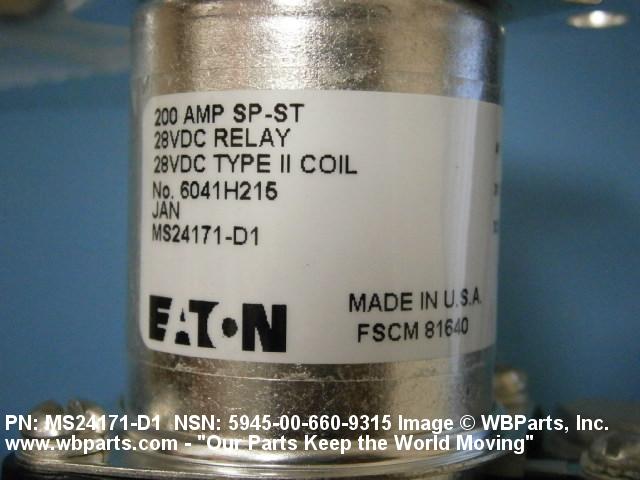

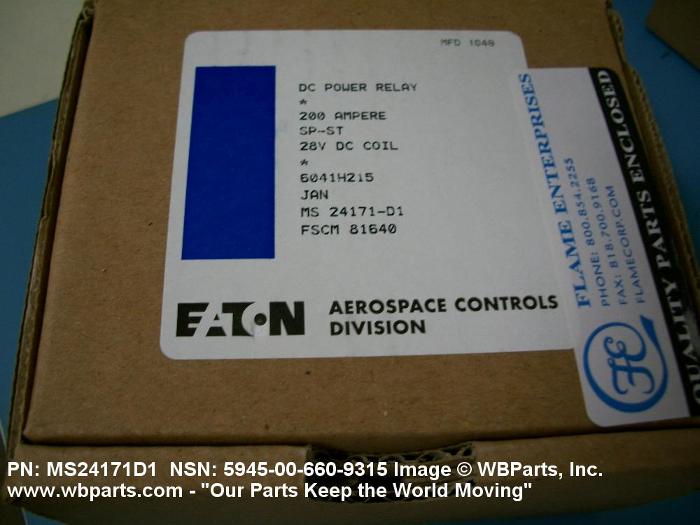

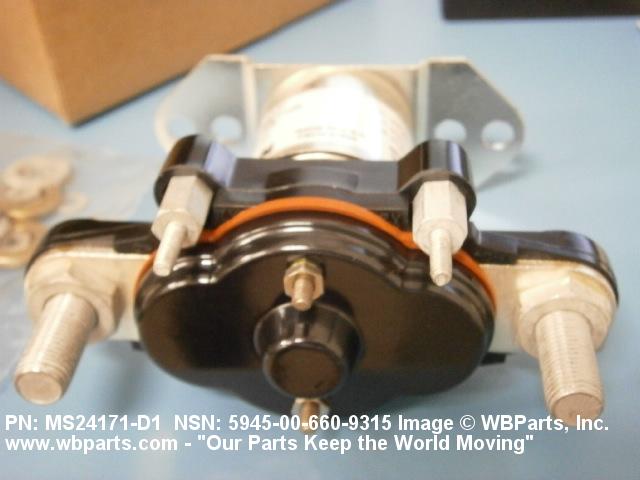

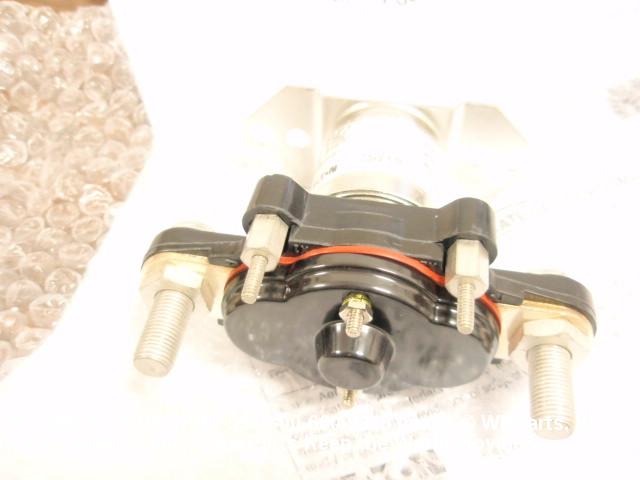

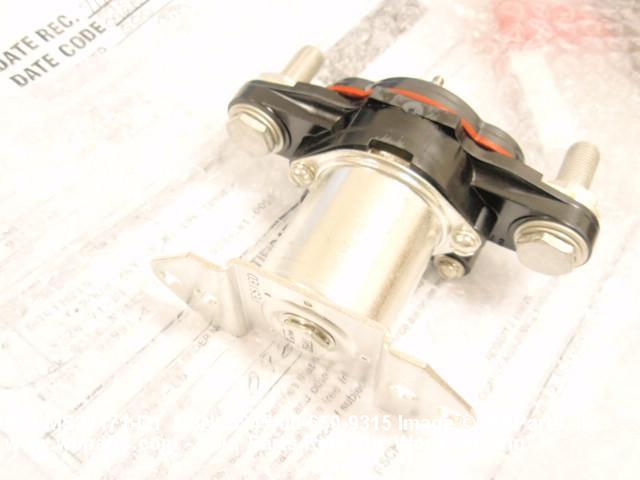

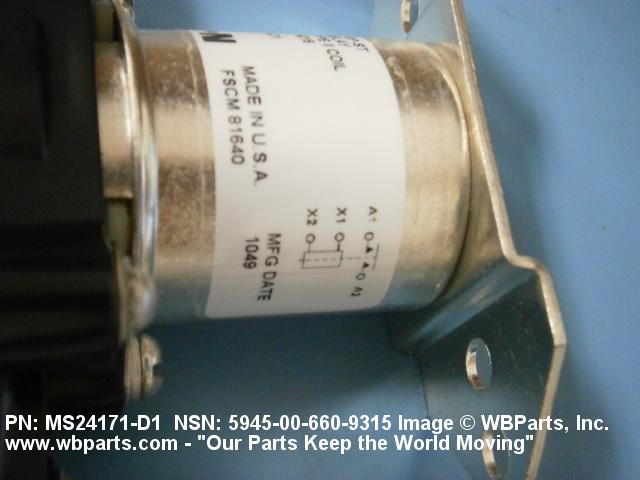

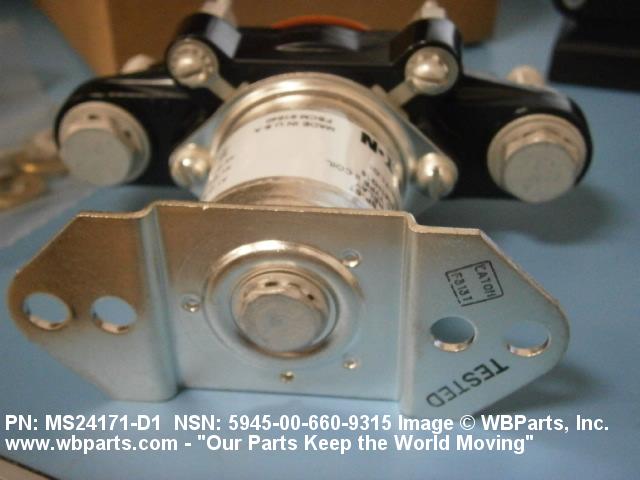

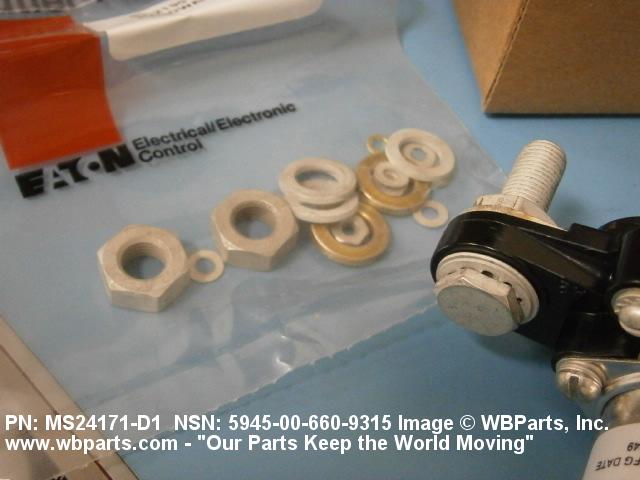

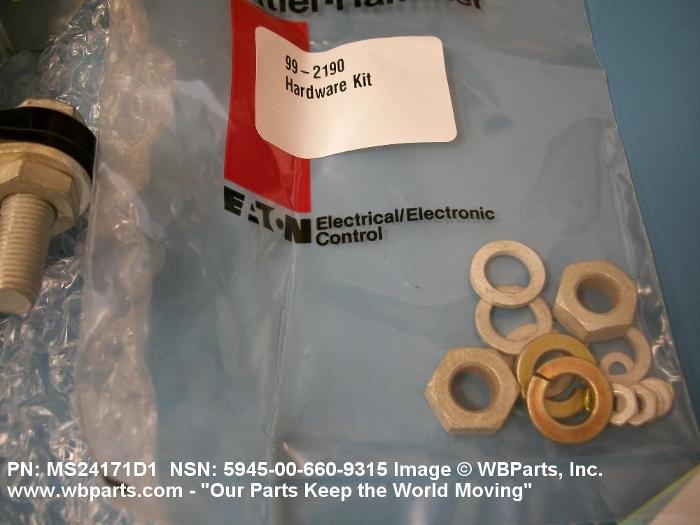

Drawings & Photos | NSN 5945-00-660-9315

Part Number	Request Date	QTY	Origin
5945-00-660-9315	2025-11-310	167	DIBBS
5945-00-660-9315	2025-10-276	375	DIBBS
5945-00-660-9315	2025-09-261	375	DIBBS
5945-00-660-9315	2025-09-261	93	DIBBS
5945-00-660-9315	2025-08-230	113	DIBBS
5945-00-660-9315	2025-08-219	113	DIBBS
5945-00-660-9315	2025-03-72	30	DIBBS
5945-00-660-9315	2024-12-344	127	DIBBS
5945-00-660-9315	2024-10-291	153	DIBBS
5945-00-660-9315	2024-01-11	168	DIBBS
5945-00-660-9315	2024-01-02	6	US
5945-00-660-9315	2023-09-271	116	DIBBS
5945-00-660-9315	2023-04-93	137	DIBBS
5945-00-660-9315	2023-03-82	137	DIBBS
981022	2023-03-74	2	United States
5945-00-660-9315	2021-11-331	1	Thailand
5945-00-660-9315	2021-10-287	122	DIBBS
5945-00-660-9315	2021-09-252	269	DIBBS
5945-00-660-9315	2021-08-224	101	DIBBS
MS24171D1	2021-07-207	15	Turkey
5945-00-660-9315	2021-04-91	191	DIBBS
5945-00-660-9315	2021-03-84	38	DIBBS
5945-00-660-9315	2020-10-303	214	DIBBS
5945-00-660-9315	2020-10-283	1	United States
5945-00-660-9315	2020-09-258	20	US
5945-00-660-9315	2020-09-252	2	SA
5945-00-660-9315	2020-08-234	2	Indonesia
MS24171D1	2020-02-41	4	United States
MS24171D1	2019-08-232	2	Philippines
5945-00-660-9315	2019-03-63	50	US
5945-00-660-9315	2018-09-263	1	US
5945-00-660-9315	2018-08-239	1	DIBBS-RFPs
5945-00-660-9315	2018-07-196	5	US
5945-00-660-9315	2018-01-30	10	Pakistan
MS24171D1	2017-12-354	1	United States
5945-00-660-9315	2017-12-353	1	United States
MS24171D1	2017-11-325	1	US
5945-00-660-9315	2017-04-118	5	TR
MS24171D1	2016-04-106	2	us
MS24171D1	2015-08-229	2	EC
72644654	2014-12-343	1	United States
5945-00-660-9315	2014-10-295	2	TH
5945-00-660-9315	2014-10-295	3	TH
5945-00-660-9315	2014-10-295	1	TH
MS24171D1	2014-10-295	1	TH
MS24171D1	2014-05-127	4	EC
MS24171D1	2013-04-113	1	EG
5945-00-660-9315	2013-04-108	100	IN
MS24171D1	2013-04-102	1	United States
72644654	2013-02-46	25	United States
72644654	2012-12-355	55	KR
MS24171D1	2012-11-306	20	Sweden
7264-4654	2012-07-195	15	United States
MS24171D1	2012-06-170	1	Indonesia
MS24171D1	2012-05-136	20	ZA
MS24171D1	2012-03-72	3	BH
MS24171D1	2011-11-318	2	United States
MS24171D1	2011-11-314	2	United States
MS24171D1	2011-09-258	3	United Kingdom
MS24171D1	2011-09-251	2	us
MS24171D1	2011-08-235	1	ZA
MS24171D1	2011-08-221	5	United Kingdom
MS24171D1	2011-07-210	1	US
MS24171D1	2011-07-210	1	US
MS24171D1	2011-05-129	5	Indonesia
MS24171D1	2011-03-69	5	ID
MS24171D1	2011-02-56	6	US
MS24171D1	2011-02-54	2	IT
MS24171D1	2011-02-48	1	Indonesia
MS24171D1	2011-02-35	4	CO
MS24171D1	2010-12-342	4	US
MS24171D1	2010-11-323	5	United Kingdom
MS24171D1	2010-07-205	2	US
MS24171D1	2010-06-158	30	United States
MS24171D1	2010-04-110	2	US
MS24171D1	2010-02-51	21	US
5945-00-660-9315	2009-04-98	534	DIBBS
MS24171D1	2009-02-43	1	Malaysia
5945-00-660-9315	2008-05-130	685	DIBBS
MS24171D1	2008-04-115	2	US
MS24171D1	2007-12-339	1	US
7264570	2007-10-276	2	US
5945-00-660-9315	2007-08-214	51	DIBBS
MS24171D1	2007-02-52	2	KE
MS24171D1	2006-10-295	1	Turkey
MS24171D1	2006-10-294	1	Turkey
MS24171D1	2006-10-294	1	Turkey
MS24171D1	2006-08-237	4	us
5945-00-660-9315	2006-06-180	548	DIBBS
5945-00-660-9315	2006-06-159	249	DIBBS
5945-00-660-9315	2006-05-139	897	DIBBS
72644654	2006-05-138	1	US
MS24171D1	2006-05-138	1	US
MS24171D1	2006-05-124	5	US

Cross Reference | NSN 5945-00-660-9315

Part Number	Cage Code	Manufacturer
154-0183-88	93568	HARSCO CORP BMY-COMBAT SYSTEMS DIV
1637412	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
30AA13	19723	LOCKHEED ELECTRONICS CO INC INFORMATION ENGINEERING DIV
3370-2	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
452-1499	11530	LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION
507-4-01597-000	K2523	EATON AEROSPACE LTD
507-4-01597-000	U2982	BAE SYSTEMS DEFENCE SYSTEMS LTD
5945006609315	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
595-7264-570	81336	CHIEF OF ENGINEERS DEPT OF ARMY
5M.4751.221.59	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
6041H70A	15605	EATON CORP OPNS & TECHNICAL CENTER
6041H70A	81640	EATON CORPORATION DBA FLUID POWER DIV
724879003700	A1140	OTO MELARA SPA UNITA'' BREDA MECCANICA BRESCIANA
7264-4654	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
7264-570	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
825RL0194	0291H	ROSOMAK S.A
981-022	02032	HOLLINGSWORTH JOHN R CO
B11386-8	19204	ARMY UNITED STATES DEPARTMENT OF THE
D18992-62	07860	BOGUE ELECTRIC MANUFACTURING CO
H22-80-203	19204	ARMY UNITED STATES DEPARTMENT OF THE
MIL-PRF-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS24171-D1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24171D1	K0058	AGUSTAWESTLAND LTD
Q531541051	S3092	RHEINMETALL AIR DEFENCE AG

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-00-660-9315

Compare

Related Products | NSN 5945-00-660-9315

5945-00-698-0920, 5945-00-841-3254, 5945-00-841-9100, 5945-01-092-4736, 5970-01-591-5557

Technical Data | NSN 5945-00-660-9315

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	1 POLE, SINGLE THROW, NORMALLY OPEN, DOUBLE MAKE, MOMENTARY ACTION
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	200.0 AMPERES DC RESISTIVE LOAD 100.0 AMPERES DC INDUCTIVE LOAD 200.0 AMPERES DC MOTOR LOAD
ARC QUENCHING METHOD	AIR
COIL QUANTITY	1
WINDING QUANTITY	1
WINDING DC RESISTANCE RATING	59.0 OHMS MINIMUM SINGLE WINDING
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING
TERMINAL TYPE AND QUANTITY	4 THREADED STUD ALL FUNCTIONS
TIME DELAY	0.025 SECONDS MAXIMUM FIXED OPERATE TIME 0.01 SECONDS MAXIMUM FIXED RELEASE TIME
DUTY TYPE	CONTINUOUS
OVERALL LENGTH	4.500 INCHES MAXIMUM
OVERALL WIDTH	2.000 INCHES MAXIMUM
OVERALL HEIGHT	3.710 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY	2 UNTHREADED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	IN-LINE SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	3.000 INCHES NOMINAL SINGLE MOUNTING FACILITY
UNTHREADED MOUNTING HOLE DIAMETER	0.266 INCHES NOMINAL SINGLE MOUNTING FACILITY
TEST DATA DOCUMENT	81349-MIL-R-6106 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS24171 GOVERNMENT STANDARD
III PURPOSE FOR WHICH DESIGNED	GENERAL
III CUBIC MEASURE	33.390 CUBIC INCHES
III UNPACKAGED UNIT WEIGHT	1.330 POUNDS
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III CASE MATERIAL	METAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-6106
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS24171-D1

Restrictions/Controls & Freight Information | NSN 5945-00-660-9315

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-00-660-9315

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	O	Reparable item. When uneconomically reparable, condemn and dispose of at organization level.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
