NSN 5945-00-686-6877 MS241660D1, MS24166D1, MS24166-D1

Product Details | ELECTROMAGNETIC RELAY

5945-00-686-6877 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS241660D1, MS24166D1, MS24166-D1, Z00.N7733062466TBM, Z00N7733062466TBM, EE36972, GHN20017001, GHN20017-001 , MILPRF6106, MIL-PRF-6106, MILR6106, MIL-R-6106, 11697809, 283A425P1, 3070959, 307-0959, 307P959, 5M.4759.220.57, 5M475922057, 6041H200, 6041-H200, 6416017, 70644653, 7064-4653, 825RL0082, 5945-00-686-6877, 00-686-6877, 5945006866877, 006866877

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-686-6877	32512 ( RELAY, ELECTROMAGNETIC )

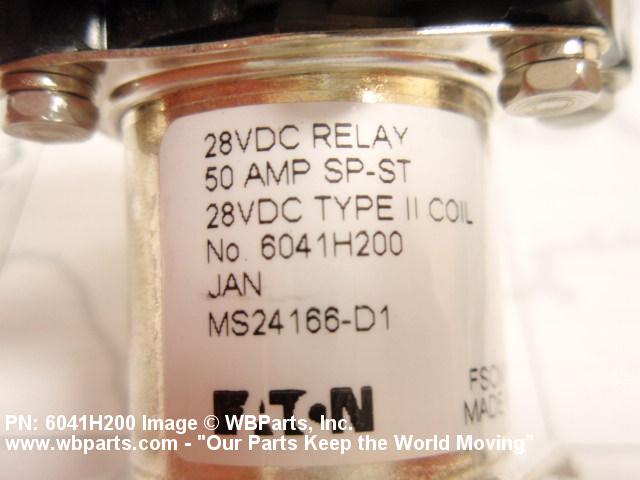

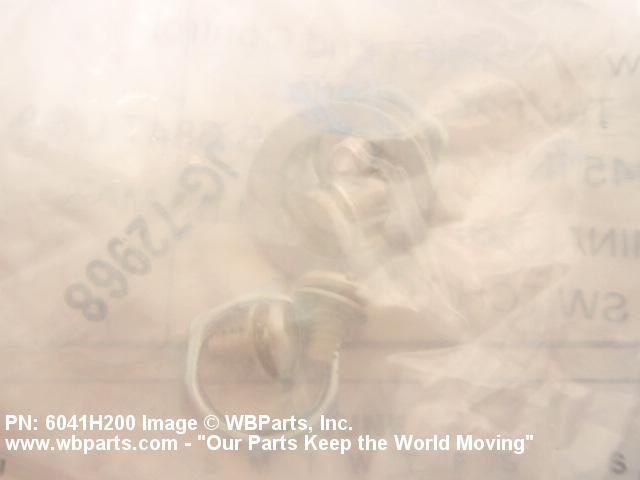

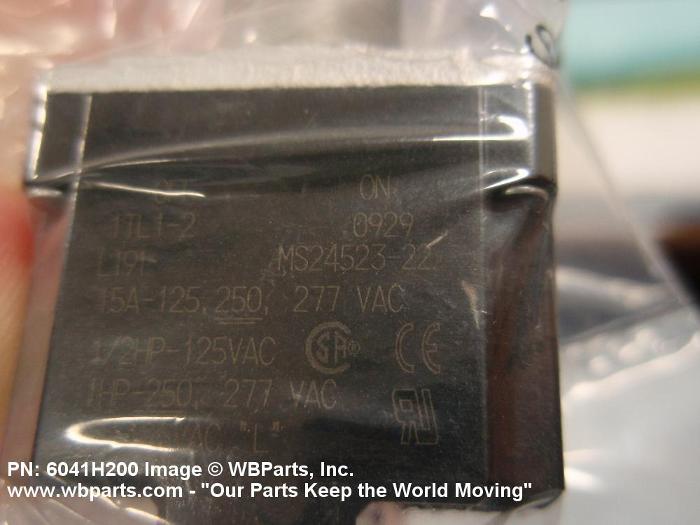

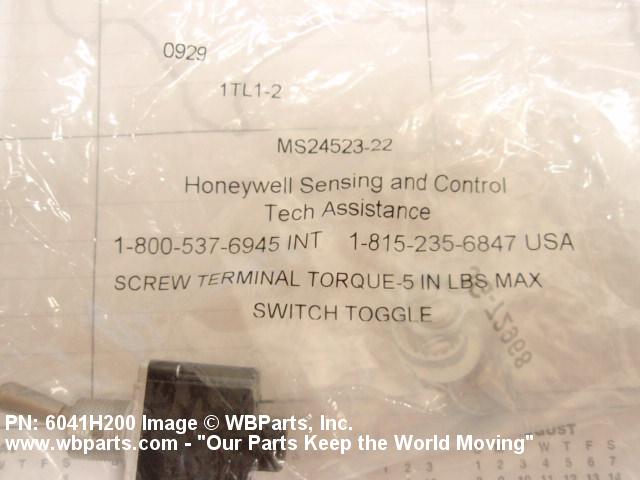

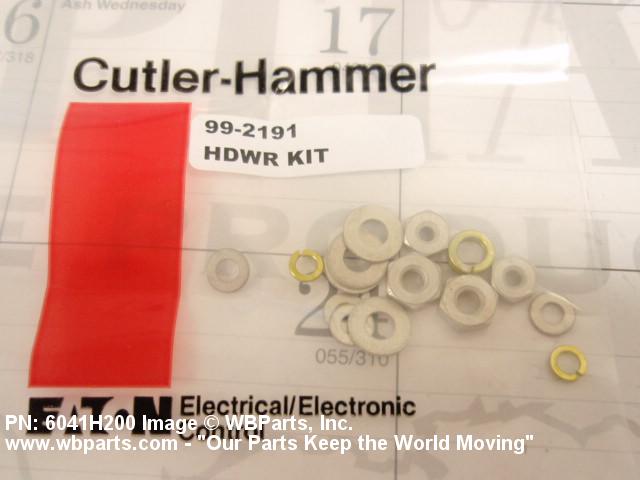

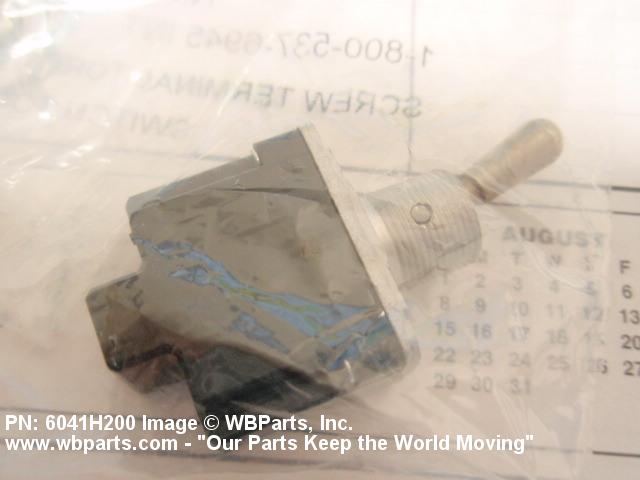

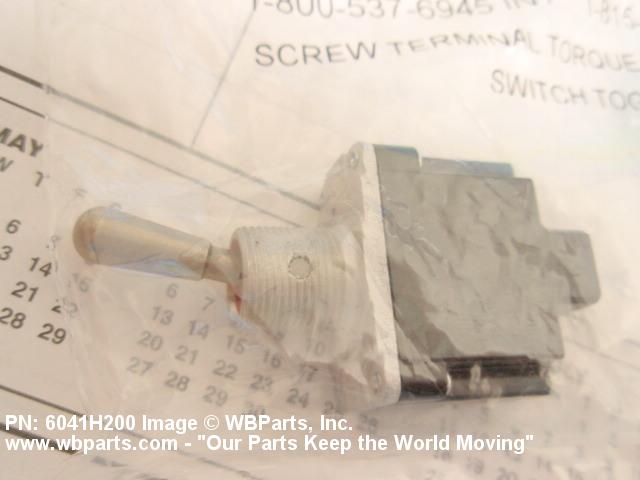

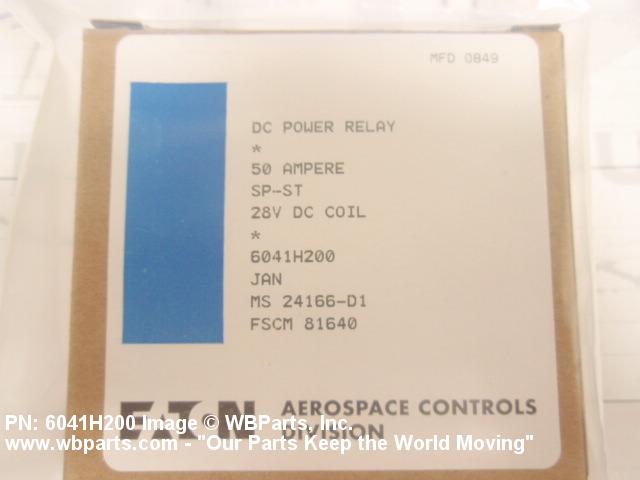

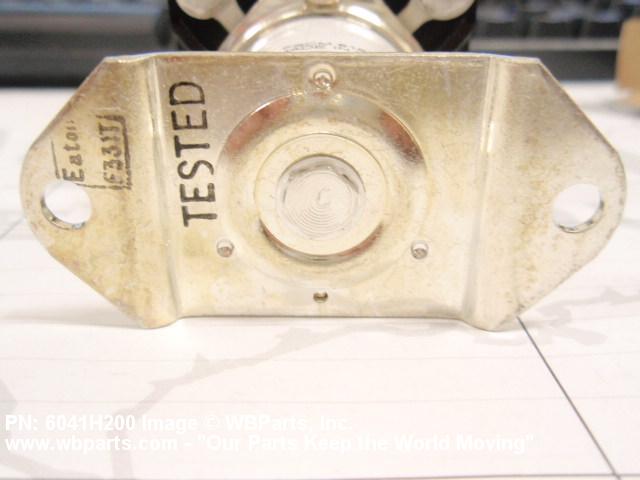

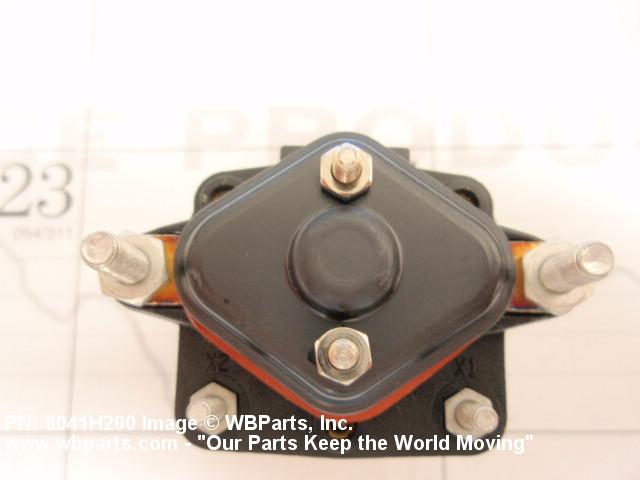

Drawings & Photos | NSN 5945-00-686-6877

Part Number	Request Date	QTY	Origin
5945-00-686-6877	2025-08-230	154	DIBBS
5945-00-686-6877	2025-08-219	154	DIBBS
5945-00-686-6877	2025-06-164	5	AE
MS24166D1	2025-03-86	1	United States
5945-00-686-6877	2025-02-56	1	United States
5945-00-686-6877	2025-02-56	1	United States
5945-00-686-6877	2023-12-362	94	DIBBS
5945-00-686-6877	2023-08-241	108	DIBBS
5945-00-686-6877	2023-05-150	28	DIBBS
5945-00-686-6877	2023-05-138	28	DIBBS
5945-00-686-6877	2023-03-75	1	us
5945-00-686-6877	2022-10-300	168	DIBBS
5945-00-686-6877	2022-08-223	7	DIBBS
5945-00-686-6877	2022-07-209	329	DIBBS
5945-00-686-6877	2022-03-90	165	DIBBS
70644653	2021-12-354	2	US
5945-00-686-6877	2021-11-318	89	DIBBS
5945-00-686-6877	2021-02-49	245	DIBBS
5945-00-686-6877	2021-02-38	245	DIBBS
5945-00-686-6877	2021-01-14	208	DIBBS
MS24166D1	2020-12-349	1	SA
MS24166D1	2020-11-309	20	United States
5945-00-686-6877	2020-11-309	20	United States
5945-00-686-6877	2020-10-282	53	DIBBS
5945-00-686-6877	2020-09-258	20	US
5945-00-686-6877	2020-03-79	46	DIBBS
5945-00-686-6877	2019-06-169	98	DIBBS
5945-00-686-6877	2019-03-67	7	MANUAL
MS24166D1	2019-02-42	2	Lebanon
MS24166D1	2019-02-42	2	Lebanon
5945-00-686-6877	2018-12-358	1	PK
5945-00-686-6877	2018-09-256	139	DIBBS
5945-00-686-6877	2018-01-30	10	Pakistan
MS24166D1	2017-10-277	13	US
MS24166D1	2017-03-83	1	SG
5945-00-686-6877	2014-10-295	2	TH
5945-00-686-6877	2014-10-295	5	TH
5945-00-686-6877	2014-04-99	245	DIBBS
5945-00-686-6877	2013-07-195	135	DIBBS
5945-00-686-6877	2013-04-108	30	IN
MS24166D1	2012-08-222	1	Thailand
MS24166D1	2012-06-178	1	NL
MS24166D1	2012-06-172	1	Netherlands
5945-00-686-6877	2012-04-114	1	MANUAL
MS24166-D1	2012-04-114	1	Taiwan
MS24166D1	2012-04-107	5	Taiwan
5945-00-686-6877	2012-01-05	96	DIBBS
5945-00-686-6877	2011-09-244	103	DIBBS
5945-00-686-6877	2011-08-213	82	DIBBS
MS24166D1	2011-06-166	1	US
5945-00-686-6877	2011-06-165	1	KW
5945-00-686-6877	2011-06-165	1	KW
5945-00-686-6877	2011-04-116	5	Taiwan
MS24166D1	2011-04-98	1	CO
MS24166D1	2011-02-55	14	US
MS24166D1	2010-08-218	20	MX
5945-00-686-6877	2010-04-95	5	DIBBS
MS24166D1	2010-02-32	1	Japan
5945-00-686-6877	2010-01-26	1	United States
MS24166D1	2008-05-134	200	IL
5945-00-686-6877	2008-04-115	50	DIBBS
5945-00-686-6877	2008-03-84	81	DIBBS
MS24166D1	2008-03-74	16	US
MS24166D1	2008-02-38	2	BG
5945-00-686-6877	2007-12-354	104	DIBBS
MS24166D1	2007-11-325	16	US
5945-00-686-6877	2007-11-317	181	DIBBS
70644653	2007-06-173	4	us
5945-00-686-6877	2007-05-127	163	DIBBS
70644653	2007-04-100	2	France
5945-00-686-6877	2007-03-80	176	DIBBS

Cross Reference | NSN 5945-00-686-6877

Part Number	Cage Code	Manufacturer
11697809	02731	MCDONNELL DOUGLAS HELICOPTER CO INC
283A425P1	01526	GENICOM CORP
283A425P1	1DUQ5	COMMUNICATIONS INSTRUMENTS INC DIV OF CII TECHNOLOGIES
307-0959	44940	CUMMINS POWER GENERATION INC.
307P959	44940	CUMMINS POWER GENERATION INC.
5945006866877	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5M.4759.220.57	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
6041-H200	27192	DRS POWER & CONTROL TECHNOLOGIES, INC.
6041H200	81640	EATON CORPORATION DBA FLUID POWER DIV
6416017	001JK	EMBRAER S/A
6416017	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
7064-4653	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
7064-4653	D0080	LEACH INTERNATIONAL GERMANY GMBH
EE36972	45152	OSHKOSH CORPORATION
MIL-PRF-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS24166-D1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS241660D1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
Z00.N7733062466TBM	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-00-686-6877

Compare

Related Products | NSN 5945-00-686-6877

5945-00-690-0472, 5945-00-770-4356, 5945-00-844-6004, 5945-00-960-8722, 5945-01-154-6696

Technical Data | NSN 5945-00-686-6877

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	1 POLE, SINGLE THROW, NORMALLY OPEN, DOUBLE MAKE, MOMENTARY ACTION
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	50.0 AMPERES DC RESISTIVE LOAD 50.0 AMPERES DC INDUCTIVE LOAD 25.0 AMPERES DC LAMP LOAD 50.0 AMPERES DC MOTOR LOAD
ARC QUENCHING METHOD	AIR
COIL QUANTITY	1
WINDING QUANTITY	1
WINDING DC RESISTANCE RATING	94.0 OHMS NOMINAL SINGLE WINDING
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING
TERMINAL TYPE AND QUANTITY	4 THREADED STUD ALL FUNCTIONS
TIME DELAY	0.02 SECONDS MAXIMUM FIXED OPERATE TIME 0.01 SECONDS MAXIMUM FIXED RELEASE TIME
DUTY TYPE	CONTINUOUS
OVERALL LENGTH	2.750 INCHES MAXIMUM
OVERALL WIDTH	2.125 INCHES MAXIMUM
OVERALL HEIGHT	2.625 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	2 UNTHREADED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	IN-LINE SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	2.188 INCHES NOMINAL SINGLE MOUNTING FACILITY
UNTHREADED MOUNTING HOLE DIAMETER	0.219 INCHES NOMINAL SINGLE MOUNTING FACILITY
TEST DATA DOCUMENT	81349-MIL-R-6106 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS24166 GOVERNMENT STANDARD
III PURPOSE FOR WHICH DESIGNED	GENERAL
III CUBIC MEASURE	15.339 CUBIC INCHES
III UNPACKAGED UNIT WEIGHT	0.600 POUNDS
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III CASE MATERIAL	METAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-6106
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS24166-D1

Restrictions/Controls & Freight Information | NSN 5945-00-686-6877

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-00-686-6877

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
