NSN 5945-00-768-0120 ML1916, ML-1916, 72RJZ92648
Product Details | ELECTROMAGNETIC RELAY
5945-00-768-0120 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: ML1916, ML-1916, 72RJZ92648, 72RJZ93508, 9174664, 1512000 , 5945-00-768-0120, 00-768-0120, 5945007680120, 007680120
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-768-0120 | 32512 ( RELAY, ELECTROMAGNETIC ) |

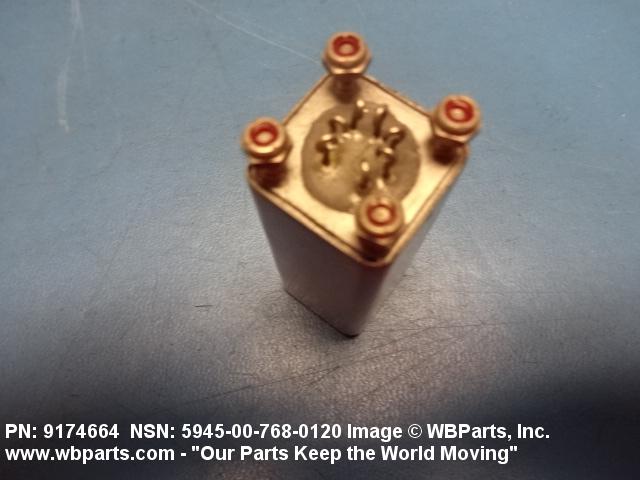

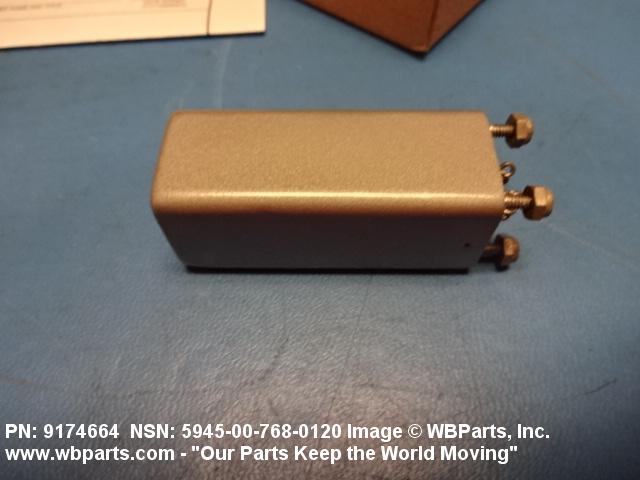

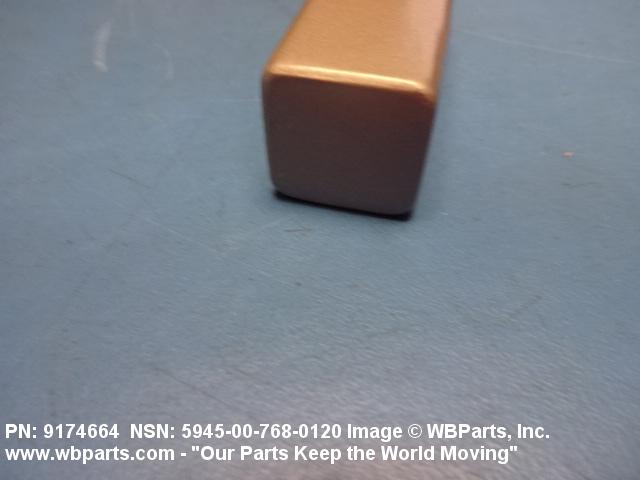

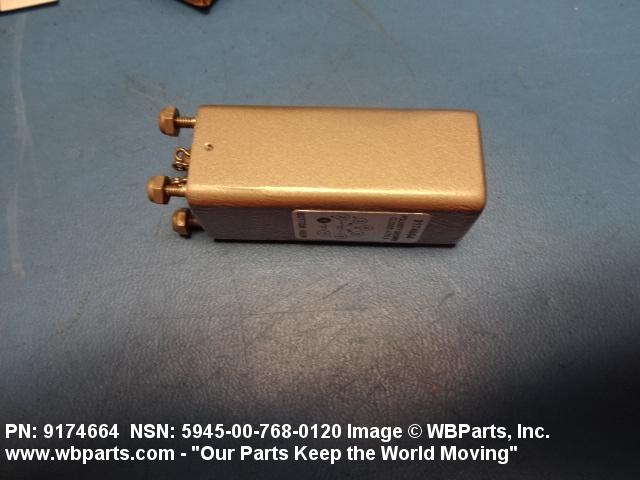

Drawings & Photos | NSN 5945-00-768-0120
Demand History | NSN 5945-00-768-0120
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-768-0120 | 2017-05-150 | 2 | United States |
| 5945-00-768-0120 | 2017-04-110 | 2 | DIBBS |
| 5945-00-768-0120 | 2017-01-10 | 2 | DIBBS |
| 5945-00-768-0120 | 2015-02-48 | 2 | DIBBS |
| 5945-00-768-0120 | 2014-07-203 | 1 | DIBBS |
| 5945-00-768-0120 | 2013-03-71 | 2 | DIBBS |
| 5945-00-768-0120 | 2012-10-303 | 1 | DIBBS |
| 5945-00-768-0120 | 2012-10-303 | 2 | DIBBS |
| 5945-00-768-0120 | 2012-10-303 | 4 | DIBBS |
Cross Reference | NSN 5945-00-768-0120
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1512000 | G1005 | SIELMAN S.A. DBA SIELMAN S.A. |
| 72RJZ92648 | 78277 | SIGMA INSTRUMENTS INC |
| 72RJZ93508 | 00779 | TYCO ELECTRONICS CORPORATION |
| 72RJZ93508 | 58614 | TYCO ELECTRONICS CORPORATION DBA CII TECHNOLOGIES |
| 72RJZ93508 | 78277 | SIGMA INSTRUMENTS INC |
| 9174664 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| ML-1916 | 52401 | PRECISION SWITCHING INC DBA CENTURY WHEELS RESEARCH DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-768-0120
Related Products | NSN 5945-00-768-0120
Technical Data | NSN 5945-00-768-0120
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 500.0 MILLIAMPERES AC AND 500.0 MILLIAMPERES DC RESISTIVE LOAD |
| COIL QUANTITY | 2 |
| WINDING QUANTITY | 2 |
| WINDING DC RESISTANCE RATING | 4.0 KILOHMS NOMINAL SINGLE WINDING |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 10.0 VOLTS DC 25 DEG CELSIUS ALL WINDINGS |
| NOMINAL OPERATING CURRENT RATING AND TYPE | 1.0 MILLIAMPERES DC ALL WINDINGS |
| TERMINAL TYPE AND QUANTITY | 7 PIN ALL FUNCTIONS |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | HERMETIC |

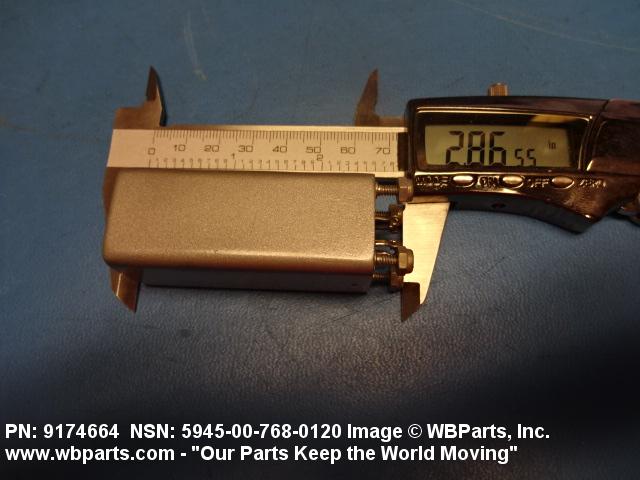

| OVERALL LENGTH | 2.875 INCHES NOMINAL |

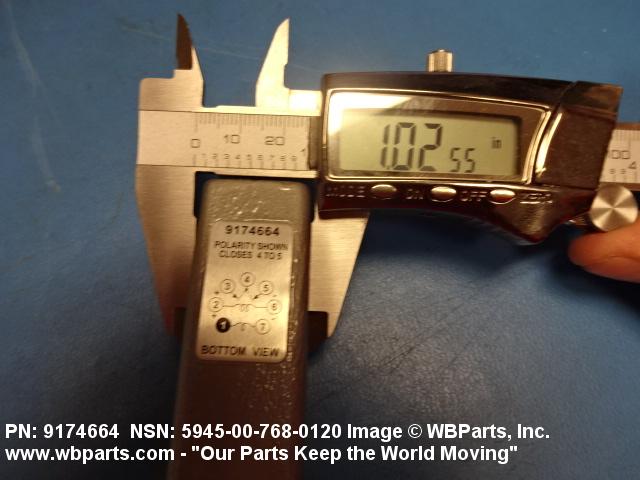

| OVERALL WIDTH | 1.031 INCHES NOMINAL |

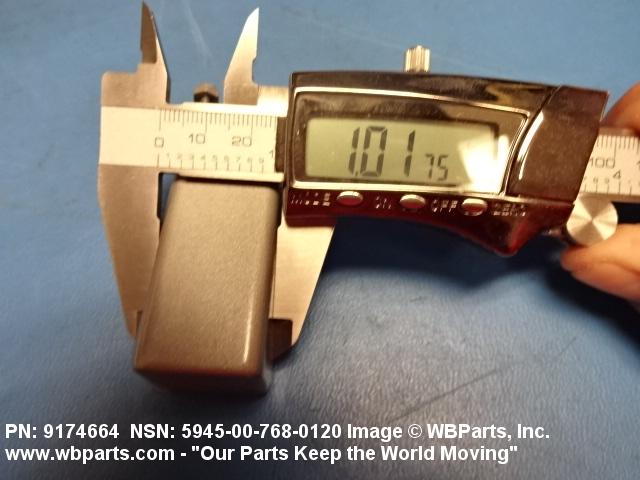

| OVERALL HEIGHT | 1.031 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED STUD SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | RECTANGULAR SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.696 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.696 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNC SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.112 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |

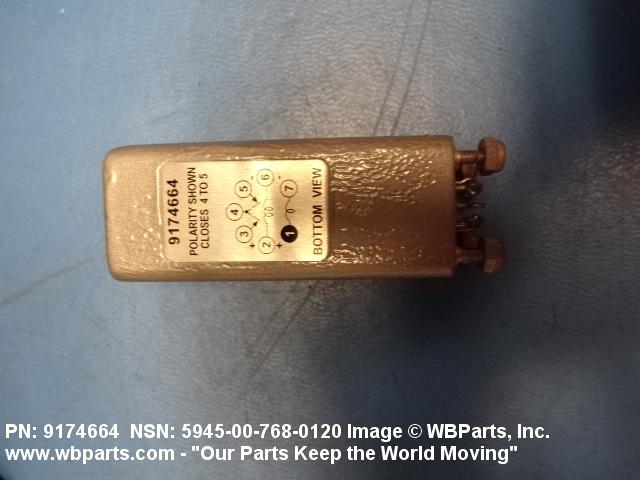

| FEATURES PROVIDED | POLARIZED AND LATCHING CONTACTS |
Restrictions/Controls & Freight Information | NSN 5945-00-768-0120
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-768-0120
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
