NSN 5945-00-799-2713 6000025001, 600-0025-001, 8SD8181
Product Details | ELECTRICAL SOLENOID
5945-00-799-2713 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: 6000025001, 600-0025-001, 8SD8181, 8SD818-1, 5945-00-799-2713, 00-799-2713, 5945007992713, 007992713
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-799-2713 | 00310 ( SOLENOID, ELECTRICAL ) |

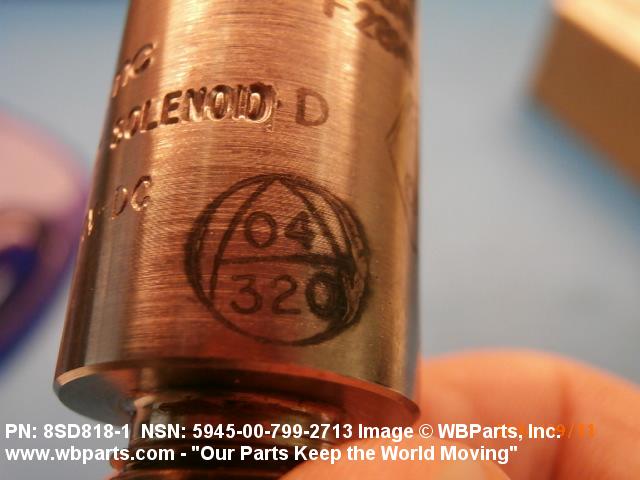

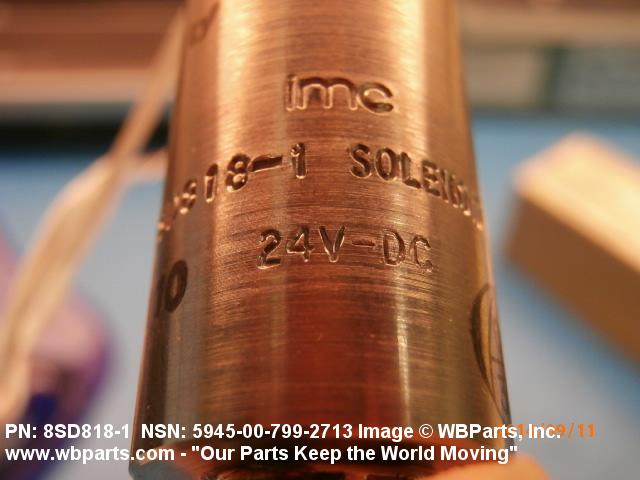

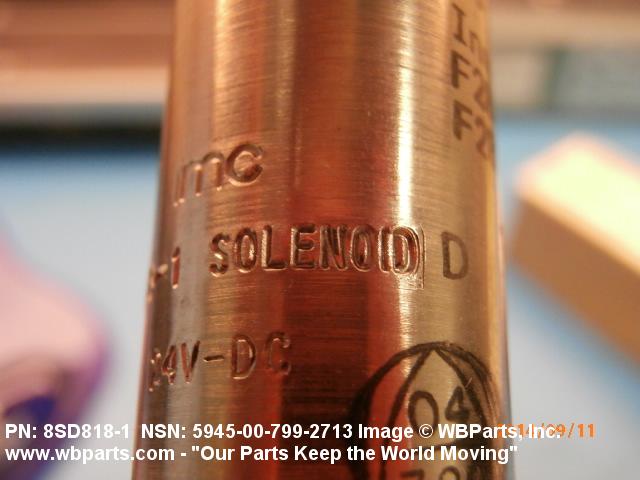

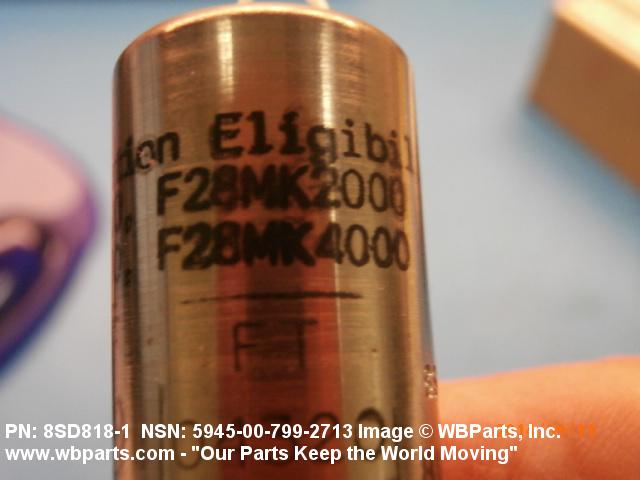

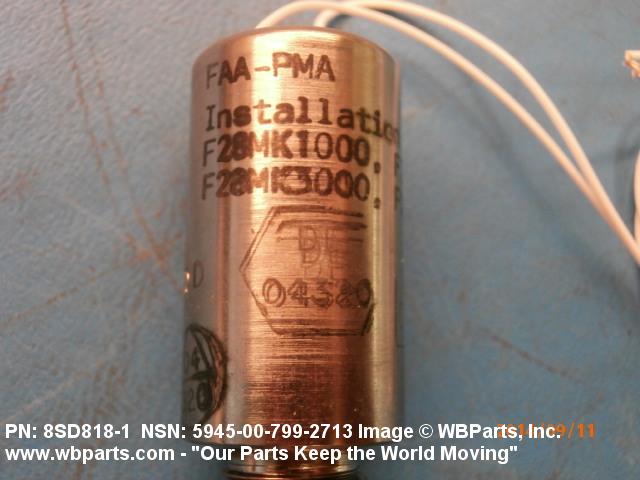

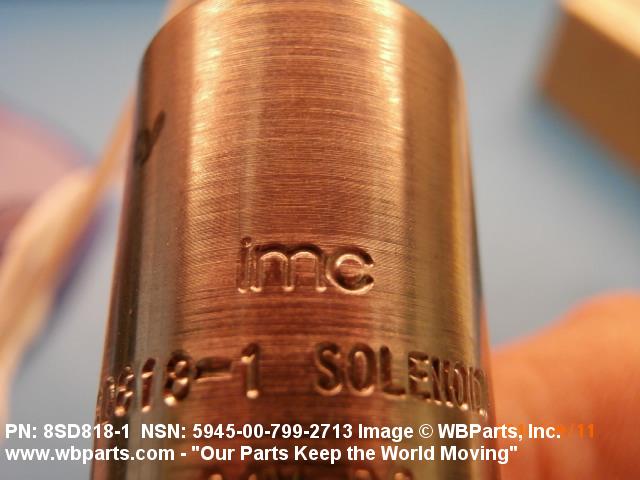

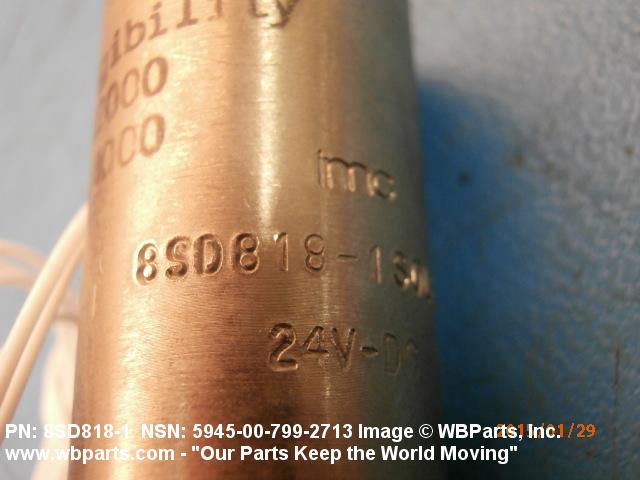

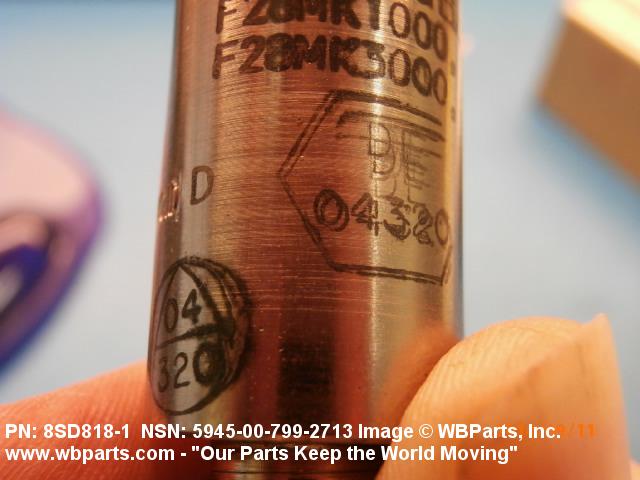

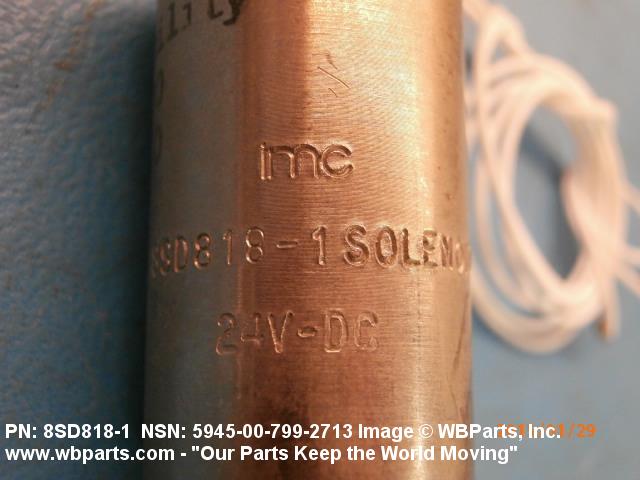

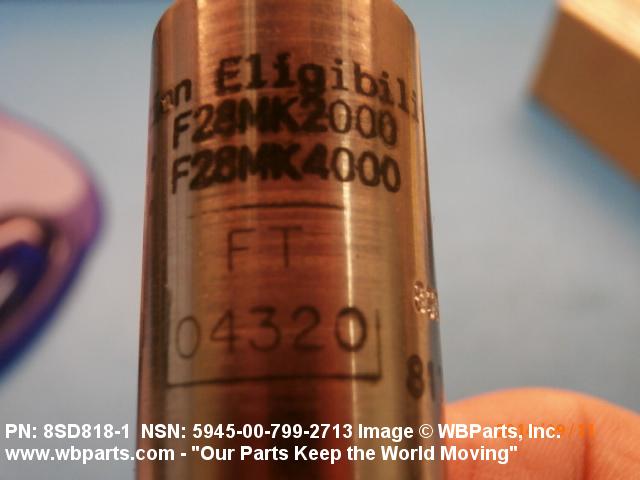

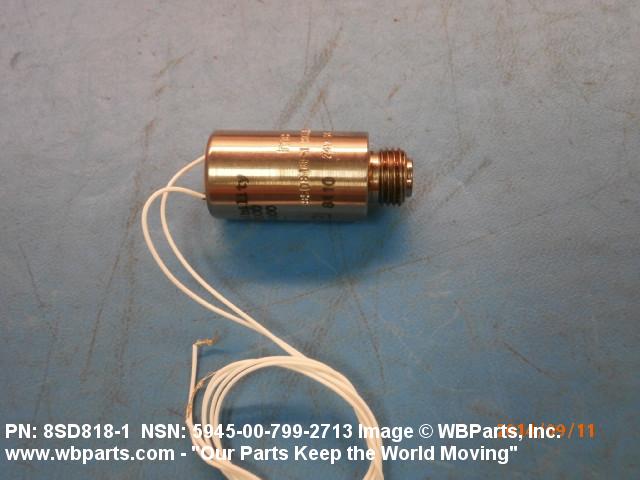

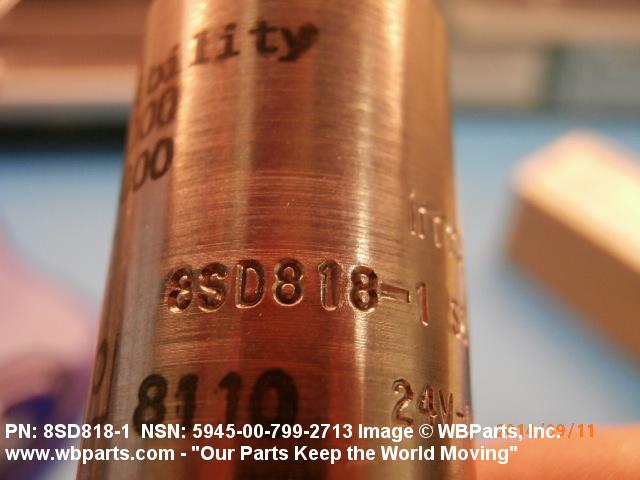

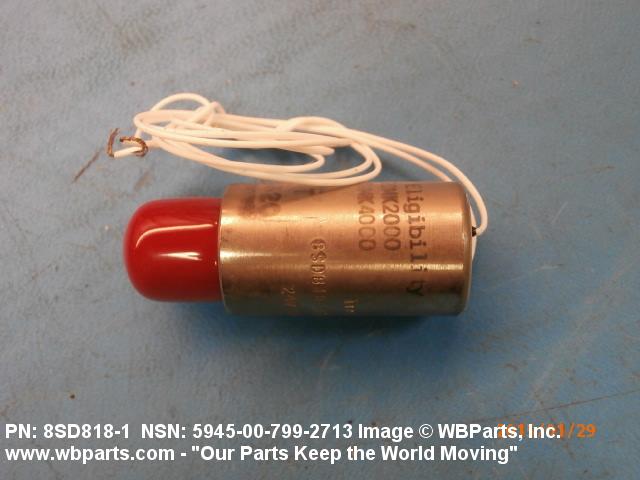

Drawings & Photos | NSN 5945-00-799-2713
Demand History | NSN 5945-00-799-2713
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-799-2713 | 2025-06-163 | 4 | US |
| 8SD8181 | 2023-07-200 | 3 | CN |
| 5945-00-799-2713 | 2022-09-257 | 3 | US |
| 8SD8181 | 2022-08-243 | 3 | HK |
| 8SD8181 | 2022-06-175 | 3 | US |
| 6000025001 | 2022-06-172 | 5 | US |
| 5945-00-799-2713 | 2022-03-87 | 5 | us |
| 5945-00-799-2713 | 2022-02-49 | 5 | US |
| 6000025001 | 2021-08-222 | 9 | BR |
| 8SD8181 | 2021-08-222 | 9 | BR |
| 5945-00-799-2713 | 2021-08-214 | 6 | US |
| 5945-00-799-2713 | 2021-07-189 | 6 | US |
| 5945-00-799-2713 | 2021-06-180 | 6 | BR |
| 5945-00-799-2713 | 2021-03-88 | 11 | BR |
| 5945-00-799-2713 | 2020-08-233 | 5 | IN |
| 8SD8181 | 2019-10-303 | 1 | Philippines |
| 8SD8181 | 2019-10-301 | 1 | Philippines |
| 5945-00-799-2713 | 2019-03-86 | 2 | United States |
| 5945-00-799-2713 | 2019-03-64 | 2 | IL |
| 5945-00-799-2713 | 2016-02-55 | 4 | US |
| 6000025001 | 2015-05-148 | 20 | US |
| 8SD8181 | 2015-05-148 | 20 | US |
| 5945-00-799-2713 | 2015-05-128 | 20 | US |
| 6000025001 | 2015-04-94 | 20 | US |
| 8SD8181 | 2015-04-94 | 20 | US |
| 5945-00-799-2713 | 2015-01-15 | 10 | United States |
| 5945-00-799-2713 | 2014-11-323 | 21 | United States |
| 5945-00-799-2713 | 2014-10-276 | 25 | US |
| 5945-00-799-2713 | 2014-09-268 | 20 | US |
| 6000025001 | 2014-07-203 | 21 | United States |
| 8SD818-1 | 2013-02-46 | 18 | |
| 8SD8181 | 2012-11-325 | 3 | United States |
| 5945-00-799-2713 | 2012-11-311 | 3 | United States |
| 8SD8181 | 2012-03-67 | 6 | United States |
| 5945-00-799-2713 | 2010-07-190 | 12 | US |
| 5945-00-799-2713 | 2010-04-119 | 1 | United States |
| 8SD8181 | 2008-02-51 | 15 | IL |
| 8SD8181 | 2008-01-20 | 16 | IL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-00-799-2713
Technical Data | NSN 5945-00-799-2713
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 24 CYLINDRICAL FRAME |

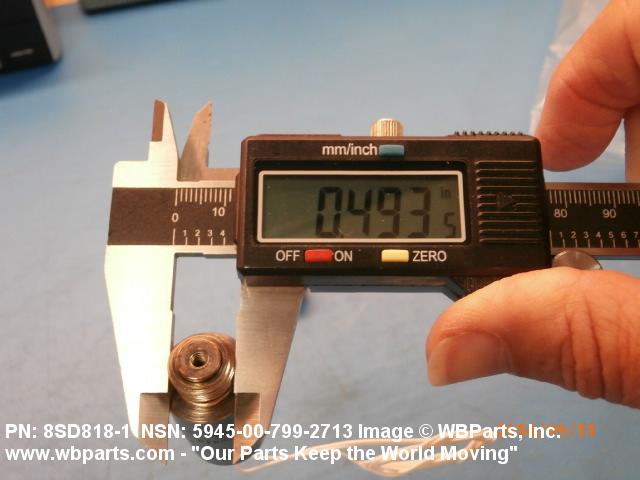

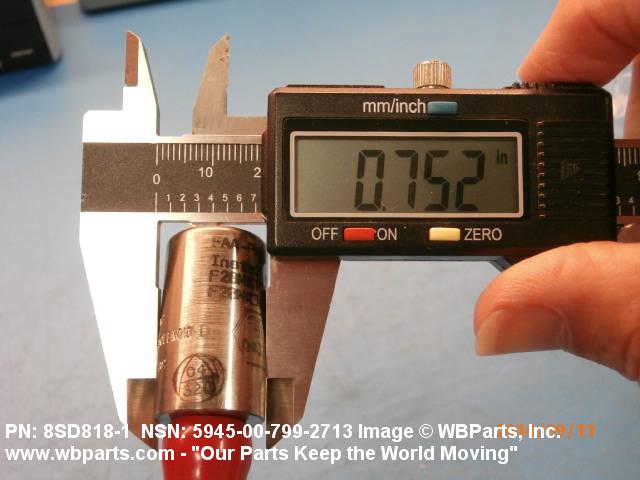

| BODY DIAMETER | 0.750 INCHES MAXIMUM |

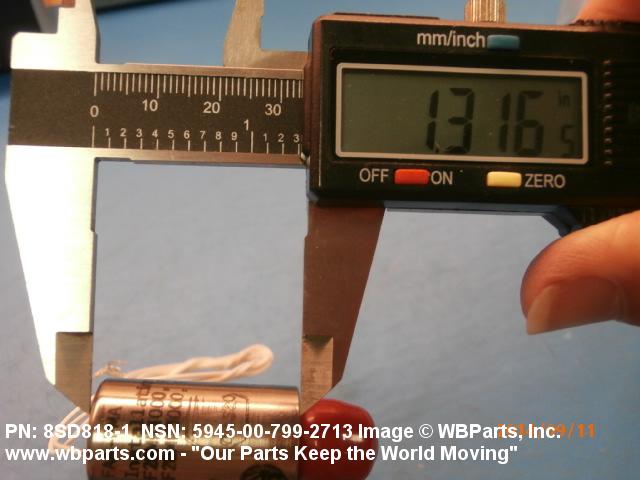

| BODY LENGTH | 1.312 INCHES NOMINAL |
| MAGNETIC COIL QUANTITY | 1 |
| VOLTAGE RATING IN VOLTS | 30.0 DC MAXIMUM |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PULL |
| LINEAR FORCE DELIVERED | 3.50 POUNDS |

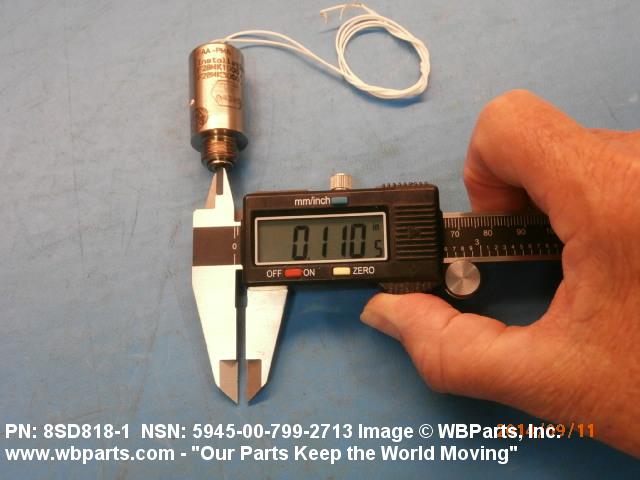

| ENERGIZING STROKE MAXIMUM LENGTH | 0.120 INCHES |

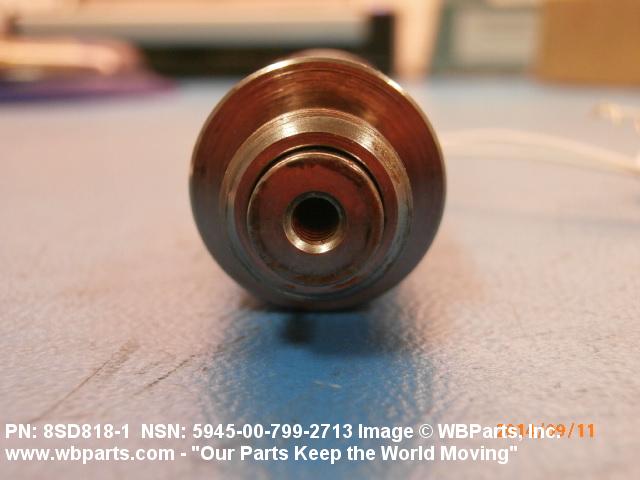

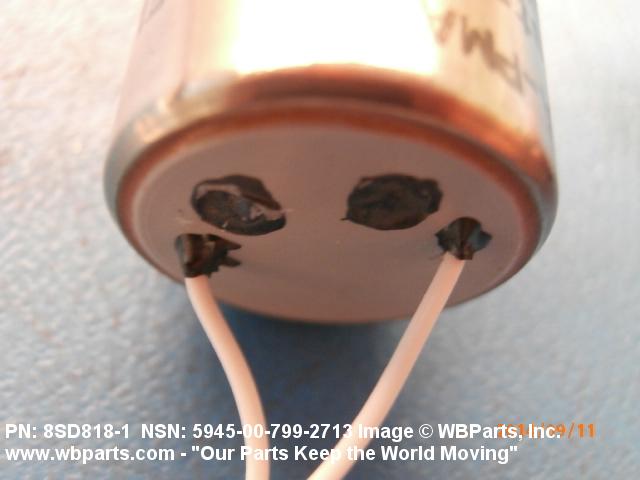

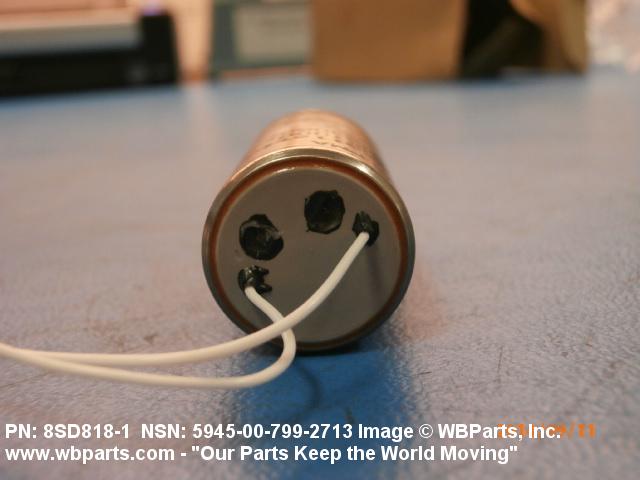

| POWER TAKEOFF CONNECTION TYPE | INTERNAL THREADS |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNC POWER TAKEOFF FACILITY HOLE UNF MOUNTING FACILITY BUSHING |
| NOMINAL THREAD SIZE | 0.138 INCHES POWER TAKEOFF FACILITY HOLE 0.500 INCHES MOUNTING FACILITY BUSHING |
| THREAD CLASS | ANY ACCEPTABLE POWER TAKEOFF FACILITY HOLE ANY ACCEPTABLE MOUNTING FACILITY BUSHING |
| THREAD QUANTITY PER INCH | 32 POWER TAKEOFF FACILITY HOLE 20 MOUNTING FACILITY BUSHING |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LOCATION | END OPPOSITE ACTUATOR |
| INCLOSURE TYPE | FULLY INCLOSED |
| III MAXIMUM OPERATING TEMP | 160.0 DEG FAHRENHEIT |
Restrictions/Controls & Freight Information | NSN 5945-00-799-2713
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063100 | SOLENOIDS/PARTS W/WO ARMATURES |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
